W-Audio DTM 8-Way Wireless UHF Headset & Lapel Microphone System + Flightcase (606.0MHz–614.0MHz)
DETAILS
W-Audio DTM 8-Way Wireless UHF Headset & Lapel Microphone System V2 (606.0MHz–614.0MHz) With 6U Flightcase.
The W-Audio DTM 8-Way Wireless UHF Headset & Lapel Microphone System V2 is a professional multi-channel microphone package designed for demanding live sound environments.
Operating within UHF Channel 38 (606.0–614.0MHz), it includes eight beltpack transmitters with both headset and lapel microphones, offering the flexibility to suit a wide range of live applications. This version is ideal for schools, theatres, churches, conference venues and stage productions where reliable, hands-free vocal reproduction is essential.

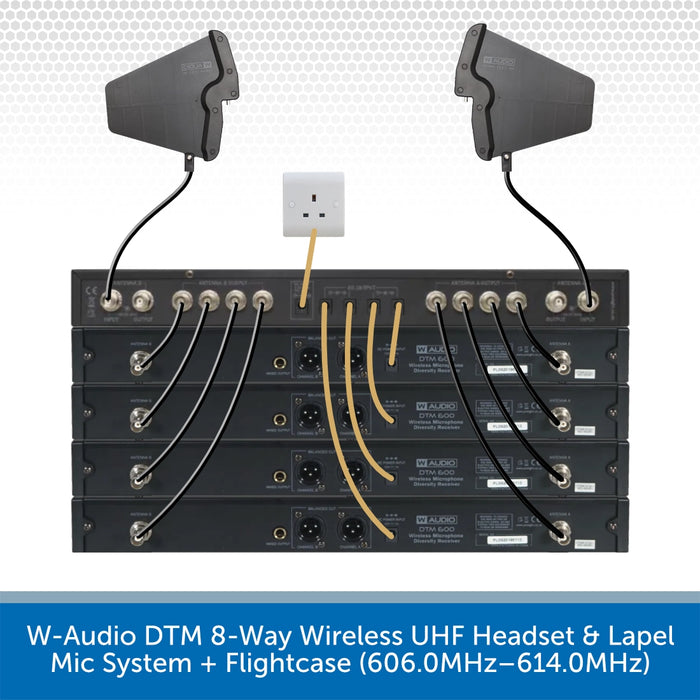

This comprehensive system is supplied with a rugged 6U flightcase, a W-Audio ADS4 UHF Antenna Distributor, and two RPA2 Remote Paddle Antennas. These components ensure optimum wireless signal distribution while keeping your rack setup neat and efficient. By centralising antenna connections and distributing power across the system, the ADS4 and paddle antenna setup helps deliver consistent, dropout-free performance across all channels. Please note that the equipment is not supplied pre-installed in the flightcase to minimise the risk of damage during transit.
Each DTM series receiver features 300 pre-programmed frequencies with auto-scan and IR sync, making it quick and easy to avoid interference and pair transmitters. The receivers include balanced XLR outputs per channel as well as a mixed output via 6.35mm jack, providing flexible connectivity for PA systems, mixers and amplifiers. The included headset microphones are lightweight and unobtrusive, perfect for active presenters or performers, while the discreet lapel microphones are ideal for spoken word, worship and teaching scenarios.
W-Audio DTM 8-Way System + Flightcase Key Features:
- UHF Channel 38 Operation (606.0–614.0MHz) – Licence required for UK use
- Includes Both Headset & Lapel Microphones for each beltpack transmitter
- LCD Display on transmitters and receivers for channel, frequency, RF/AF levels and battery status
- 300 Preset Frequencies with auto-scanning and IR sync
- Phase Lock Loop (PLL) synthesised control
- Balanced XLR Outputs Per Channel and unbalanced mixed output via ¼” jack
- Rackmount Kit Included for 19" installation
- W-Audio ADS4 Antenna Distributor for shared antenna and power distribution
- 2 x RPA2 Remote Paddle Antennas improve signal reception and range
- 6U Heavy-Duty Flightcase for transport and storage (system not pre-installed)

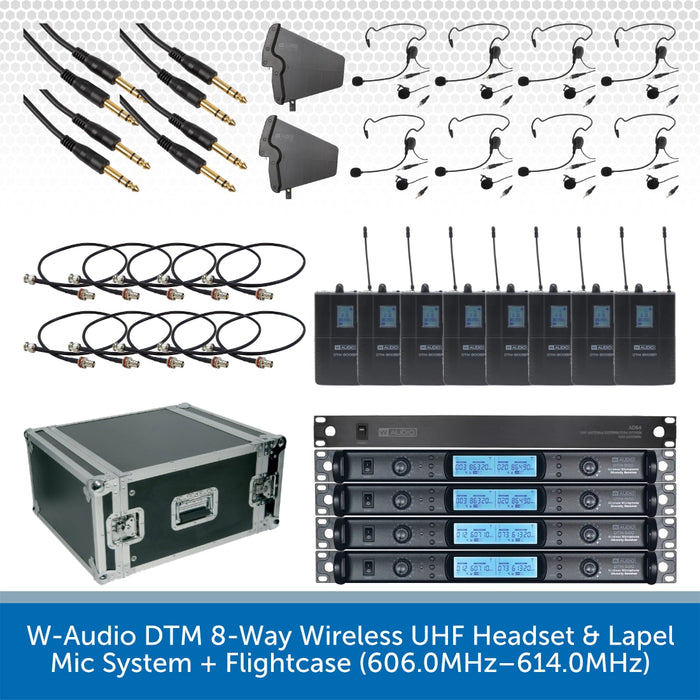

What’s Included:
- 4 x DTM 600 UHF Receivers
- 8 x Wireless Beltpack Transmitters
- 8 x Headset Microphones
- 8 x Lapel/Tie-Clip Microphones
- 4 x Power Supplies
- 4 x ¼” Jack to Jack Connecting Cables
- W-Audio ADS4 Antenna Distributor
- 2 x W-Audio RPA2 Remote Paddle Antennas
- 6U Flightcase (equipment not pre-installed)
- User Manuals
SPECS & DOWNLOADS
W-Audio DTM 600 Specifications
Download the User Manual HERE >
- Frequency response: (handheld): 40Hz-15kHz
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
- Audio output level: 400mV
- Rack Mount: Included
- Dynamic range: 96dB
- Receiver power supply: 12V DC (mains adaptor supplied)
- Software Version: 2
W-Audio DTM 600BP Specifications
- Includes: 1x Transmitter, 1x Headset Mic, 1x Lavalier Mic
- Beltpack dimensions: 100 x 65 x 30mm
- Battery type: 2 x 1.5V AA (not supplied)

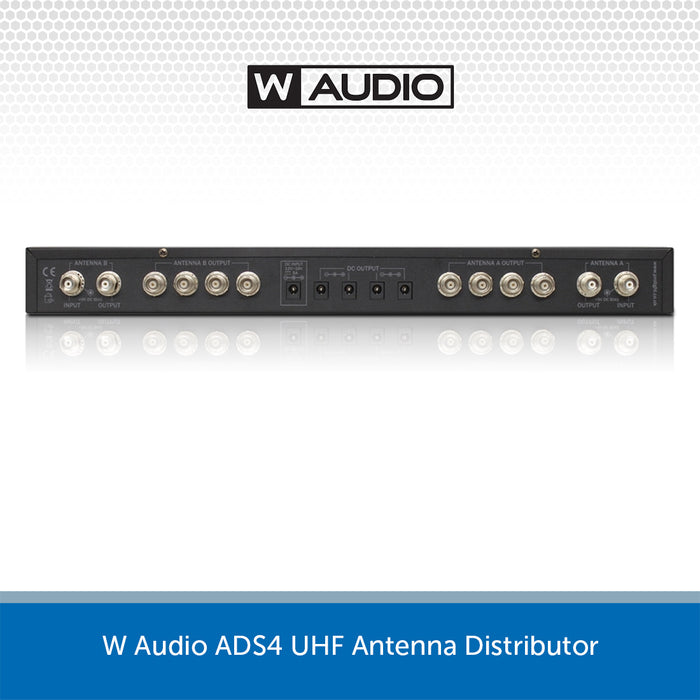

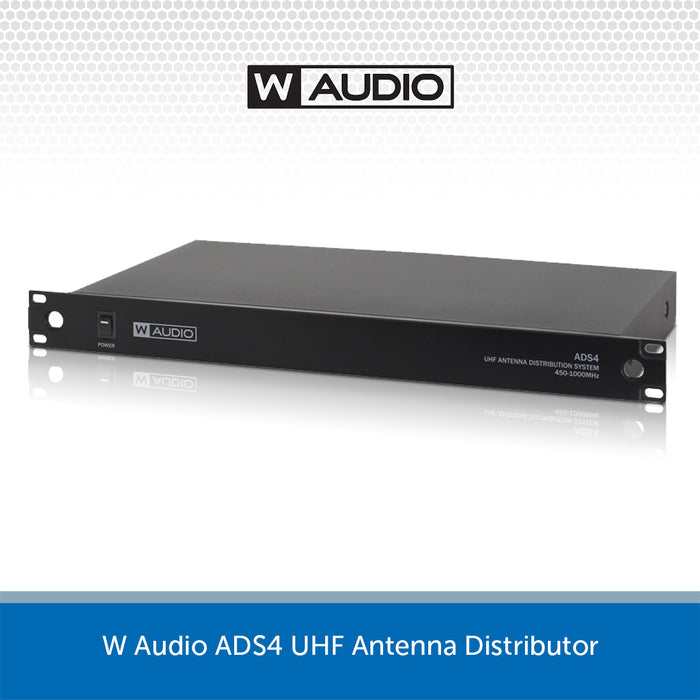

W Audio ADS4 Specifications
- Power supply: DC 8-12V, 5A (adaptor supplied)
- Dimensions: 50 x 480 x 240mm
- Weight: 2.3kg

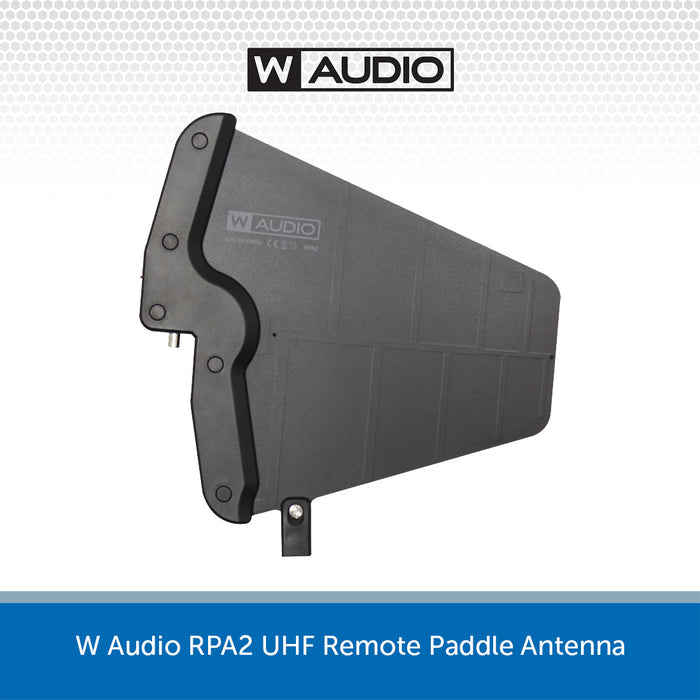

W Audio RPA2 Specifications
- Power supply: 8-12V DC bias via BNC (not supplied)
- Dimensions: 330 x 310 x 30mm
- Weight: 0.5kg
Citronic Flightcase Specifications
- Weight: 12kg
- Fixing rails: Front
- Internal dimensions: 460 x 275 x 500mm
- External dimensions: 635 x 310 x 535mm
- Size: 6U
