W-Audio DTM 8-Way Wireless UHF Headset & Lapel Microphone System V2 (606.0MHz–614.0MHz)
DETAILS
W Audio DTM 8-Way Wireless UHF Headset & Lapel Microphone System – Professional Multi-Channel Solution for Schools, Theatres and Conferences.
Designed for demanding audio environments such as educational institutions, theatres, and places of worship, the W Audio DTM 8-Way Wireless Microphone System offers a reliable and flexible UHF solution.
Operating within Channel 38 (606.0–614.0MHz), this system provides excellent clarity and stability across up to eight simultaneous wireless microphone channels.
The system comprises four dual-channel UHF receivers, each capable of accepting two separate beltpack transmitters at the same time. These transmitters can be paired with either headset or lavalier microphones, all of which are included, offering maximum adaptability for different live applications. Whether for spoken word in conferences, educational lectures, dramatic performances, or faith-based services, the DTM 600 system delivers consistent audio performance with minimal setup time.
With a high-quality, uncoloured sound profile and dependable UHF operation, the system also features an auto-scan function to locate the clearest available frequencies, plus 300 user-selectable presets to prevent interference. Both receivers and transmitters include LCD displays to monitor RF and audio levels, channel settings, and frequency. The system is rack-mountable, making it a practical option for permanent installations or mobile setups.
This version of the DTM 600 kit includes eight beltpack transmitters, eight microphones (four headset and four lavalier), four power supplies, and all required cabling. Users can also expand their setup by integrating compatible Diversity Series handheld microphones, making this system suitable for a wide range of audio setups.
W-Audio DTM 8-Way Mic System Key Features:
- Operates within UHF Channel 38 (606.0–614.0MHz)
- 300 user-selectable preset frequencies with auto-scan and spectrum display
- Four dual-channel DTM 600 receivers, each handling two transmitters simultaneously
- Eight wireless beltpack transmitters included
- Supplied with 4 x headset microphones and 4 x lavalier microphones
- Compatible with additional microphones from the DTM Diversity Series
- Rack-mountable design with mounting kit included
- LCD displays on both receivers and transmitters (showing RF/AF levels, channel, frequency)
- IR sync for fast, hassle-free pairing
- Balanced XLR outputs per channel and unbalanced mixed output
-
Phase Locked Loop (PLL) circuitry for stable signal transmission
What’s Included:

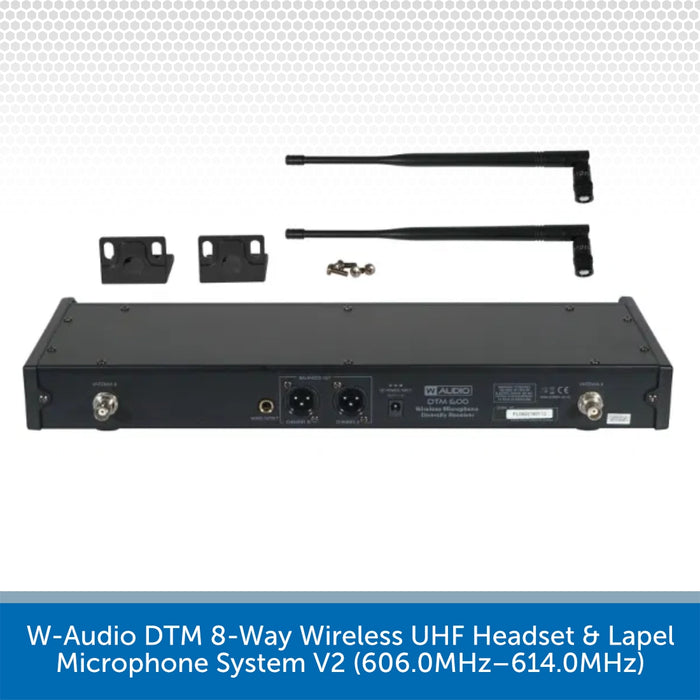

- 4 x DTM 600 UHF Receivers
- 8 x Wireless Beltpack Transmitters
- 8 x Headset Microphones
- 8 x Lapel/Tie-Clip Microphones
- 4 x Power Supplies
- 4 x ¼” Jack to Jack Connecting Cables
- User Manuals
SPECS & DOWNLOADS
Download the User Manual HERE >
W-Audio DTM 600 Specifications
- Frequency response: (handheld): 40Hz-15kHz
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
- Audio output level: 400mV
- Rack Mount: Included
- Dynamic range: 96dB
- Receiver power supply: 12V DC (mains adaptor supplied)
- Software Version: 2
W-Audio DTM 600BP Specifications
- Includes: 1x Transmitter, 1x Headset Mic, 1x Lavalier Mic
- Beltpack dimensions: 100 x 65 x 30mm
- Battery type: 2 x 1.5V AA (not supplied)
