W-Audio DTM 12-Way Wireless UHF Headset & Lapel Microphone System + Flightcase (CH38/70)
DETAILS

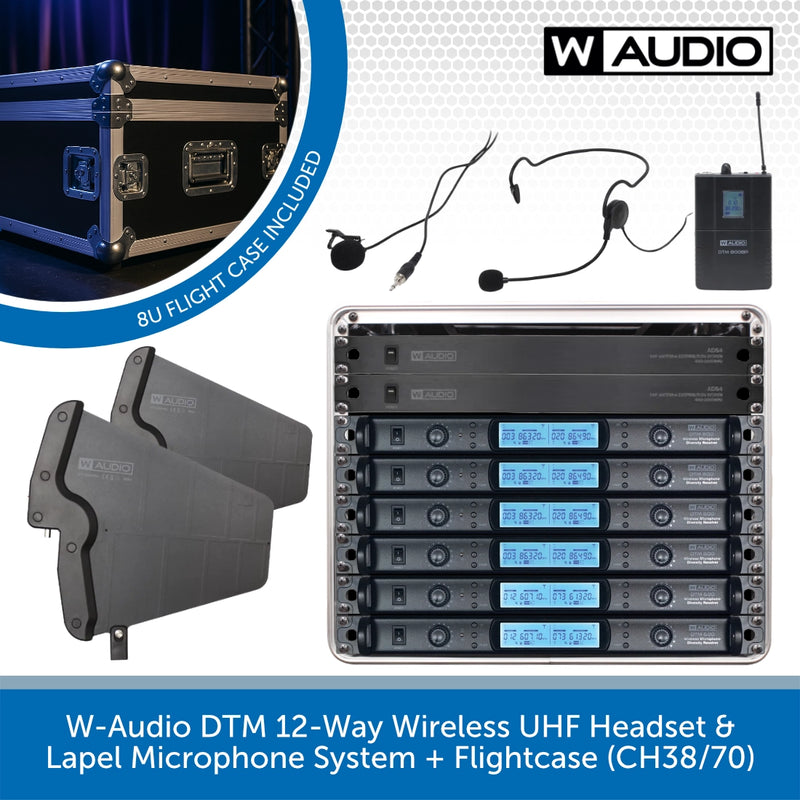

W-Audio DTM 12-Way Wireless UHF Headset & Lapel Microphone System V2 (CH38/70) With 8U Flightcase.
This W-Audio DTM 12-Way Wireless UHF Headset & Lapel Microphone System is a powerful and flexible audio solution ideal for large-scale events, stage productions, places of worship, and education settings.
It features 8 channels operating on UHF Channel 38 (606.0–614.0MHz) and 4 channels on licence-free Channel 70 (863.0–865.0MHz), making it suitable for both licensed and unlicensed users. Each of the 12 wireless beltpacks is supplied with both headset and lapel microphones, allowing for a mix of active and discreet audio capture.

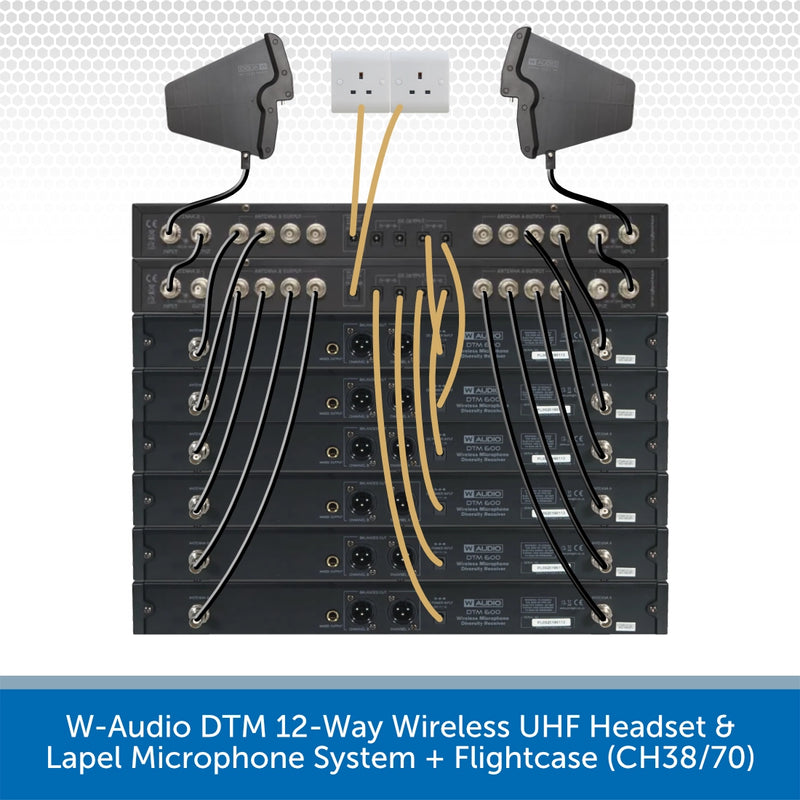

This upgraded package includes a rugged 8U flightcase for secure storage and simple transportation, as well as a W-Audio ADS4 Antenna Distributor and two RPA2 Remote Paddle Antennas to streamline signal management and boost wireless reliability. The receivers remain uninstalled in transit to avoid damage, but can be quickly configured into the rack for a professional plug-and-play setup.
With 300 selectable frequencies per receiver, auto scanning, IR syncing, balanced XLR outputs and rack-mounting capability, this system provides an exceptional level of functionality. It is ideal for AV professionals who need high-performance wireless microphone systems that can scale with production demands.
W-Audio DTM 12-Way System + Flightcase Key Features:
- 12-Channel Wireless System: 8 x CH38 (606–614MHz) + 4 x CH70 (863–865MHz)
- Dual Microphone Options: Headset and lapel mics for every beltpack
- 300 Selectable Frequencies with IR sync and auto scan
- Phase Lock Loop (PLL) for precise frequency control
- Balanced and Unbalanced Outputs for connection flexibility
- W-Audio ADS4 Antenna Distributor and 2 x RPA2 Remote Paddle Antennas
- 8U Heavy-Duty Flightcase included for transportation and protection
- Ideal for Larger Installations in schools, churches, and events

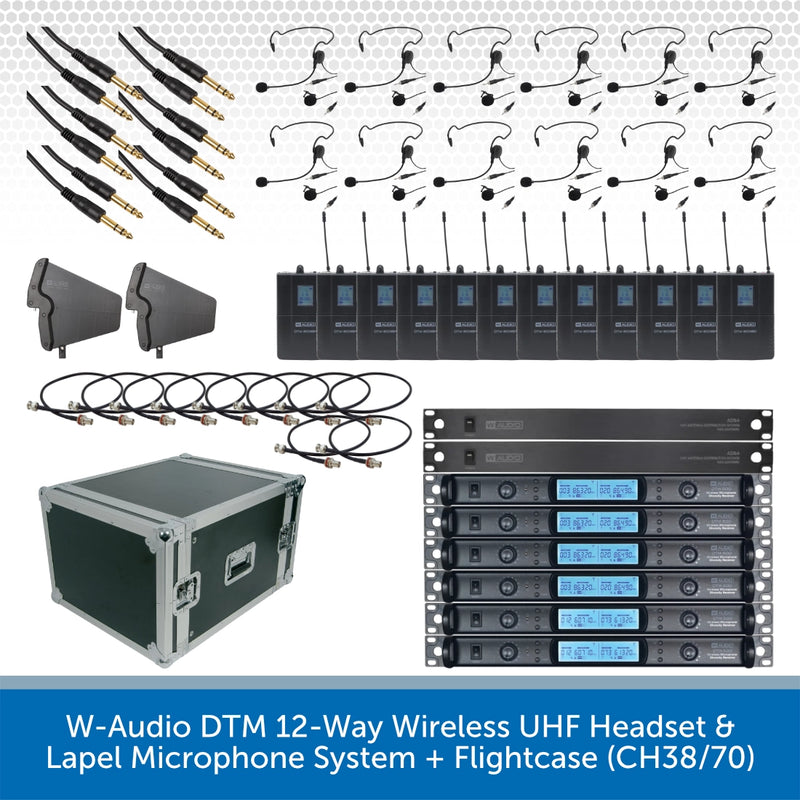

What’s Included:
- 4 x DTM 600H UHF Receivers (CH38)
- 2 x DTM 800H UHF Receivers (CH70)
- 12 x Wireless Beltpack Transmitters
- 12 x Headset Microphones
- 12 x Lapel/Tie-Clip Microphones
- 6 x Power Supplies
- 6 x ¼” Jack to Jack Connecting Cables
- 2 x W-Audio ADS4 Antenna Distributor
- 2 x W-Audio RPA2 Remote Paddle Antennas
- 8U Flightcase (equipment not pre-installed)
- User Manuals
SPECS & DOWNLOADS
W-Audio DTM 600 Specifications
Download the User Manual HERE >
- Frequency response: (handheld): 40Hz-15kHz
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
- Audio output level: 400mV
- Rack Mount: Included
- Dynamic range: 96dB
- Receiver power supply: 12V DC (mains adaptor supplied)
- Software Version: 2
W-Audio DTM 800 Specifications
- Frequency response: (handheld): 40Hz-15kHz
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
- Audio output level: 400mV
- Rack Mount: Included
- Dynamic range: 96dB
- Receiver power supply: 12V DC (mains adaptor supplied)
- Software Version: 2
W-Audio DTM 600BP Specifications
- Includes: 1x Transmitter, 1x Headset Mic, 1x Lavalier Mic
- Beltpack dimensions: 100 x 65 x 30mm
- Battery type: 2 x 1.5V AA (not supplied)

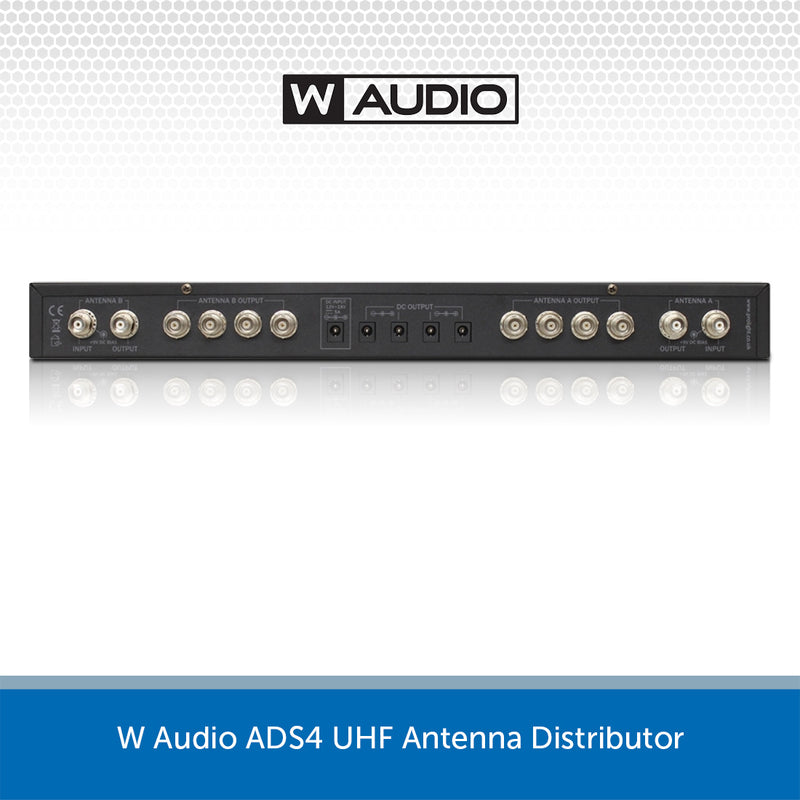

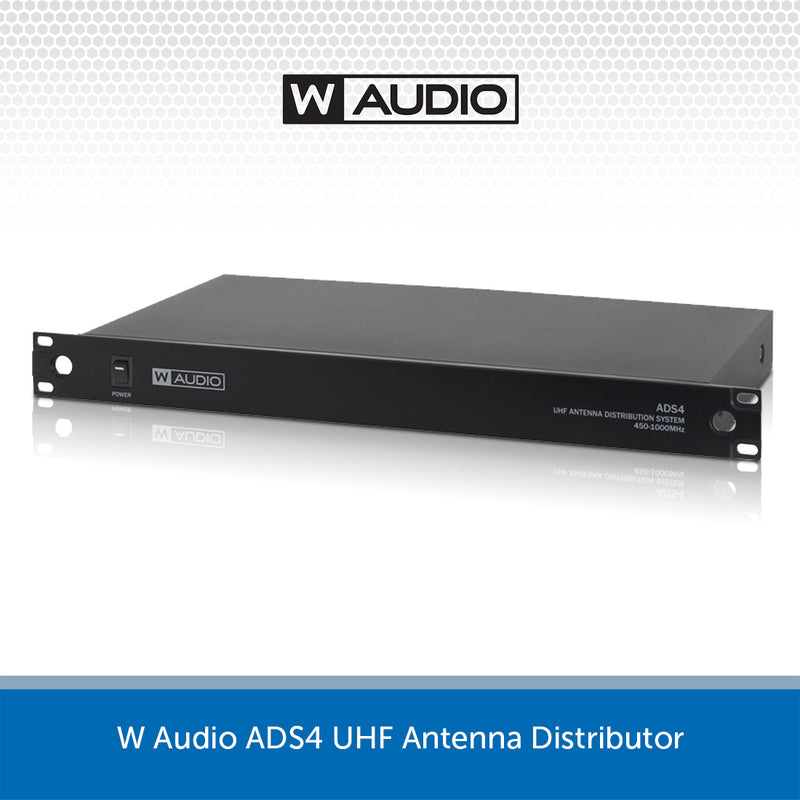

W Audio ADS4 Specifications
- Power supply: DC 8-12V, 5A (adaptor supplied)
- Dimensions: 50 x 480 x 240mm
- Weight: 2.3kg

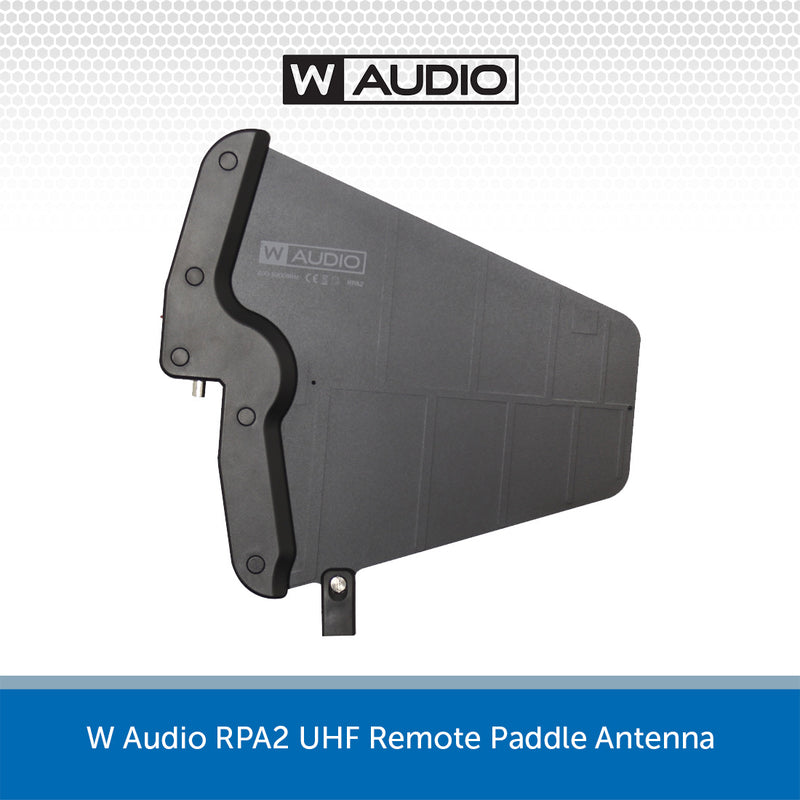

W Audio RPA2 Specifications
- Power supply: 8-12V DC bias via BNC (not supplied)
- Dimensions: 330 x 310 x 30mm
- Weight: 0.5kg
Citronic Flightcase Specifications
- Weight: 17kg
- Fixing rails: Front and rear
- Internal dimensions: 465 x 365 x 500mm
- External dimensions: 635 x 410 x 535mm
-
Size: 8U
