W-Audio DTM 12-Way Wireless UHF Handheld Microphone System + Flightcase (CH38/70)

by W-Audio
SKU MIC72V2-FLIGHT-BUN3
Original price £1,925.00 (inc. VAT) - Original price £1,925.00 (inc. VAT)
Original price £1,925.00 (inc. VAT)
£1,925.00 (inc. VAT)
£1,925.00 (inc. VAT) - £1,925.00 (inc. VAT)
Current price £1,925.00 (inc. VAT)
DETAILS

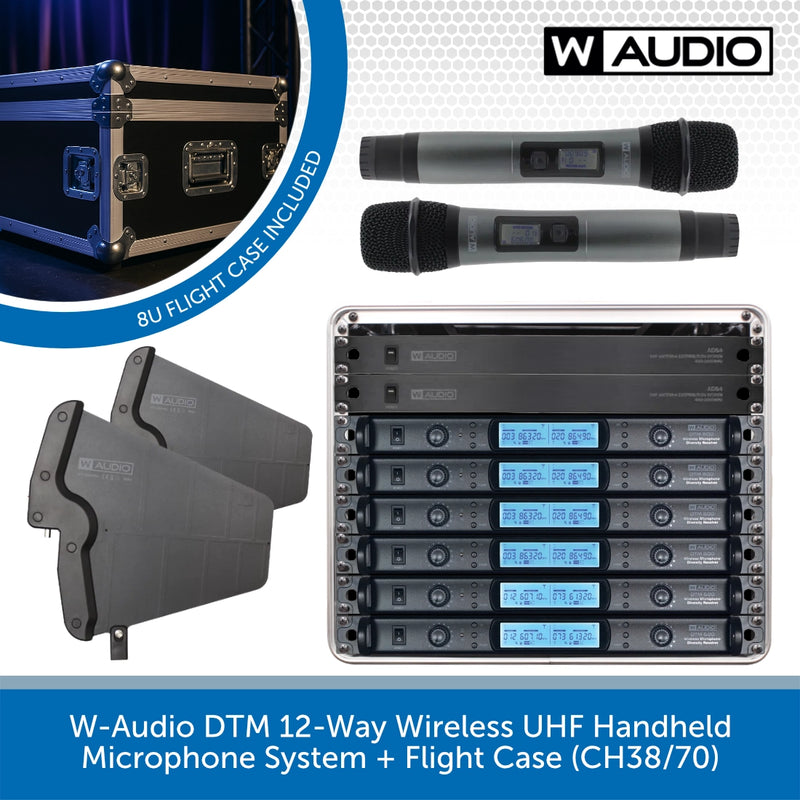

W-Audio DTM 12-Way Wireless UHF Handheld Microphone System V2 (CH38/70) With 8U Flightcase.

The W-Audio DTM 12-Way Wireless UHF Handheld Microphone System V2 is a high-capacity wireless microphone kit ideal for theatres, conferences, live performances and worship venues.

It offers a total of 12 wireless handheld transmitters, combining 8 channels on licensed UHF Channel 38 (606.0–614.0MHz) and 4 on licence-free Channel 70 (863.0–865.0MHz). Each microphone is robust and clearly labelled, with onboard LCD screens for frequency and battery status.

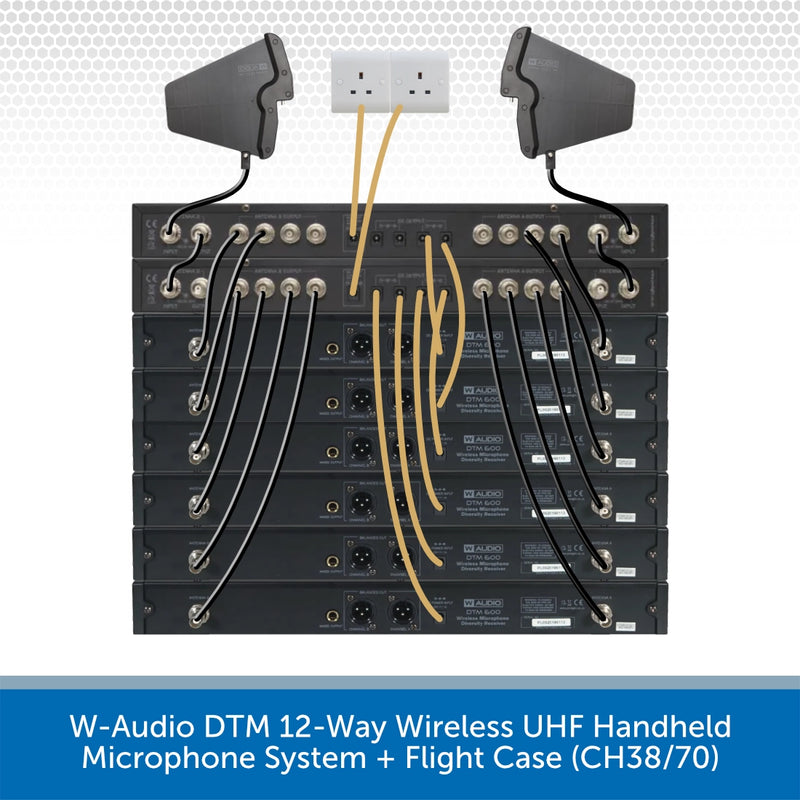

This system is housed in a tough 8U flightcase along with two W-Audio ADS4 Antenna Distributors and two RPA2 Remote Paddle Antennas. These components ensure a tidy and reliable RF environment, helping to avoid dropouts and reduce interference. The kit is supplied unassembled in the flightcase to prevent transit damage but is ready for quick installation and rack-mounting upon arrival.

Perfect for professional multi-microphone scenarios, each receiver includes 300 selectable frequencies, IR sync, XLR outputs and a mixed jack output. Whether used in touring rigs or fixed AV systems, this complete wireless microphone solution delivers clear sound, operational flexibility, and dependable performance.

W-Audio DTM 12-Way System + Flightcase Key Features:

  • 12-Way Handheld UHF Mic System: 8 x CH38 and 4 x CH70
  • Durable Handheld Mics with LCD screens and frequency labelling
  • ADS4 Antenna Distribution System with 2 x Paddle Antennas
  • 8U Flightcase Included for transport and protection (equipment not pre-installed)
  • Perfect for Theatre, Education, Conferences and Stage Use

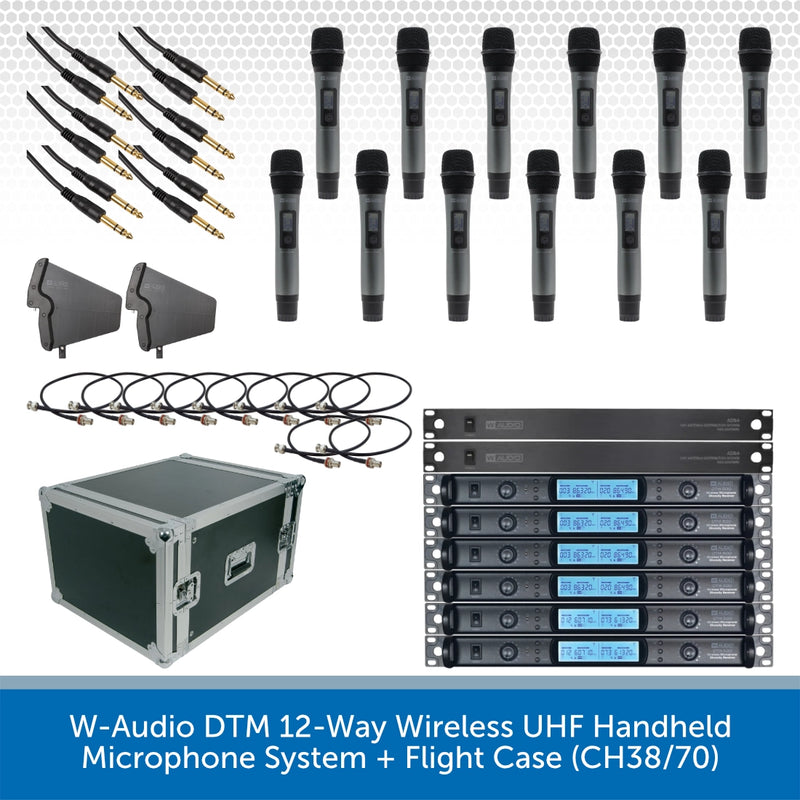

What’s Included:

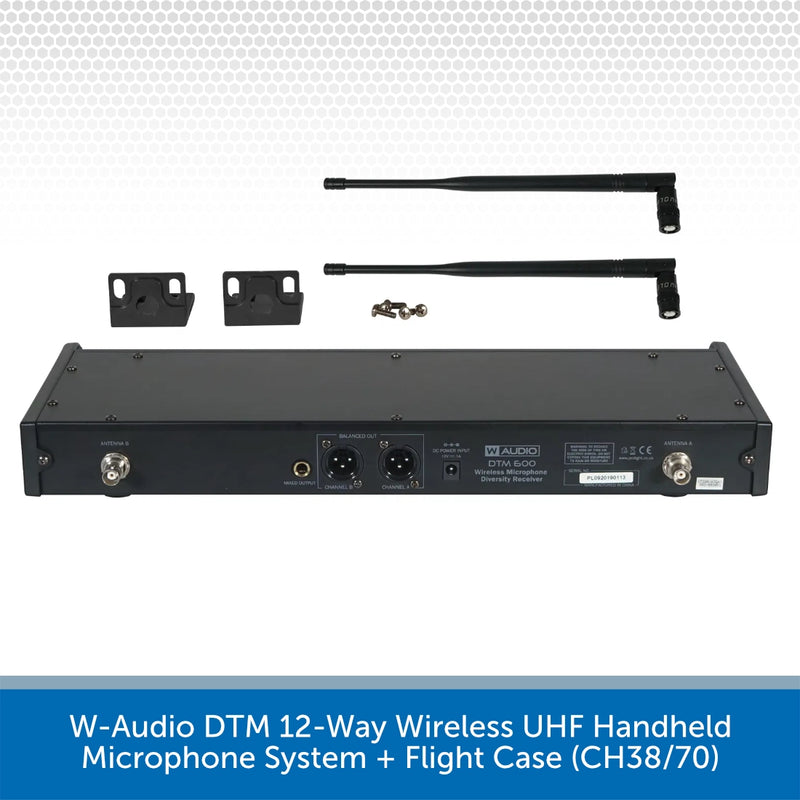

  • 4 x DTM 600H UHF Receivers (CH38)
  • 2 x DTM 800H UHF Receiver (CH70)

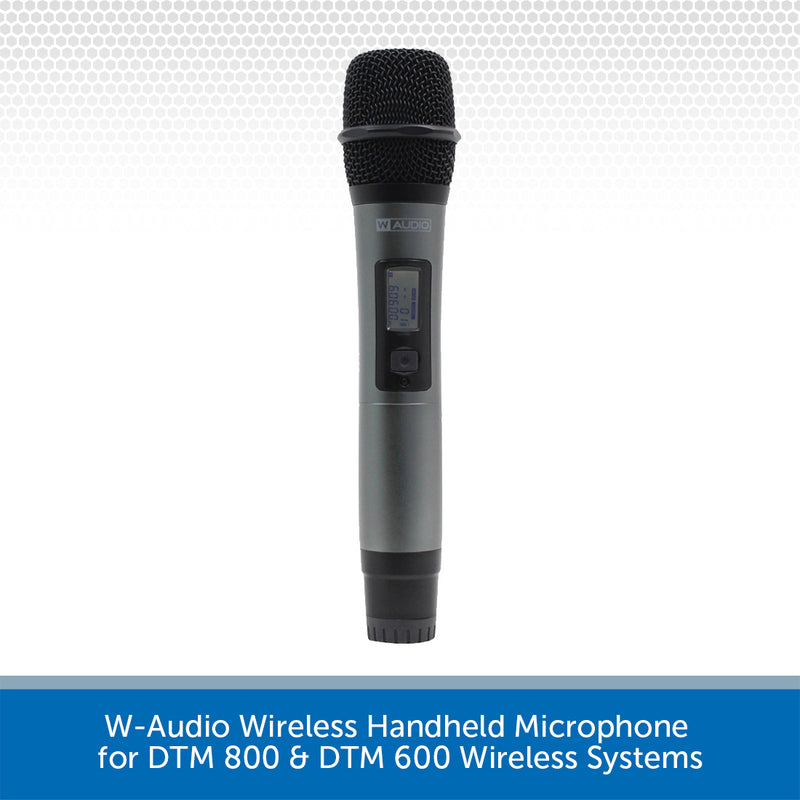

  • 12 x Wireless Handheld Microphones
  • 6 x Power Supplies
  • 6 x ¼” Jack to Jack Connecting Cables
  • 2 x W-Audio ADS4 Antenna Distributors
  • 2 x W-Audio RPA2 Remote Paddle Antennas
  • 8U Flightcase (equipment not pre-installed)
  • User Manuals
SPECS & DOWNLOADS

W-Audio DTM 600H Specifications

Download the User Manual HERE >

    • Frequency response: (handheld): 40Hz-15kHz
    • Transmitter battery configuration: 2 x 1.5V AA (not supplied)
    • Audio output level: 400mV
    • Rack Mount: Included
    • Dynamic range: 96dB
    • Receiver power supply: 12V DC (mains adaptor supplied)
    • Software Version: 2

    W-Audio DTM 800H Specifications

    Download the User Manual HERE >

      • Frequency response: (handheld): 40Hz-15kHz
      • Audio output level: 400mV
      • Rack Mount: Included
      • Dynamic range: 96dB
      • Receiver power supply: 12V DC (mains adaptor supplied)
      • Software Version: 2

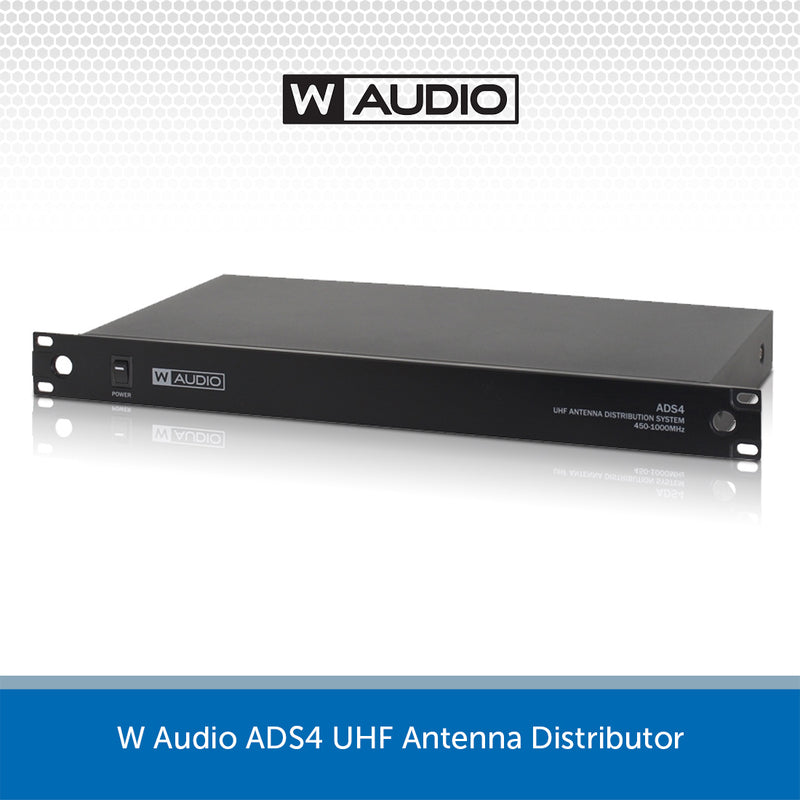

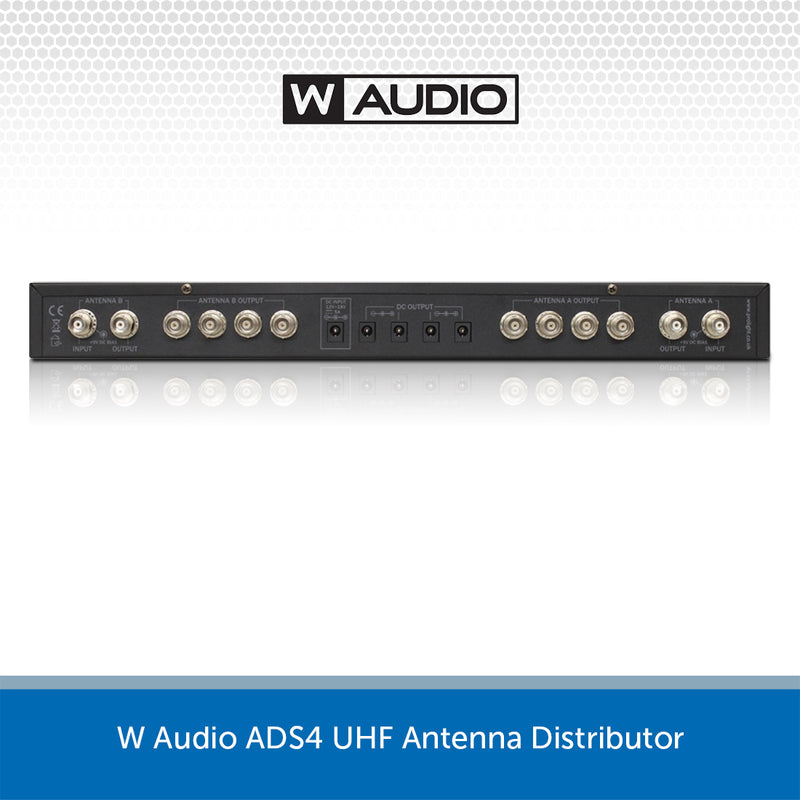

      W Audio ADS4 Specifications

      • Power supply: DC 8-12V, 5A (adaptor supplied)
      • Dimensions: 50 x 480 x 240mm
      • Weight: 2.3kg

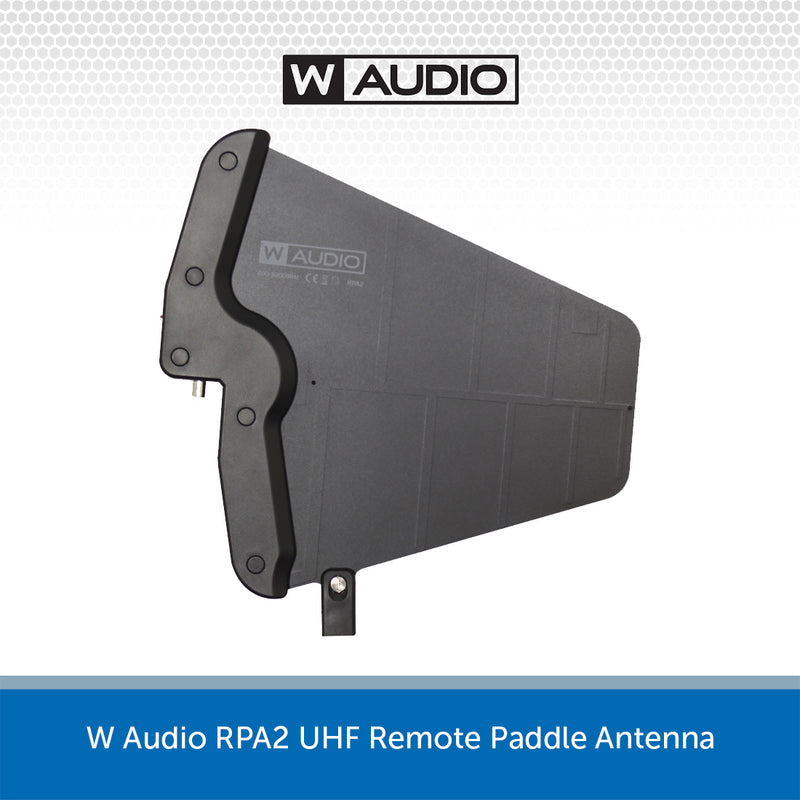

      W Audio RPA2 Specifications

      • Power supply: 8-12V DC bias via BNC (not supplied)
      • Dimensions: 330 x 310 x 30mm
      • Weight: 0.5kg

      Citronic Flightcase Specifications

      • Weight: 17kg
      • Fixing rails: Front and rear
      • Internal dimensions: 465 x 365 x 500mm
      • External dimensions: 635 x 410 x 535mm
      • Size: 8U
      }
