W-Audio DTM 10-Way Wireless UHF Handheld Microphone System + Flightcase (CH38/70)

by W-Audio
Original price £1,736.00 (inc. VAT) - Original price £1,736.00 (inc. VAT)
Original price £1,736.00 (inc. VAT)
£1,736.00 (inc. VAT)
£1,736.00 (inc. VAT) - £1,736.00 (inc. VAT)
Current price £1,736.00 (inc. VAT)
SKU MIC72V2-FLIGHT-BUN2
DETAILS

W-Audio DTM 10-Way Wireless UHF Handheld Microphone System V2 (CH38/70) With 8U Flightcase.

This W-Audio DTM 10-Way Wireless UHF Handheld Microphone System is an excellent choice for stage performances, educational institutions, live talks and worship services requiring ten channels of clear, reliable audio.

The system includes 8 microphones operating on Channel 38 (606.0–614.0MHz) and 2 on licence-free Channel 70 (863.0–865.0MHz), giving you flexibility and compliance with different licensing needs.

Housed in a robust 8U flightcase with the included 2x W-Audio ADS4 Antenna Distributors and two RPA2 Remote Paddle Antennas, this setup ensures a clean, efficient and high-performance wireless audio rig. The antenna distributor allows all receivers to share a unified antenna setup, helping to maximise range and stability in demanding RF environments. Systems are shipped uninstalled for transit protection.

Each microphone features an LCD screen showing operating frequency and battery life, while each receiver supports IR sync and 300 frequency presets to avoid channel conflicts. Balanced and unbalanced outputs allow seamless integration with any sound system, making this kit ideal for mobile productions and venue installations.

W-Audio DTM 10-Way System + Flightcase Key Features:

  • 10-Way Handheld Mic System: 8 x CH38 + 2 x CH70
  • 300 Preset Frequencies with scanning and IR pairing
  • Balanced XLR and Mixed Jack Outputs per receiver
  • 2x ADS4 Antenna Distributors + 2 x RPA2 Remote Paddle Antennas
  • 8U Heavy-Duty Flightcase for easy deployment (equipment not pre-installed)
  • Suitable for Performances, Worship, Talks, and Education Use

What’s Included:

  • 4 x DTM 600H UHF Receivers (CH38)
  • 1 x DTM 800H UHF Receiver (CH70)
  • 10 x Wireless Beltpack Transmitters
  • 10 x Headset Microphones
  • 10 x Lapel/Tie-Clip Microphones
  • 5 x Power Supplies
  • 5 x ¼” Jack to Jack Connecting Cables
  • 2 x W-Audio ADS4 Antenna Distributors
  • 2 x W-Audio RPA2 Remote Paddle Antennas
  • 8U Flightcase (equipment not pre-installed)
  • User Manuals
SPECS & DOWNLOADS

W-Audio DTM 600H Specifications

Download the User Manual HERE >

    • Frequency response: (handheld): 40Hz-15kHz
    • Transmitter battery configuration: 2 x 1.5V AA (not supplied)
    • Audio output level: 400mV
    • Rack Mount: Included
    • Dynamic range: 96dB
    • Receiver power supply: 12V DC (mains adaptor supplied)
    • Software Version: 2

    W-Audio DTM 800H Specifications

    Download the User Manual HERE >

      • Frequency response: (handheld): 40Hz-15kHz
      • Audio output level: 400mV
      • Rack Mount: Included
      • Dynamic range: 96dB
      • Receiver power supply: 12V DC (mains adaptor supplied)
      • Software Version: 2

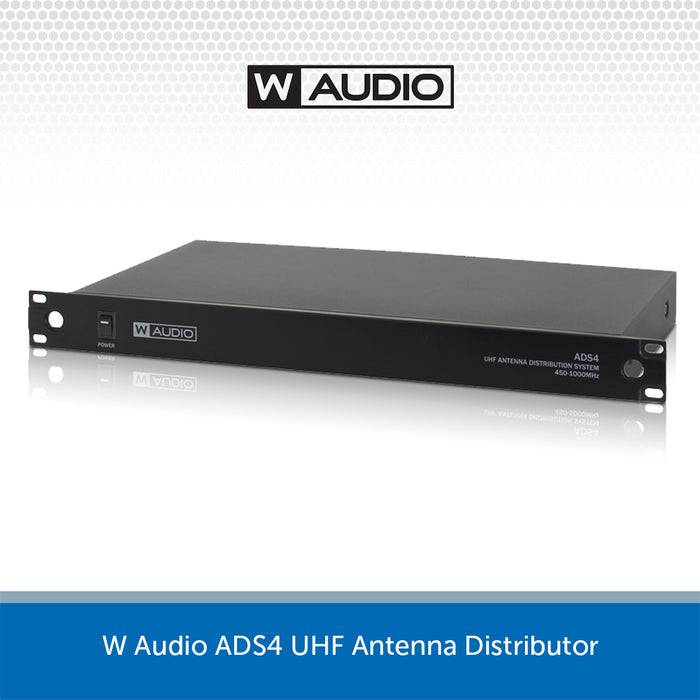

      W Audio ADS4 Specifications

      • Power supply: DC 8-12V, 5A (adaptor supplied)
      • Dimensions: 50 x 480 x 240mm
      • Weight: 2.3kg

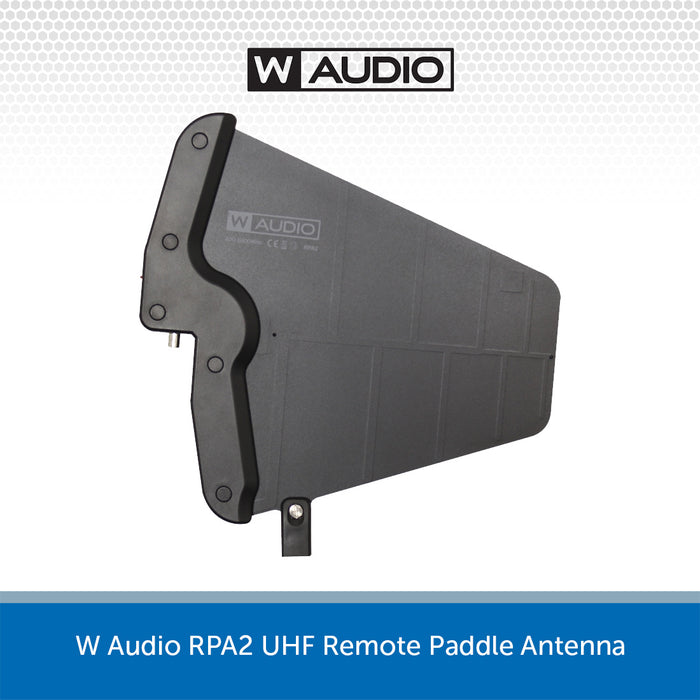

      W Audio RPA2 Specifications

      • Power supply: 8-12V DC bias via BNC (not supplied)
      • Dimensions: 330 x 310 x 30mm
      • Weight: 0.5kg

      Citronic Flightcase Specifications

      • Weight: 17kg
      • Fixing rails: Front and rear
      • Internal dimensions: 465 x 365 x 500mm
      • External dimensions: 635 x 410 x 535mm
      • Size: 8U
      }
