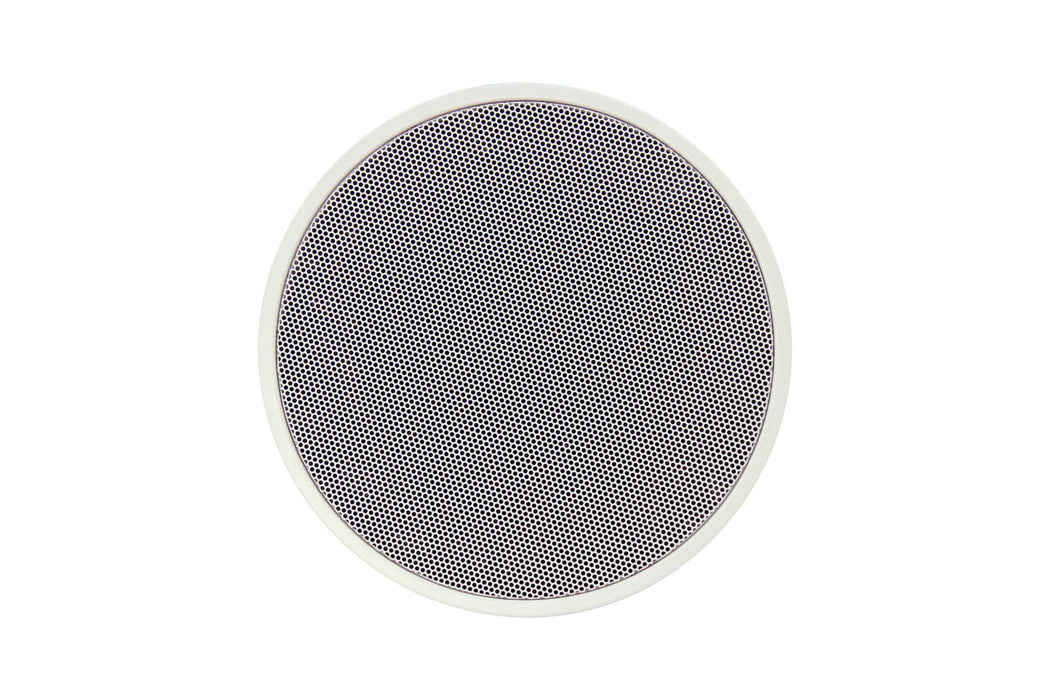

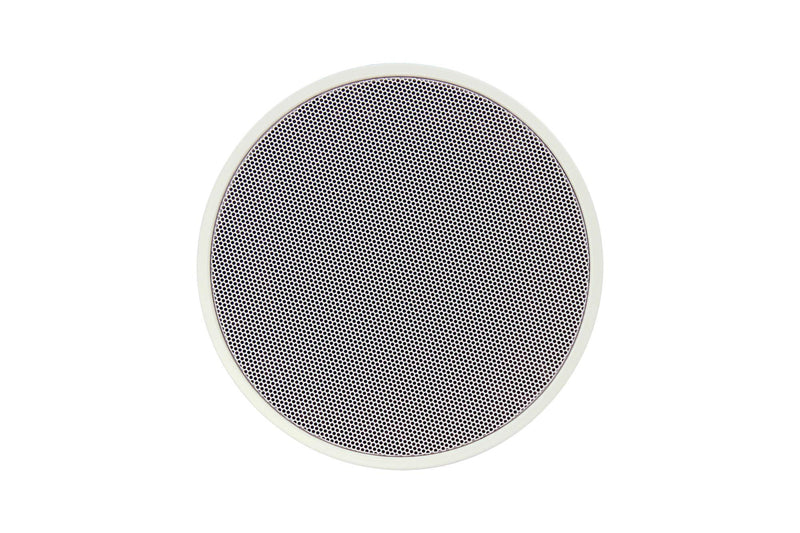

TOA PC-1860BS 6W 100V Ceiling Speaker with Fire Dome
The TOA PC-1860BS is a 6W 100V Ceiling Speaker with an integrated steel fire dome certified to EN54-24 and British Standard BS 5839-8:2013.
Delivers high-quality background music and public address performance in a clean, flat-panel design that harmonises with modern architectural environments whilst meeting the fire safety compliance requirements of commercial and public building installations.
The TOA PC-1860BS is a professional 100V line ceiling speaker from TOA's PC series, designed for high-quality announcement and background music system use in commercial, public and institutional building environments. Its clean, flat front panel design harmonises with modern architecture and interior décor, whilst the integrated steel fire dome provides critical fire safety compliance — protecting the speaker from fire and preventing fire from spreading through the ceiling opening in the event of a fire. Certified to both EN54-24 and British Standard BS 5839-8:2013, the PC-1860BS is suitable for installation in buildings where fire detection and alarm system speaker compliance is a requirement — including offices, educational facilities, retail environments, hotels, healthcare facilities, transport hubs and other public buildings where life safety audio systems must meet UK and European fire safety standards.
Fire Dome, Ceramic Terminal Block & Thermal Fuse

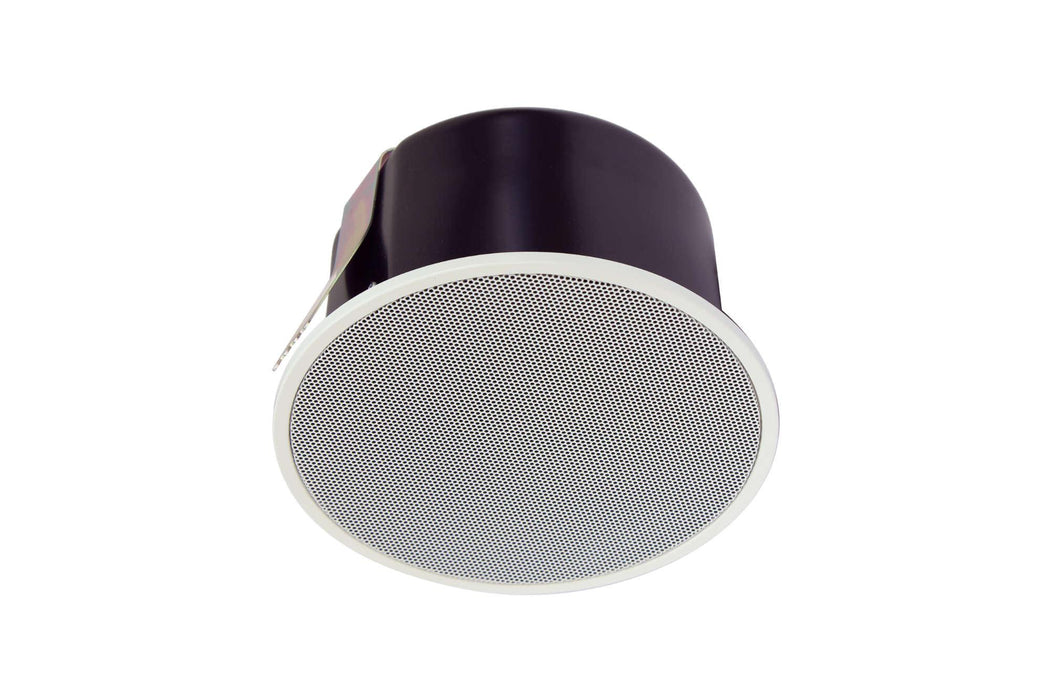

The PC-1860BS is equipped with a steel fire dome that sits above the ceiling speaker assembly — acting as a barrier to prevent fire and smoke from passing through the ceiling void via the speaker cutout in the event of a fire. A ceramic screw terminal block — rather than a standard plastic terminal — provides reliable electrical connections that maintain integrity at elevated temperatures, and a thermal fuse provides an additional layer of protection by disconnecting the speaker circuit if temperatures reach a critical level. Together these features ensure the PC-1860BS meets the stringent fire safety requirements of EN54-24 and BS 5839-8:2013 for voice alarm and public address systems in the UK and Europe.
High-Quality Sound Performance
Despite its compact 12cm cone-type speaker chassis, the PC-1860BS delivers a wide 170Hz to 20kHz frequency response with a sensitivity of 95dB (1W/1m) and a maximum SPL of 100dB at 1 metre — providing clear, intelligible speech reproduction and natural-sounding background music performance across a wide variety of commercial spaces. The 6W rated input at 100V line, with tappings at 6W, 3W, 1.5W and 0.8W at 100V and equivalent tappings at 70V, provides flexible integration into large-scale distributed audio systems at the appropriate power level for each zone or location.
Quick & Easy Installation
The PC-1860BS is designed for fast, straightforward ceiling installation with a quick and easy fitting mechanism. The flat front panel — finished in traffic white (RAL 9016) steel plate — provides a clean, professional appearance flush with the ceiling surface, and the compact 180mm diameter footprint keeps the ceiling cutout size manageable for installation in a wide variety of ceiling types and constructions.
TOA PC-1860BS Key Features:
- EN54-24 & BS 5839-8:2013 Certified: Meets UK and European fire safety standards for voice alarm and public address systems in commercial and public buildings.
- Integrated Steel Fire Dome: Prevents fire and smoke from spreading through the ceiling void via the speaker cutout in the event of a fire.
- Ceramic Screw Terminal Block: Maintains reliable electrical connections at elevated temperatures for fire safety compliance.
- Thermal Fuse: Provides additional circuit protection at critical temperatures.
- 6W 100V Line Operation: Suitable for large-scale 100V distributed audio systems with tappings at 6W, 3W, 1.5W and 0.8W.
- 70V Line Compatible: 70V tappings at 3W, 1.5W, 0.8W and 0.4W for flexible system integration.
- 95dB Sensitivity / 100dB Maximum SPL: Clear, intelligible speech reproduction and natural-sounding background music performance.
- 170Hz–20kHz Frequency Response: Wide frequency range for high-quality announcement and background music system use.
- 12cm Cone-Type Speaker Chassis: Compact driver for discreet ceiling installation.
- Flat Front Panel Design: Clean, unobtrusive appearance that harmonises with modern architecture and interior décor.
- Traffic White Finish (RAL 9016): Professional steel plate finish suitable for any commercial or public building environment.
- IP21C Rated: Protection against vertically dripping water for ceiling installation compliance.
- Quick & Easy Installation: Designed for fast, straightforward fitting in commercial ceiling installations.
- Operating Temperature -10°C to +50°C: Suitable for a wide range of indoor commercial environments.
