Studiomaster HX4-1400 4-Channel 1U Digital Power Amplifier (4x 1015W @ 2/4/8 Ω)

Original price £557.00 (inc. VAT) - Original price £557.00 (inc. VAT)
Original price £557.00 (inc. VAT)
£557.00 (inc. VAT)
£557.00 (inc. VAT) - £557.00 (inc. VAT)
Current price £557.00 (inc. VAT)
SKU HX4-1400
DETAILS

The Studiomaster HX4-1400 is a highly efficient four-channel amplifier designed to meet the needs of professional audio applications.

With its compact 1U form factor, this amplifier is ideal for installation, touring, and rental setups, offering up to 1015W per channel at 2 ohms.

Compact Yet Powerful Design

Engineered for high performance, the HX4-1400 features power factor correction (PFC) and a universal 90-250V power supply, making it suitable for use worldwide. Despite its lightweight construction, it ensures stable power output down to 2-ohm loads, perfect for environments that demand both efficiency and reliability.

Protection and Versatile Connectivity

The HX4-1400 integrates a complete range of protection features, including thermal, overload, and DC protection. The variable speed fan ensures optimal cooling, while the balanced XLR inputs and professional speaker connectors provide seamless integration into any audio setup.

Studiomaster HX4-1400 Key Features:

  • Four-channel digital amplifier in a 1U chassis
  • Power factor correction (PFC) for enhanced efficiency
  • Universal 90-250V power supply for global use
  • Delivers up to 4x 1015W at 2 ohms, 4x 595W at 4 ohms, and 4x 350W at 8 ohms
  • Bridged operation: up to 2x 2030W at 4 ohms
  • Stable performance down to 2-ohm loads
  • Stereo, parallel, and bridge modes for flexible configuration
  • Multiple gain modes with integrated output limiter
  • Real-time status and protection indicators

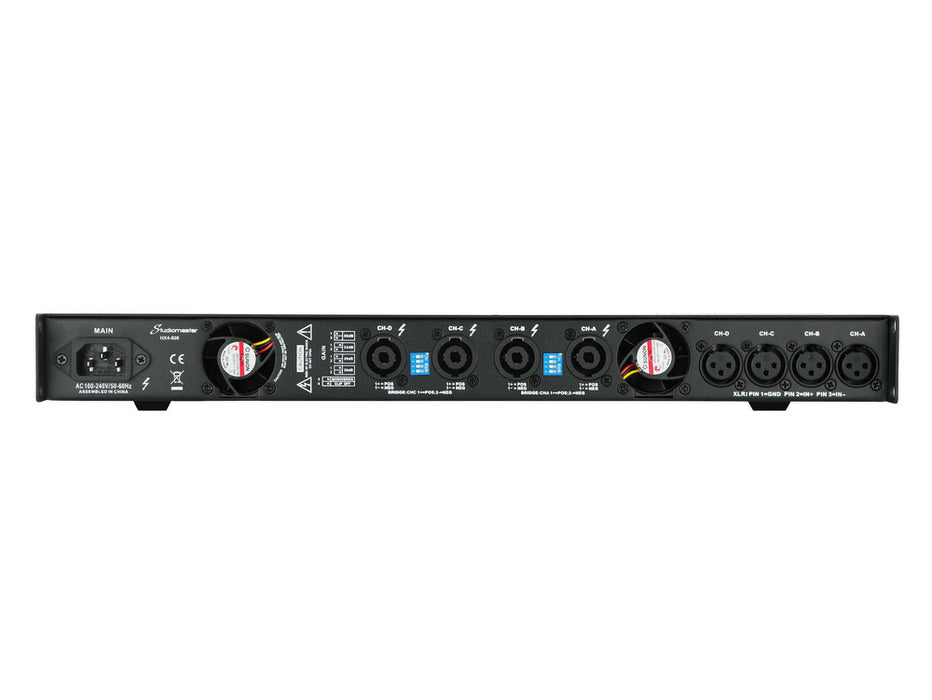

  • Balanced XLR inputs and professional speaker connectors
  • Efficient variable speed fan cooling
  • Comprehensive thermal, fault, and limiter protection

The HX4-1400 is an efficient, compact amplifier that provides the reliability and high performance required for demanding professional audio applications.

    SPECS & DOWNLOADS

    Download the Studiomaster HX4-1400 PDF User Manual HERE >

    Studiomaster HX4-1400 Specifications

    • Power Output 8Ω Stereo: 4x350W
    • Power Output 4Ω Stereo: 4x595W
    • Power Output 2Ω Stereo: 4x1015W
    • Power Output 16Ω Bridged: 2x700W
    • Power Output 8Ω Bridged: 2x1190W
    • Power Output 4Ω Bridged: 2x2030W
    • Output RMS Voltage: 52.9V
    • Slew Rate: 50V/us
    • Sensitivity: Selectable 35dB, 32dB, 29dB, 26dB
    • THD+N: 0.02%
    • Crosstalk (20Hz-1kHz,below Rated Power): ≥90dB
    • Frequency response(10% Rated Power,20Hz-20kHz,8Ω): ±0.2dB
    • Input impedance: 20kΩ(Balance),10kΩ(Unbalance)
    • Damp factor(8Ω,20Hz-200Hz): ≥5000
    • SNR(A weighted 20Hz-22kHz): ≥103dB
    • Main power: 90∽260VAC,50∽60Hz
    • Protection: Under voltage, DC, Over temperature, Over load limiter, Short protection.
    • Size(W×H×D): 483x44x370mm
    • Net weight: 9kg
    }
