Studiomaster HX4-1000 4-Channel 1U Digital Power Amplifier (4x 725W @ 2/4/8 Ω)

Original price £499.99 (inc. VAT) - Original price £499.99 (inc. VAT)
Original price £499.99 (inc. VAT)
£499.99 (inc. VAT)
£499.99 (inc. VAT) - £499.99 (inc. VAT)
Current price £499.99 (inc. VAT)
SKU HX4-1000
DETAILS

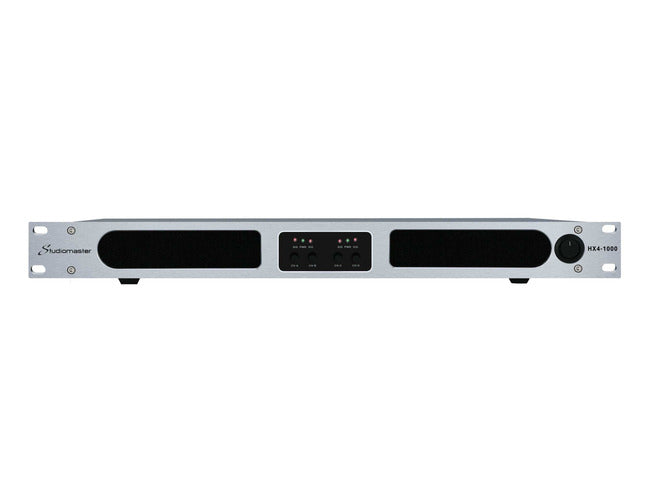

The Studiomaster HX4-1000 is a compact, ultra-lightweight 4-channel digital power amplifier designed to deliver powerful and efficient performance for a variety of professional audio applications.

With its 1U form factor, this amplifier is perfect for installations, conferences, entertainment venues, and smaller touring or rental setups, providing up to 725W per channel at 2 ohms.

High Power in a Space-Saving Design

Despite its small size, the HX4-1000 offers reliable performance and efficient energy consumption. It features power factor correction (PFC) and a universal 90-250V power supply, ensuring stable operation across different regions. Its ability to handle loads down to 2 ohms ensures consistent power delivery in a wide range of setups.

Reliable Protection and Seamless Connectivity

Equipped with comprehensive protection features, including thermal, overload, and DC safeguards, the HX4-1000 offers peace of mind during operation. The variable speed fan cooling system ensures optimal performance, while balanced XLR inputs and professional speaker connectors provide effortless integration into any professional audio system.

Studiomaster HX4-1000 Key Features:

  • Four-channel digital amplifier in a compact 1U chassis
  • Power factor correction (PFC) for stable, efficient operation
  • Universal 90-250V power supply for global compatibility
  • Delivers up to 4x 725W at 2 ohms, 4x 425W at 4 ohms, and 4x 250W at 8 ohms
  • Bridged operation: up to 2x 1450W at 4 ohms
  • Reliable operation down to 2-ohm loads
  • Stereo, parallel, and bridge modes for flexible system configurations
  • Multiple gain modes with built-in output limiter
  • Real-time status and protection indicators

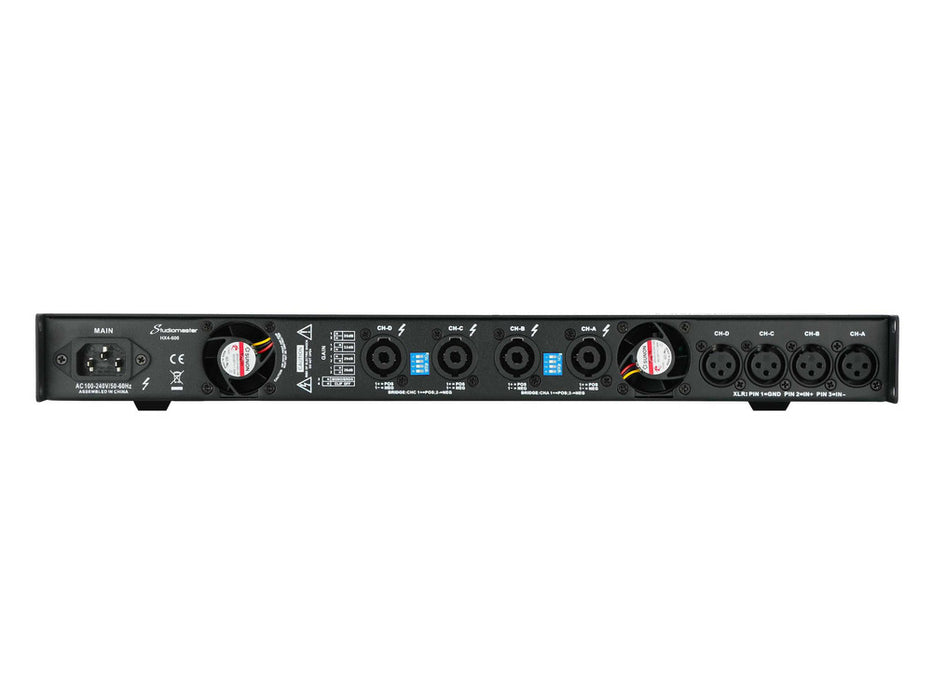

  • Balanced XLR inputs and professional speaker connectors
  • Efficient variable speed fan cooling
  • Comprehensive thermal, fault, and limiter protection

The HX4-1000 offers exceptional value, providing high power and reliability in a compact, lightweight package that is ideal for professional audio applications.

    SPECS & DOWNLOADS

    Download the Studiomaster HX4-1000 PDF User Manual HERE >

    Studiomaster HX4-1000 Specifications

    • Power Output 8Ω Stereo: 4x250W
    • Power Output 4Ω Stereo: 4x425W
    • Power Output 2Ω Stereo: 4x725W
    • Power Output 16Ω Bridged: 2x500W
    • Power Output 8Ω Bridged: 2x850W
    • Power Output 4Ω Bridged: 2x1450W
    • Output RMS Voltage: 44.7V
    • Slew Rate: 50V/us
    • Sensitivity: Selectable 35dB, 32dB, 29dB, 26dB
    • THD+N: 0.02%
    • Crosstalk (20Hz-1kHz,below Rated Power): ≥90dB
    • Frequency response(10% Rated Power,20Hz-20kHz,8Ω): ±0.2dB
    • Input impedance: 20kΩ(Balance),10kΩ(Unbalance)
    • Damp factor(8Ω,20Hz-200Hz): ≥5000
    • SNR(A weighted 20Hz-22kHz): ≥104dB
    • Main power: 90∽260VAC,50∽60Hz
    • Protection: Under voltage, DC, Over temperature, Over load limiter, Short protection.
    • Size(W×H×D): 483x44x370mm
    • Net weight: 9kg
    }
