Studiomaster HX2-700 2-Channel 1U Digital Power Amplifier (2 x 595W @ 4 Ohms)
DETAILS
The Studiomaster HX2-700 is a high-output, two-channel digital power amplifier for professional installations and live sound.

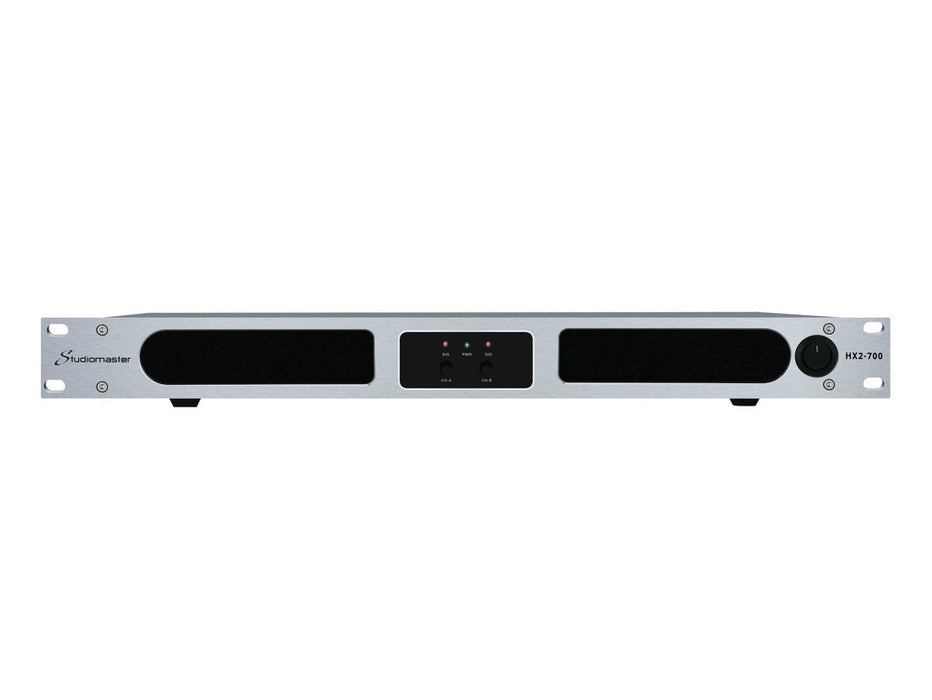

The Studiomaster HX2-700 is an ultra-lightweight yet powerful two-channel digital amplifier housed in a compact 1U rackmount chassis. Part of the HX Series, it delivers exceptional output and reliable performance while maintaining a small footprint, making it ideal for conference facilities, entertainment venues, touring setups, and rental applications where space and weight are critical.
Engineered for high-demand applications, the HX2-700 delivers up to 595W per channel at 4 ohms, with stable operation down to 2-ohm loads. Its energy-efficient design, combined with power factor correction (PFC) and a universal 90–250V power supply, ensures consistent performance under varying mains conditions.
High-Power Performance with Flexible Configuration
The HX2-700 supports stereo, parallel, and bridged modes, allowing integration with a wide range of loudspeaker setups. Multiple gain modes and an integrated output limiter provide precise control and protection, making it suitable for both music reproduction and speech-focused audio systems.
Professional Protection and Connectivity

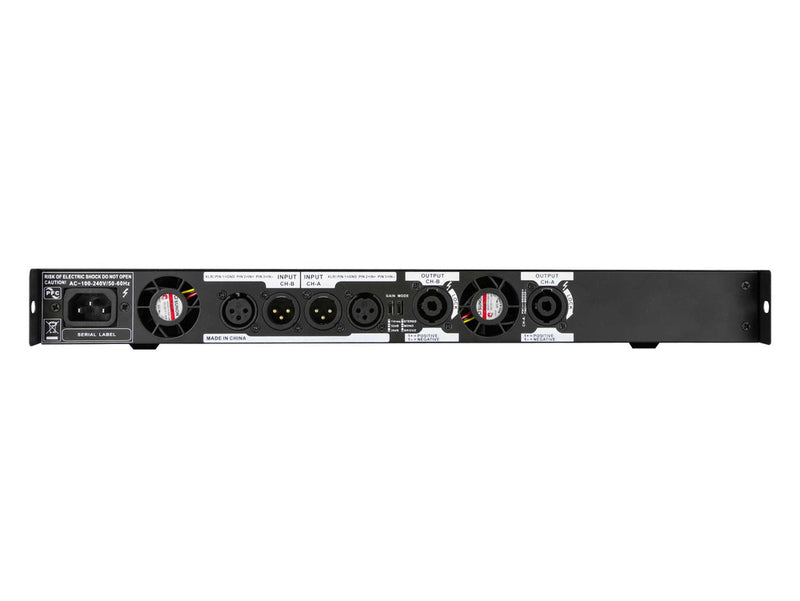

Featuring comprehensive thermal, overload, and DC protection, the HX2-700 ensures long-term reliability. A variable speed fan provides efficient cooling while keeping operational noise low, and front-panel LEDs indicate thermal, fault, and limiter status. Balanced XLR inputs and professional speaker connectors make integration into professional audio systems straightforward and reliable.
Studiomaster HX2-700 Key Features:
- 2-channel digital power amplifier: Compact 1U rackmount design
- High-efficiency operation: Energy-saving design reduces heat output
- Power factor correction (PFC): Improves stability and efficiency
- Universal 90–250V power supply: Compatible with global mains voltages
- 2 and 4 channel models: Flexible configuration options
- Reliable down to 2-ohm loads: Stable operation with challenging speaker setups
- Variable speed fan cooling: Efficient thermal management
- Status and protection indicators: Thermal, fault, and limiter LEDs
- Stereo, parallel, and bridge modes: Adaptable to any system design
- Multiple gain modes: Accurate system matching
- Output limiter: Protects loudspeakers and amplifier
- Balanced XLR inputs: Professional low-noise connections
- Professional speaker connectors: Secure and reliable outputs
-
Comprehensive protection: Thermal, overload, and DC safeguards
SPECS & DOWNLOADS
Studiomaster HX2-700 Specifications
- Power Output 8Ω Stereo: 2 x 350W
- Power Output 4Ω Stereo: 2 x 595W
- Power Output 2Ω Stereo: 2 x 1015W
- Power Output 16Ω Bridged: 700W
- Power Output 8Ω Bridged: 1190W
- Power Output 4Ω Bridged: 2030W
- RMS Output Voltage (THD=1%, 1kHz): 52.9V
- Voltage Gain: 34.5dB
- Slew Rate: 50V/µs
- Input Sensitivity (Rated Output, 1kHz): 1Vrms
- THD+N (10% Rated Output Power): 0.02%
- IMD-SMPTE (10% Rated Output Power): 0.05%
- DIM30 (10% Rated Output Power): 0.05%
- Crosstalk Rejection (20Hz–1kHz): ≥80dB
- Frequency Response (20Hz–20kHz, 8Ω): ±0.2dB
- Input Impedance: 20kΩ balanced, 10kΩ unbalanced
- Damping Factor (8Ω, 20Hz–100Hz): ≥300
- Signal-to-Noise Ratio (A-weighted): ≥105dB
- Power Supply: 90–260V AC, 50/60Hz
- Protection: Overload, thermal, and DC output protection
- Dimensions (W x H x D): 483 x 44 x 323mm
-
Net Weight: 5.0kg
