Monacor STA-850D 8-Channel Digital Power Amplifier (8 x 50W) 4-8 Ohms

DETAILS

The Monacor STA-850D is a professional 8-channel digital power amplifier designed for multi-zone PA applications.

This digital power amplifier is equipped with 8 channels rated at 50W RMS @ 8 Ohms and 30W @ 4 Ohms. For a higher output power, two channels each can be bridged providing a combined 100W RMS output. Each channel has its own level control.

Thanks to Class-D Amplification the STA-850D is extremely energy efficient and operate at really low temperatures. It also has  silent operation due to a fanless cooling concept.

Inputs include 8 x XLR sockets designed for balanced signals from mixing desks, Preamplifiers and CD players (550 mV min.) and 8 x RCA jacks for connecting a standard signal source from smartphones, tablets, and laptops (1 V min.).

Installation is quick and easy and will have you up and running in no time. Loudspeakers can be connected to the STA-850D via the push terminals at the rear of the amplifier.

The Monacor STA-850D PA Amplifier is designed for installation into a 19" rack cabinet (482mm), but can also be used as a tabletop unit.

All Monacor products are supplied with a manufacturer's 3-Year warranty.

Monacor STA-850D Digital PA Amlifier Key Features:

• Class-D Amplification - Highly efficient

• 8 Channels rated at 50W RMS each

• Two channels can be bridged for 100W RMS

• Level control for each channel

• 8 x Balanced XLR inputs

• 8 x RCA line inputs

• 19" Rack-mountable

• 3-Year manufacturers warranty

SPECS & DOWNLOADS

Download the product Spec Sheet HERE >

Download the Instruction Manual HERE >

Monacor STA-850D Power Amplifier Specifications

• Channels: 8
• Power rating: 400 W
• Power rating at 4 ohm: 8 x 50 W
• Power rating at 8 ohm: 8 x 30 W
• Power rating with 8 ohms bridged operation: 4 x 100 W
• Peak music power output (PMAX): 600 W
• Inputs: 1 V/20 k ohm unbal. 550 mV/20 k ohm bal.
• Frequency range: 10-20,000 Hz
• Crosstalk attenuation: > 45 dB
• Power supply: ~ 230 V/50 Hz/600 VA
• Mains voltage: ~ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 600 VA
• Admiss. ambient temp.: 0-40 °C
• Dimensions: 483 x 90 x 330 mm, 2 RS
• Width: 483 mm
• Height: 90 mm
• Depth: 330 mm
• Rack spaces, RS: 2
• Weight: 10.5 kg

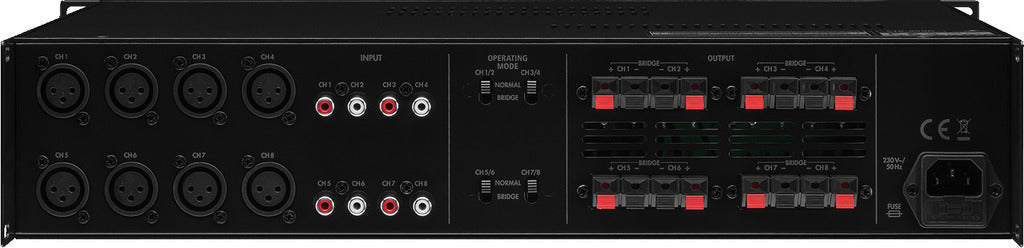

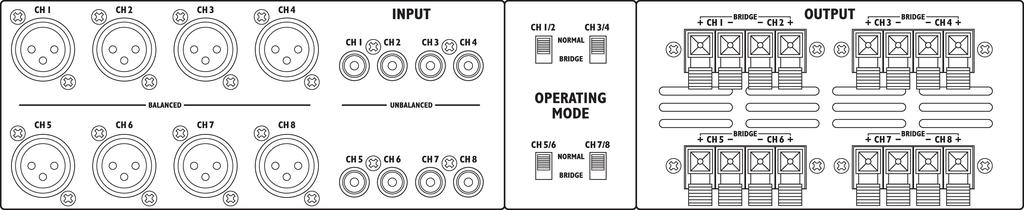

• Connections: 8 x XLR, bal., 8 x RCA, 8 x spring-load. speaker term. L/R
