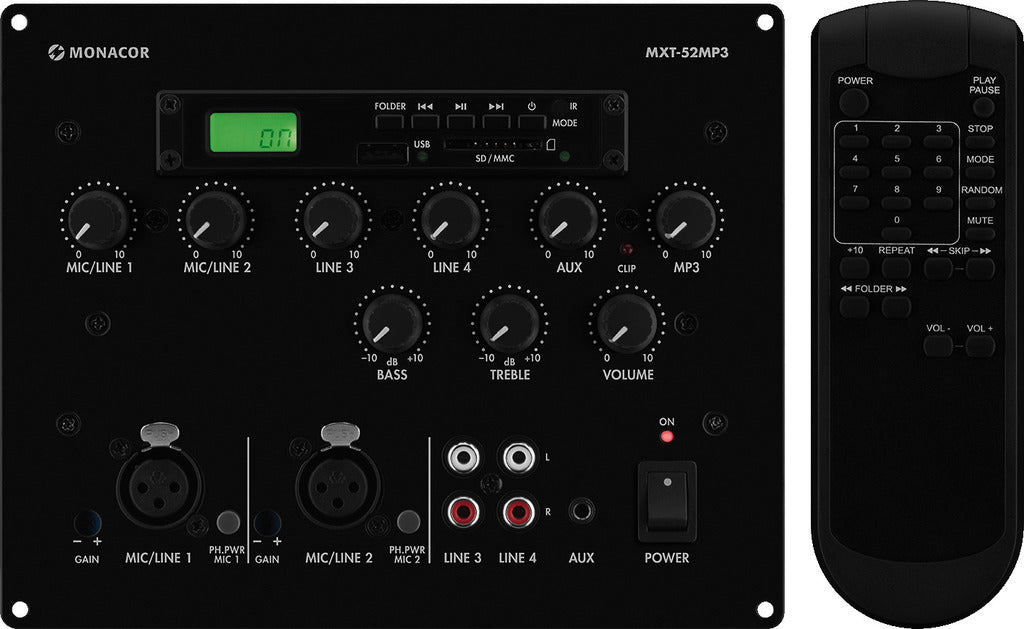

Monacor MXT-52MP3 Flush-Mount Wall Mixer With MP3 Player
DETAILS
Monacor MXT-52MP3 Flush-Mount Wall Mixer – A User-Friendly Audio Solution for Commercial Installations.
The Monacor MXT-52MP3 is a compact and versatile flush-mount wall mixer designed for commercial installations, offering flexible audio control in a discreet, space-saving format. Ideal for conference rooms, retail spaces, hospitality venues, and educational facilities, this unit provides a convenient solution for managing multiple audio sources while maintaining a professional and unobtrusive appearance.
Versatile Input Options for Any Application
Equipped with two balanced microphone/line inputs (XLR), each with individual gain control and selectable phantom power, the MXT-52MP3 is perfect for accommodating both dynamic and condenser microphones. Additionally, two stereo line inputs (RCA L/R) and a 3.5mm auxiliary input allow seamless integration of various audio sources, such as media players, laptops, or mobile devices.
Built-In MP3 Player for Standalone Playback
The built-in MP3 player supports USB drives and SD/MMC cards, making it easy to play pre-recorded content without requiring external devices. A dedicated remote control enhances user convenience, allowing quick track selection and playback control from a distance.
Precise Sound Control & Visual Monitoring
For precise audio management, each input features individual level controls, while the main output benefits from 2-way tone control and a master level adjustment. LED indicators provide clear visual feedback on clip levels and operational status, ensuring optimal sound quality at all times.
Durable, Flush-Mount Design
Housed in a robust metal enclosure with a protective rear cover, the MXT-52MP3 is built for reliable operation and protection against dust and debris, making it a durable choice for permanent installations. Whether used for background music, announcements, or live presentations, this flush-mounted mixer delivers professional-grade performance in a user-friendly format.
Monacor MXT-52MP3 Key Features:
- User-Friendly Wall-Mounted Design – Provides convenient access to audio inputs while keeping main equipment secured in a data cabinet.
- Versatile Input Options – Two balanced XLR mic/line inputs with gain control and selectable phantom power, two RCA line inputs, and a 3.5mm aux input.
- Integrated MP3 Player – Supports USB and SD/MMC cards for standalone playback, with remote control for easy operation.
- Independent Level Controls – Each input features individual level adjustment for precise audio mixing.
- Tone & Output Control – 2-way tone control and master volume adjustment ensure clear and balanced sound.
- LED Status Indicators – Provides visual feedback for clipping and operational status.
- Robust & Professional Build – Sturdy metal housing with a protective rear cover for durability and dust resistance.
- Ideal for Commercial Installations – Perfect for conference rooms, offices, schools, places of worship, hospitality venues, and retail spaces.
- All Monacor products carry an industry leading 3 year warranty
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
Monacor MXT-52MP3 Specifications
- No. of channels: 6
- No. of inputs: 5
- Mic input: 1 mV, 2 x XLR, bal.
- Line input: 230 mV, 2 x XLR, bal. 160 mV, 2 x RCA L/R
- Aux input: 160 mV, 1 x 3.5 mm jack
- Master output: 1-10 V, terminal, mono, bal.
- USB: yes
- Frequency range: 20-20,000 Hz
- THD: < 0.03%
- S/N ratio: > 78 dB
- Equalizer bass: ±10 dB/100 Hz
- Equalizer treble: ±10 dB/12 kHz
- Phantom power: 19 V
- Media player: MP3, USB
- Power supply: DC/˜ 24 V/250 mA
- Mains voltage: 24 V
- Admiss. ambient temp.: 0-40 °C

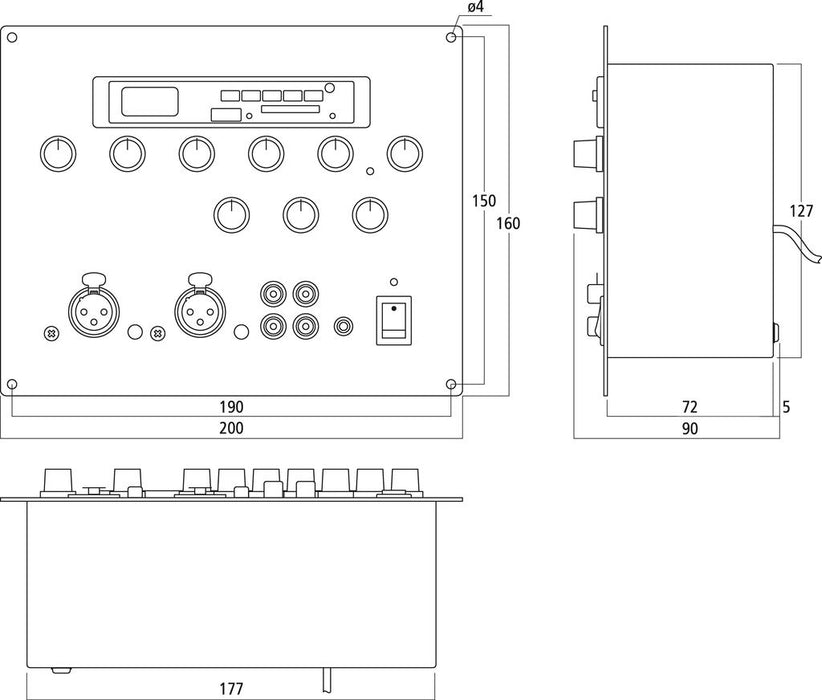

- Dimensions: 200 x 160 x 90 mm
- Width: 200 mm
- Height: 160 mm
- Depth: 90 mm
- Weight: 1.25 kg
- Packaging dimensions (W x H x L): 0.22 x 0.145 x 0.265 m
- Gross weight: 1.53 kg
- Net weight: 1.276 kg
