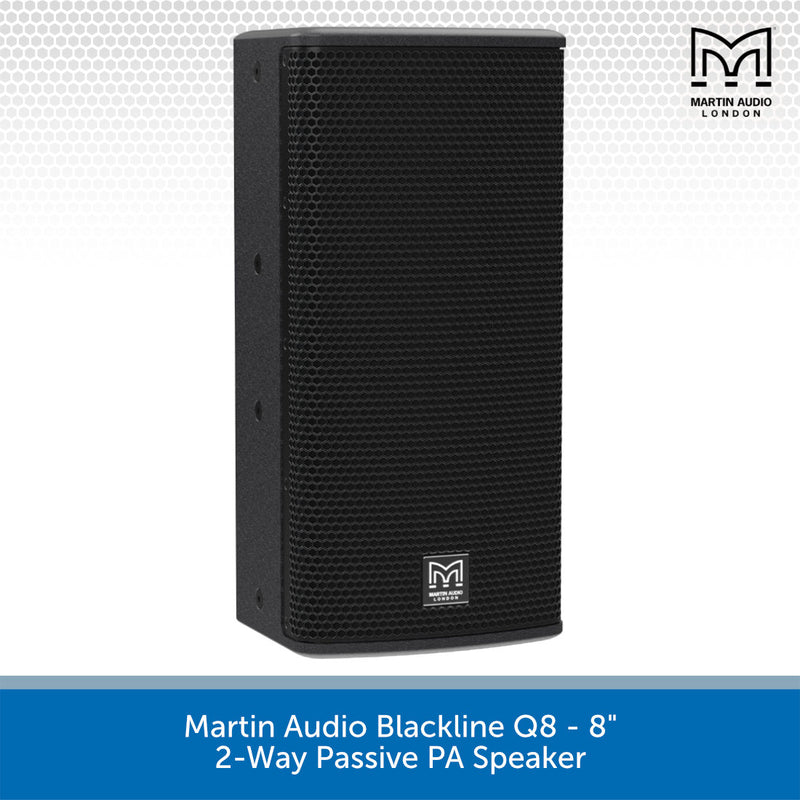

Martin Audio Blackline Q8 - 8" 2-Way Passive PA Speaker

SKU MAUQ8
Original price £539.00 (inc. VAT) - Original price £539.00 (inc. VAT)
Original price £539.00 (inc. VAT)
£539.00 (inc. VAT)
£539.00 (inc. VAT) - £539.00 (inc. VAT)
Current price £539.00 (inc. VAT)

Big Output, Small Footprint, Fully Rotatable Coverage - Martin Audio Blackline Q8.

The Blackline Q8 is a small, tough loudspeaker built for anywhere space is tight but sound quality still matters. It's easy to tuck away on a wall, in a corner, or on a stand, yet it still hits hard enough for real venue use, whether that's a bar, a club, a corporate event, or a house of worship.

Differential Dispersion Horn

It has a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment needs, with dispersion of 90°-110° horizontal by 50° vertical.

Built For Repeated Handling

The symmetrical multi-angle plywood enclosure is finished in tough black textured paint, with a screw-fixed, cloth-backed perforated steel grille and an integrated ergonomic handle made from recycled ABS. Flexible mounting comes via M8 inserts for yokes or eyebolt suspension, M6 inserts for wall brackets, and a pole-mount socket with a removable cover to keep installed applications looking clean.

Standalone Or Paired With A Subwoofer

As a stand-alone loudspeaker, Blackline Q8 offers exceptional versatility across a wide range of professional applications, from distributed sound reinforcement and houses of worship to AV events, front-fill and in-fill duties, and even as a compact stage monitor.

When paired with a Blackline Q subwoofer, it becomes a simple yet powerful system ideal for portable use or fixed installations requiring an unobtrusive solution capable of delivering pristine sound over short to medium throw distances.

Martin Audio Blackline Q8 Key Features:

  • Ultra-compact passive two-way system.
  • Symmetrical multi-angle plywood enclosure.
  • Peak SPL of 121dB (127dB with crest factor 4).
  • User-rotatable Differential Dispersion horn.
  • Dispersion of 90°-110° horizontal, 50° vertical.
  • Vertical and horizontal orientation.
  • Screw-tight, cloth-backed perforated steel grille.
  • Integrated ergonomic handle from recycled ABS.
  • Pole-mount cover maintains clean lines.
  • 8Ω nominal impedance.
  • Two NL4 connectors.
  • Flexible mounting via M8 inserts.

Manuals & Data Sheets:

Martin Audio Q-Series User Manual

Martin Audio Q8 Data Sheet

Specifications:

  • Type: Ultra-compact, passive two-way loudspeaker
  • Frequency Response: 67Hz-17kHz ± 3dB, -10dB @ 51Hz
  • LF Driver: 8" (200mm) with 2" (50mm) voice coil, ferrite motor system
  • HF Driver: 1" (25mm) exit compression driver with 1" (25mm) voice coil, PETP dome
  • Rated Power: 200W AES, 800W peak
  • Required Electronics: Processor and amplifier, or combined amplifier-processor unit
  • Recommended Electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
  • Sensitivity: 92dB
  • Maximum SPL: 115dB continuous, 121dB peak, 127dB peak with crest factor 4
  • Nominal Impedance: 8 ohm
  • Dispersion: 90°-110° (horizontal) x 50° (vertical), user-rotatable Differential Dispersion horn
  • Crossover: 3kHz passive
  • Enclosure: Symmetrical multi-angle plywood
  • Finish: Black textured paint
  • Protective Grille: Black perforated steel with scrim cloth backing
  • Connectors: 2 x NL4 connectors
  • Pin Connections (Input): 1+/1-
  • Pin Connections (Link): 1+/1- to 1+/1- and 2+/2- to 2+/2-
  • Fittings: 15 x M8 inserts, 6 x M6 inserts for wall bracket, 1 x pocket handle from recycled ABS, pole-mount socket with removable cover
  • Dimensions: (W) 236mm x (H) 500mm x (D) 250mm
  • Weight: 10.1kg (22.3 lbs)
