LD Systems ZONE 622 2-Zone 19" 1U Rack Mixer
DETAILS

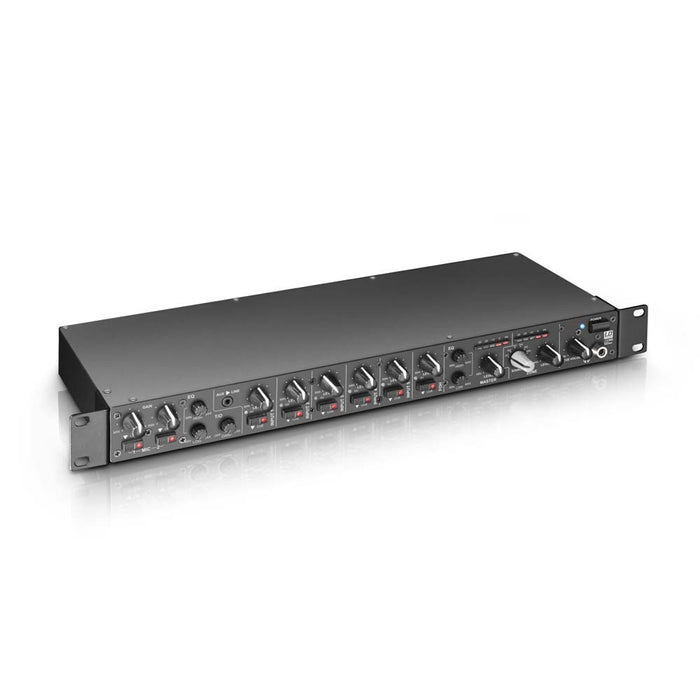

The LD Systems ZONE 622 is a versatile and compact 1U rack mixer designed for managing audio across two separate zones.
With 6 line inputs, 2 microphone channels, and assignable stereo or mono master outputs, this mixer offers exceptional flexibility. Ideal for applications in restaurants, bars, hotels, fitness centres, clubs, and presentation spaces, the ZONE 622 is a dependable choice for tailored sound distribution.

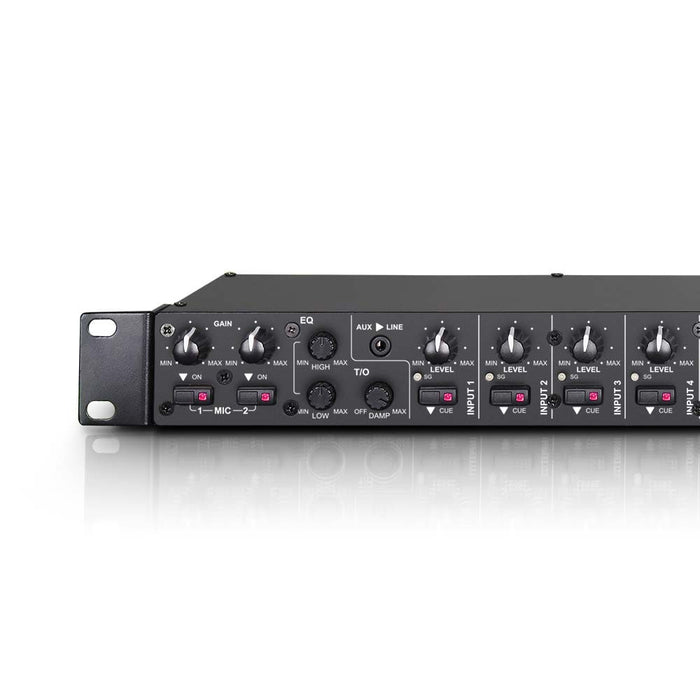

This mixer features two balanced microphone channels with stereo jack inputs, providing controls for Gain, Talkover volume, Talkover attenuation, and 12V phantom power. A shared 2-band EQ ensures clear and dynamic microphone performance. Channels 1 and 2 also accommodate unbalanced microphones, while channel 6 is specifically optimised for balanced FOH signals. The stereo input channels include Cue buttons, signal display, and gain trimmers for channels 1-5, ensuring precise level management.

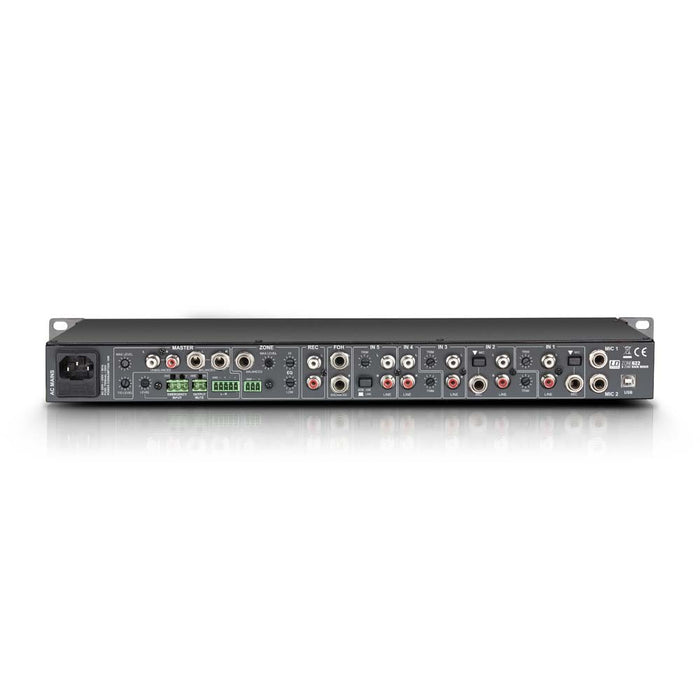

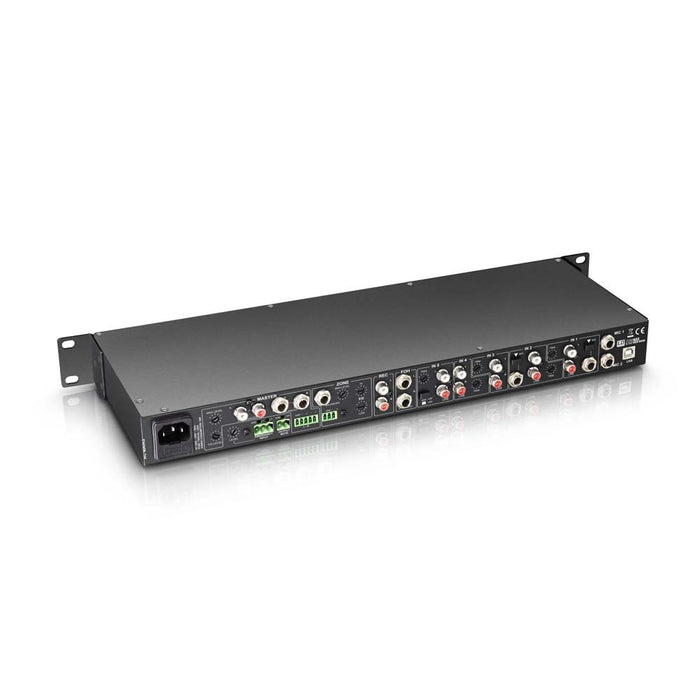

Additional connectivity includes a 3.5mm mini-jack input and a USB port, which functions as a stereo input/output and recording interface, enabling seamless integration with external devices. The mixer’s output sections are equally robust, with independent meters, 2-band EQ, and balanced jack or terminal block connectors. The stereo output section also features unbalanced RCA connections, while a headphone jack and recording output enhance monitoring and recording capabilities.
LD Systems ZONE 622 Key Features:
- Dual Zone Management: Assignable stereo or mono outputs for flexible zone control.
- Extensive Inputs: 6 line and 2 mic channels, with additional 3.5mm mini-jack and USB inputs.
- Mic Channel Flexibility: Gain, Talkover settings, 12V phantom power, and 2-band EQ.
- Output Precision: Balanced and unbalanced connectors with individual 2-band EQs and output trimming.
- Compact Design: Space-saving 1U rack format ideal for professional installations.
The LD Systems ZONE 622 is a reliable solution for managing multiple zones with advanced features, making it perfect for diverse commercial environments and sound reinforcement needs.
SPECIFICATION
Download the PDF User Manual HERE >
LD Systems ZONE 622 Specifications
- Number of Zones: 2 (Master, Zone)
- Installation Height: 1 U
- Total Input Channels: 8 (2x Mic, 2x Mic/Line, 3x Line, 1x FOH)
- Frequency response: 20 - 40000
- Microphone channels: 2 (with phantom power 12 V)
- Microphone Channel Connections: 6.3 mm stereo jack (balanced)
- Line / Microphone Channels: 2

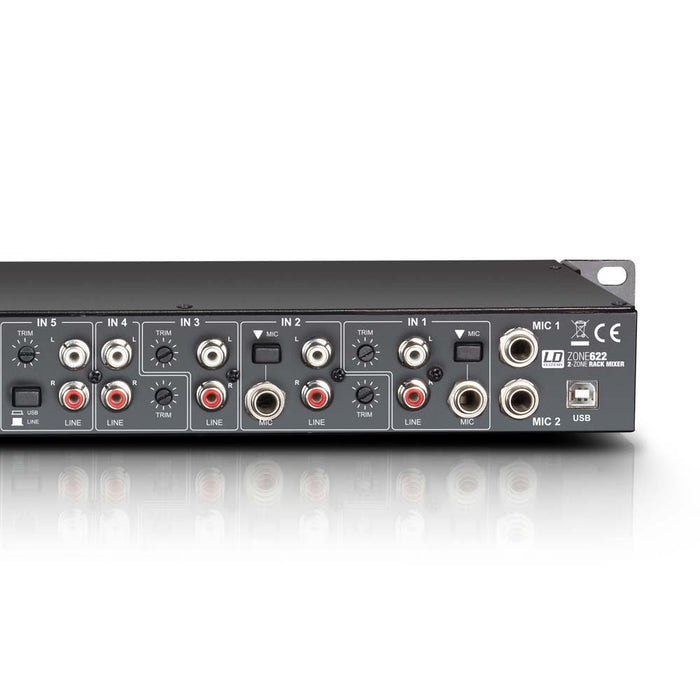

- Line / microphone input connectors: 2 x RCA, 3.5 mm stereo jack (input 1), 6.3 mm stereo jack (balanced)
- Line Channels: 3
- Line input connectors: Input 3-4: 2 x RCA, Input 5: 2 x RCA + USB
- Line outputs: 3 (Master - Stereo, Zone - Mono, Rec - Stereo)
-

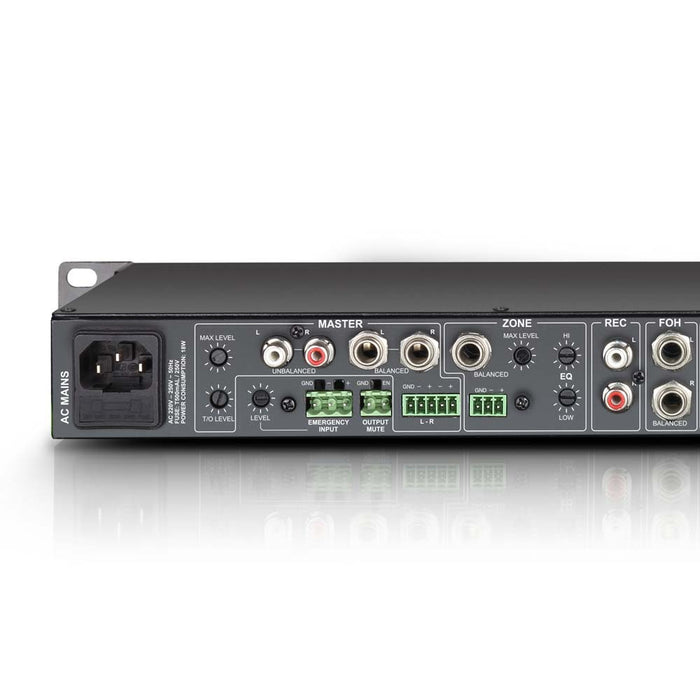

Output Connectors Master: 6.3 mm stereo jack (2 x balanced), RCA (x2), Terminal block

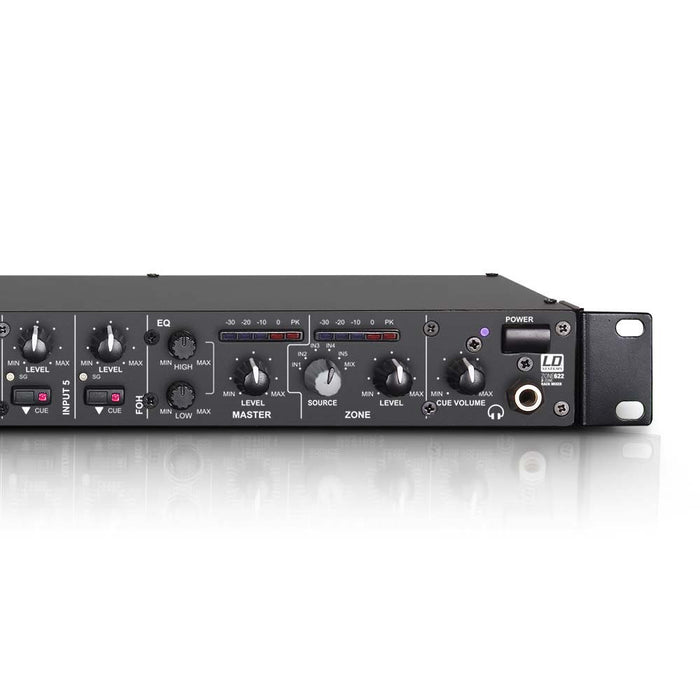

Master Controls: EQ Hi, EQ Low, level, Max. Level - Zone Output Connections: 6.3 mm stereo jack (balanced), Terminal block
- Zone Controls: EQ Hi, EQ Low, level, Max. Level, Source Input 1-5/Mix
- Additional Inputs: 2 (Emergency Input, Output Mute)
- Operating voltage: 220 - 250 V AC, 50 Hz
- Mains connector: IEC power connector
- Power consumption: 18 W
- Fuse: T 500 mAL / 250 V
- Width: 485 mm
- Height: 44 mm
- Depth: 179 mm
- Weight: 2,4 kg
