LD Systems MS 828 8-Channel Splitter/Mixer 19" 1U Rack-Mount

Original price £160.00 (inc. VAT) - Original price £160.00 (inc. VAT)
Original price £160.00 (inc. VAT)
£160.00 (inc. VAT)
£160.00 (inc. VAT) - £160.00 (inc. VAT)
Current price £160.00 (inc. VAT)
SKU LDMS828
DETAILS

The LD Systems MS 828 is a professional-grade audio splitter and mixer designed to deliver exceptional flexibility and precision for a wide range of applications.

Ideal for multi-speaker or multi-zone setups, it allows users to mix 2 input channels to 8 outputs, making it a perfect solution for large venues, bars, clubs, restaurants, hotels, and more.

The MS 828 stands out with its unique ability to operate in two distinct modes: Splitter Mode and Mixer Mode. In Splitter Mode, it takes 2 inputs and distributes them to up to 8 outputs, enabling seamless control of audio across multiple zones or speaker arrays. In Mixer Mode, the unit combines up to 8 input channels into a stereo output, making it a versatile tool for conventional audio mixing tasks in live or studio settings.

Designed with professionals in mind, the MS 828 features 1 stereo and 6 mono channels, all equipped with electronically balanced inputs and outputs. 2 mono channels use stereo TRS connectors, while the remaining channels rely on XLR inputs and outputs. Each channel includes individual volume controls, and mono channels also feature pan controls and a toggle switch for selecting Splitter or Mixer Mode.

With an impressive frequency response of 5 Hz to 40 kHz, a dynamic range of 85 dB, and ultra-low total harmonic distortion of 0.0008%, the MS 828 ensures pristine audio fidelity. Its wide operating level range (-10 dBV to +4 dBU) guarantees compatibility with both professional and consumer-grade equipment.

LD Systems MS 828 Key Features:

  • Dual Modes:
    • Splitter Mode: Mixes 2 input channels to 8 outputs for multi-zone or multi-speaker setups.
    • Mixer Mode: Combines 8 input channels into a stereo output for traditional mixing needs.
  • Flexible Applications: Perfect for use in bars, clubs, restaurants, hotels, large venues, and studios.
  • High-Quality Performance: Ultra-low distortion, wide frequency response, and excellent dynamic range for superior audio clarity.

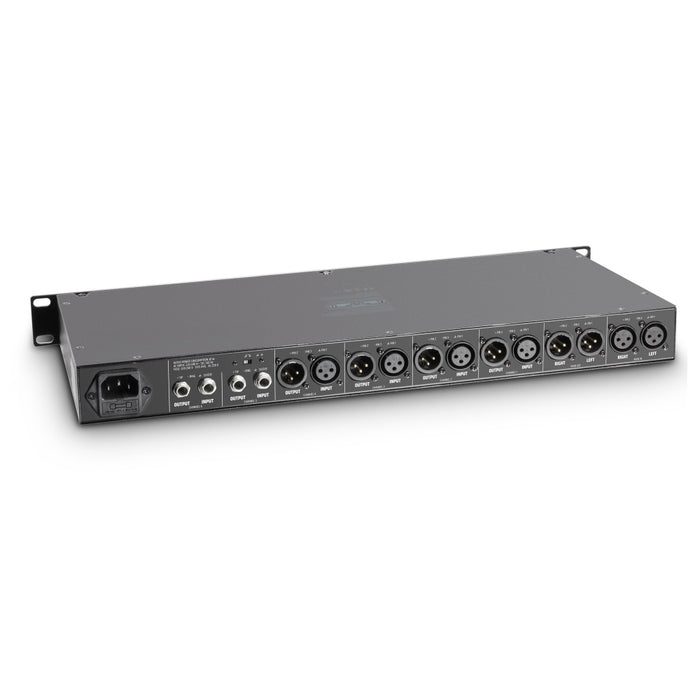

  • Comprehensive Connectivity: Balanced TRS and XLR inputs/outputs for seamless integration.

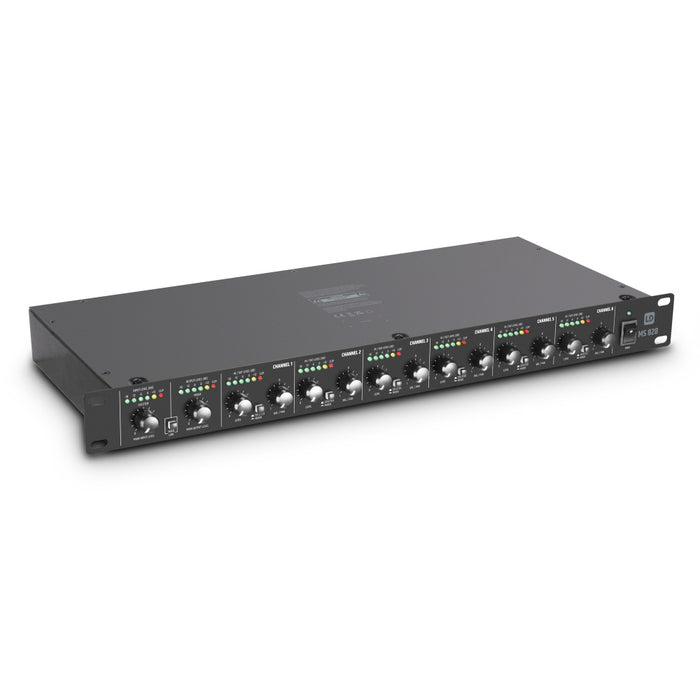

  • Professional Design: 1U 19" rackmount format with intuitive controls, including individual channel volume and pan adjustments.

Whether you’re managing a multi-zone sound system or creating a unified mix for a live performance, the LD Systems MS 828 provides the versatility and reliability needed for professional audio environments.

SPECIFICATION

LD Systems MS 828 Specifications

  • Channels : 8
  • Mono input channels, line: 6
  • Mono line input connectors: 2 x 6.3 mm TS
  • Mono line input type: Electronically balanced
  • Stereo Line Input Channels: 1
  • Stereo Line Input Connectors: 2 x XLR
  • Stereo Line Input Type: Electronically balanced
  • Input impedance: (balanced) 50000 Ohm(s), (unbalanced) 25000 Ohm(s)
  • Max. input level: + 21 dBu
  • Nominal working level: -10 dBV - +4 dBu
  • Mono output channels: 6
  • Mono output connectors: 2 x 6.3 mm TS
  • Mono output type: Electronically balanced
  • Stereo output channels: 1
  • Stereo output connectors: 1 x XLR
  • Stereo output type: Electronically balanced
  • Output impedance: (balanced) 60 Ohm(s), (unbalanced) 30 Ohm(s)
  • Max. output level: +22 dBu
  • Frequency response: 5 - 40000
  • THD: 0.0008 %
  • S/N Ratio: 85 dB
  • Operating voltage: 220 V AC - 240 V AC, 50-60 Hz
  • Mains connector: IEC power connector
  • Power consumption: 15 W
  • Fuse: T 315 mAL, AC 250V
  • Width: 483 mm
  • Height: 44.5 mm
  • Depth: 216 mm
  • Weight: 3 kg
  • Accessories (included): Power cord
