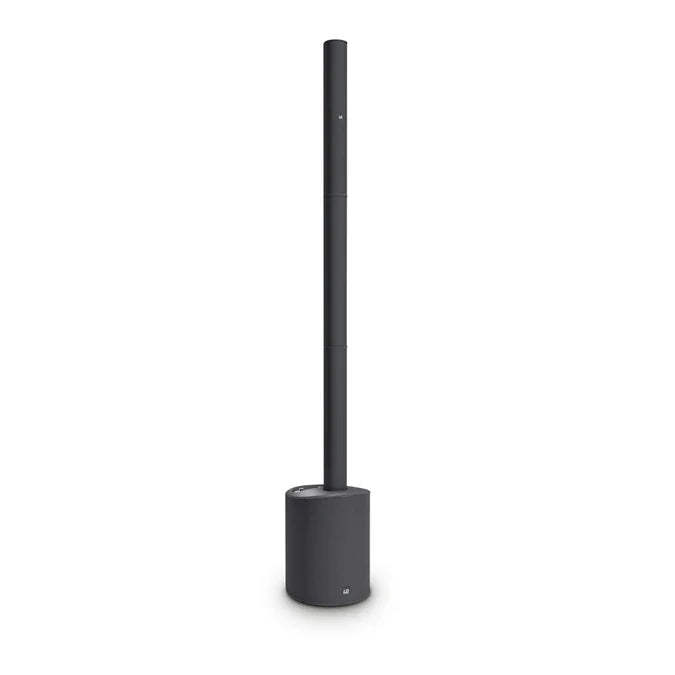

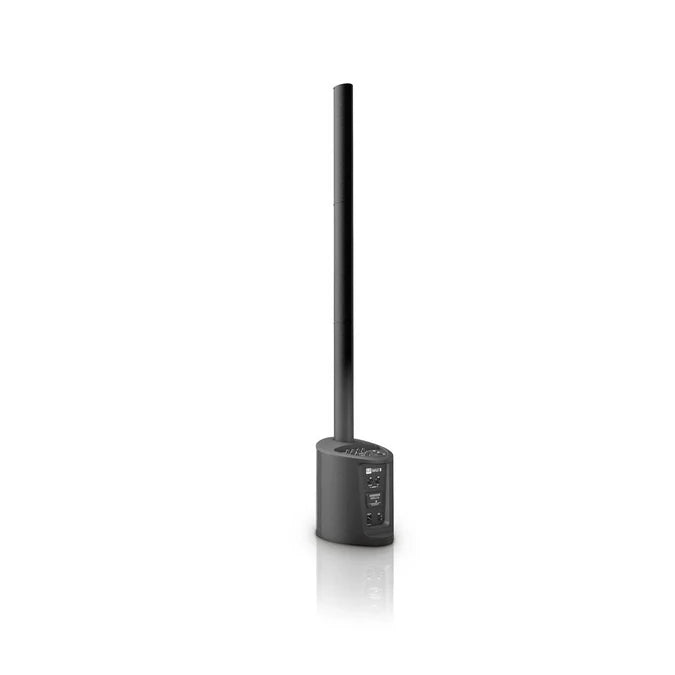

LD Systems MAUI 5 Column PA System with 4-Channel Mixer & Bluetooth - Black
The LD Systems MAUI 5 is an ultra-compact 800W Peak Column PA System with a 4-channel mixer, Bluetooth, LECC DSP, 8" subwoofer and 4 x 3" midrange drivers — assembling in seconds from just four components for a portable, versatile PA and monitor system weighing just 11.3kg.
The LD Systems MAUI 5 is the smallest and lightest member of the MAUI family — an ultra-compact column PA and monitor system in one that delivers 800W peak output and 120dB maximum SPL from a total system weight of just 11.3kg. Assembling in a matter of seconds from only four components using specially developed multi-pin connectors, the MAUI 5 is designed for performers, presenters and small event setups where portability and speed of deployment are as important as sound quality. Light enough to fit on any car seat and easy enough to carry alone, the MAUI 5 removes the complexity and bulk of traditional PA setups without compromising on coverage or performance — delivering extensive 120° horizontal sound dispersion and high feedback resistance in an elegant, compact package available in black or white.
8" Subwoofer with Class-D Amplifier & LECC DSP
The bass reflex cabinet of the 8" subwoofer base houses the entire system’s Class-D amplifier delivering 200W RMS and 800W peak, alongside LD Systems’ LECC digital signal processing for controlled, dynamic operation and comprehensive protection circuits against overcurrent, overheating and short-circuiting. The 8" custom woofer with 2" voice coil and ferrite magnet delivers clear, defined bass reproduction from 50Hz, and the bass reflex enclosure design maximises low-frequency output from the compact ABS plastic cabinet. A separate subwoofer level control allows the low-end balance to be adjusted independently from the overall system volume for optimum tuning to any room or application.

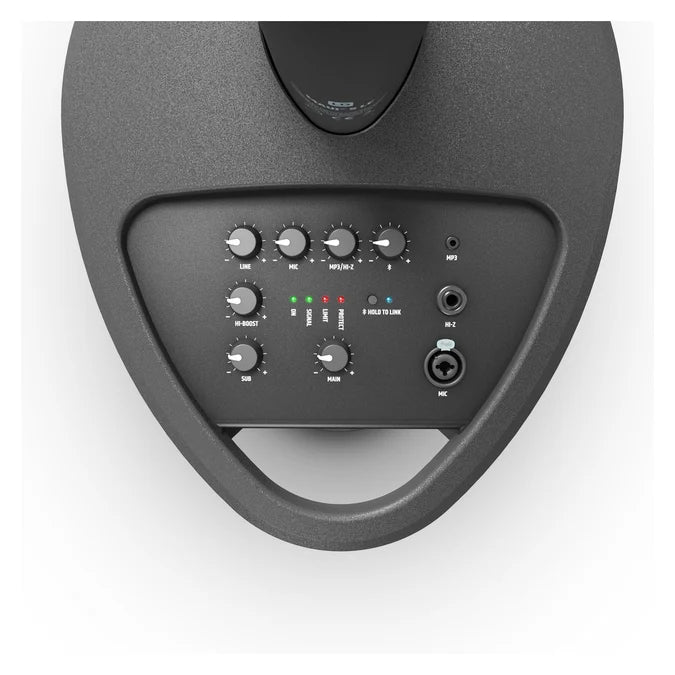

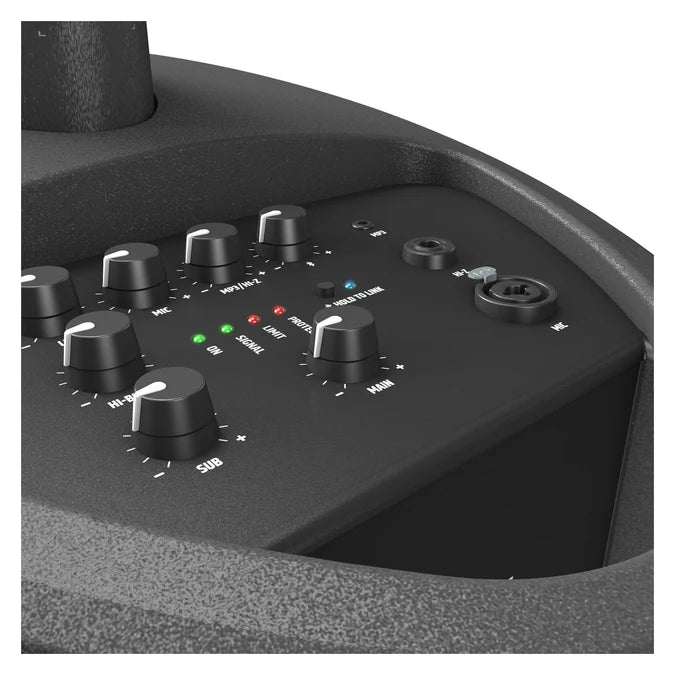

Integrated 4-Channel Mixer with Multiple Inputs

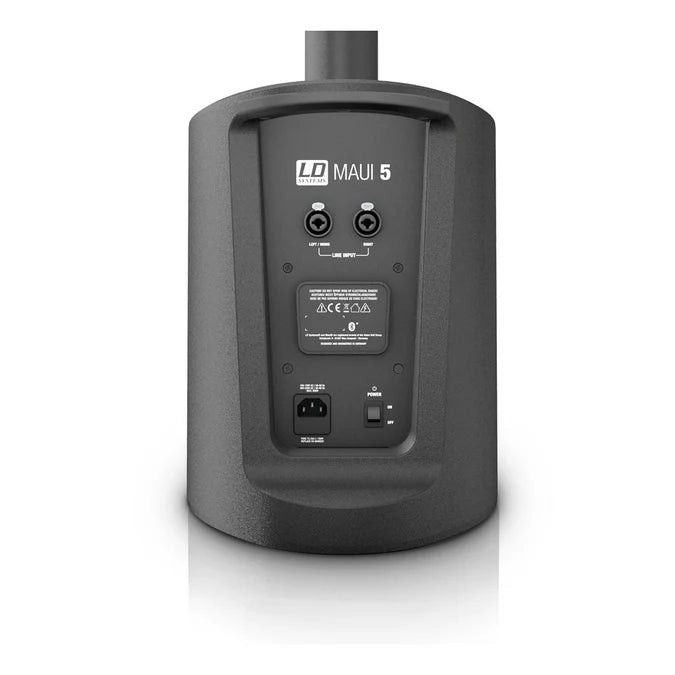

The MAUI 5’s onboard 4-channel mixer provides a comprehensive range of input options for connecting a wide variety of sound sources simultaneously. A combo XLR/jack microphone input handles dynamic and condenser microphones, two stereo line inputs via XLR and 6.3mm jack accept keyboards, mixers and playback devices, a 3.5mm MP3/stereo input connects phones and media players, and a high-impedance 6.3mm jack input handles guitars and other instrument sources directly without a separate DI box. Bluetooth connectivity with a dedicated level control adds wireless streaming capability from any compatible smartphone or tablet. Each input channel has its own independent level control, and a high-shelf filter allows treble adjustment to suit the acoustics of different rooms and environments.

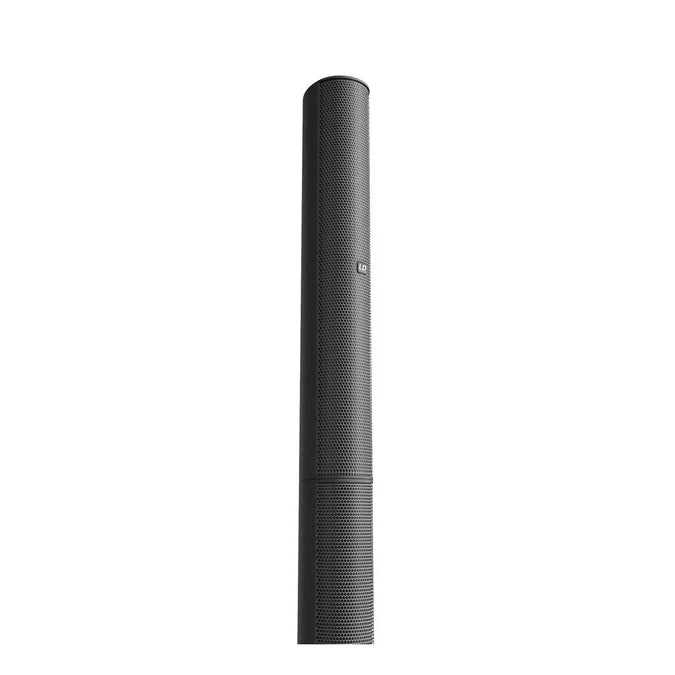

4 x 3" Midrange Column for Wide, Clear Dispersion
The closed ABS column housing carries four 3" neodymium midrange drivers for wide, consistent sound coverage across the 120° horizontal and 20° vertical dispersion field — ensuring clear, intelligible vocals and instrument reproduction throughout the listening area with high feedback resistance that makes the MAUI 5 equally effective as a front-of-house PA and as a stage monitor.
What’s Included:
- 1 x MAUI 5 Subwoofer (Black)
- 2 x MAUI 5 Column Spacers (Black)
- 1 x MAUI 5 Upper Column (Black)
- 1 x Power Cable
- 1 x User Manual
LD Systems MAUI 5 Key Features:
- 800W Peak / 200W RMS Output: Powerful performance from an ultra-compact 11.3kg system.
- 120dB Maximum SPL: High-output capability for small to medium venues, rehearsals and events.
- PA & Monitor System in One: Versatile deployment as front-of-house PA or stage monitor.
- 4-Second Assembly: Four components with specially developed multi-pin connectors — no tools, stands or cables required.
- Integrated 4-Channel Mixer: Mic, stereo line (x2), MP3/Hi-Z and Bluetooth — all with independent level controls.
- Bluetooth Streaming: Wireless audio from smartphones and tablets with dedicated level control.
- 8" Custom Subwoofer: Clear, defined bass from 50Hz in a compact bass reflex ABS enclosure.
- 4 x 3" Neodymium Midrange Drivers: Wide, consistent 120° horizontal coverage with high feedback resistance.
- LECC Digital Signal Processing: Controlled, dynamic operation with DSP multiband limiting.
- 24-bit / 48kHz Audio Processing: Professional-grade digital audio throughout.
- High-Shelf Filter: Treble adjustment to suit different room acoustics and environments.
- Independent Sub & Main Level Controls: Precise system tuning for any application.
- Mic, Line, Hi-Z, MP3 & Bluetooth Inputs: Connect microphones, instruments, playback devices and more.
- High Feedback Resistance: Suitable for close-proximity PA and monitor applications.
- 120° x 20° Dispersion: Wide horizontal coverage with controlled vertical dispersion.
- Convection Cooled: Silent operation — no fan noise.
- Auto-Converting 100–240V Power Supply: Compatible with any mains environment worldwide.
- Total Weight 11.3kg: Fits on any car seat — easy single-person transport and setup.
-
Also Available in White: MAUI 5 W (LDMAUI5W).
