Intusonic IntuCab 4VM100T 2-Way Full-Range Column Array Speaker (Black or White)

Original price £319.00 (inc. VAT) - Original price £319.00 (inc. VAT)
Original price £319.00 (inc. VAT)
£319.00 (inc. VAT)
£319.00 (inc. VAT) - £319.00 (inc. VAT)
Current price £319.00 (inc. VAT)
SKU 4VM100T-BK
Colour: Black
DETAILS

Intusonic IntuCab 4VM100T – 2-Way Full-Range Column Array Speaker (Black or White)

The Intusonic IntuCab 4VM100T is a high-performance 2-way full-range column array speaker designed for medium-throw applications, delivering focused vertical dispersion and wide horizontal coverage. This ensures clear and controlled audio projection, making it ideal for lecture halls, classrooms, chapels, boardrooms, and other seated audience environments. Its sleek, compact design and multiple mounting options provide seamless integration into a variety of spaces.

Clear, Focused Audio with Optimized Dispersion

Equipped with four 4” LF drivers featuring phase plugs and four 1” silk dome tweeters housed in a 5° down-facing waveguide, the 4VM100T ensures precise sound reproduction while minimizing unwanted reflections from floors and ceilings. Its advanced passive crossover enhances clarity and tonal balance, making it suitable for speech and music applications.

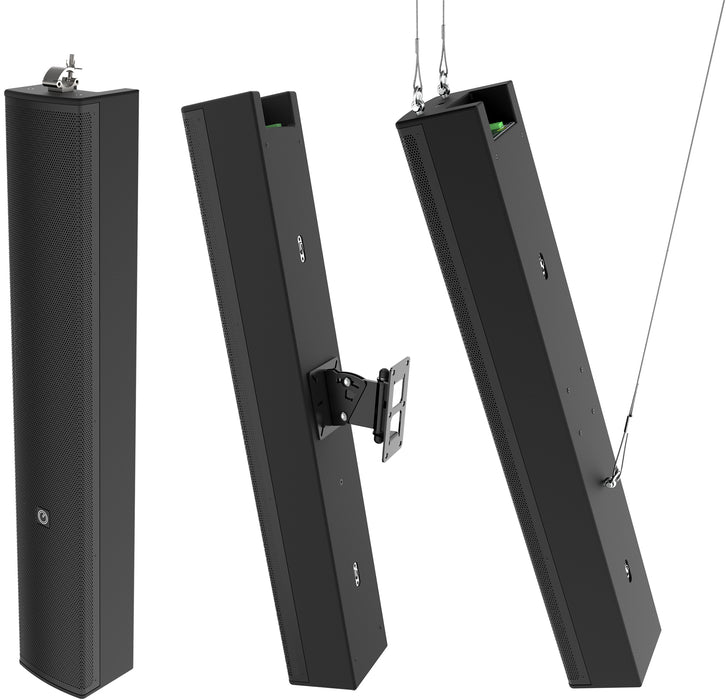

Flexible Installation Options

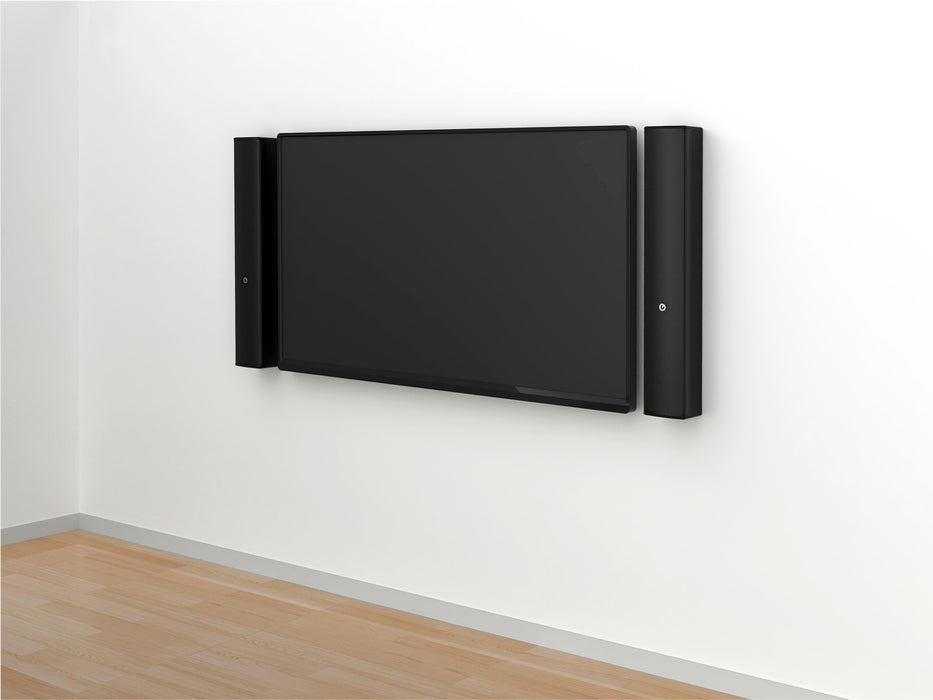

The IntuCab 4VM100T offers versatile mounting solutions, including VESA brackets, flying mounts, and flush wall installation. The cabinet features a rugged MDF construction with a scratch-resistant black or white structural paint finish, blending into a variety of architectural settings. Dual Speakon-compatible connectors and a 4-pin terminal strip provide convenient connectivity options.

Intusonic IntuCab 4VM100T Key Features:

  • Focused vertical dispersion for controlled projection, reducing reflections
  • Wide horizontal coverage ensures even sound distribution

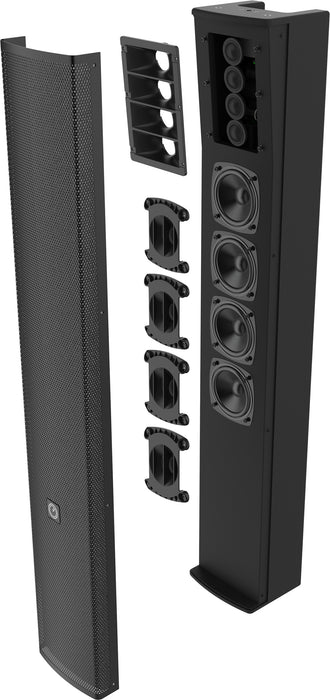

  • 4× 4” low-frequency drivers with phase plug for tight, defined bass response
  • 4× 1” silk dome tweeters in a 5° down-firing waveguide for smooth high-frequency clarity

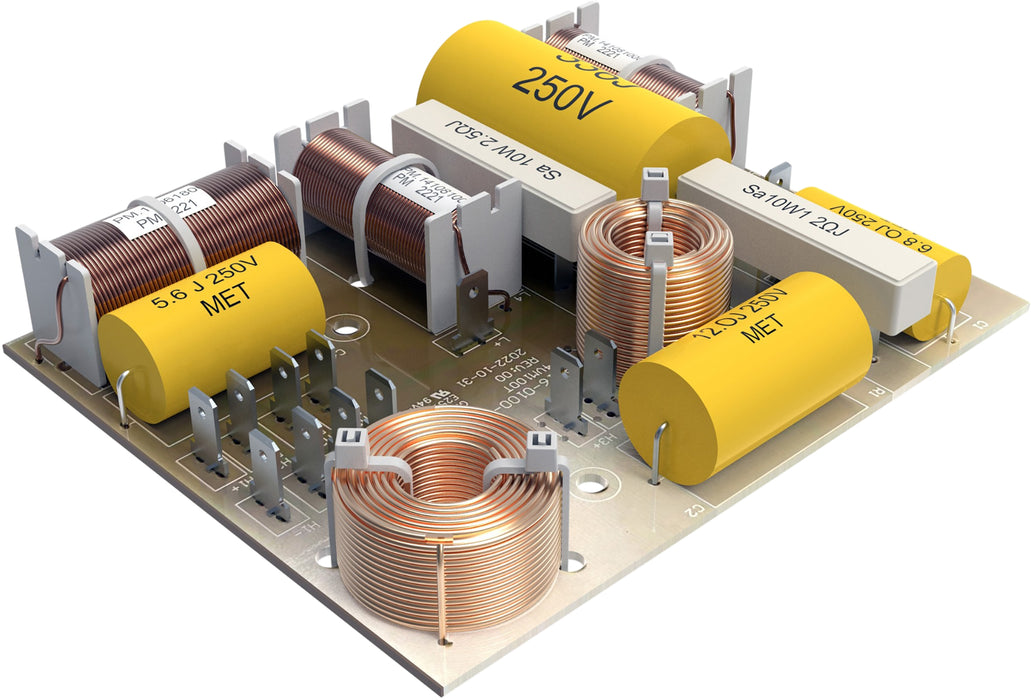

  • Advanced passive crossover for optimal sound quality

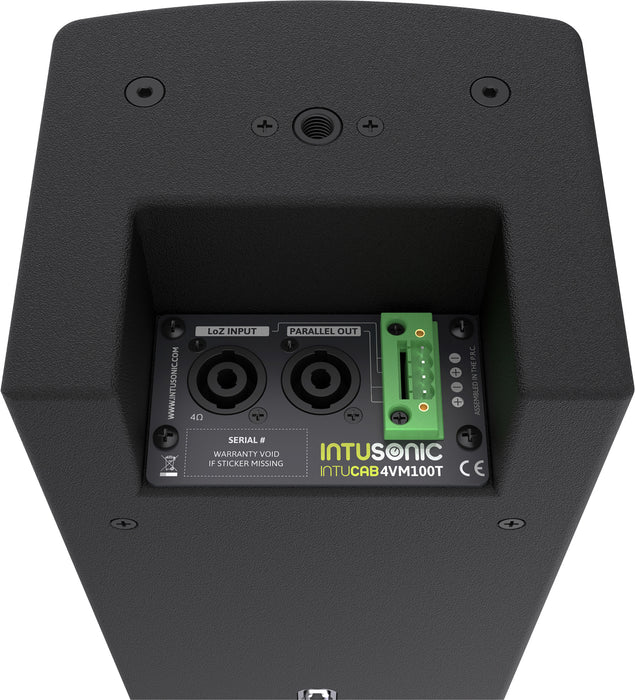

  • Dual parallel Speakon-compatible connectors & 5.0mm 4-pin terminal strip for flexible connectivity

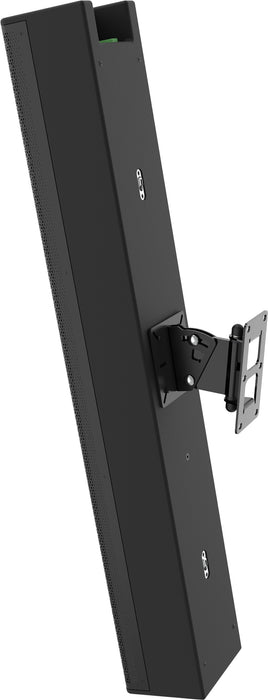

  • Multiple mounting options: 75mm VESA (rear), M10 (top), M6 mounting points, and slot plates for flush wall mounting
  • Durable 12mm MDF enclosure with a rugged steel front grille and protective foam backing

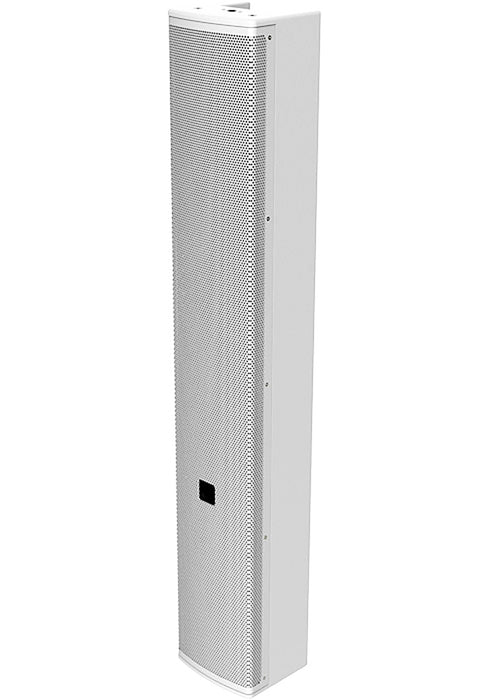

  • Available in black or white with structured scratch-resistant paint finish
SPECS & DOWNLOADS

Download the PDF Data Sheet HERE >

Download the PDF Instruction Manual HERE >

Intusonic IntuCab 4VM100T Specifications

  • Frequency response (-6 dB): 90Hz-18kHz
  • Sensitivity (1W/1m) / Max SPL: 90dB / 114dB
  • Dispersion HxV: 120°x30°
  • Impedance:
  • Power Handling: 140W (AES)
  • Drivers / Design: 4×4’’ LF (closed) & 4×1’’ SD Tweeter
  • Material: 12mm MDF
  • Surface: Scratch-resistant paint
  • IP Rating: 20
  • Dimensions WxDxH: 160x140x1000mm
  • Weight: 10.00 kg
}
