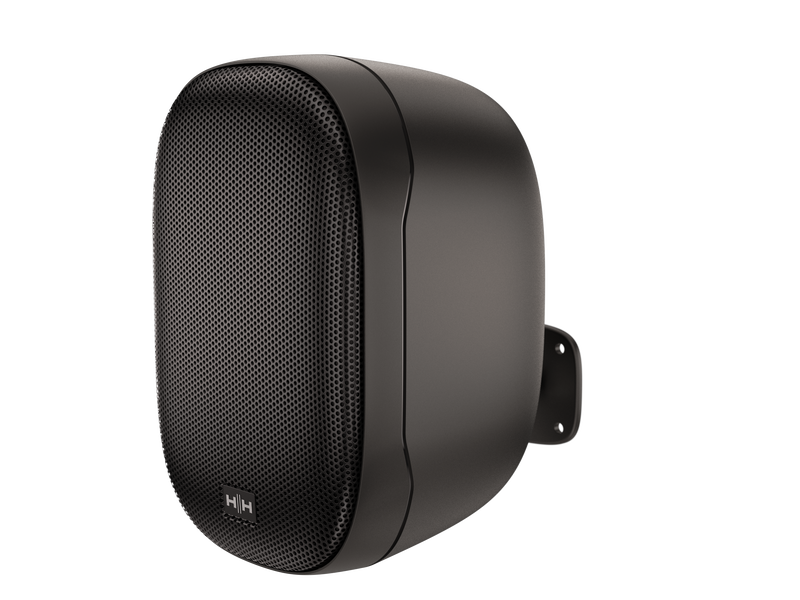

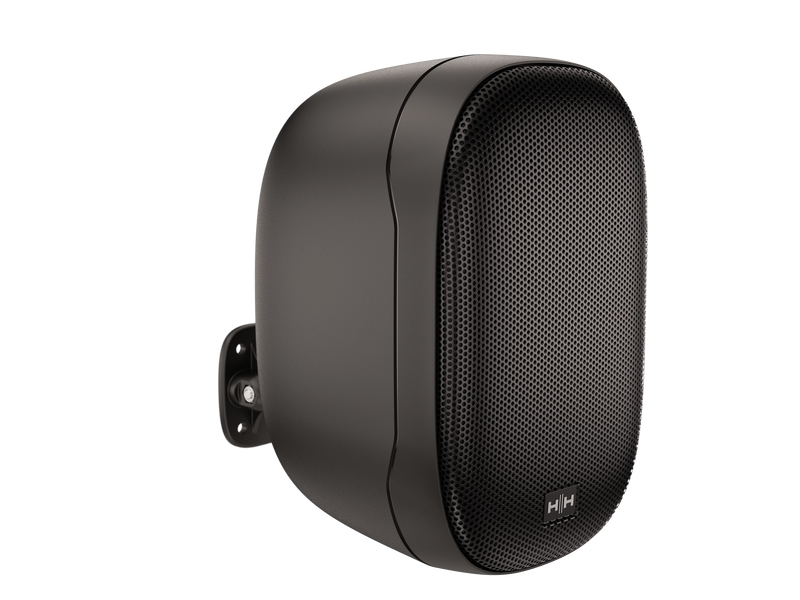

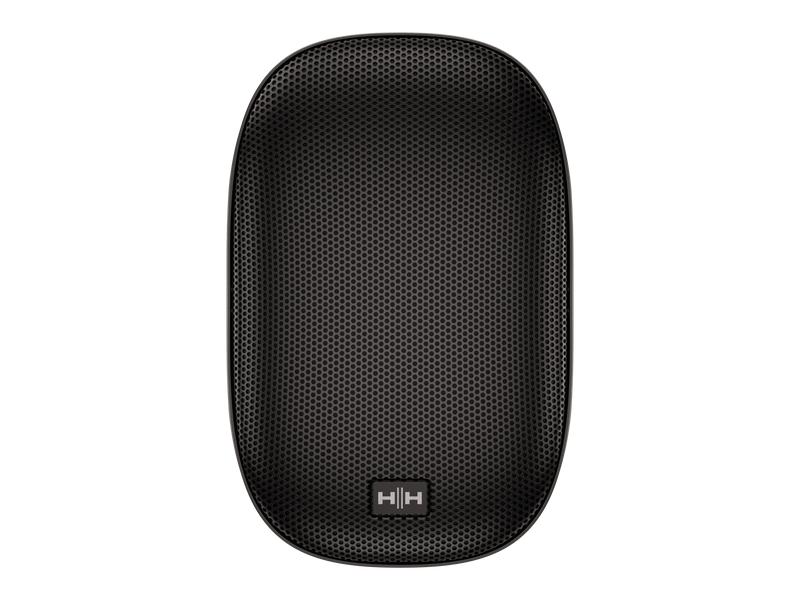

HH Audio TNi-WX5 5.25" IP65 Wall Mount Speaker, 100V & 8 Ohms - Black or White
The HH Audio TNi-WX5 is a 5.25" IP65 Rated 2-Way Wall Mount Speaker delivering 50W RMS across both 100V line and 8 Ohm operation, combining thoughtful durable design with excellent sonic performance in a compact, utilitarian enclosure suitable for indoor and outdoor commercial installations.
The HH Audio TNi-WX5 is the mid-size model in the TNi-WX range of IP65 rated surface mount loudspeakers, stepping up from the TNi-WX3 with a larger 5.25" driver configuration for greater output, improved sensitivity and a wider frequency response that extends deeper into the low-frequency range — making it well suited to a broader range of commercial audio applications where the smallest model may not provide sufficient coverage or output.
Designed for professional fixed audio installations across corporate offices, retail environments, hospitality venues, outdoor commercial spaces and public areas, the TNi-WX5 delivers beautifully balanced audio in systems of all sizes from a compact and discreet wall-mounted enclosure.
IP65 Weatherproof Construction

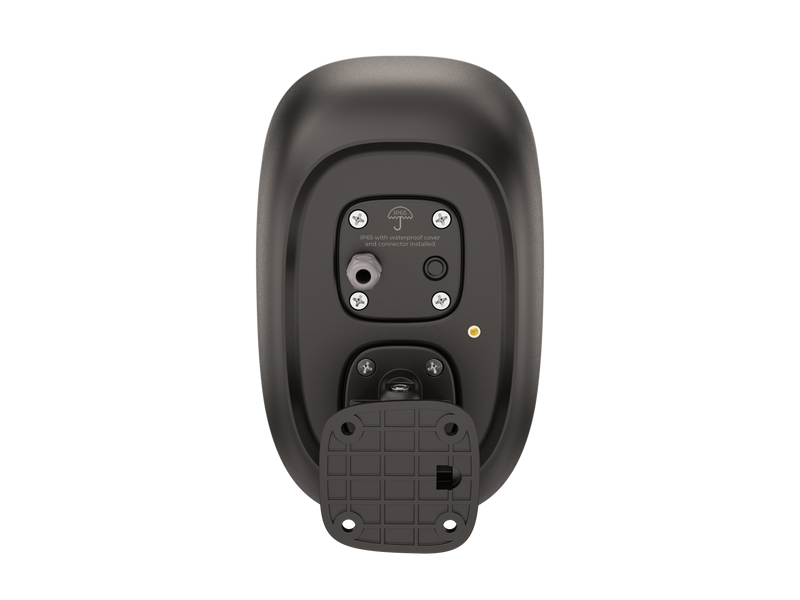

The TNi-WX5 is constructed from UV resistant ABS for long-term durability and colour stability in outdoor and high-UV environments, finished with a robust aluminium grille for professional driver protection. When the included rear connector cover with cable gland is fitted, the TNi-WX5 achieves a full IP65 rating — fully dust-tight and protected against water jets from any direction — making it a reliable and specification-compliant choice for covered outdoor areas, building facades, hospitality terraces and any other installation requiring weatherproof performance.
100V Line & Low Impedance Flexibility
The TNi-WX5 features an internal line transformer offering 100V line tappings at 15W, 10W, 7.5W and 5W, and 70V tappings at 7.5W, 5W, 3.75W and 2.5W — providing flexibility to integrate the speaker into large-scale 70V or 100V distributed audio systems at the appropriate power level. A bypass setting enables direct 8 Ohm low-impedance operation for use with conventional amplifiers in smaller systems. The 4-pin Euroblock input and link connector provides secure, professional-grade wiring with straightforward daisy-chaining to additional speakers throughout the installation.

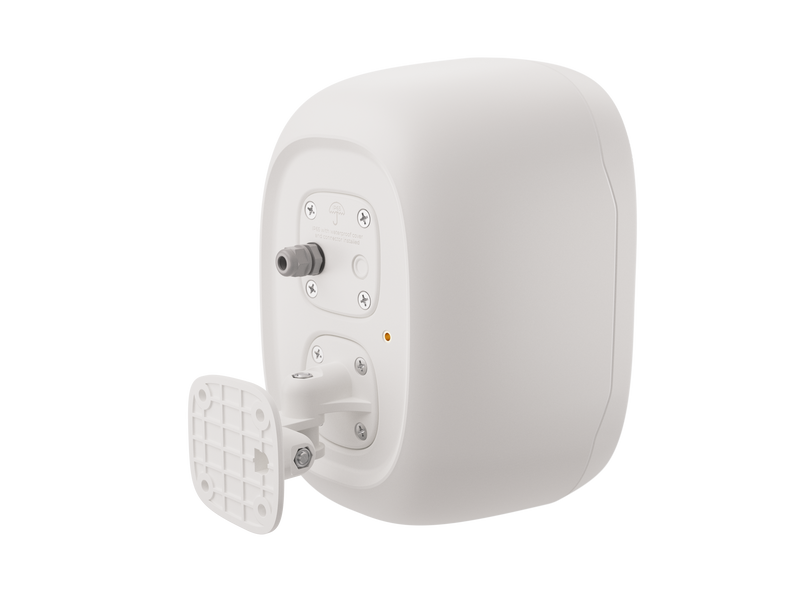

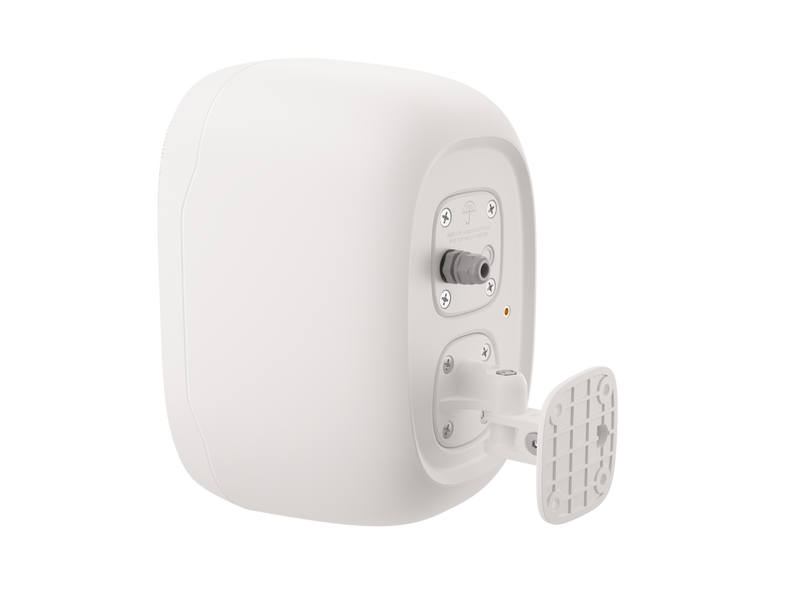

Pan & Tilt Bracket Included

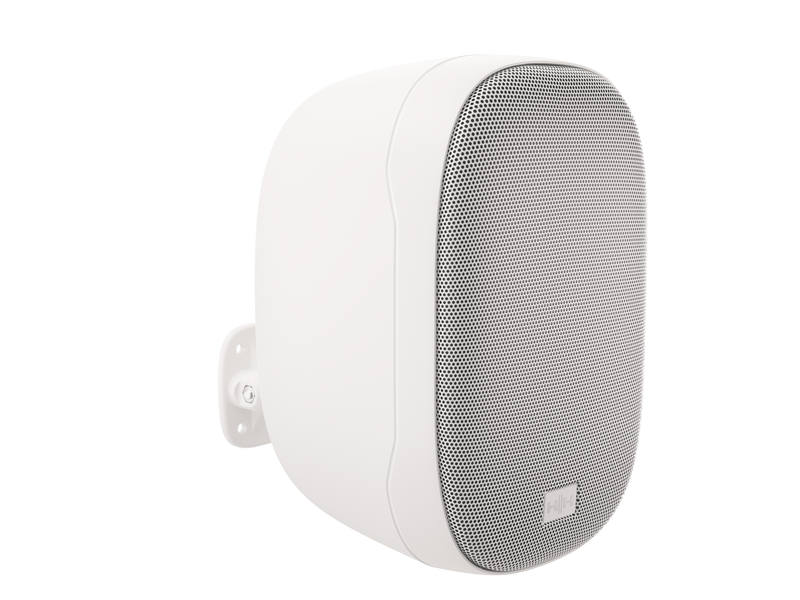

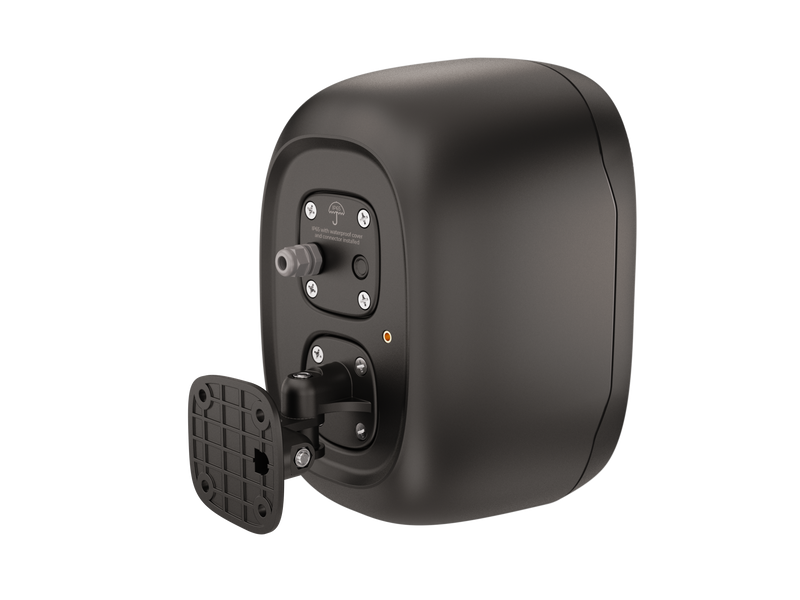

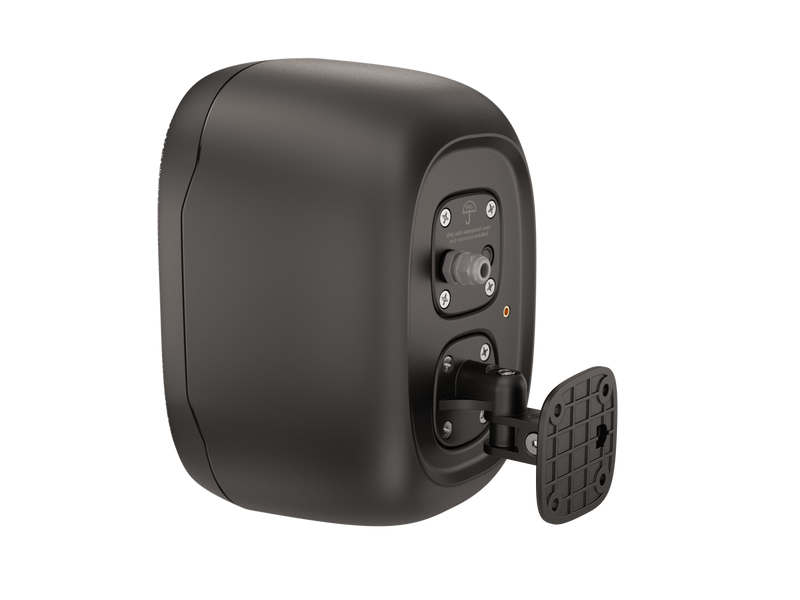

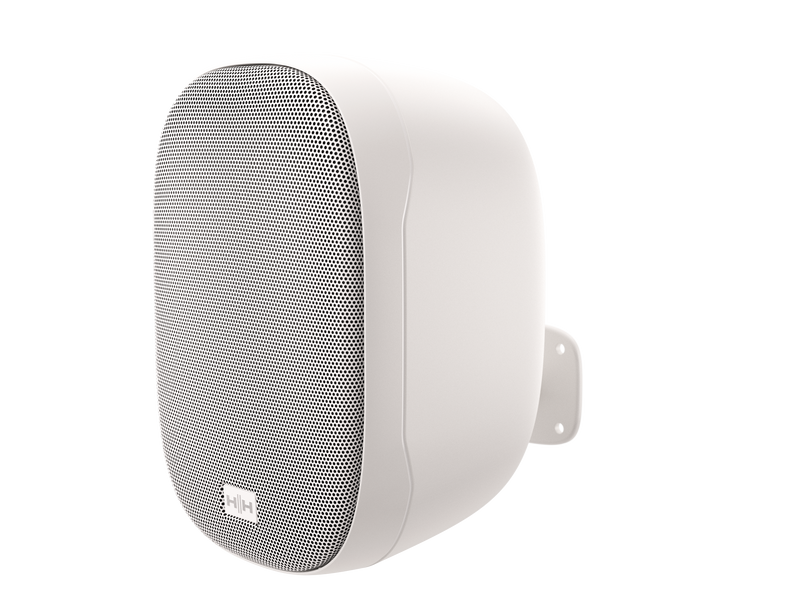

The TNi-WX5 is supplied with a pan and tilt wall bracket that sits discreetly within the silhouette of the speaker for a clean and elegant installation finish. The bracket allows the speaker to be precisely aimed at the listening area for optimised coverage, making installation both simple and flexible. Available in Black or White to complement any interior or exterior environment.
HH Audio TNi-WX5 Key Features:
- IP65 Rated: Fully dust-tight and protected against water jets when rear connector cover and cable gland are fitted — suitable for outdoor commercial installations.
- 5.25" LF Driver & 0.75" HF Driver: 2-way driver configuration for beautifully balanced audio reproduction from 75Hz to 20kHz.
- 50W RMS / 200W Peak Power Handling: Greater output capability than the TNi-WX3 for a wider range of commercial audio applications.
- 87dB Sensitivity / 103dB Maximum SPL: Higher efficiency and output than the TNi-WX3 for consistent coverage across larger spaces.
- 100V Line & 70V Transformer: 100V tappings at 15W, 10W, 7.5W and 5W / 70V tappings at 7.5W, 5W, 3.75W and 2.5W for flexible integration into distributed audio systems.
- 8 Ohm Low-Impedance Bypass: Direct Lo-Z operation for use with conventional amplifiers in smaller systems.
- UV Resistant ABS Enclosure: Long-term durability and colour stability in outdoor and high-UV environments.
- Aluminium Grille: Robust driver protection with a professional appearance.
- 4-Pin Euroblock Input & Link: Secure, professional wiring with easy daisy-chaining capability.
- 120° Horizontal / 100° Vertical Dispersion: Wide, consistent coverage across the listening area.
- Pan & Tilt Wall Bracket Included: Precise speaker aiming with a discreet, elegant installation finish.
- Rear Connector Cover & Cable Gland Included: Achieves IP65 rating for outdoor installation.
- Available in Black or White: To complement any interior or exterior environment.
-
Sold as a Single Unit
