HH Audio, Aptur APT-C4 | 4" Ceiling Speaker - 100V & 8 Ohms, White or Black
DETAILS
The HH Audio APT-C4 is a high-performance 4-inch coaxial ceiling speaker, designed to deliver clear and balanced audio for commercial, corporate, hospitality, and educational environments.
Featuring a Celestion 4-inch coaxial driver with a 1.25-inch LF voice coil and a 0.75-inch HF voice coil, the APT-C4 ensures natural sound reproduction with uniform coverage across the listening area. A custom horn flare profile further enhances clarity, making it ideal for both background music and speech applications.
With a sensitivity of 87dB (1W/1M) and a 75W AES power rating, the APT-C4 achieves a maximum SPL of 105dB, ensuring excellent audio performance even in larger spaces. Its frequency response of 90Hz to 20kHz provides a well-rounded sound profile, and for applications requiring extended bass, it pairs seamlessly with the APT-C8S ceiling subwoofer or the APT-W8S surface-mount subwoofer. The built-in multi-tap transformer allows for flexible operation in both low-impedance (Lo-Z) and 70V/100V line systems, making it suitable for a wide range of installations.
Designed for ease of installation and aesthetic integration, the APT-C4 features a magnetic edge-to-edge grille with a removable HH logo, reversible dog ear mounts to accommodate various ceiling thicknesses, and a powder-coated steel back can with an integrated safety tether eyelet. It is available in white as standard, with an optional black grille for discreet installations in darker environments.
HH Aptur APT-C4 Key Features:

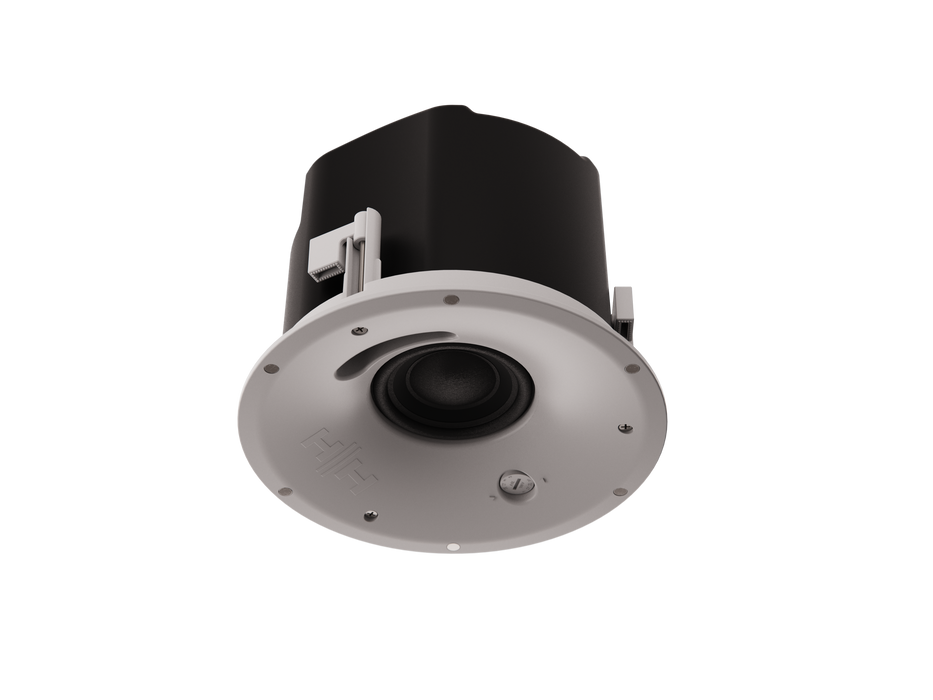

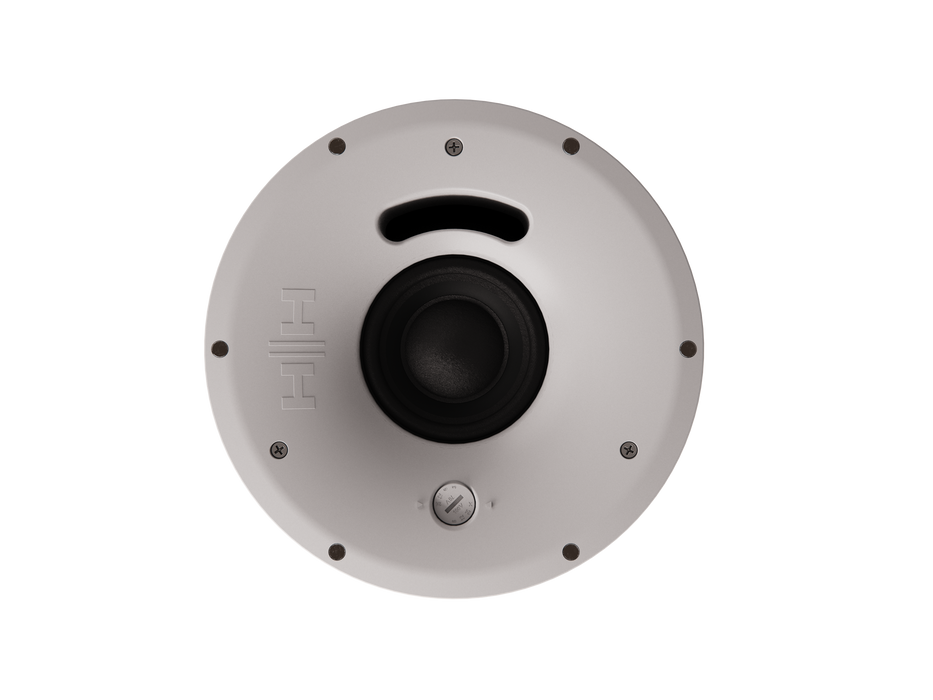

- 4-inch Celestion coaxial driver with dedicated LF and HF voice coils
- 75W AES power handling (150W continuous, 300W peak)
- 87dB sensitivity, with a maximum SPL of 111dB
- Wide 110° coverage for even sound dispersion
- Multi-tap transformer for 8Ω, 70V, and 100V applications

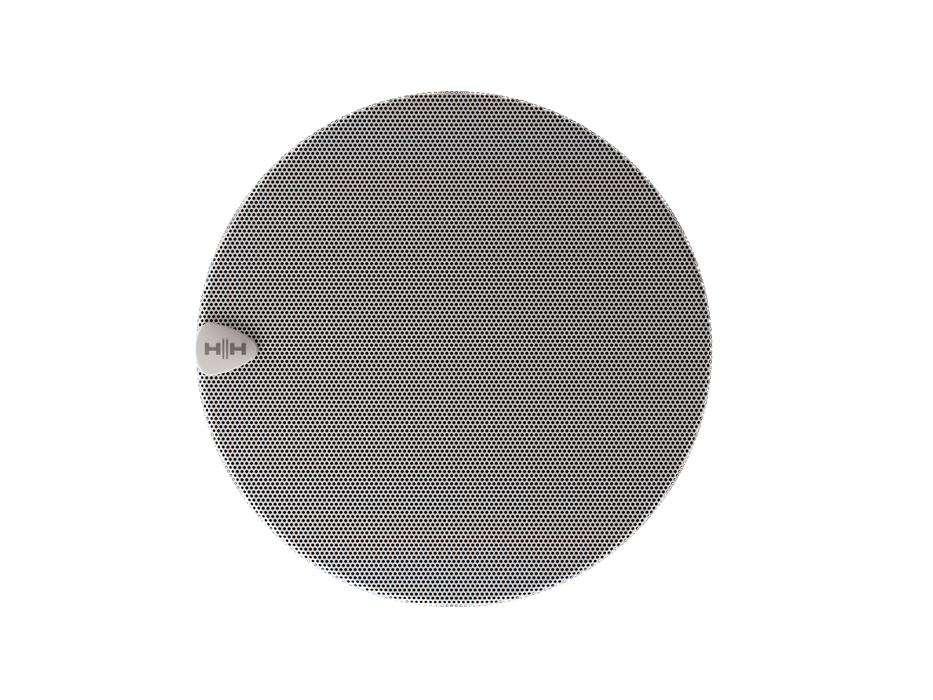

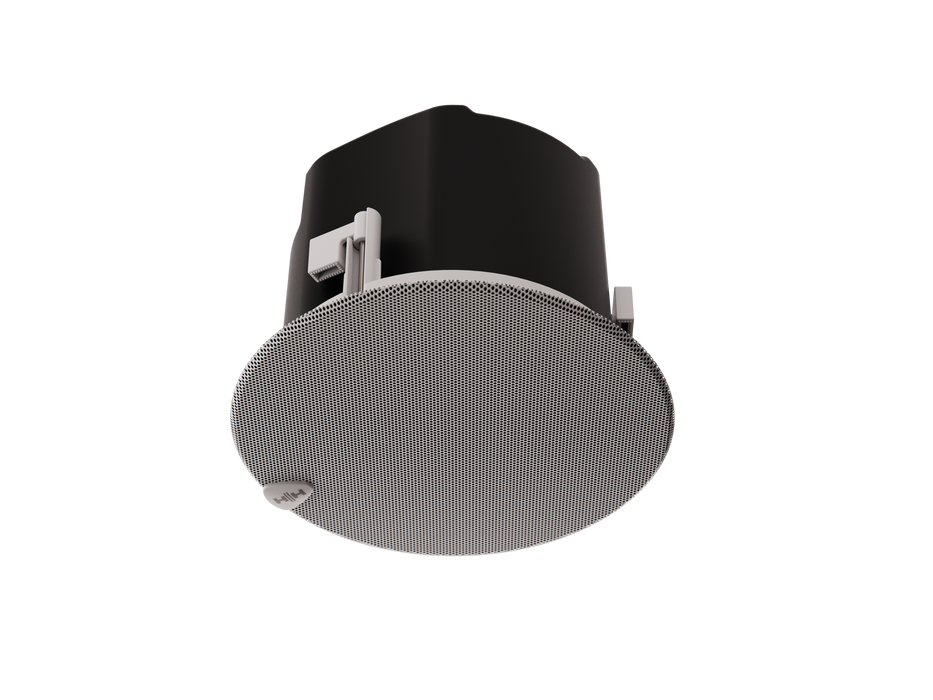

- Magnetic edge-to-edge grille with removable HH logo for seamless installation
- Reversible dog ear mounts for compatibility with different ceiling thicknesses

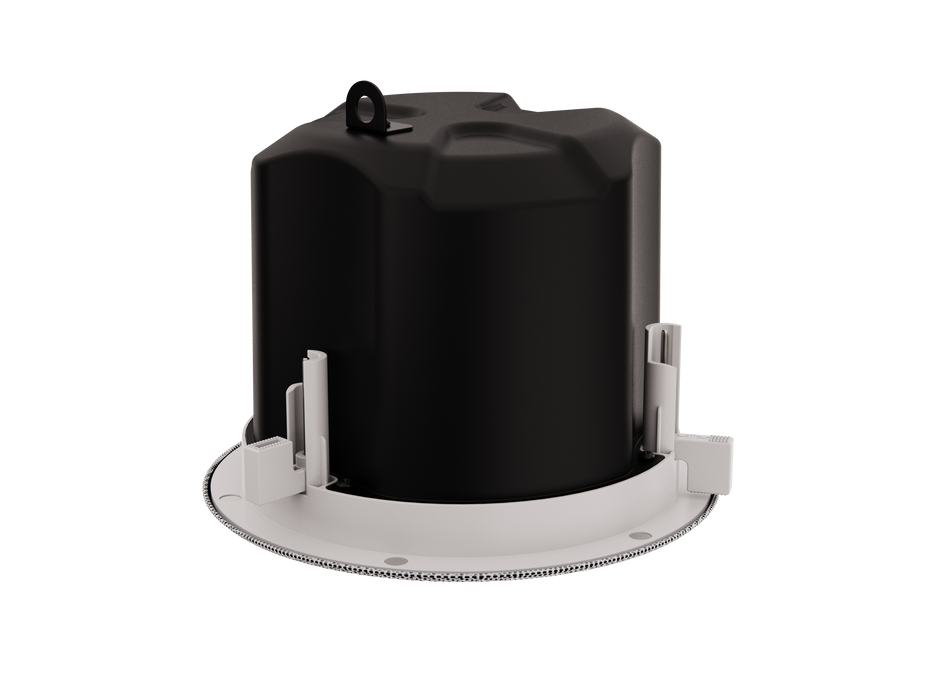

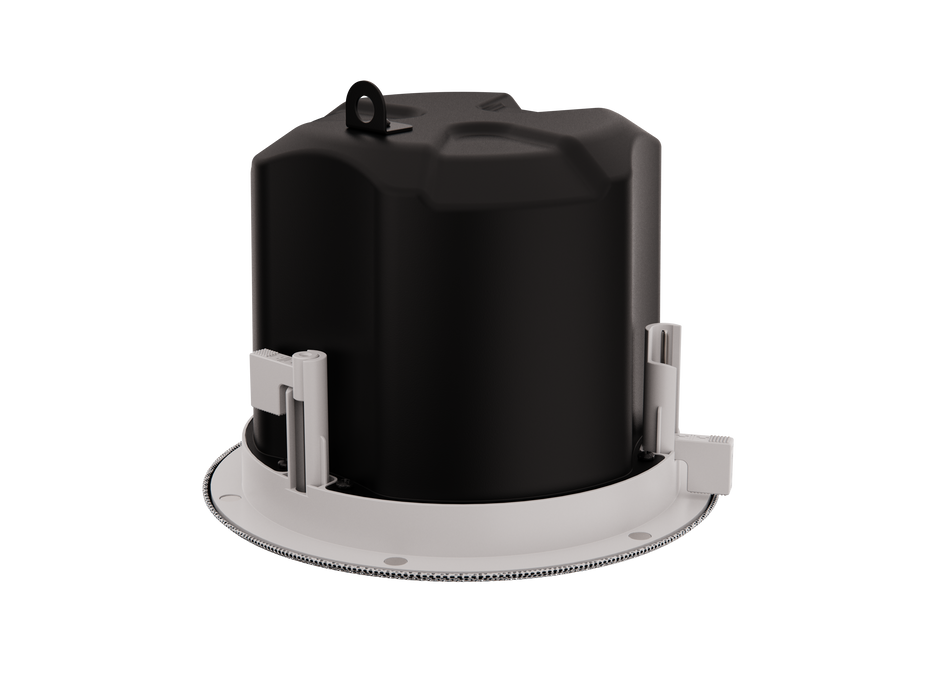

- Durable powder-coated steel back can with an integrated safety tether eyelet

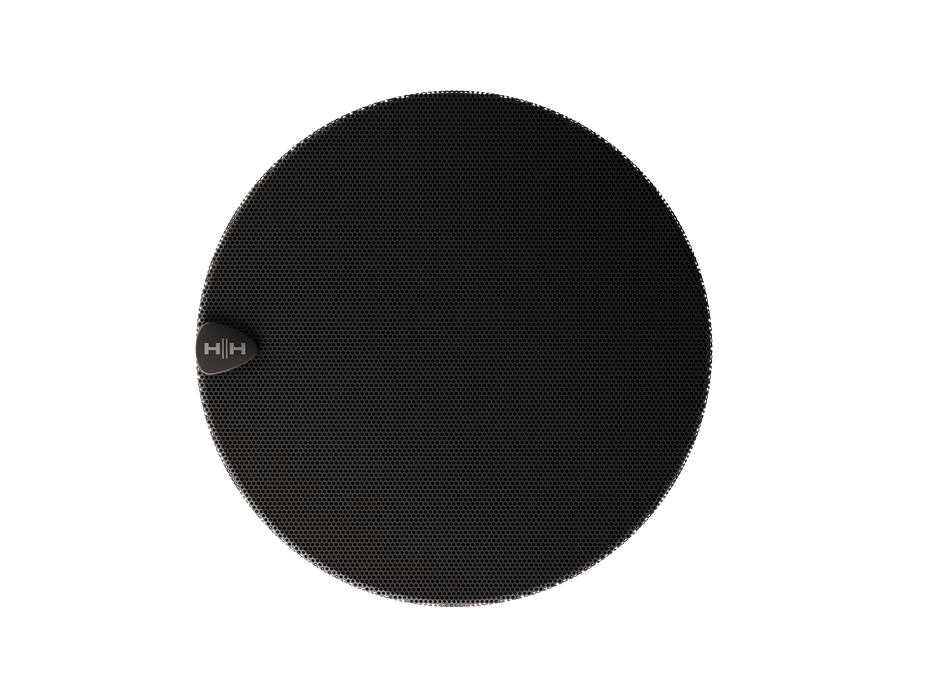

- Optional black grille available for low-profile installations
- Compatible with the APT-TB4 tile bridge for secure ceiling mounting
SPECS & DOWNLOADS
HH Aptur APT-C4 Specifications:
-
System Type: 2-Way Coaxial Ceiling Loudspeaker
-
LF Driver: Celestion 4-inch Coaxial Driver with 1.25-inch LF VC and 0.75 HF VC
-
100V Power Options: 30W, 15W, 6W
-
70V Power Options: 15W, 7.5W, 3W
-
Nominal System Impedance: 8 Ohms
-
Power: 75W AES, 150W Continuous, 300W Peak
-
Recommended Amplifier: MZ-140D, MZ-140Q, MZ-280Q
-
Sensitivity (1W/1M): 87dB
-
Max SPL: 105dB SPL, 111W dB SPL (Peak)
-
Frequency Response: 90Hz-20kHz
-

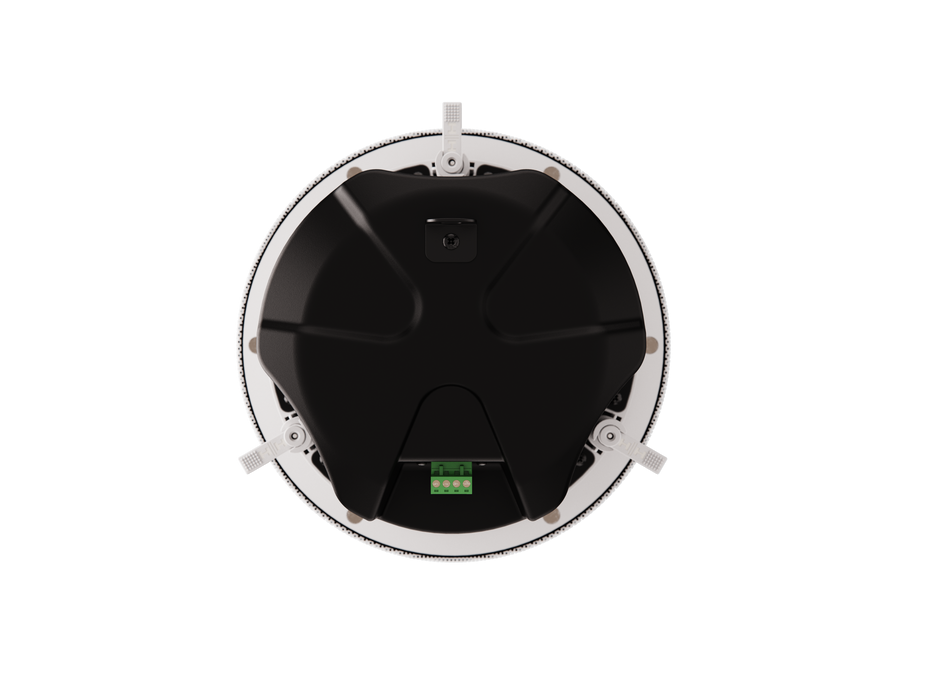

Input Link Connector: 4-pin Euroblock +/- +/-
- Main Construction Material: ABS/Steel
-
Finish: White ABS/Powdercoated Steel Back Can
-
Grille: White or Black Fine Mesh Perforated Steel with Powdercoated Finish
-
Unit Dimensions (Hwd): Cutout Diameter - 213mm. Outer Diameter - 248mm. Max Depth - 180.5mm.
-
Accessories: Optional: APT-TB4 - Tile bridge for APT-C4, APT-CG4-BK - Black Grille for APT-C4.
