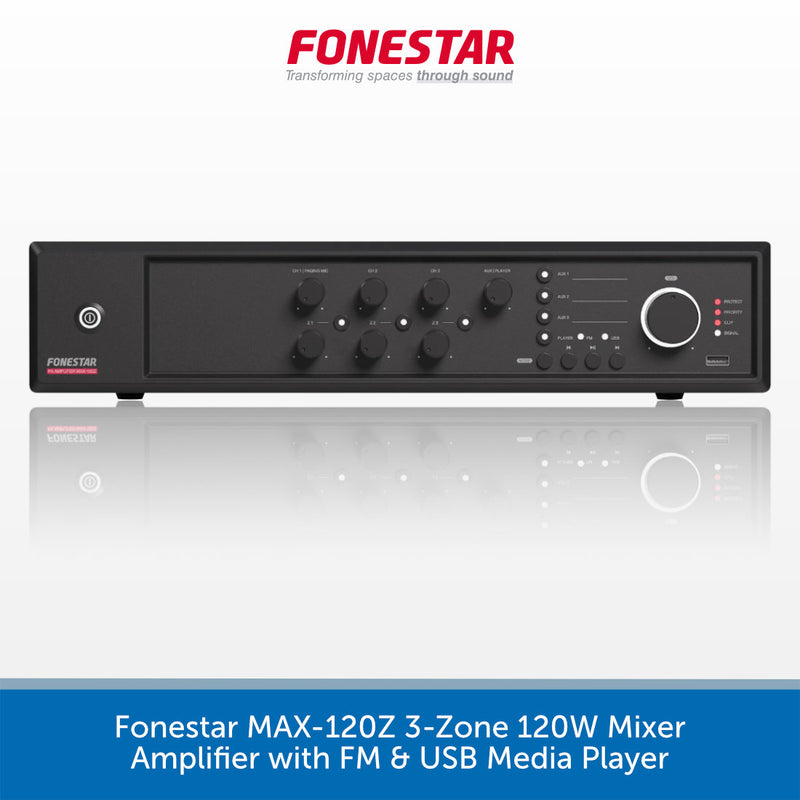

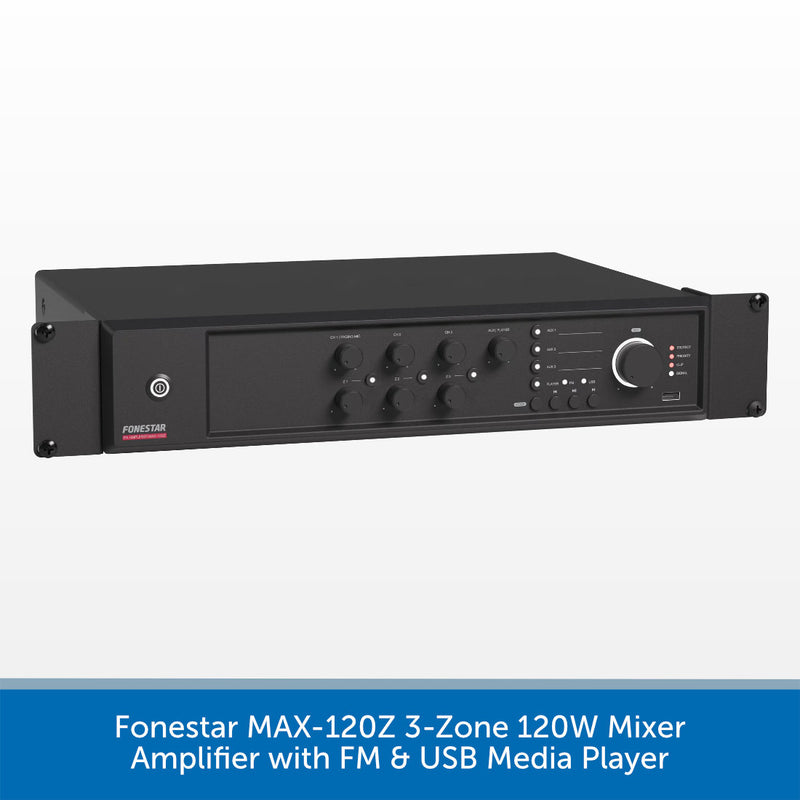

Fonestar MAX-120Z 3-Zone 120W Mixer Amplifier with FM & USB Media Player
DETAILS
The Fonestar MAX-120Z is a versatile 3-zone mixer amplifier designed for businesses and public spaces such as restaurants, shops, bars, and schools.
Delivering 120W of power, it features a modern Class D amplifier for reliable and energy-efficient performance. Independent volume controls for three zones make it easy to adjust audio levels in different areas, ensuring a customised listening experience.
Equipped with a built-in USB media player and FM radio, the MAX-120Z offers convenient options for background music. Additionally, its RCA inputs on the rear allow you to connect external audio sources, providing even more flexibility for your setup. Whether streaming music, playing pre-recorded content, or connecting devices like CD players or mixers, this amplifier handles it all with ease.
The three microphone inputs, each with switchable VOX priority, a chime function, and 48V phantom power, make this amplifier perfect for public address applications. These features ensure clear and professional-quality announcements, making it suitable for environments where communication is as important as music playback.
With its support for both 100V line speakers and low-impedance systems (4-8Ω), the MAX-120Z adapts to a wide range of installations. It also includes emergency mute input and 24V priority to integrate with alarm or evacuation systems. The unit is designed for user-friendly operation, with secure Euroblock connections and options for desktop use or rack mounting.
Fonestar MAX-120Z Key Features:
- 3-zone volume control for tailored audio in different areas.
- Class D 120W amplifier for reliable and efficient performance.
- Built-in USB media player and FM radio for easy music playback.
- RCA inputs for connecting external audio sources.
- 3 microphone inputs with VOX priority, chime, and 48V phantom power.
- Compatible with 100V line and 4-8Ω low-impedance speakers.
- Emergency mute and 24V priority for integration with safety systems.

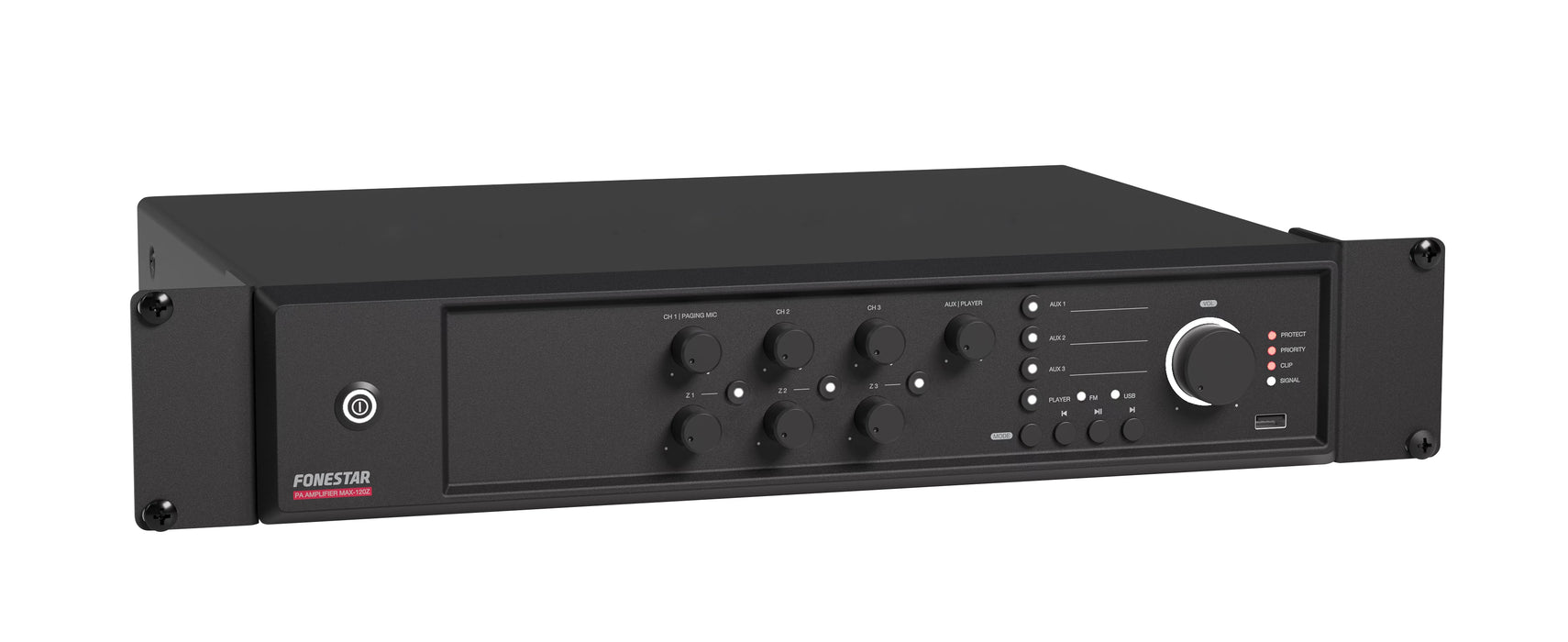

- Desktop or rack-mountable design with secure Euroblock connections.
SPECS & DOWNLOADS
Fonestar MAX-120Z PDF Spec Sheet > DOWNLOAD HERE
Fonestar MAX-120Z Specifications
-
Power: 120 W RMS
-
Frequency Response: 45-22,000 Hz
-
Distortion: THD+N: < 0.5% @ 1 kHz
-
S/N Ratio: Mic >75 dB, Line >83 dB, Aux >81 dB
-
Protections: Soft start, overcurrent, overload, temperature and short circuit
-

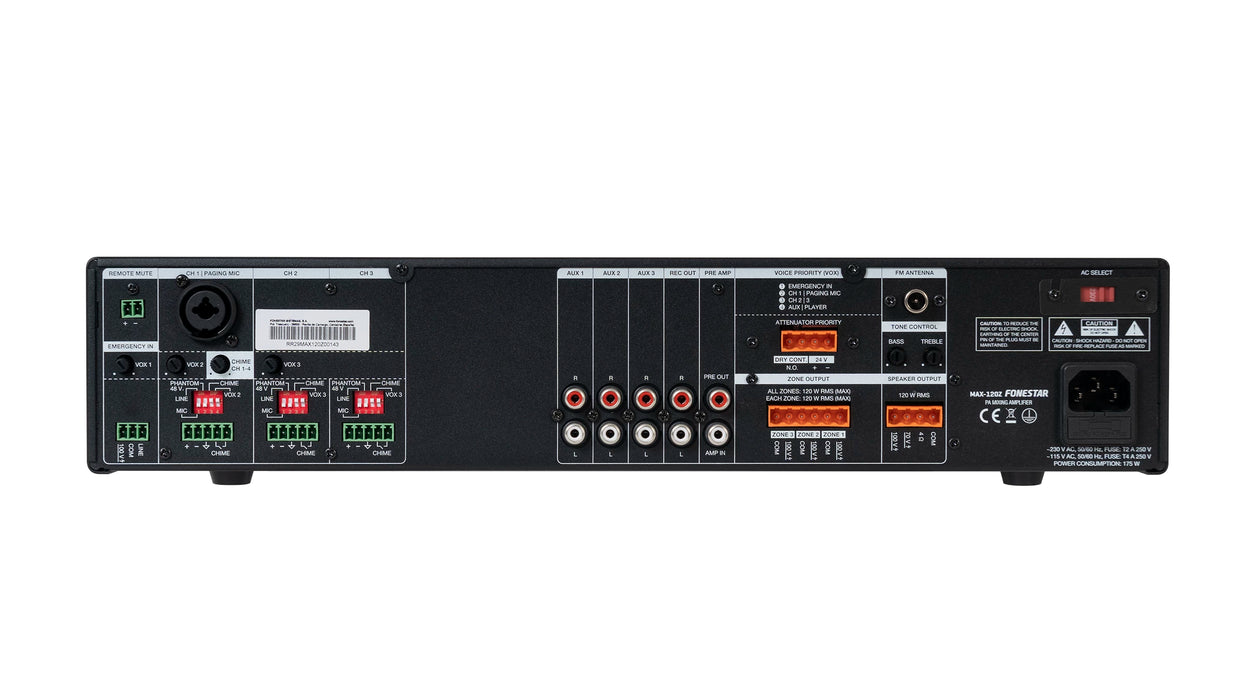

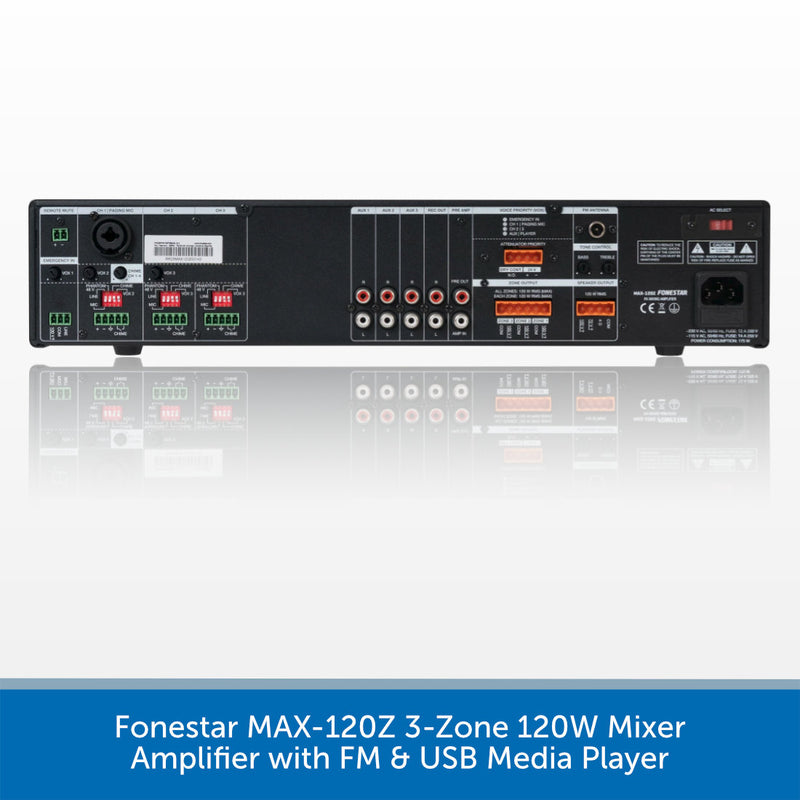

Inputs: CH 1 mic/line balanced with 48V phantom. Combo connector (XLR + 6.3mm) and euroblock. Contact closure ring tones.
CH 2 and 3 microphone/line balanced with Phantom 48V. Euroblock connector. Contact closure ring tones.
Mic signal level: 5.6 mV RMS (-45 dBV) / 600 Ω.
Line signal level: 250 mV RMS (-12 dBV) / 100k Ω.
3 x AUX. 2 x RCA connectors. Signal level 316 mV RMS (-10 dBV) / 47.000 Ω.
1 x emergency. Euroblock connector. Signal level: line 326 mV RMS (-10 dBV) or 100 V line.
Mute (Emergency Priority) by contact closure. Euroblock connector.
1 x Amp-in. RCA connector. signal level 1.2 V RMS (+ 1.5 dBV). -
Outputs: 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master.
1 Pre-out. RCA connector. Signal level 1.2 V RMS (+1.5 dBV).
100 V, 70 V or 4 Ω speaker output, or 3 zones of 100 V speakers with 7 positions volume selector and OFF. Euroblock connector.
1 attenuator priority, 24 V 100 mA and contact closure. Euroblock connector. -
Impedance: 4 Ω and 100 V line (83 Ω)
-
Operating Temperature: Operation: -10º ~ 40ºC
-
Maximum Humidity: 905%
- Power Supply: 230/115 V AC 50-60Hz, Power consumption: 175 W, AC fuse 230 V 2 A / 115 V 4 A
- Dimensions: 430 x 89 x 320 mm depth. 2 U 19” rack
- Weight: 7 kg
