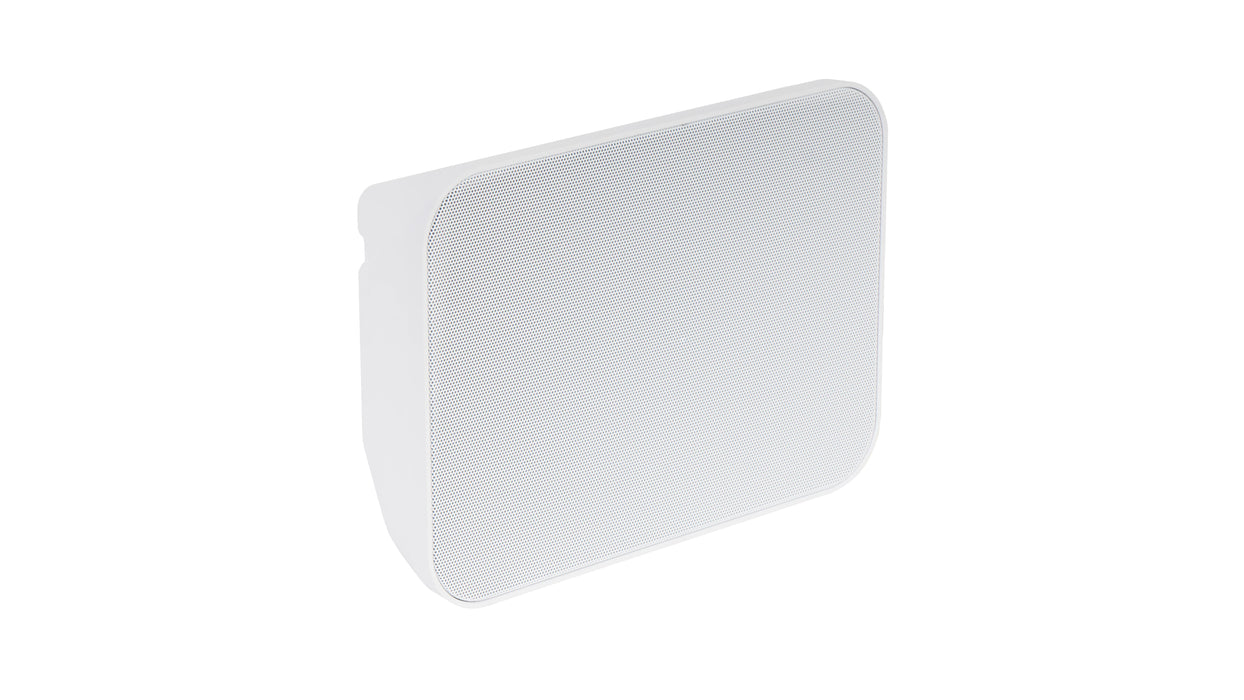

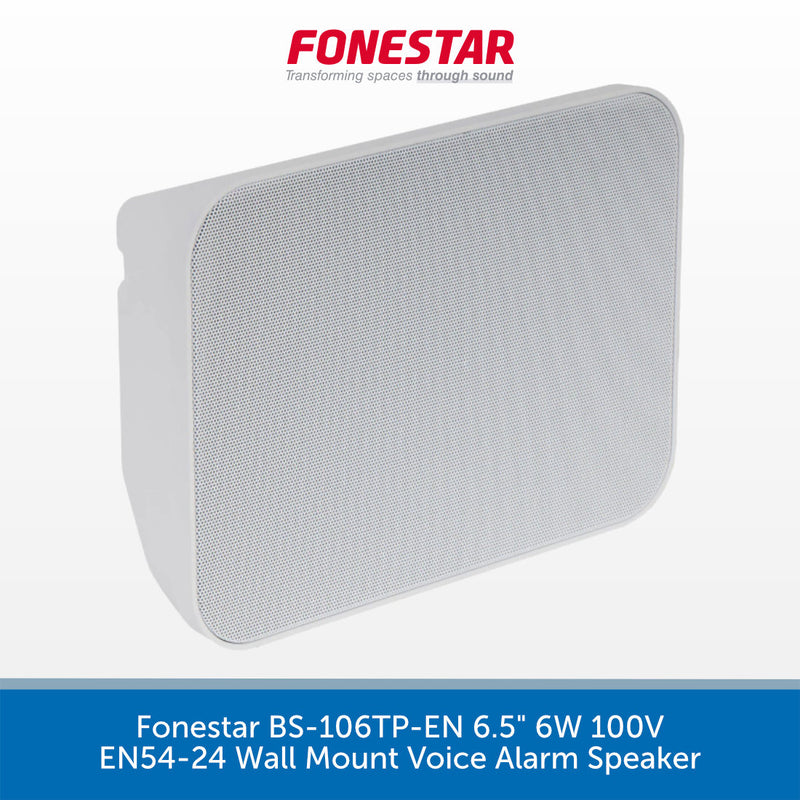

Fonestar BS-106TP-EN 6.5" 6W 100V EN54-24 Wall Mount Voice Alarm Speaker
The Fonestar BS-106TP-EN is a 6.5" 6W 100V Wall Mount Speaker certified to EN54-24 for indoor voice alarm and evacuation systems, combining clear full-range sound, a robust IP21-rated ABS enclosure and flexible wall and corner installation options — ideal for commercial and industrial public address installations.
The Fonestar BS-106TP-EN is a professional wall-mounted loudspeaker specifically designed and certified for EN54-24 voice alarm and evacuation systems, ensuring reliable, high-quality audio communication in critical safety situations across indoor commercial and industrial environments. Meeting the highest requirements for indoor voice alarm applications, the BS-106TP-EN is the ideal choice for AV installers and system integrators specifying public address and life safety audio systems in offices, retail environments, hotels, educational facilities, healthcare buildings and any other indoor space where EN54-24 compliance is a requirement.
Clear, Full-Range Sound Performance
The BS-106TP-EN is built around a 6.5" full-range speaker driver delivering a wide frequency response of 184Hz to 23,300Hz (-10dB), with a sensitivity of 91dB (1W/1m, EN54-24) and a maximum sound pressure of 92.7dB at 1 metre. This combination of driver performance and acoustic efficiency ensures clear, precise and intelligible voice communication across the intended coverage area — essential for evacuation announcements where speech intelligibility can be a matter of safety.
100V Line Transformer with Multiple Power Tappings
The BS-106TP-EN incorporates a 100V line transformer with three selectable power tappings — 6W, 3W and 1.5W — providing the flexibility to adapt the speaker's output level to different installation requirements and zone sizes. Quick-connect terminals accommodate cable up to 4mm² for fast, secure and professional wiring connections during installation.
Robust Construction & Flexible Installation
The BS-106TP-EN enclosure is constructed from impact and UV resistant ABS for long-term durability in demanding environments, with an IP21 protection rating for use in indoor locations subject to vertically dripping water. The magnetic steel grille provides a clean, professional appearance and easy access without tools. A versatile fixing system supports a variety of wall and corner installation options, providing flexibility for installers working in spaces where standard flat-wall mounting may not be the most practical solution. The speaker is rated for operation across a wide temperature range of -10°C to +55°C, ensuring reliable performance in environments subject to temperature extremes.
Fonestar BS-106TP-EN Key Features:
- EN54-24 Certified: Meets the highest requirements for indoor voice alarm and evacuation systems.
- 6.5" Full-Range Driver: Wide 184Hz–23,300Hz frequency response for clear, precise and intelligible voice communication.
- 91dB Sensitivity (EN54-24): High acoustic efficiency for effective coverage across large indoor areas.
- 6W 100V Line Operation: Three selectable power tappings at 6W, 3W and 1.5W for adaptable zone-level output control.
- Quick-Connect Terminals: Accepts cable up to 4mm² for fast, secure and professional wiring.
- Flexible Installation: Wall and corner mounting options for versatile placement in a variety of indoor environments.

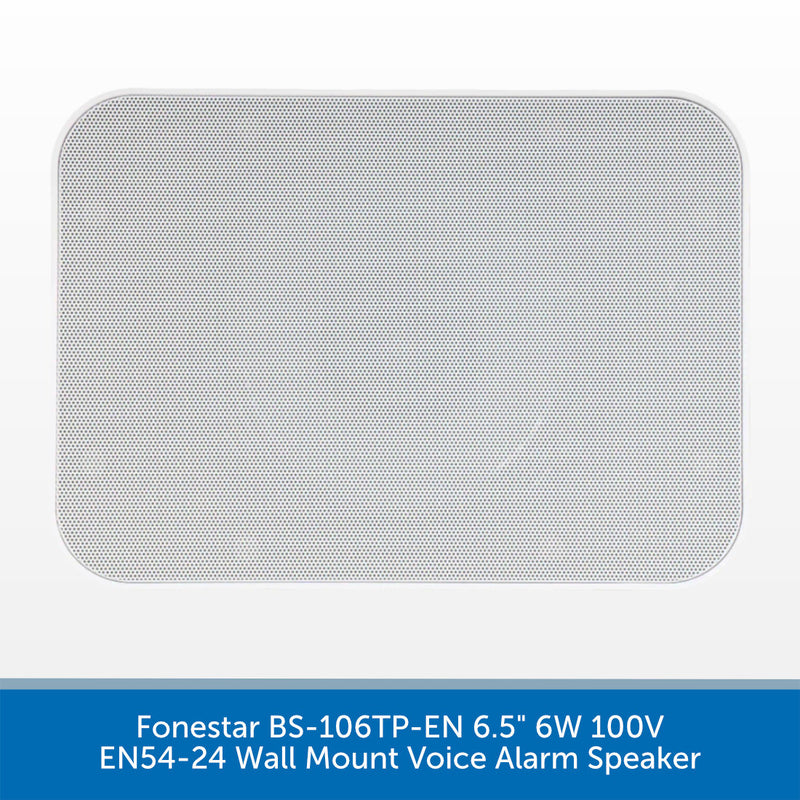

- Magnetic Steel Grille: Clean, professional appearance with easy tool-free access.
- Impact & UV Resistant ABS Enclosure: Robust, durable construction for long-term reliability in commercial and industrial environments.
- IP21 Rated: Protection against vertically dripping water for indoor installation compliance.
- Operating Temperature -10°C to +55°C: Reliable performance across a wide temperature range including demanding environments.
- EN54-24 Type A Certified: Meets fire and evacuation voice alarm system compliance requirements.
- White Finish: Discreet, professional appearance suitable for any commercial interior.
