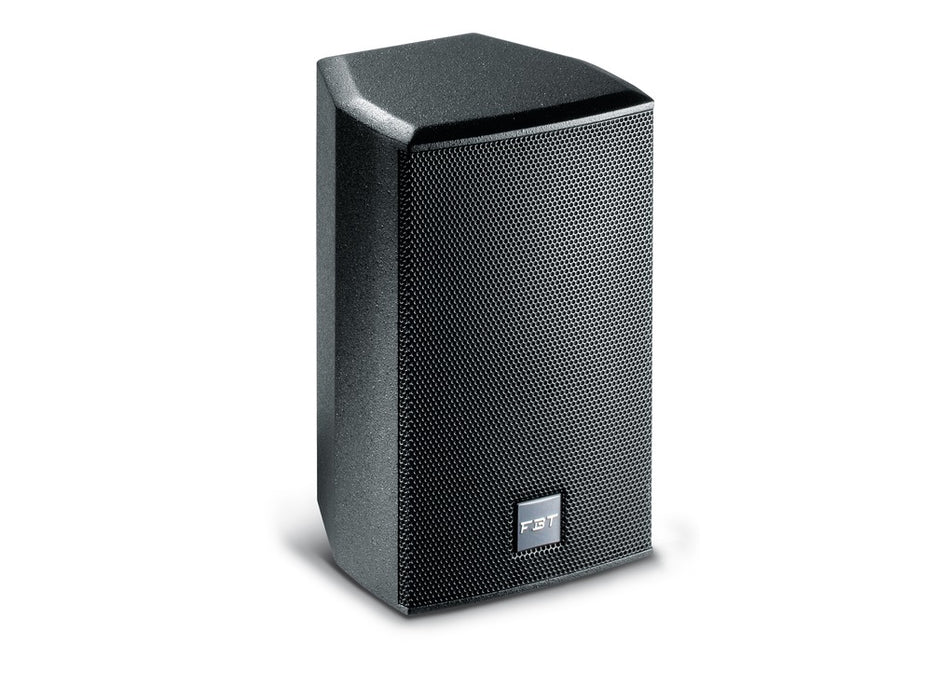

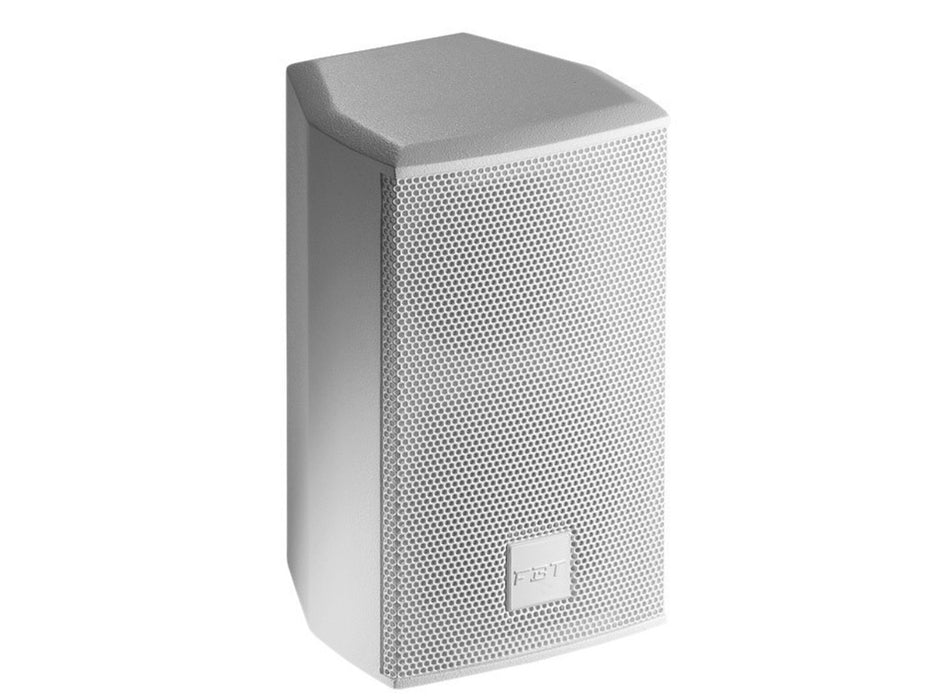

FBT Archon 106 6.5" Passive 2-Way Loudspeaker, 300W/8Ω - Black or White
DETAILS
Powerful and stylish, the FBT Archon 106 delivers premium Italian sound for any space.
The FBT Archon 106 is a versatile 2-way passive loudspeaker designed for professional indoor installations where high output, superb intelligibility and discreet style are key.
Handcrafted in Italy, the Archon 106 pairs a custom 6.5” LF woofer with a 1” HF dome compression driver to deliver wide-band, dynamic audio with fast response and extremely low distortion, even at higher SPL levels.
Finished in durable Baltic birch plywood with an extra textured black or white paint finish, the Archon 106 blends seamlessly into any interior. A rotatable horn allows installers to maintain optimal horizontal or vertical dispersion, while the stylish architectural cabinet and acoustically transparent steel grille ensure clear, unobstructed sound.
For maximum flexibility, the Archon 106 can be run in bi-amp or full-range modes and includes multiple M10 and M5 rigging points plus a wide range of mounting hardware options. Weatherproof versions and custom RAL colours or finishes are available to order for projects with specific requirements.
Perfect for bars, restaurants, retail, education and public spaces, the Archon 106 can be paired with a dedicated compact subwoofer, such as the Archon 208S or Archon 215S, for powerful low-end reinforcement. With an 8 Ohm impedance and robust 300W RMS recommended amplifier power, this speaker is built for demanding commercial audio installations.
FBT Archon 106 Key Features:
- Stylish Cabinet Design: Sleek architectural look with durable Baltic birch construction.
- Acoustically Transparent Grille: Steel grille with protective cloth for clear, unobstructed audio.
- High SPL Performance: Fast dynamic response and wide bandwidth with low distortion at loud volumes.
- Rotatable Horn: Allows optimal horizontal or vertical sound dispersion.
- Flexible Installation: Multiple M10/M5 rigging points and wide mounting hardware options.
- Selectable Bi-Amp or Full Range: Easily configured for different system setups.
- Custom Components: Made in Italy LF woofer and HF compression driver for premium sound.
- Colour Options: Available in black or white, with custom RAL colours and finishes on request.
- Outdoor Versions: Weatherproof models available for exterior installations.
-
Subwoofer Compatible: Perfect match with Archon 208S or Archon 215S for extended bass.
SPECS & DOWNLOADS
FBT Archon 106 Specifications
Download the PDF Data Sheet HERE >
- Configuration: 2-way passive loudspeaker
- Recommended Amplifier: 300W RMS
- Long Term Power: 150W
- Short Term Power: 600W
- Nominal Impedance: 8 Ohms
- Frequency Response: 60Hz – 22kHz (-6dB)
- Low Frequency Woofer: 6.5" (1.5” coil)
- High Frequency Driver: 1" dome (1” coil)
- Sensitivity (@1W/1m): 91dB
- Maximum SPL (Continuous/Peak): 116dB / 119dB
- Dispersion (HxV): 100°
- Crossover Frequency: 2.5kHz
- Recommended HP Filter: 45Hz – 24dB/oct
- Input Connector: 4 x Euroblock terminals
- Net Dimensions (WxHxD): 216 x 360 x 216mm
- Net Weight: 5.5kg
-
Transport Weight: 12.1lb
