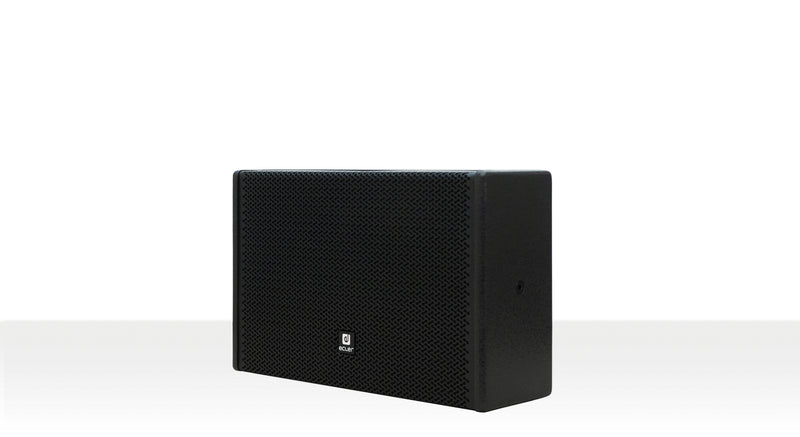

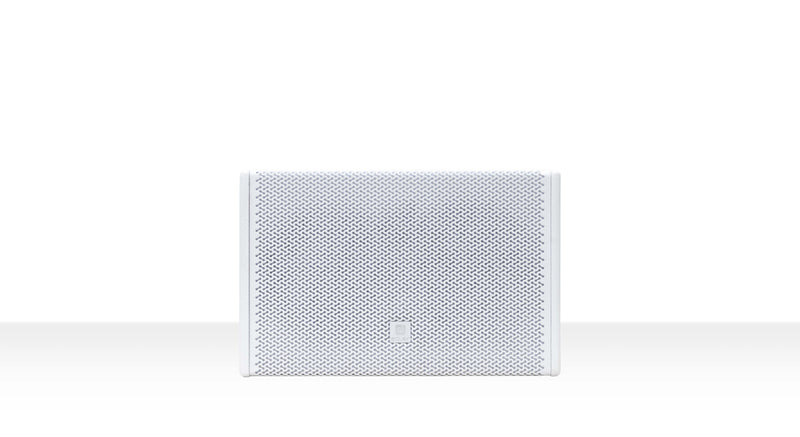

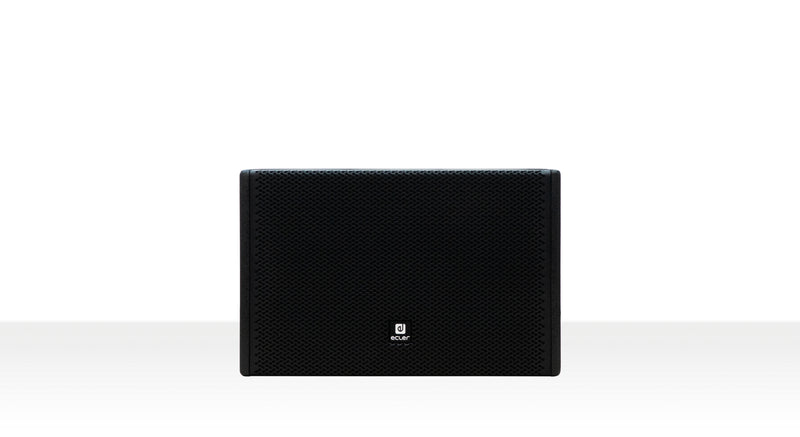

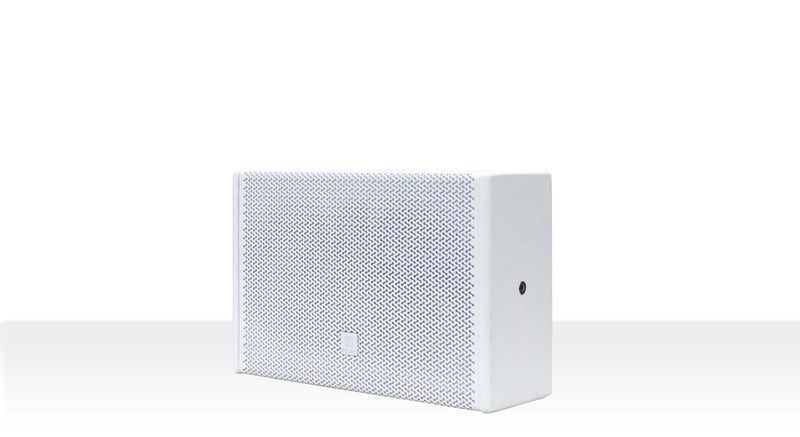

Ecler ARQISSB6Ti Dual 6.5" Passive Subwoofer, 120W/100V & 8Ω – Black or White

by Ecler
SKU CARQISSB6TIB
Original price £569.00 (inc. VAT) - Original price £569.00 (inc. VAT)
Original price £569.00 (inc. VAT)
£569.00 (inc. VAT)
£569.00 (inc. VAT) - £569.00 (inc. VAT)
Current price £569.00 (inc. VAT)
Colour: Black
DETAILS

Compact Architectural Subwoofer for Discreet Bass Reinforcement - Ecler ARQISSB6Ti Dual 6.5" Passive Sub.

The Ecler ARQISSB6Ti is a slim, wall-mount passive subwoofer designed to deliver effective low-frequency reinforcement for high-quality installed audio systems in commercial and hospitality spaces.

Combining a stylish, compact format with robust sound, this dual 6.5” unit features a primary 6.5” woofer plus a passive 6.5” radiator for extended bass response in tight spaces.

With a power handling of 120W RMS (480W peak) at 8Ω and an integrated 70/100V line transformer with 60W and 120W taps, the ARQISSB6Ti offers flexible configuration for low-impedance or distributed audio systems. Its internal low-pass filter provides selectable cut-off points (OFF/120 Hz/150 Hz), allowing installers to adapt the subwoofer’s performance to different system needs.

Finished in black (RAL 9005) or white (RAL 9003), this subwoofer blends seamlessly with modern interiors. The included U-bracket ensures easy, secure wall-mount installation, making the ARQISSB6Ti an ideal discreet bass solution for restaurants, retail stores, hotels and public spaces where architectural integration matters.

Ecler ARQISSB6Ti Key Features:

  • Dual 6.5" Design: 6.5" subwoofer plus passive radiator for enhanced low-end performance
  • Flexible Power Options: 120W RMS at 8Ω with integrated 70/100V transformer for 60W/120W taps
  • Built-In Filter: Internal low-pass filter with selectable cut-off at OFF, 120 Hz or 150 Hz
  • Compact & Stylish: Slim MDF enclosure finished in black or white for unobtrusive installation
  • Installer-Friendly: Euroblock and spring terminal inputs, plus included U-bracket for wall-mounting
  • Discreet & Durable: IP31 rated with a robust steel grille and MDF cabinet
SPECS & DOWNLOADS

Ecler ARQISSB6Ti Specifications

Download the PDF Data Sheet HERE >

  • Effective Frequency Range: 50 Hz – 1.5 kHz (-10 dB)
  • Power Handling: 120W RMS / 480W Peak
  • Sensitivity: 86 dB (1W/1m)
  • Maximum SPL: 107 dB RMS / 113 dB Peak
  • Transformer Taps: 70V/100V: 60W / 120W & 8Ω
  • Recommended Amplifier Power: 250W RMS
  • Drivers: 6.5” subwoofer + 6.5” passive radiator
  • Nominal Impedance: 8Ω
  • Low-Pass Filter Selector: OFF/120 Hz/150 Hz
  • Recommended High-Pass Filter: 55 Hz with minimum 12 dB/octave
  • Connection Type: Euroblock & spring-loaded input terminals
  • Installation Options: Surface, wall, desktop
  • Flying Points: 2 x M8
  • Enclosure Material: MDF
  • Grille Material: Steel
  • Environmental: IP31 indoor rated
  • Dimensions: 390 x 250 x 130 mm
  • Weight: 8.2 kg
  • Included Accessories: U Bracket, 5mm & 6mm Allen keys
  • Finish: Black (RAL 9005) or White (RAL 9003)
}
