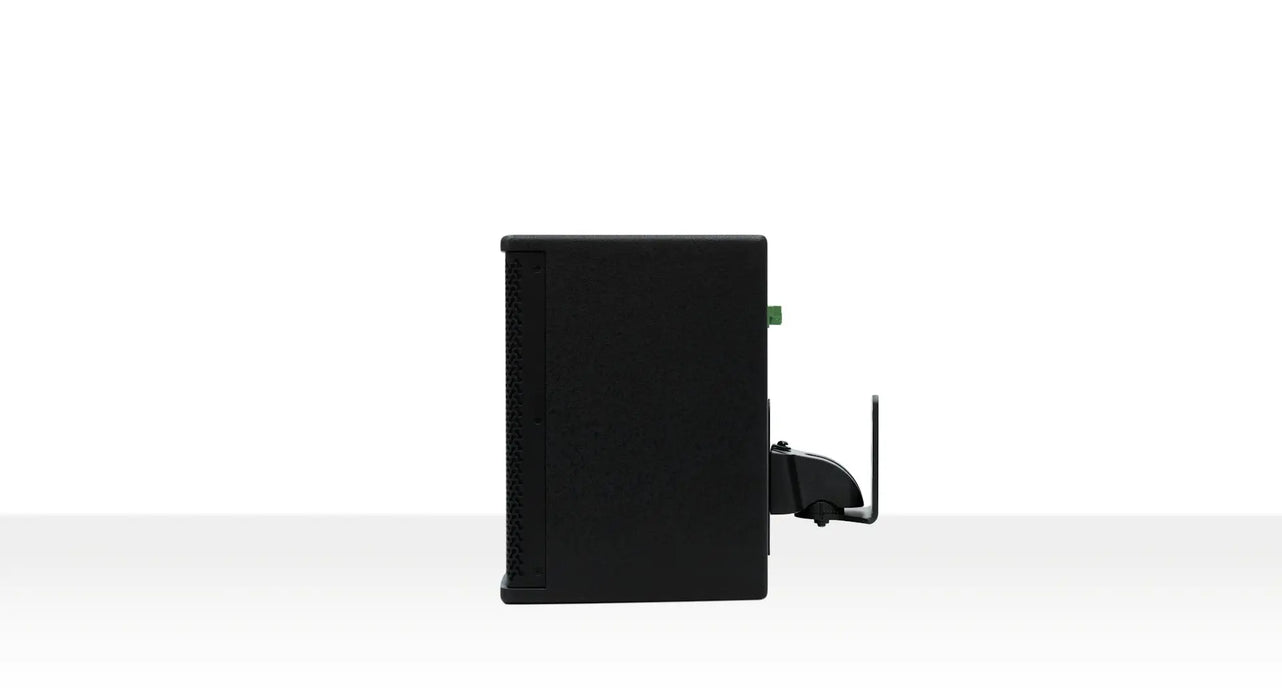

Ecler ARQIS105i 5.25" 2-Way Passive Loudspeaker, 70W/8Ω – Black or White
DETAILS
High-Quality Ecler ARQIS105i Offers Compact Design And Superb Sound.
The Ecler ARQIS105i is a compact 2-way passive loudspeaker designed for professional installed audio systems where sound quality, reliability, and elegant aesthetics all matter.
Housed in a robust MDF wooden cabinet, the ARQIS105i delivers a warmer, clearer sound than typical plastic enclosures, reducing unwanted resonances and enhancing acoustic performance. This makes it ideal for demanding environments like restaurants, bars, shops, schools, gyms, or places of worship where consistent, high-quality background or foreground music is required.
The ARQIS105i features a powerful 5.25" low-frequency woofer and a 1" high-frequency tweeter, capable of delivering 70W RMS at 8Ω with a wide frequency range of 80 Hz–20 kHz. The included VEASY wall bracket makes installation straightforward, allowing precise pan and tilt adjustment with a single screw for quick setup and reliable positioning.

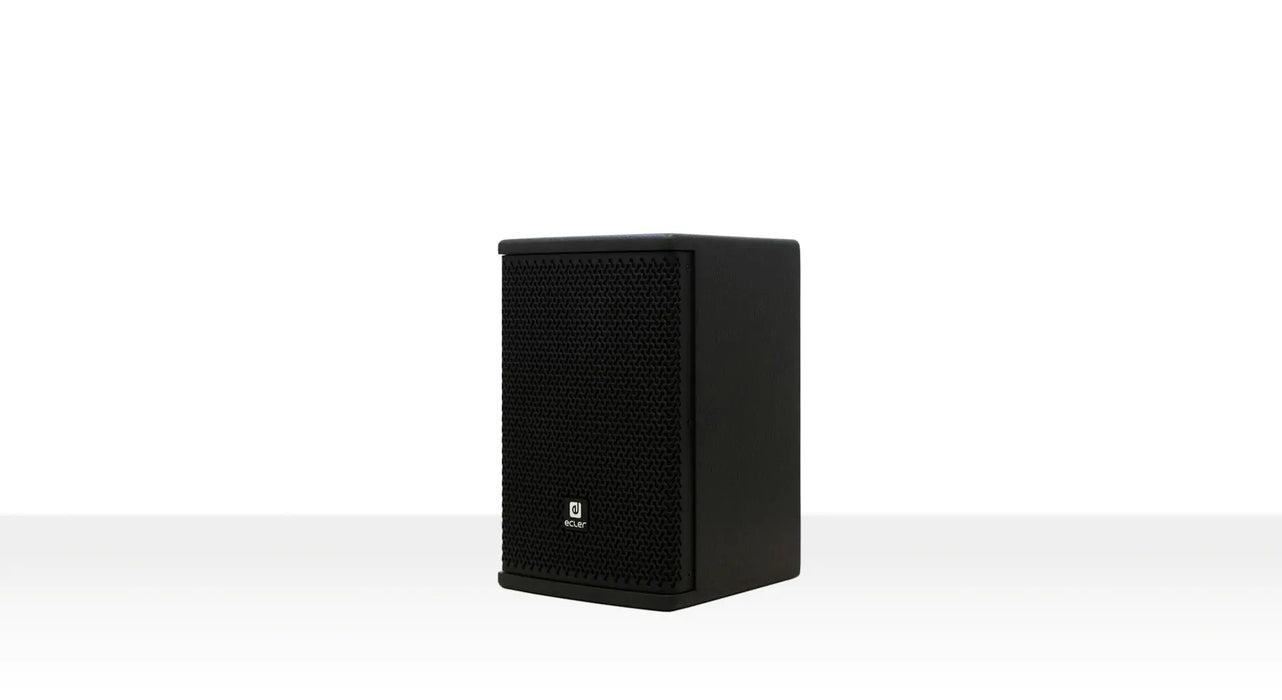

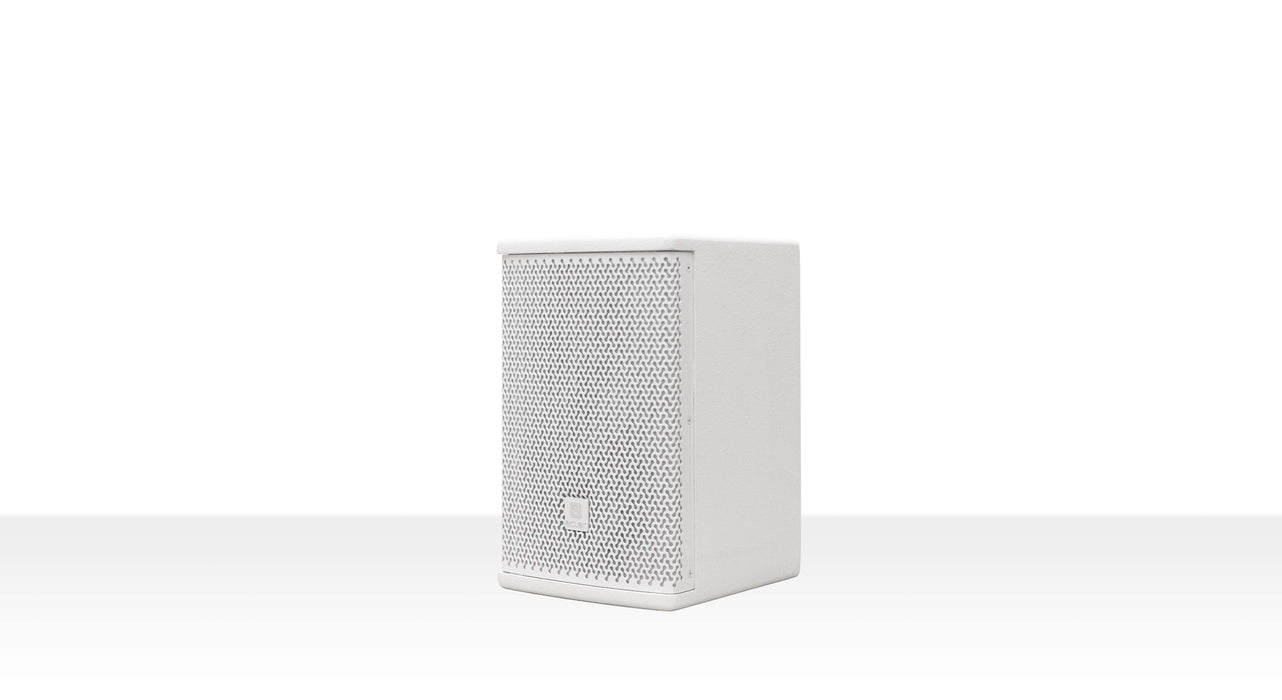

With its discreet yet stylish design available in black or white, the ARQIS105i blends seamlessly into any architectural space while providing excellent coverage and clear, balanced audio. An integrated metal safety sling adds extra security during installation.
Ecler ARQIS105i Key Features:
- MDF Wooden Cabinet: Ensures superior acoustic performance with reduced resonance compared to plastic enclosures.
- Full-Range 2-Way Design: 5.25" woofer and 1" tweeter for clear, balanced audio.

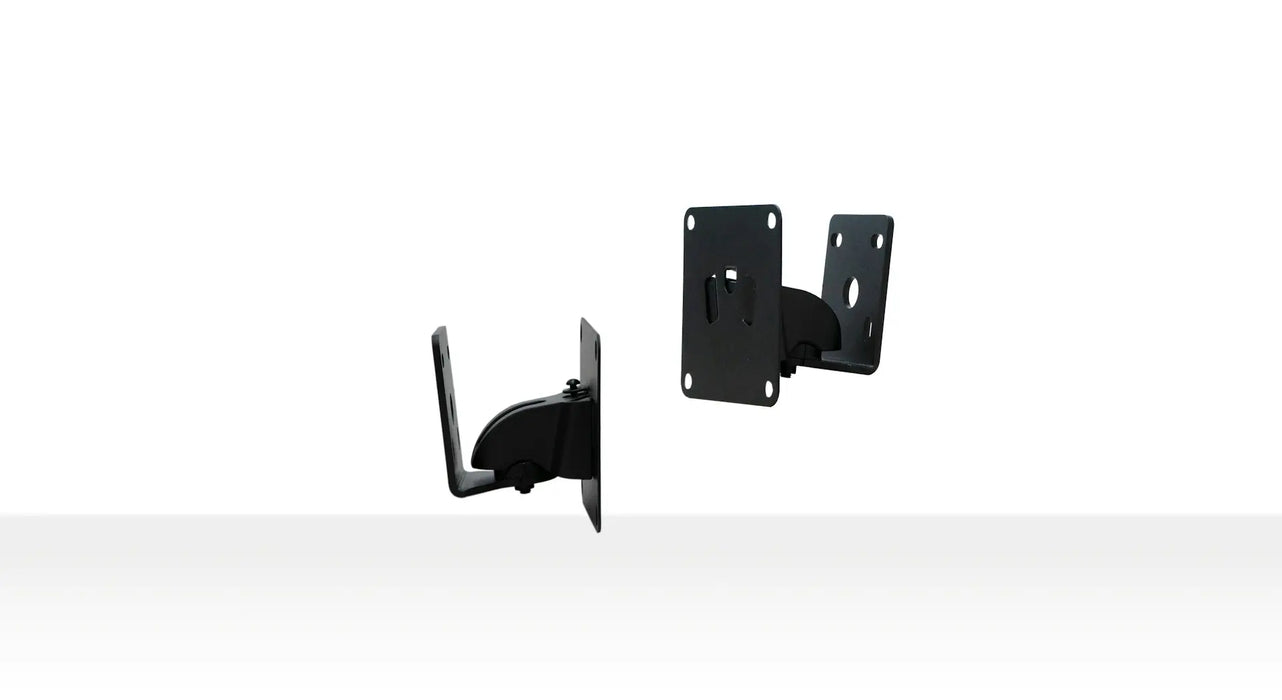

- VEASY Wall Bracket Included: Pan & tilt adjustable bracket for quick and secure installation.
- Stylish Finish Options: Available in black (RAL 9005) or white (RAL 9003) to match any interior.

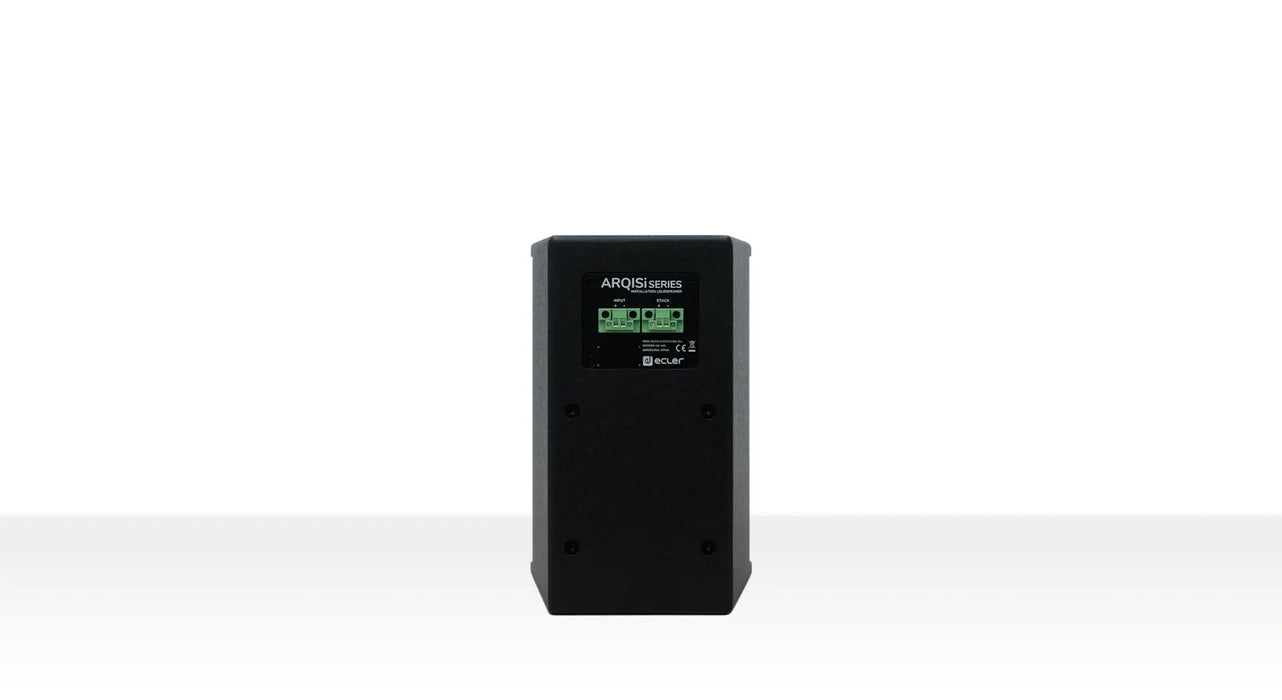

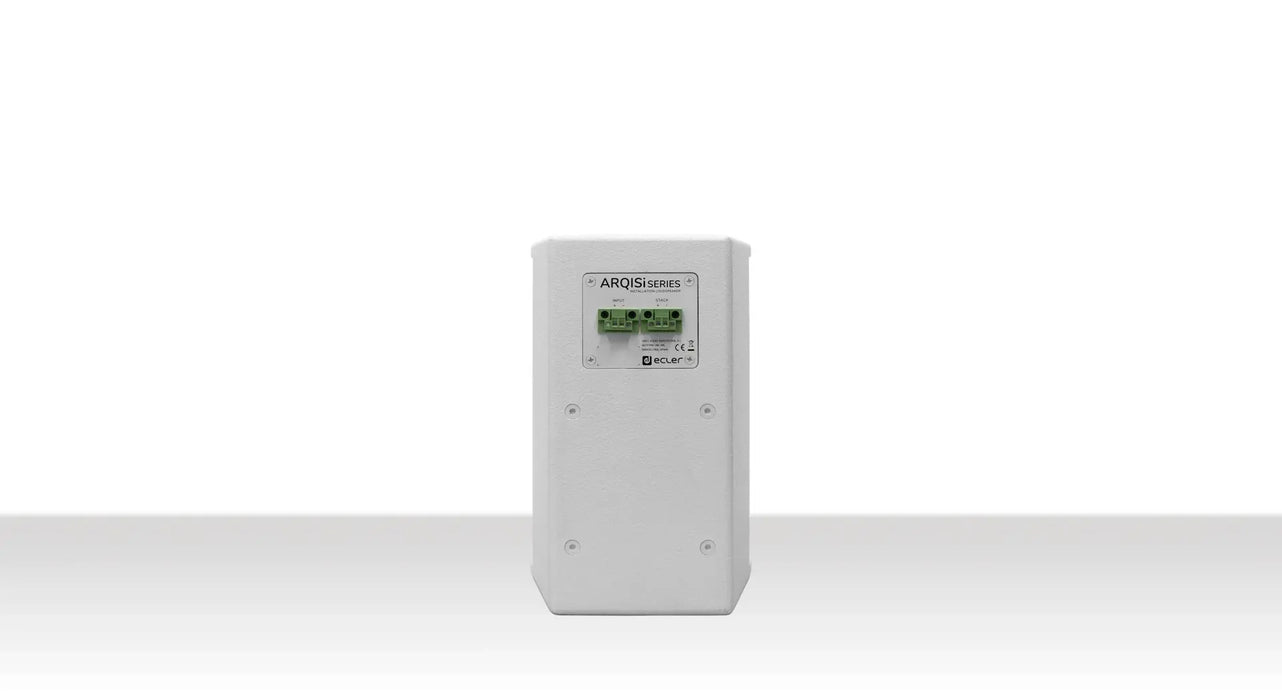

- Secure Connections: Double Euroblock input/stack connectors with safety screws.
-
Metal Safety Sling Included: Extra safety for fixed installations.
SPECS & DOWNLOADS
Ecler ARQIS105i Specifications
Download the PDF Data Sheet HERE >
- Effective Frequency Range: 80 Hz – 20 kHz (-10dB)
- Coverage Angle: 150° x 130° (HxV)
- Power Handling: 70 W RMS / 280 W Peak
- Sensitivity: 89 dB (1W/1m)
- Maximum SPL: 107 dB continuous / 113 dB peak
- Recommended Amplifier Power: 140 W RMS
- Crossover Filter: 3.2 kHz
- High-Pass Protection Filter: 80 Hz with minimum 12 dB/octave
- Nominal Impedance: 8Ω
- Connection Type: 2 x Euroblock
- Installation Options: Surface, wall, desktop
- Environmental Rating: IP31
- Enclosure Material: MDF
- Grille Material: Steel
- Flying Points: 4 x M6
- Operating Temperature: -20°C to 70°C
- Operating Humidity: <85% RH
- Storage Temperature: -20°C to 70°C
- Storage Humidity: <90% RH
- Included Accessories: VEASY wall bracket, Allen keys (3mm, 4mm, 6mm)
- Finish Colour: Black (RAL 9005) or White (RAL 9003)
- Dimensions (WxHxD): 186 x 280 x 210 mm
- Weight: 3.6 kg
- Shipping Dimensions (WxHxD): 365 x 260 x 335 mm
- Shipping Weight: 5.5 kg
