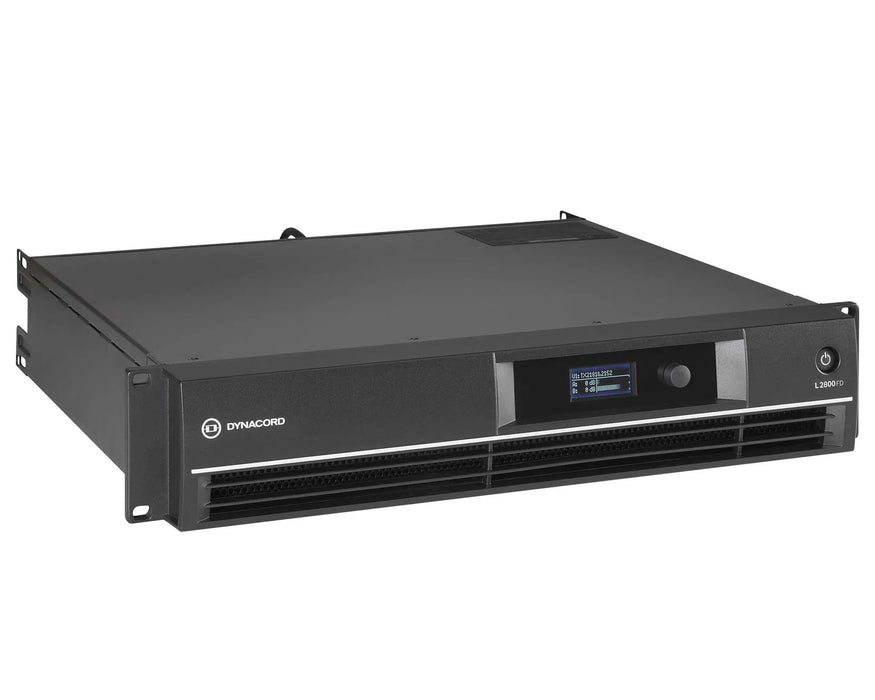

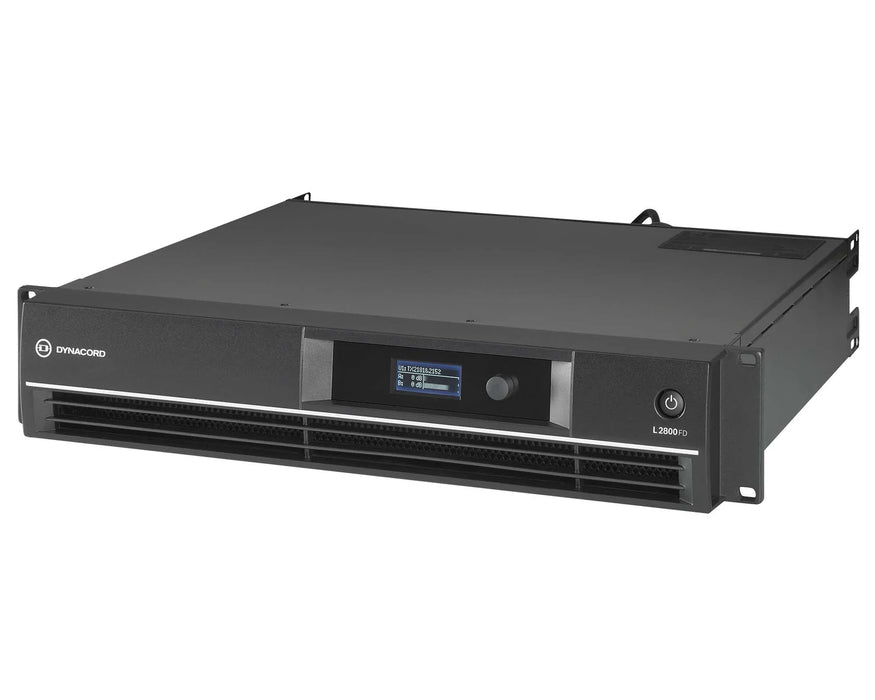

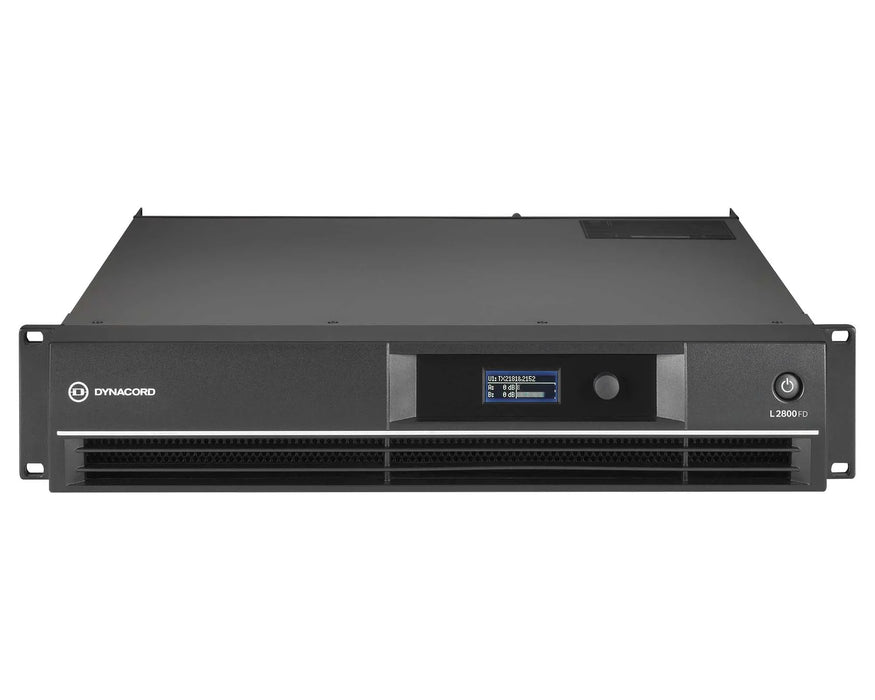

Dynacord L2800FD Live Series 2800W 2-Channel DSP Power Amplifier 2Ω / 4Ω / 8Ω
The Dynacord L2800FD is a professional Live Series 2800W DSP Power Amplifier with FIR Drive technology, 31-band GEQ, multi-band PEQ, crossover, delay and full SONICUE software integration — delivering Class H efficiency and exceptional output power for the most demanding live music applications in larger venues and professional touring environments.
The Dynacord L2800FD is a two-channel 2800W DSP power amplifier in the L Series range — stepping up significantly from the L1800FD with a more powerful Class H amplifier stage, greater output power and higher signal-to-noise ratio for live sound applications where maximum headroom, high SPL and demanding loudspeaker loads are the priority. Designed for performing musicians, live sound engineers and production companies providing sound reinforcement in larger music clubs, performance centres, community events and sports venues, the L2800FD delivers the kind of power and processing capability that professional touring demands — at a price point that makes it genuinely accessible for a wider range of productions. Equipped with an extremely robust power supply and powerful Class H amplifier design, flawless operation is guaranteed even in the most demanding live environments.
Unlike the C Series which is optimised for permanent installation, the L2800FD is purpose-built for the demands of live touring and mobile production — featuring standard XLR inputs and link outputs, a front-panel display screen and manual power switch for fast, practical control on the road.
FIR Drive & SONICUE DSP Processing
The L2800FD is equipped with comprehensive onboard DSP including 31-band graphic EQ per channel, multi-band parametric EQ per channel, crossovers, limiters and delay per channel, alongside true channel grouping control with additional PEQ, GEQ and delay available per group. FIR Drive technology — a proprietary premium feature typically reserved for the highest quality tour-grade DSPs — optimises loudspeaker performance for a level of acoustic precision unheard of at this price point. Full SONICUE Sound System Software support enables intuitive setup, comprehensive control and system supervision from a connected device.
Class H Efficiency & True 2 Ohm Stability
The L2800FD utilises a Class H amplifier stage — a highly efficient rail-switching topology that tracks the audio signal and supplies only the voltage required at any given moment, reducing heat dissipation and power consumption at typical programme levels whilst maintaining full peak output capability when demanded. The L2800FD delivers up to 1300W per channel into 4 Ohm in dual-channel mode (2200W into 2 Ohm), with bridged mono operation providing up to 4400W into 4 Ohm or 2600W into 8 Ohm for the most demanding single-speaker applications. Engineered for true stability at 2 Ohms for both channels simultaneously, the L2800FD handles the most demanding professional loudspeaker loads with confidence.
Dynacord L2800FD Key Features:
- 2800W Total Output Power: Up to 1300W per channel (4Ω dual), 2300W single channel (2Ω), 4400W bridged (4Ω).
- Class H Amplifier Topology: Highly efficient rail-switching design for reduced heat dissipation at typical programme levels.
- True 2 Ohm Stability: Constant, reliable operation at 2 Ohm load on both channels simultaneously.
- FIR Drive Technology: Proprietary premium tour-grade loudspeaker optimisation for exceptional acoustic performance.
- SONICUE Sound System Software Integration: Intuitive setup, flexible control and comprehensive system supervision.
- 31-Band GEQ Per Channel: Comprehensive graphic equalisation for precise loudspeaker and system tuning.
- Multi-Band PEQ Per Channel: Professional parametric equalisation for detailed system and speaker correction.
- Crossover & Delay Per Channel: Flexible system configuration and time alignment for complex live sound setups.
- True Channel Grouping Control: Additional PEQ, GEQ and delay per group for advanced system management.

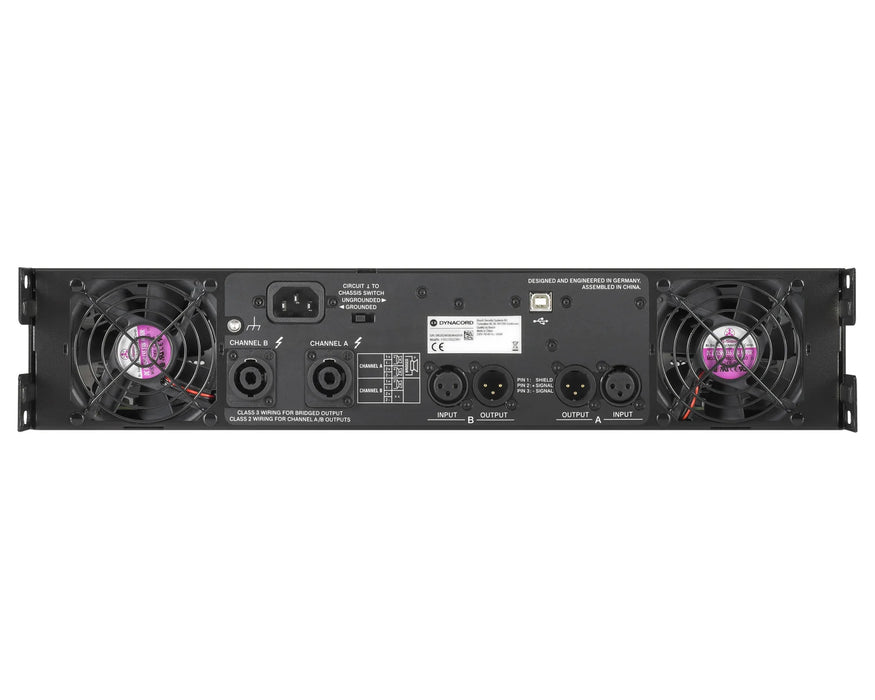

- XLR Inputs & Link Outputs: Standard live-sound connectivity for fast, practical setup on the road.
- Front-Panel Display & Manual Power Switch: Quick, intuitive local control for live touring and mobile production.
- Bridged Mono Operation: Up to 4400W into 4 Ohm for high-output single-speaker applications.
- > 107dB SNR (A-weighted): Exceptional signal-to-noise performance for professional live audio quality.
- < 0.05% THD: Ultra-low distortion for transparent, accurate audio reproduction.
- 3-Stage Front-to-Rear Fan Cooling: Reliable thermal management for sustained high-power live performance.
- Comprehensive Protection Suite: Audio limiters, thermal, DC, HF, back-EMF, peak current, inrush current and turn-on delay protection.
-
German Engineering: Designed and engineered in Germany to the highest professional standards.
