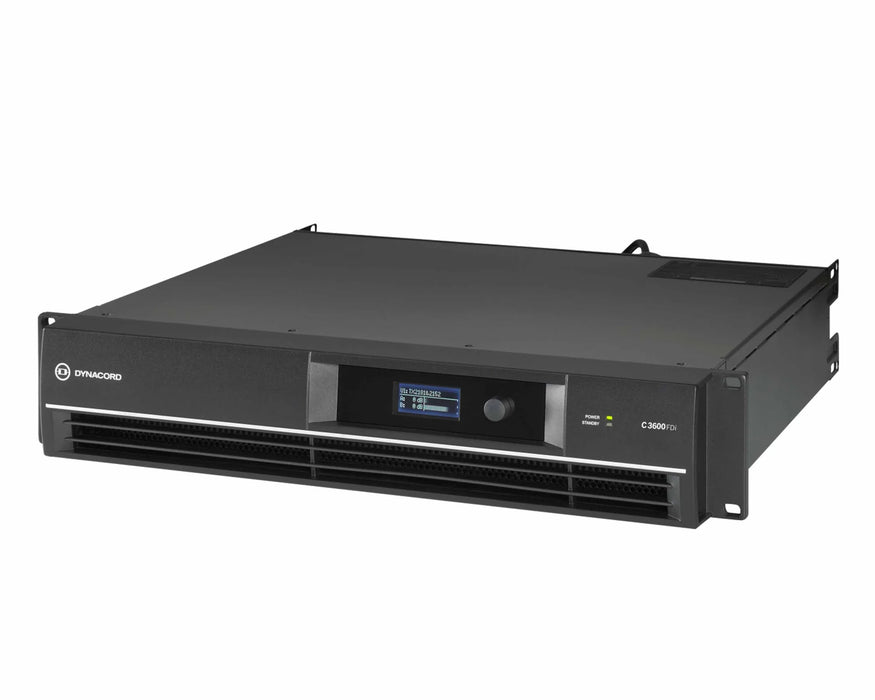

Dynacord C3600FDi 3600W 2-Channel DSP Power Amplifier 2Ω / 4Ω / 8Ω / 100V
The Dynacord C3600FDi is a professional 3600W 2-Channel DSP Power Amplifier with FIR Drive technology, 31-band GEQ, 10-band PEQ, 70V/100V direct drive, GPIO control and full SONICUE software integration — the flagship model in the C Series, delivering the highest output power and signal-to-noise ratio in the range for the most demanding permanent installation applications.
The Dynacord C3600FDi is the flagship two-channel 3600W DSP power amplifier in the C Series range — delivering the greatest output power, the highest signal-to-noise ratio and the most headroom of any model in the series for permanent installation applications where maximum performance is the priority.
Designed for demanding venues including bars, churches, restaurants, sports facilities and performing arts centres, the C3600FDi combines the same comprehensive FIR Drive DSP platform and SONICUE software integration as the rest of the C Series with the highest-power Class H amplifier stage in the range — making it the definitive choice for the largest zones, highest SPL requirements and most demanding installations where nothing less than the best will do.
Built on an extremely robust power supply and powerful Class H amplifier design, the C3600FDi guarantees flawless operation even in the most demanding environments, with sophisticated protection circuitry ensuring safe and reliable operation under all conditions.
FIR Drive & SONICUE DSP Processing
The C3600FDi is equipped with the same comprehensive onboard DSP platform as the rest of the C Series. FIR Drive technology optimises original factory loudspeaker settings for a level of acoustic performance typically reserved for tour-grade amplifiers. Under SONICUE Sound System Software, the C3600FDi's DSP capabilities are further elevated with 10-band parametric EQ per channel, a dedicated array processing section, 31-band graphic EQ per channel, output delay per channel, FIR filters, audio limiters and load impedance monitoring — providing a fully integrated professional speaker processing platform accessible from an intuitive software interface. A front-panel LC display allows local control and supervision without a connected PC.
Maximum Power Output & Impedance Flexibility
The C3600FDi delivers up to 1700W per channel into 4 Ohm in dual-channel mode (3000W into 2 Ohm), with bridged mono operation providing up to 6000W into 4 Ohm or 3400W into 8 Ohm — the highest bridged output power in the C Series — for the most demanding single-zone high-output applications. Engineered for constant stability at 2 Ohms for both channels simultaneously, the C3600FDi handles the most demanding loudspeaker loads with confidence. Both 70V and 100V high-impedance direct drive operation are supported — delivering 2 x 1250W at 70V and 2 x 2500W at 100V in dual-channel mode — providing comprehensive flexibility across the widest range of distributed and direct-drive installation scenarios.
Class H Amplifier Topology for Maximum Efficiency
The C3600FDi utilises a Class H amplifier stage — a highly efficient rail-switching topology that tracks the audio signal and supplies only the voltage required at any given moment, significantly reducing heat dissipation and power consumption at typical programme levels whilst maintaining full peak output capability when demanded. This makes the C3600FDi an exceptionally efficient high-power amplifier for permanent installation applications, delivering 3600W of total output power from just 850W of power consumption at typical programme levels.
Connectivity & Control

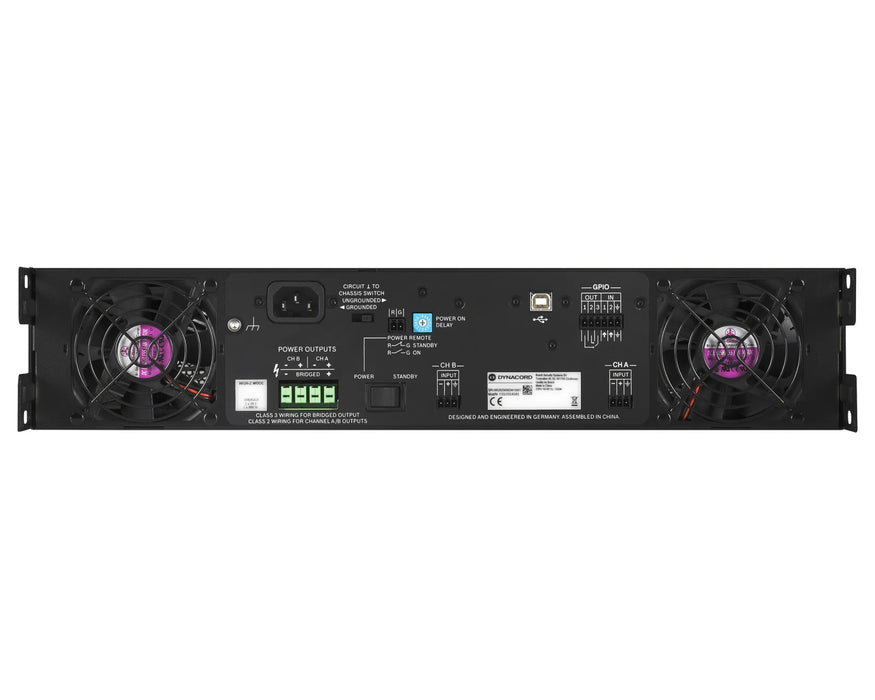

The C3600FDi features Euroblock connectors for convenient professional installation wiring, remote GPIO control for integration with third-party control systems, remote power-on delay and full SONICUE network control and supervision. The efficient standby power mode reduces running costs and power consumption significantly — delivering a very low total cost of ownership for permanent installation applications where continuous operation is required.
Dynacord C3600FDi Key Features:
- 3600W Total Output Power: The highest output in the C Series — up to 1700W per channel (4Ω dual), 3200W single channel (2Ω), 6000W bridged (4Ω).
- Class H Amplifier Topology: Highly efficient rail-switching design for reduced heat dissipation and lower running costs at typical programme levels.
- Engineered for 2 Ohm Stability: Constant, reliable operation at 2 Ohm load on both channels simultaneously.
- FIR Drive Technology: Premium tour-grade loudspeaker optimisation for unparalleled performance.
- SONICUE Sound System Software Integration: Full network control, supervision and enhanced DSP with 10-band PEQ and dedicated array processing section.
- 31-Band GEQ Per Channel: Comprehensive graphic equalisation for precise system tuning.
- 10-Band PEQ Per Channel (SONICUE): Advanced parametric equalisation for detailed speaker and room correction.
- Output Delay Per Channel: Time alignment for complex multi-speaker system configurations.
- 70V Direct Drive (Dual Channel): 2 x 1250W high-impedance operation for distributed speaker system integration.
- 100V Direct Drive (Dual Channel): 2 x 2500W (-1.5dB) for high-power 100V distributed system applications.
- Bridged Mono Operation: Up to 6000W into 4 Ohm — the highest bridged output in the C Series.
- GPIO Control: Remote interface with third-party control systems.

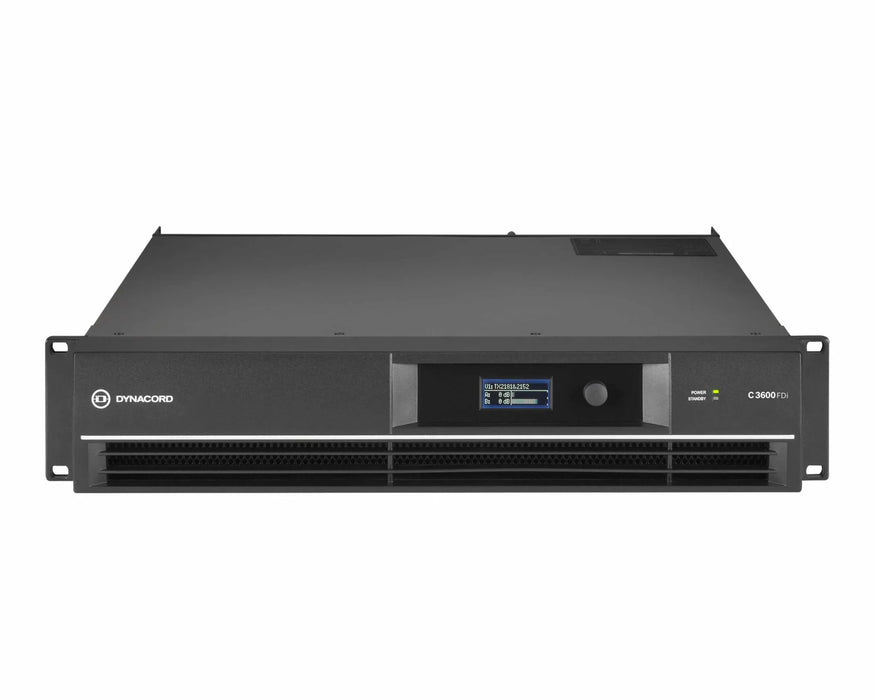

- Front-Panel LC Display: Local amplifier control and supervision without a connected PC.
- Euroblock Connectors: Convenient, professional installation wiring throughout.
- Remote Power-On Delay: System sequencing for professional installation environments.
- > 109dB SNR (A-weighted): The highest signal-to-noise ratio in the C Series for exceptional audio clarity.
- < 0.05% THD: Ultra-low distortion for transparent, accurate audio reproduction.
- 3-Stage Front-to-Rear Fan Cooling: Reliable thermal management for continuous 24/7 operation.
-
German Engineering: Designed and engineered in Germany to the highest professional standards.
