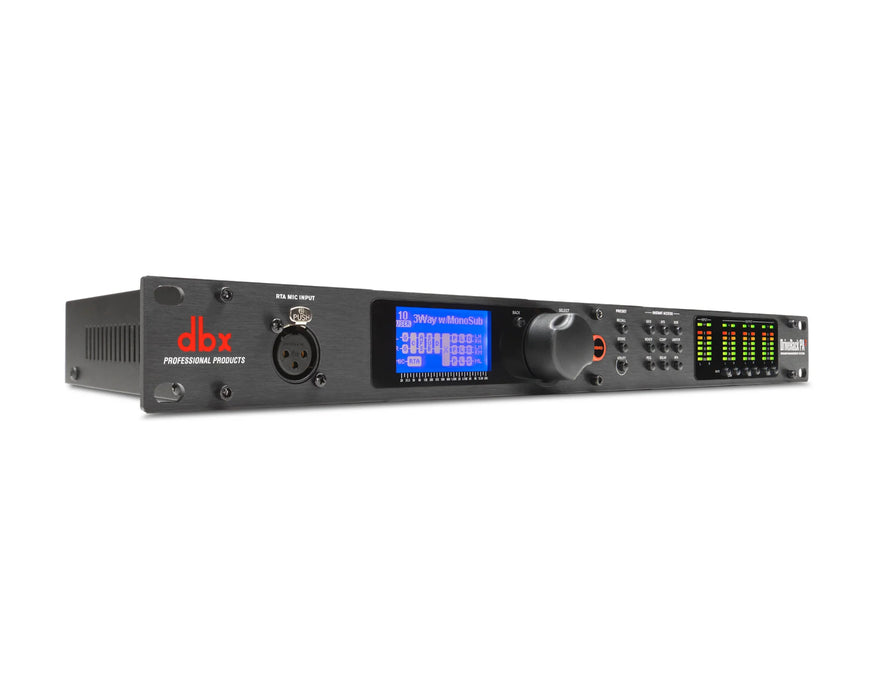

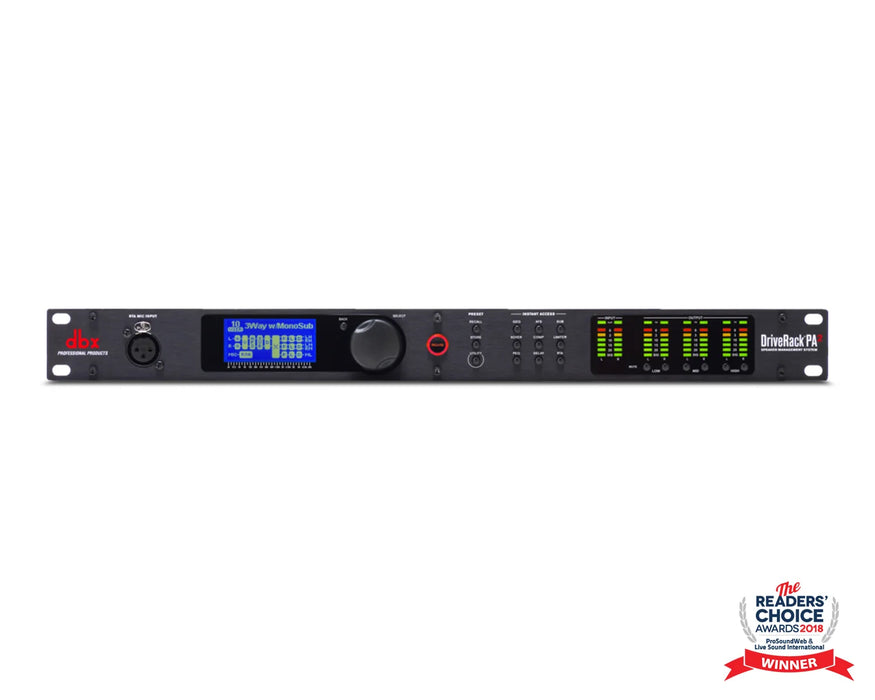

DBX DriveRack PA2 2x6 Loudspeaker Management System with Mobile App Control
The DBX DriveRack PA2 is a 2-Input 6-Output Loudspeaker Management System with AutoEQ, Advanced Feedback Suppression, crossover, dbx compression, subharmonic synthesis and mobile app control via Android, iOS, Mac and Windows — everything needed to optimise and protect your PA system between the mixer and amplifiers.
The DBX DriveRack PA2 provides all the processing needed between a mixer and power amplifiers to optimise and protect a loudspeaker system — combining AutoEQ, Advanced Feedback Suppression, graphic and parametric EQ, dbx compression, subharmonic synthesis, crossover, limiting and driver alignment delays in a single 1U rack-mount unit.
Continuing the DriveRack legacy of powerful, great-sounding and affordable loudspeaker management, the PA2 adds mobile app control via Android, iOS, Mac and Windows devices over Ethernet, an updated AutoEQ algorithm, an enhanced AFS feedback suppression algorithm and an input delay module for delaying the FOH system to the backline — making it the definitive all-in-one loudspeaker management solution for live sound applications of any scale.
AutoEQ — Fast, Accurate & Non-Intrusive
The PA2's updated AutoEQ algorithm represents a significant advancement over previous DriveRack generations. Using the included RTA microphone to listen to the room, the new AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds — without subjecting the audience to lengthy broadcasts of pink noise. The result is a fast, accurate and non-intrusive automatic EQ experience that allows room adjustments to be made quickly at any point during setup or soundcheck.
Enhanced AFS Advanced Feedback Suppression
The PA2's enhanced AFS algorithm listens for and anticipates feedback before it has the chance to occur, automatically adjusting speaker output to eliminate it without altering the overall system tone. DBX engineers have revisited and significantly improved an already highly regarded algorithm — delivering faster, more precise feedback elimination that keeps performances clean and feedback-free without the tonal compromise that some feedback suppression systems can introduce.
Updated Wizard Setup Functions
Step-by-step Wizard functions guide users through easy, logical setup processes for level balancing, AutoEQ, Advanced Feedback Suppression and speaker tuning configuration. Built-in and regularly updated speaker tunings from most major loudspeaker manufacturers are accessible directly within the Wizard, ensuring the PA2 can be optimally configured for a wide range of popular speaker systems quickly and without specialist knowledge.
Mobile App Control via Ethernet
Full control of the DriveRack PA2 is available from any Android, iOS, Mac or Windows device via the free DriveRack PA2 mobile app over Ethernet — allowing every parameter to be adjusted remotely from anywhere in the venue during soundcheck and performance without returning to the rack. This makes the PA2 a genuinely powerful and flexible system management tool for engineers working alone or in smaller teams.
Comprehensive Input & Output Processing
Input processing includes dbx compression, AFS Advanced Feedback Suppression, graphic EQ, 8-band parametric EQ (adjusted automatically when using AutoEQ), subharmonic synthesis and a 100ms input delay for FOH-to-backline alignment. Output processing includes a fully configurable crossover supporting full-range, 2-way and 3-way system configurations, 8-band parametric EQs per output channel for speaker tunings, dbx limiting and driver alignment delays of up to 10ms per channel (60ms total) for time-alignment of complex multi-speaker systems.
DBX DriveRack PA2 Key Features:
- 2 Inputs / 6 Outputs: Flexible routing for full-range, 2-way and 3-way PA system configurations.
- Updated AutoEQ: Fast, accurate and non-intrusive automatic room EQ using the included RTA microphone — results in seconds without extended pink noise broadcasts.
- Enhanced AFS Advanced Feedback Suppression: Anticipates and eliminates feedback before it occurs without altering system tone.
- Mobile App Control: Full parameter control from any Android, iOS, Mac or Windows device over Ethernet.
- Updated Setup Wizards: Step-by-step guided setup with access to built-in and regularly updated speaker tunings from major manufacturers.
- Input Processing: dbx compression, AFS, graphic EQ, 8-band parametric EQ, subharmonic synthesis, 100ms input delay.
- Output Processing: Crossover (full-range, 2-way, 3-way), 8-band parametric EQ per output, dbx limiting, driver alignment delays (10ms per channel / 60ms total).
- dbx Type IV Conversion System: 112dB A-weighted A/D dynamic range for exceptional audio quality throughout the signal chain.
- 123dB Type IV Dynamic Range: With transient material, A-weighted — exceptional headroom and transparency.
- >110dB Dynamic Range: Clean, transparent processing with 0.003% typical THD+N at +4dBu.

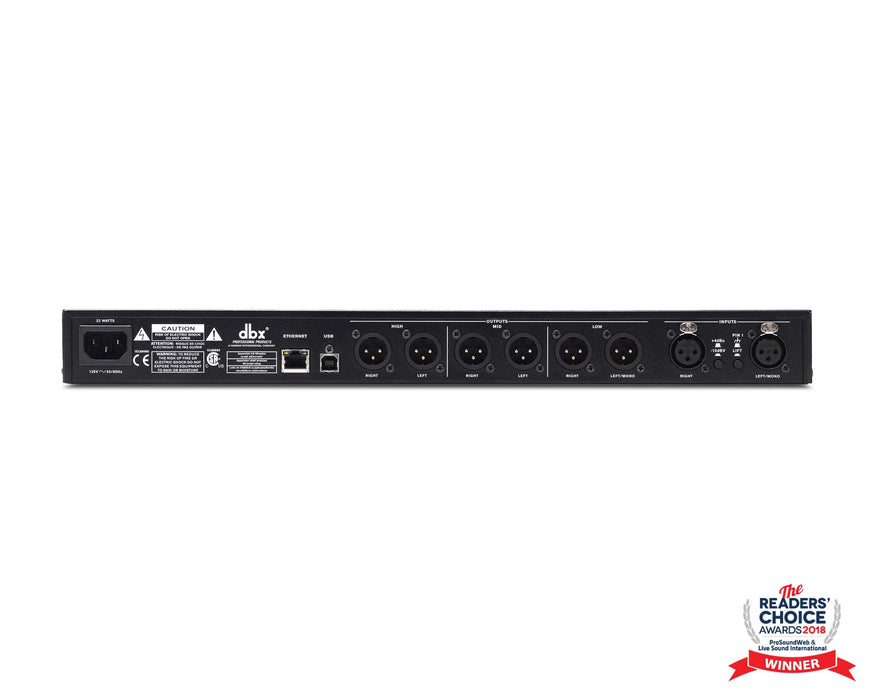

- Electronically Balanced XLR Inputs & Outputs: RF filtered professional connectivity throughout.
- RTA Mic Phantom Power: +15V DC phantom power for the included RTA microphone.
- 48kHz Sample Rate: Professional audio processing sample rate throughout.
- 1U Rack Mountable: Standard 19" rack installation.
