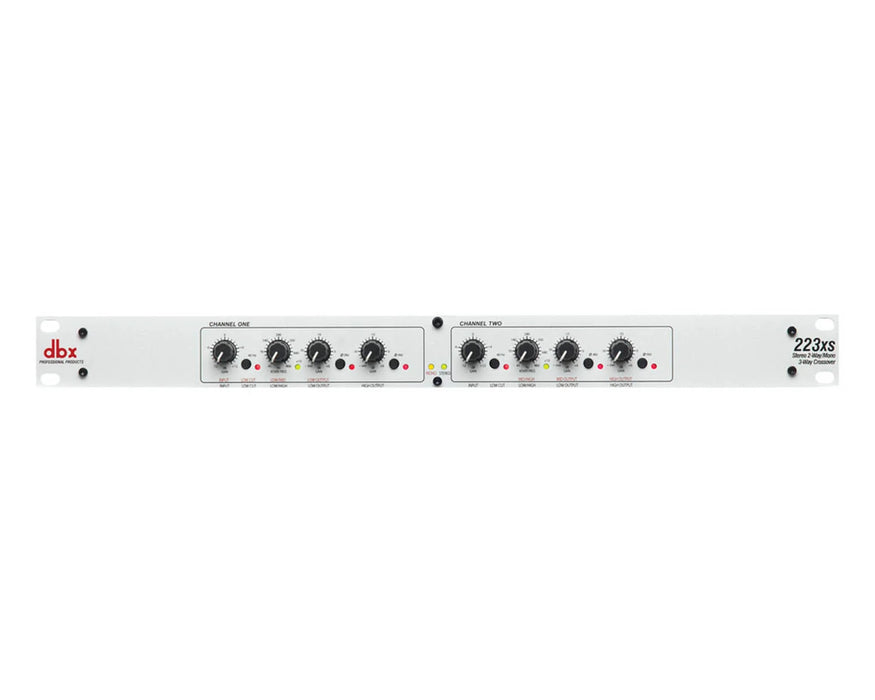

DBX 223xs Stereo 2-Way / Mono 3-Way Crossover
The DBX 223xs is a professional Stereo 2-Way / Mono 3-Way Crossover with Linkwitz-Riley 24dB/octave filters, balanced XLR I/O, independent output level controls, phase inversion and a 40Hz low-cut filter — delivering ultra-low-noise, precise frequency separation for professional PA and loudspeaker systems.
The DBX 223xs is a professional dual-channel active crossover designed to separate the audio signal and direct the correct frequencies to each loudspeaker driver — allowing amplifiers to operate at their full power on only the usable signal, eliminating distortion and delivering a cleaner, better-sounding PA system. Built on four decades of DBX knowledge and expertise in professional audio processing, the 223xs combines ultra-low-noise circuitry, rugged reliability and precision controls in a straightforward and well-specified 1U rack-mount crossover that is equally at home in permanent installations, touring rigs and fixed PA systems.
Linkwitz-Riley Filters — The Professional Standard
The 223xs uses Linkwitz-Riley 24dB per octave state-variable filters — widely regarded as the professional standard for active crossover design — to provide precise, phase-coherent frequency separation between driver bands. Crossover frequencies are continuously variable from 45Hz to 960Hz in the standard range, or 450Hz to 9.6kHz with the x10 range switch engaged — providing the flexibility to configure the crossover precisely for a wide range of 2-way and 3-way loudspeaker system configurations. A mode switch selects between stereo 2-way and mono 3-way operation, with stereo and mono status LEDs clearly indicating the active mode at a glance.
Comprehensive Controls & Features
Each output features an independent level control for precise level matching between amplifier channels and driver bands, alongside a phase inversion switch for correcting phase relationships between driver sections. A 40Hz Butterworth 12dB/octave high-pass low-cut filter per channel removes unwanted subsonic content from the signal path, protecting drivers and amplifiers from unnecessary low-frequency energy. An LF sum switch selects normal stereo or mono-summed low-frequency operation for subwoofer applications — disabling channel 2's low output when in LF sum mode and clearly indicating this via the phase invert LED. All controls feature solid, precision click action for reliable and repeatable settings adjustments in professional use environments.
Professional Connectivity & Performance

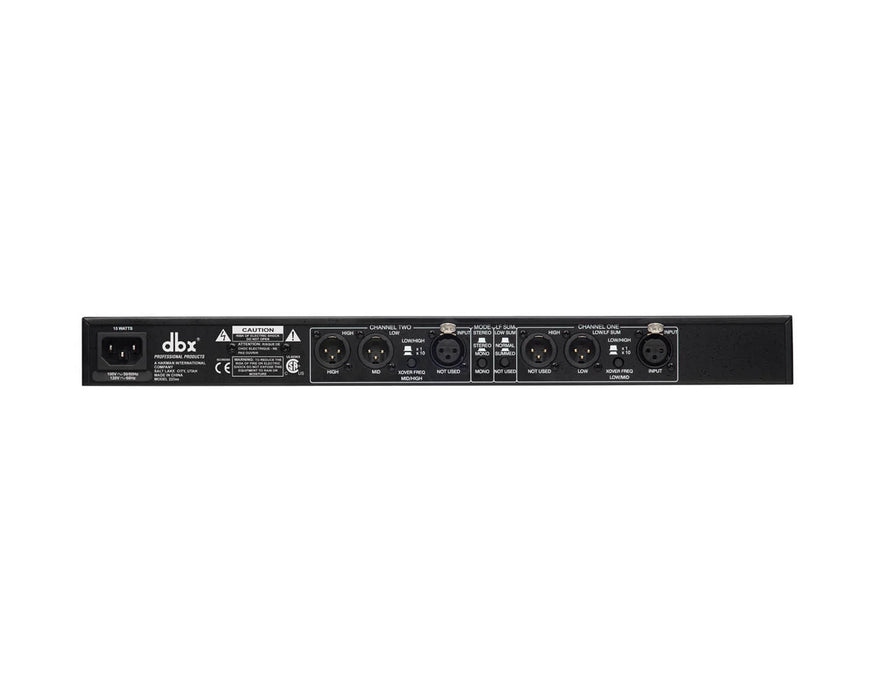

Balanced XLR inputs (pin 2 hot) with RF filtering and an input impedance of over 50kΩ accept any professional balanced line-level signal, with a maximum input level of over +22dBu for compatibility with the hottest professional signal levels. Impedance-balanced XLR outputs deliver a maximum output of over +21dBu into 2kΩ or greater, with a signal-to-noise ratio of over 94dB and THD+Noise of less than 0.004% at +4dBu — providing transparent, high-performance frequency separation that lets the character of the loudspeaker system come through without colouration from the crossover itself.
DBX 223xs Key Features:
- Stereo 2-Way / Mono 3-Way Operation: Mode switch selects between stereo 2-way and mono 3-way crossover configurations with LED status indication.
- Linkwitz-Riley 24dB/Octave Filters: The professional standard for active crossover design — precise, phase-coherent frequency separation.
- Variable Crossover Frequencies: 45Hz–960Hz standard range / 450Hz–9.6kHz with x10 range switch engaged.
- x10 Range Switch: Per channel — multiplies the crossover frequency range by a factor of 10 for high-frequency crossover applications.
- Independent Output Level Controls: Per output — precise level matching between amplifier channels and driver bands.
- Phase Inversion Switch: Per output — corrects phase relationships between driver sections.
- 40Hz Low-Cut Filter: Per channel — Butterworth 12dB/octave high-pass filter removes subsonic content for driver and amplifier protection.
- LF Sum Switch: Mono-sums the low-frequency output for subwoofer applications.
- Balanced XLR Inputs & Outputs: RF filtered, electronically balanced professional connectivity throughout.
- > 94dB Signal-to-Noise Ratio: Ultra-low-noise circuitry for transparent frequency separation.
- < 0.004% THD+Noise: Exceptionally low distortion at +4dBu for clean, uncoloured crossover performance.
- > 106dB Dynamic Range: Professional headroom for demanding live and installation applications.
- Precision Click Controls: Solid, reliable and repeatable control action for professional use.
- LED Status Indicators: Stereo/mono mode, low cut, x10 and phase invert status all clearly indicated.
- CE Compliant: Meets European regulatory requirements.
- DBX 2-Year Parts & Labour Warranty: Standard manufacturer warranty included.
- 1U Rack Mountable: Standard 19" rack installation.
