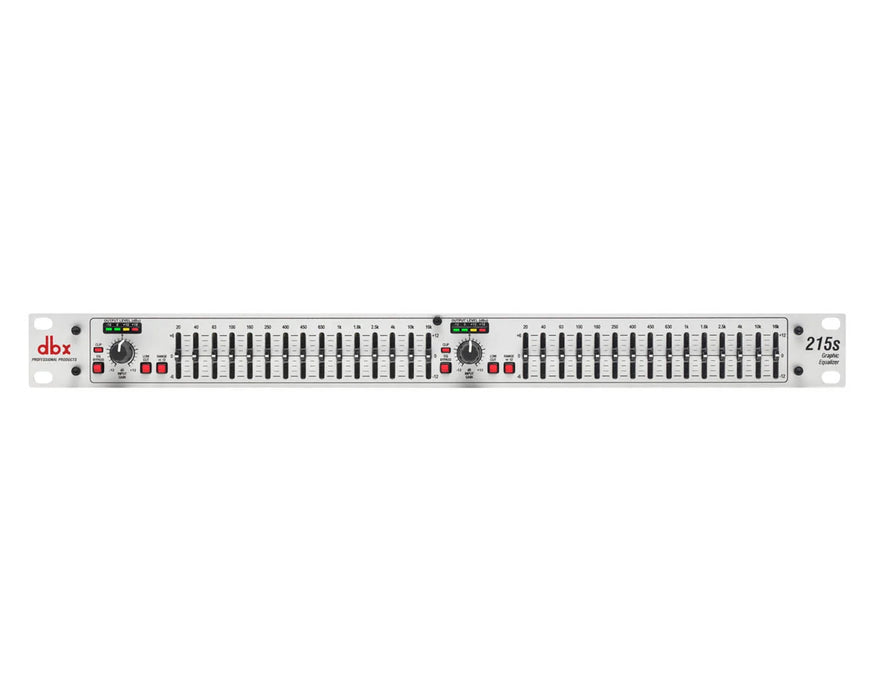

DBX 215s Dual 15-Band 2/3-Octave Graphic Equaliser
The DBX 215s is a Dual 15-Band 2/3-Octave Graphic Equaliser with switchable ±6dB or ±12dB boost/cut range, ±12dB input gain, XLR and TRS inputs and outputs, a 50Hz low-cut filter and front-panel bypass — delivering over 112dB dynamic range and less than 0.003% THD for professional touring, studio and installed sound applications.
When professionals need a graphic equaliser, they turn to DBX. With a four-decade track record as the industry standard for touring, studios and audio installations, the DBX 215s continues that legacy — meeting the needs of the most demanding sound reinforcement environments whilst offering the simplicity of straightforward, intuitive controls. From its extended frequency response of less than 10Hz to over 50kHz and its 112dB dynamic range to its quality componentry and meticulous attention to detail, the 215s delivers exceptional sound quality and rugged reliability in a classic 1U rack-mount format that is sure to find a home in the studio, on tour and in installed sound venues.
Dual 15-Band 2/3-Octave Equalisation
The 215s provides two independent 15-band channels of 2/3-octave Constant Q equalisation — with 20mm non-conductive sliders on each band for precise, tactile frequency adjustment across the full audio spectrum. A switchable boost/cut range of either ±6dB or ±12dB per channel provides the flexibility to make subtle or more dramatic frequency corrections as required, and a ±12dB input gain range on each channel allows overall input level to be adjusted independently of the EQ settings. A front-panel bypass switch removes the EQ section from the signal path entirely for instant A/B comparison between the processed and unprocessed signal.
Professional Connectivity & Performance
Both XLR and ¼" TRS inputs and outputs are provided on each channel — electronically balanced and RF filtered throughout — for flexible integration into any professional signal chain. The balanced XLR inputs accept signals up to +21dBu, and the impedance-balanced XLR outputs deliver up to +21dBu into 2kΩ or greater for clean, reliable signal distribution across long cable runs in installed sound environments. A signal-to-noise ratio of typically greater than 95dB and THD+Noise of less than 0.003% ensure the 215s adds nothing unwanted to the signal, and interchannel crosstalk of less than -90dB keeps both channels clean and independent throughout. Four-segment LED ladders on each channel provide clear output level monitoring at a glance, and a 50Hz 12dB/octave Bessel h
DBX 215s Key Features:
- Dual 15-Band 2/3-Octave Constant Q EQ: Two independent channels of professional graphic equalisation with 20mm non-conductive sliders.
- Switchable ±6dB or ±12dB Boost/Cut Range: Per channel — flexible EQ correction for subtle or more dramatic frequency adjustment.
- ±12dB Input Gain Range: Independent input level adjustment per channel.
- Front-Panel Bypass Switch: Instantly removes the EQ section from the signal path for A/B comparison.
- 50Hz Low-Cut Filter: 12dB/octave Bessel high-pass filter per channel for subsonic content removal.

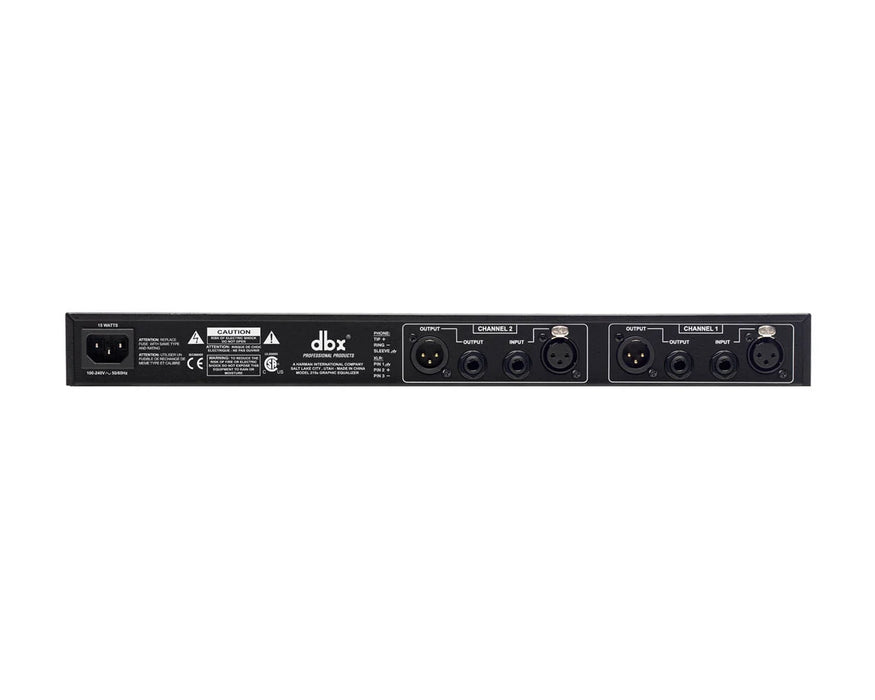

- XLR & ¼" TRS Inputs & Outputs: Electronically balanced and RF filtered for flexible professional system integration.
- > 112dB Dynamic Range: Exceptional headroom and transparency for demanding professional applications.
- > 95dB Signal-to-Noise Ratio: Ultra-low-noise circuitry for clean, transparent equalisation.
- < 0.003% THD+Noise: Exceptionally low distortion for uncoloured, accurate frequency shaping.
- < -90dB Interchannel Crosstalk: Clean channel separation throughout the full audio bandwidth.
- < 10Hz to > 50kHz Frequency Response: Extended bandwidth well beyond the audible range.
- 4-Segment LED Output Level Meters: Clear output level monitoring on each channel.
- IEC Power Connector: Standard removable mains cable for straightforward rack installation.
- 1U Rack Mountable: Standard 19" rack installation for professional touring, studio and installed sound use.
- DBX 2-Year Parts & Labour Warranty: Standard manufacturer warranty included.
