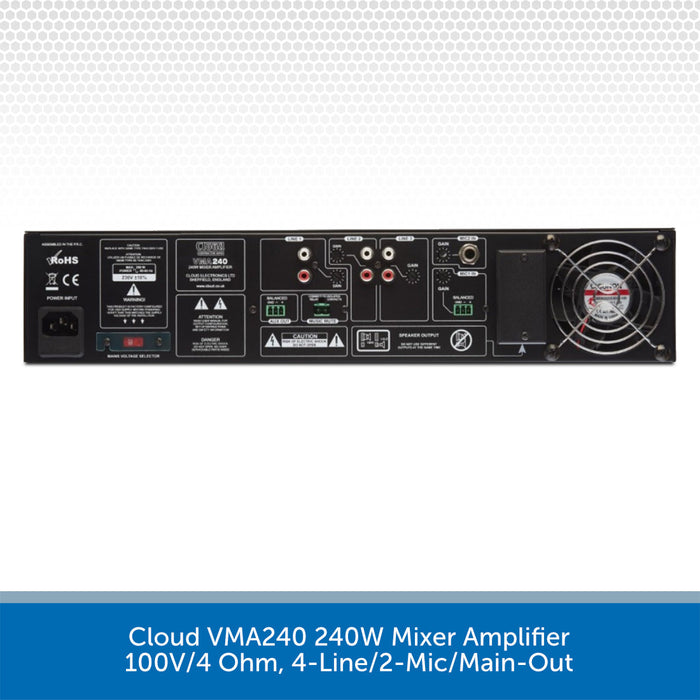

Cloud Contractor VMA240 240W Mixer Amplifier 100V/4 Ohm, 4-Line/2-Mic/Main-Out
DETAILS
The Cloud VMA240 is a cost-effective 240W 100V / 4 Ohm mixer amplifier designed for use in all types of commercial premises.
The VMA240 has been designed to be as simple to install and operate as possible, but offers a useful range of features and configuration options.
Simply connect a line-level device such as a smartphone, laptop or cd player to either the front-facing aux input (3.5mm jack) or to one of the line inputs (RCA) located to the rear of the amp.
In addition to this, the VMA240 also features 2 microphone inputs that allow for the connection of a dynamic/condenser paging microphone ideal for public address purposes, or a handheld mic perfect for pub quizzes and karaoke.
The Cloud VMA240 is designed to fit into a 19" rack cabinet (1U), but can also sit on top of a desk/counter.
Cloud VMA240 Key Features:
- Power output: 240 W/channel
- Outputs suitable for either low-impedance (min. 4 ohm) or 25/70/100 V-line systems
- Four stereo unbalanced line inputs (3 x RCA jack pairs, 1 x 3.5 mm TRS jack on front panel)
- Rear panel line inputs have individual gain controls
- Two balanced mic inputs (1 x multipin connector, 1 x ¼” TRS jack), with individual preset gain controls
- Front panel controls for mic and music levels, line input selection, mic EQ, master level and EQ
- Mic input mute switches on front panel
- Line 1 priority, enabled by front panel switch
- Mic-over-music priority, enabled by front panel switch
- 15 V phantom power available at either mic input
- 100 Hz high-pass filter on each mic input
- 70 Hz high-pass filter in output stage, for use with 5/70/100 V-line systems
- Fixed limiter – prevents clipping
- Front panel LED bargraph – indicates output signal level
- Over-temperature and output DC protection
- 230 V or 115 V operation
- Forced-air cooling
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
Cloud Contractor VMA240 Specifications
Line Inputs
- Frequency Response: 20 Hz to 20 kHz, ±1 dB
- Gain range: 0 dBu to +20 dBu
- Input impedance: 47 kohms
- Noise: <-82 dB (22 kHz bandwidth)
- Equalisation: LF: ±10 dB @ 50 Hz HF: ±10 dB @ 10 kHz
Microphone Inputs
- Frequency Response: -3 dB @100 Hz (fixed filter) to 20 kHz, ±1 dB
- Gain range: 2.45 mV (-50dBu) to 245 mV (-10 dBu)
- Input Impedance: 3.3 kohms (balanced)
- Phantom Power: 15 V, switchable per-input by jumpers
- Noise: (EIN)-125 dBu (20 Hz to 22 kHz bandwidth, max gain, Rs = 150 ohms)
- Equalisation: LF: ±10 dB @ 100 Hz; HF: ±10 dB @ 5 kHz
Main Output
- Output Power: 240 watts
- Frequency Response: 20 Hz to 20 kHz, ±1 dB
- THD+N: < 0.08% @ 1 kHz
- Protection: Fixed level signal limiter: DC and over-temperature protection
General:
- Power Input: Selectable 115 VAC or 230 VAC, ±10%; 45 – 65 Hz
- Normal operating temperature: 0 °C to 35 °C
- Cooling: Forced air cooling, 80 mm dia. fan; airflow front-to-back
- Dimensions (W x H x D): 482.6 mm x 88 mm (2U) x 267 mm 19” x 3.5” (2U) x 10.5”
- Weight: 9.6 kg (22.2 lbs)
