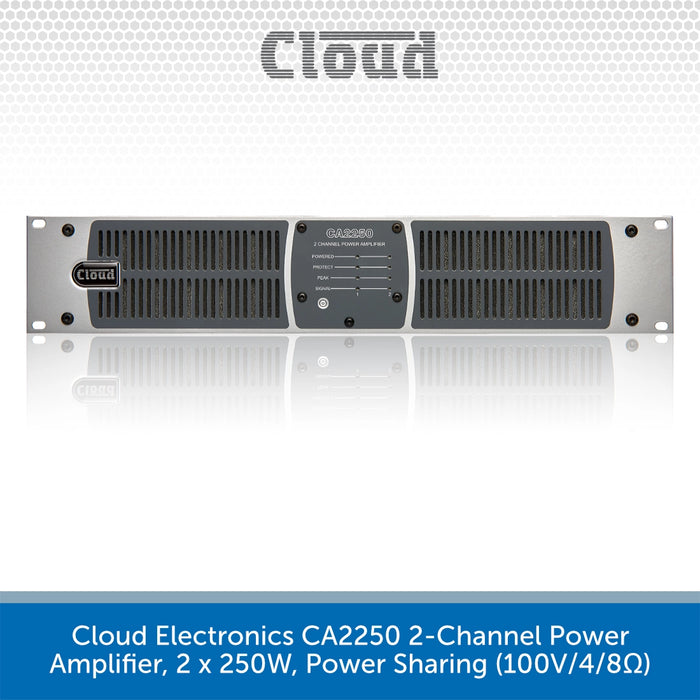

Cloud Electronics CA2250 2-Channel Power Amplifier, 2 x 250W, Power Sharing (100V/4/8Ω)
DETAILS
The Cloud CA2250 is a high-efficiency, 2 x 250W Class D power amplifier, designed for commercial and multi-zone audio installations.
With the ability to drive both low-impedance (4Ω) loudspeakers and high-impedance (70V/100V) loudspeaker systems, this amplifier is ideal for applications in retail, hospitality, leisure, and industrial environments. Its advanced power-sharing capability allows the total 500W output to be intelligently distributed across its two channels, providing maximum flexibility in system design.
Built for energy efficiency and reliability, the CA2250 features transformerless outputs, ensuring a lightweight and space-saving design. The Automatic Power Down (APD) mode reduces energy consumption to less than 2.5W when idle, while a remote standby/wake-up function offers external control over power management. The amplifier also includes comprehensive protection features, such as thermal monitoring, overcurrent protection, and DC offset detection, ensuring consistent and safe operation in demanding environments.
Cloud Electronics CA2250 Key Features:
- 2 x 250W Class D amplification with power-sharing across channels
- Supports 70V/100V-line or low-impedance (≥4Ω) operation
- Balanced line-level inputs with per-channel gain controls
- Automatic Power Down (APD) with power consumption below 2.5W
- Remote power control input for external standby/wake-up functionality
- Variable-speed forced-air cooling for thermal efficiency
- Integrated protection circuits, including thermal, overcurrent, and DC offset safeguards
-
Universal power supply (100-240V AC) for global compatibility
View the full range of Cloud Electronics amplifiers & speakers HERE >
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
Download the User Manual HERE >
Cloud Electronics CA2250 Specifications
- Output Power: total output power 500 W, both channels
-
Outputs:
- Low-impedance: 4 ohms or 8 ohms (selectable)
- High-impedance: 70 V or 100 V (rms)
- Frequency Response: 20 Hz to 20 kHz, +0 dB/-1 dB
- High Pass Filter: -3 dB @ 65 Hz via rear panel switches
- Distortion: 0.019%THD+N @1 kHz, 1 dB below rated output
- Noise: -94 dBr, 22 Hz to 22 kHz, relative to full power
-
Crosstalk:
- Ch1 to Ch2: < -98 dB @1 kHz, -79 dB @10 kHz
- Other channel combinations: -107 dB @1 kHz, -98 dB @10 kHz (typical)
Inputs
- Connectors: 3-pole 3.5 mm-pitch plug-in screw-terminal connectors
- Sensitivity: 0 dBu (0.775 Vrms)
- Input Impedance: 10 kohms (balanced); 5 kohms (unbalanced)
General
- Output connectors: 2-pole 5 mm-pitch plug-in screw-terminal connectors
- Power input: 85 to 265 V AC, 50 to 60 Hz
-
Mains protection:
-
Internal fuses:
- CA2250: 1 x 250 V fuse, 20 x 5 mm, rating T4AH
-
Internal fuses:
- Normal operating temperature 0 °C to 35 °C (Note performance and specifications cannot be guaranteed outside this range)
-
Power Consumption
- Standby & APD: 1.919 W (24.29 VA)
- Mute: 17.87 W (36.85 VA)
- Idle: 24.33 W (43.6 VA)
- 1/8th power: 165.1 W (193.5 VA)
- 1/3rd power: 388.0 W (415.4 VA)
-
Heat loss
- Standby & APD: 6.9 kJ/hr (6.6 BTU/hr)
- Mute: 64.3 kJ/hr (61.0 BTU/hr)
- Idle: 87.6 kJ/hr (83.1 BTU/hr)
- 1/8th power: 108.3 kJ/hr (102.7 BTU/hr)
- 1/3rd power: 197.3 kJ/hr (187.1 BTU/hr)
-
Amplifier Protection
- Overcurrent
- DC
- Thermal monitoring
- Switch-on delay
- Status Indicators: Power applied, Protection active, Signal peak, and Signal present
-
Cooling: Variable speed fan
Physical
- Dimensions (WxHxD): 482.6 mm x 88 mm x 231.3 mm (19 in x 3.46 in x 9.11 in)
- Weight: 4.50 kg (10.1 lb)
