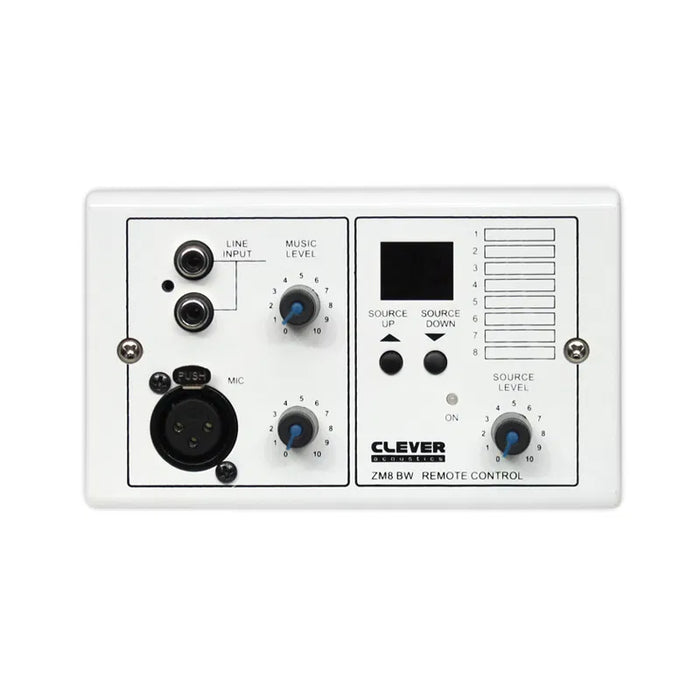

Clever Acoustics ZM 8 BW Input Wall Plate With Volume & Source Selection

Sold out
Original price £75.95 (inc. VAT) - Original price £75.95 (inc. VAT)
Original price £75.95 (inc. VAT)
£75.95 (inc. VAT)
£75.95 (inc. VAT) - £75.95 (inc. VAT)
Current price £75.95 (inc. VAT)
SKU CRAM19A
DETAILS

Dedicated wall plate for the ZM 8 Zone Mixer. Installation of the plates requires simple, easy connection via standard RJ45 terminated CAT5e cable.

Clever Acoustics ZM 8 BW Key Featues:

  • 3 year warranty
  • Zone LED indicator with up/down buttons
  • Volume controls provided
  • DC 24V power supply from controller
  • Metal back box supplied
  • Remote line via phono and microphone via XLR inputs with gain controls
  • Source selection and volume control
  • Line, mic and source selection are sent using a single CAT5e cable
  • Only for use with the ZM 8 Zone Mixer (CRAM19)
    SPECS & DOWNLOADS

    Clever Acoustics ZM 8 BW Specifications

    • Serial communication speed: 4800bps
    • Communication port: RJ45
    • Communication protocol: RS485
    • Serial communication distance: 1km maximum
    • MIC input sensitivity: 5mV/600Ω, Phantom power: +12V 350mV/10kΩ
    • AUX input sensitivity: 350mV/10kΩ
    • Audio output: 0dB/600Ω
    • Frequency response: 50Hz-18kHz (±1dB)
    • S/N ratio: MIC: >65dB, AUX: >75dB
    • THD: <0.1% @ 1kHz
    • Power consumption: 5W
    • Power supply: DC 24V
    • Dimensions (H x W x D): 86 x 86 x 48mm
    • Weight: 70g
    }
