Citronic CSR-63 9-Channel Rack-Mount Mixer with Bluetooth & DSP Effects
DETAILS
The Citronic CSR-63 is a versatile 9-channel rack mixer designed for installed and mobile PA systems in venues such as schools, places of worship, bars, clubs, restaurants, and event spaces.
With six mic/line channels and three stereo line channels, each featuring gain, 2-band EQ, FX, PAN control, and a 60mm level fader, this mixer offers precise control over your audio mix.
A built-in DSP effects section provides 16 editable presets, perfect for enhancing vocals and instruments, while a foot switch input allows hands-free effects activation during live performances. Bluetooth connectivity enables wireless audio streaming from smartphones or tablets, making it easy to integrate background music into your setup.

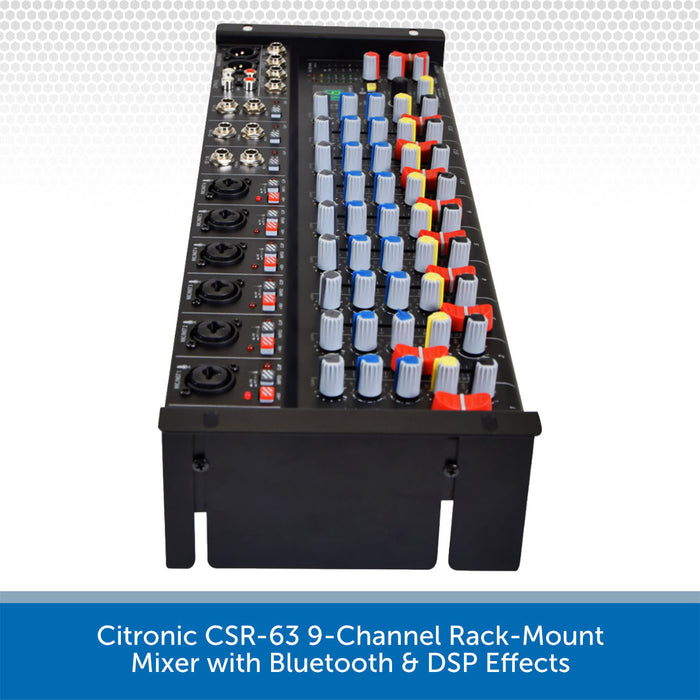

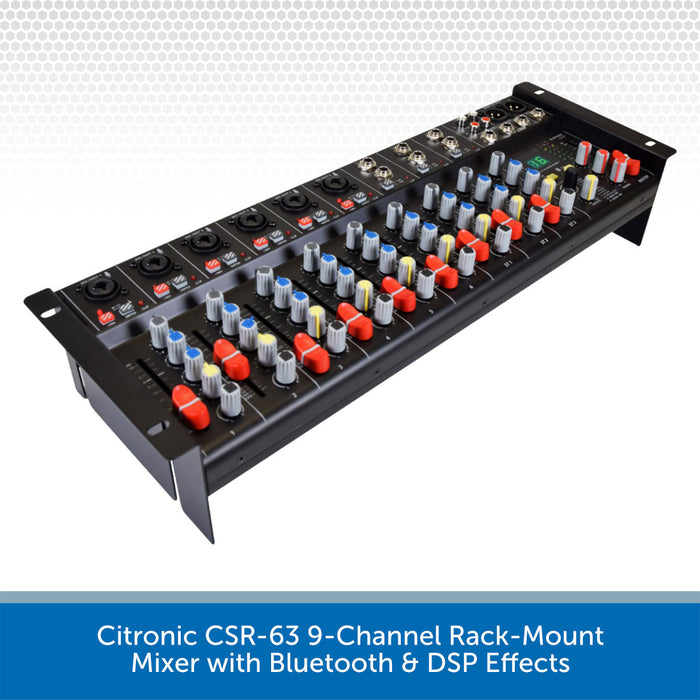

The CSR-63 is rack-mountable, occupying just under 4U of space, with top-mounted connectors for efficient cable management. The adjustable depth fixing lets you position the controls for easy access or recessed protection. Unlike many rack mixers, its shallow housing depth allows back-to-back mounting with other equipment, making it ideal for compact rack installations.
With its intuitive controls, flexible connectivity, and professional-grade features, the Citronic CSR-63 is a reliable choice for live performances, installed PA systems, and multi-purpose audio setups.
Citronic CSR-63 Key Features:
- 9-channel mixer – 6 mic/line channels and 3 stereo line channels
- Ideal for various venues – Schools, places of worship, bars, clubs, restaurants, and event spaces
- Individual channel controls – Gain, 2-band EQ, FX, PAN, and 60mm level fader
- Built-in DSP effects – 16 editable presets, remote activation via foot switch
- Bluetooth streaming – Wirelessly play audio from any Bluetooth-enabled device
- Phantom power – +48V on 6 mono input channels for condenser microphones
- Rack-mountable design – Less than 4U height, with adjustable depth fixing
- Shallow housing depth – Allows back-to-back mounting with other rack equipment
- Top-mounted connectors – Simplifies cable management for a clean setup
- Versatile use – Perfect for live performances, installed PA systems, and multi-purpose audio applications
SPECS & DOWNLOADS
Download the PDF User Manual HERE >
Citronic CSR-63 Specifications
- Power supply: 5Vdc, 2A (in-line PSU included)
- Output: Left + Right balanced XLR
- Effects: 16 program DSP (24-bit sigma-delta, 40kHz)
- Power consumption max.: 10W
- Inputs: 6 x combo XLR/jack + 3 x L(mono)+R jack
- EQ: low: ±15dB @ 80Hz
- EQ: high: ±15dB @ 12kHz
- Phantom power: +48V individually switchable (XLR inputs only)
- Input impedance : mic: 2k Ohms
- Input impedance : instrument: 1M Ohms
- Input impedance : line: 20k Ohms
- Audio source: Bluetooth receiver
- Frequency response: 20Hz - 20kHz (±0.5B)
- THD +N: <0.03% @ 1kHz
- Dynamic range: 102dB
- Crosstalk : stereo: 92dB
- Output impedance: 120 Ohms
- Max. output level: 3Vrms
- Dimensions: 482 x 160 x 90mm
- Weight: 2.745kg
