Chord XU4 Quad Handheld UHF Wireless Microphone System

by Chord
Sold out
Original price £379.00 (inc. VAT) - Original price £379.00 (inc. VAT)
Original price £379.00 (inc. VAT)
£379.00 (inc. VAT)
£379.00 (inc. VAT) - £379.00 (inc. VAT)
Current price £379.00 (inc. VAT)
SKU 171.017
DETAILS

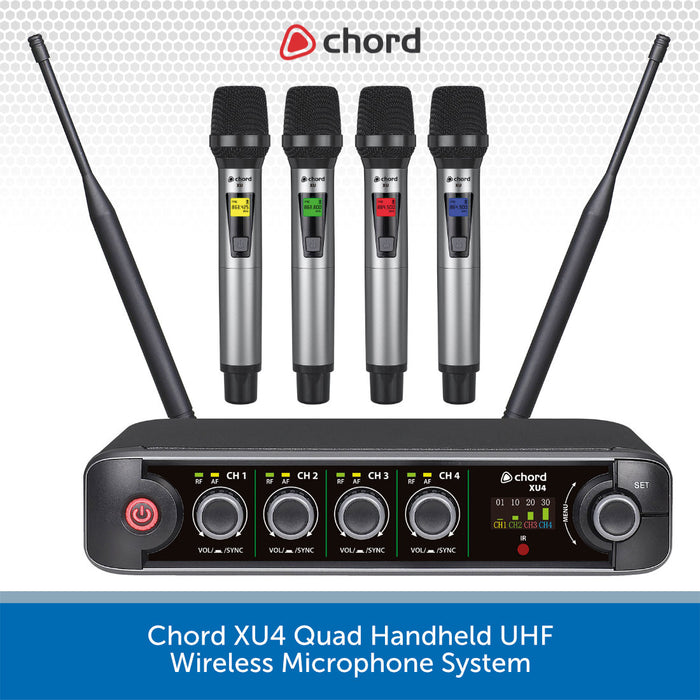

Quad channel UHF wireless microphone system with four handheld transmitters, true diversity reception, and a compact half-width rack receiver.

The Chord XU4 is a four-channel UHF wireless microphone system built for live events, presentations, and performances.

Each system includes a compact half-width 1U rack receiver with four handheld transmitters. The receiver uses true diversity antennas with internal distribution to reduce dropouts and ensure a stable connection.

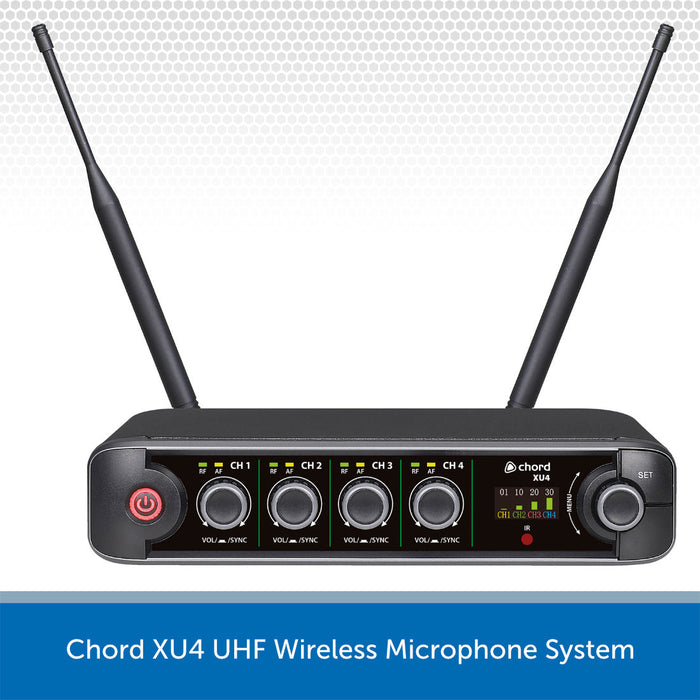

A clear colour TFT display on the front panel shows channel levels, frequency settings, and selectable backlight colours for each mic, making it easy to monitor and adjust.

Each handheld microphone features its own LCD screen for frequency and battery status, with a choice of six backlight colours for fast identification.

The XU4 offers 10 groups of UHF frequencies covering both UK/EU licence-free and PMSE duplex gap bands, giving you reliable, interference-free operation.

It’s supplied with rack-mounting hardware and antenna extension cables for easy front mounting. Whether you're managing a busy stage or a corporate event, the XU4 delivers simple control and professional-grade performance in a portable format.

Included in the box:

  • XU-series true diversity UHF receiver
  • 4 x handheld microphones
  • 2 x UHF antennas
  • 2 x BNC antenna extension leads
  • Rack-mounting brackets for 1 or 2 receivers in a 19" 1U space
  • UK power adaptor
  • 6.3mm male to male cable
  • 8 x AA batteries

Chord XU4 Key Features:

  • Quad handheld UHF wireless microphone system
  • Compact half-width rack receiver
  • True diversity antennas with internal distribution
  • 10 groups of 9 selectable UHF carrier frequencies
  • Selectable backlight colours for each channel

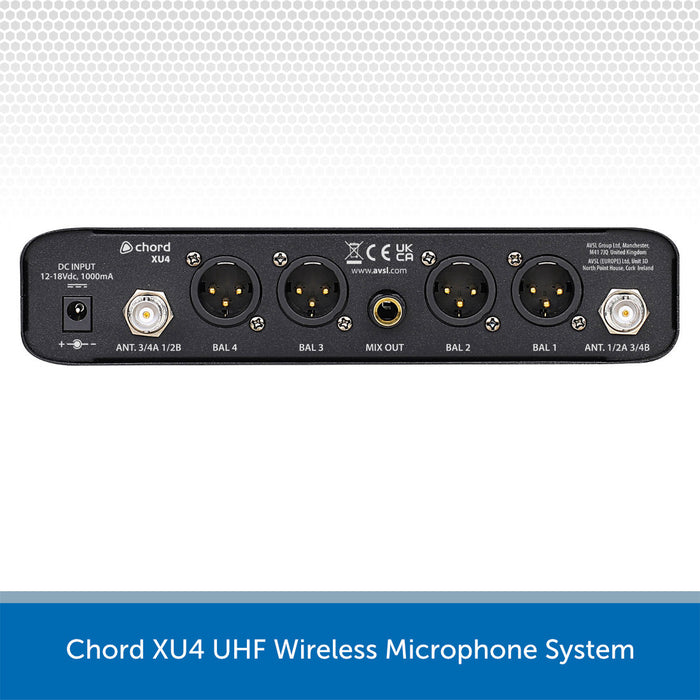

  • 4 x XLR outputs + 1 x 6.3mm mix output
  • Settings sync via I.R. from receiver to transmitters
  • Colour TFT display for easy control
SPECS & DOWNLOADS

Chord XU4 Specifications

  • Weight: handheld transmitter 246g (no battery)
  • Dimensions: handheld transmitter 258 x 47mmØ
  • Power supply: 12-18Vdc, 1000mA (mains adaptor supplied)
  • Batteries: 2 x AA per transmitter
  • Carrier frequencies: 823-832 / 863-865MHz
  • Wireless range: Up to 60m
  • Antenna connection: 2 x BNC
  • Dimensions: receiver: 205 x 205 x 44mm
  • Weight: receiver: 755g



}
