Chord SU20-H-RG Dual UHF Handheld Wireless Microphone System (863.42 + 864.3MHz)
DETAILS
The Chord SU20-H-RG is a compact and user-friendly UHF handheld wireless microphone system ideal for schools, venues, and public speaking.
Reliable Wireless Audio for a Range of Applications.
The Chord SU20-H-RG is a professional dual UHF wireless microphone system designed to deliver dependable performance in a variety of live and spoken word environments. Supplied with two colour-coded handheld transmitters, this system is ideal for use in schools, places of worship, conference rooms, function venues, fitness classes, and other performance or presentation settings where clear, hands-free vocal transmission is essential.
Simple Setup with Fixed Licence-Free Frequencies
Operating on fixed UHF frequencies (863.42MHz and 864.3MHz), the SU20-H-RG is completely licence-free for use in the UK. These pre-set frequencies eliminate the need for manual tuning or syncing, making it a plug-and-play solution perfect for users who want a quick and easy setup. Two systems can be used together for a total of four microphones without interference.
Compact and Flexible Half-Rack Receiver

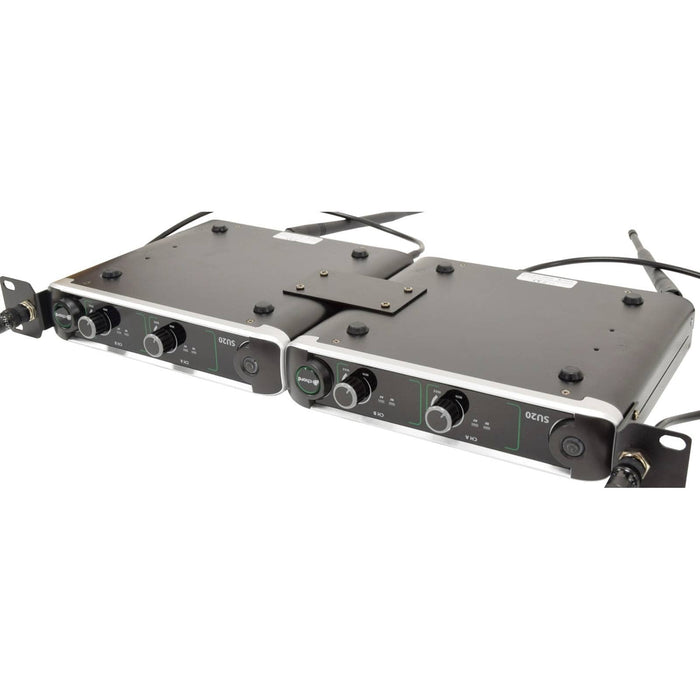

The ultra-compact half-rack receiver is ideal for installations where space is limited. It features individual balanced XLR outputs for each microphone, as well as a combined unbalanced 6.3mm jack output for simplified connection to a PA system, amplifier, or powered speaker. The unit can be rackmounted using the included hardware, and the BNC antennas can be front- or rear-mounted to suit the setup.
Clear Audio with 60m Range
Each handheld transmitter features a cardioid capsule to focus on the speaker's voice while reducing background noise, providing consistent clarity even in busy environments. With a wireless operating range of up to 60 metres (line-of-sight), the SU20-H-RG gives presenters and performers the freedom to move around without worrying about dropouts or loss of signal.
Complete Kit – Ready to Go

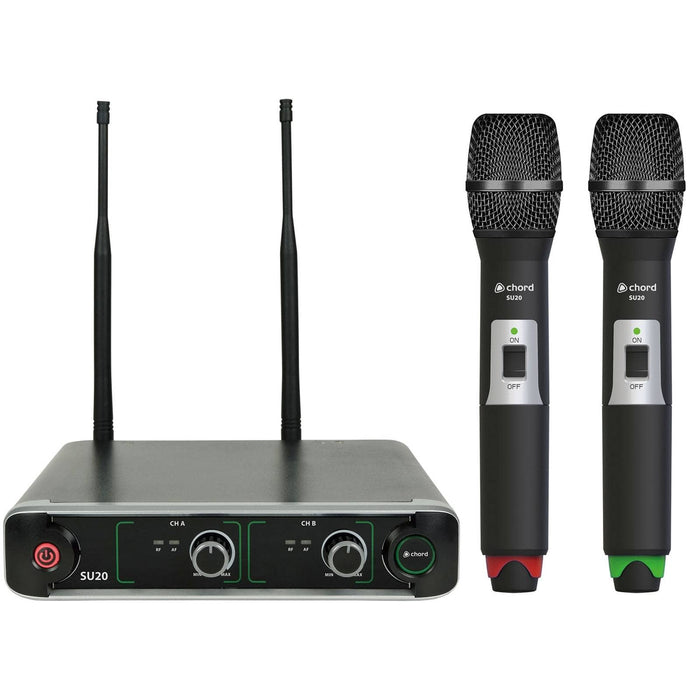

Everything needed to get started is included in the box – the SU20 receiver, two handheld transmitters, BNC antenna extension leads, a rack ear kit, power supply, and even AA batteries for the microphones. Whether you’re setting up in a hall, classroom, stage, or marquee, the SU20-H-RG is a dependable and affordable wireless microphone solution.
Chord SU20-H-RG Key Features:
- Dual UHF System: Two fixed frequencies (863.42 + 864.3MHz) – licence-free in the UK
- Supplied with 2 Handheld Microphones: Ideal for singers, presenters, and event use
- Plug-and-Play Simplicity: Fixed channels make setup quick and easy
- Compact Half-Rack Receiver: Saves space in tight installations
- Flexible Antenna Mounting: Front or rear mounting options with included extension leads
- Individual and Mixed Outputs: Connect to mixers, amps, or powered speakers with ease

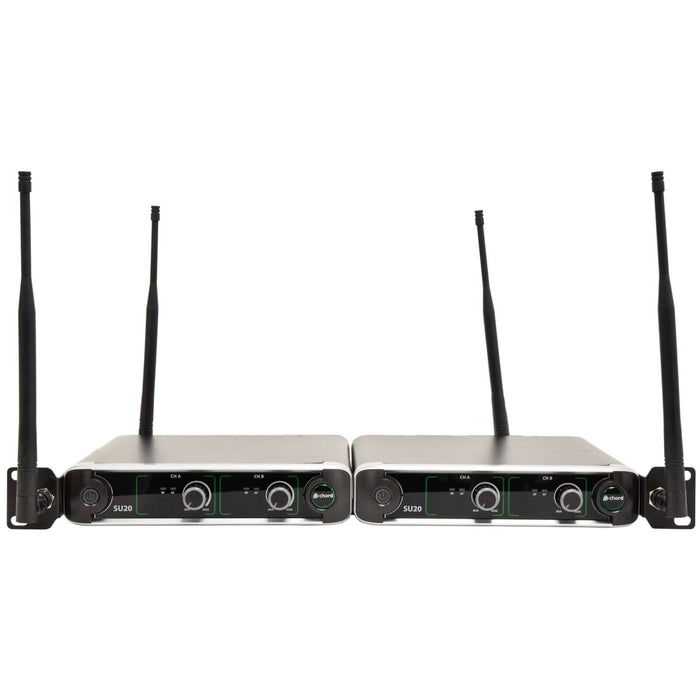

- Up to 2 Systems Usable Together: Operate up to four mics simultaneously
- Includes All Accessories: Power supply, rack ears, antenna leads, and AA batteries
SPECS & DOWNLOADS
Chord SU20-H-RG Specifications
Download the User Manual HERE >
- Power Supply: 14Vdc 350mA (adaptor supplied)
- Antenna Connection: BNC
- Batteries: 4 x AA (2 per transmitter) included
- Wireless Range: 60 metres (line-of-sight)
- Microphone Polar Pattern: Cardioid
- Output Connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
- Output Impedance: 2.2k Ohms
- Output Level: 400mV (balanced), 200mV (unbalanced)
- Frequency Response: 50Hz – 18kHz (±3dB)
- S/N Ratio: >80dB
- Total Harmonic Distortion (THD): <0.5% @ 1kHz
- Receiver Dimensions: 203 x 187 x 42mm
- Receiver Weight: 845g
- Handheld Transmitter Dimensions: 250 x 47mmØ
- Handheld Transmitter Weight: 231g (without battery)
-
Carrier Frequencies: 863.42MHz (Red) + 864.3MHz (Green)
