Chord SU20-C Dual UHF Handheld & Beltpack Wireless Microphone System (863.42 + 864.3MHz)
DETAILS
The Chord SU20-C is a versatile UHF wireless system combining a handheld mic with a beltpack transmitter for lavalier or headset use.
The Chord SU20-C gives you the freedom to adapt your sound setup to any live or spoken-word environment. Combining a UHF handheld microphone with a beltpack transmitter — supplied with both a discreet lavalier mic and a lightweight headset mic — this system is an ideal choice for schools, places of worship, conferences, fitness classes, stage performances, and mobile entertainers who need flexible mic options at their fingertips.
Licence-Free, Fixed Frequencies for Hassle-Free Use
Operating on two fixed UHF frequencies (863.42MHz for the handheld and 864.3MHz for the beltpack), the SU20-C is fully licence-free in the UK. The fixed channels make setup simple and reliable — no need to match frequencies manually, just switch on and you’re ready to go.
Compact Receiver with Multiple Outputs

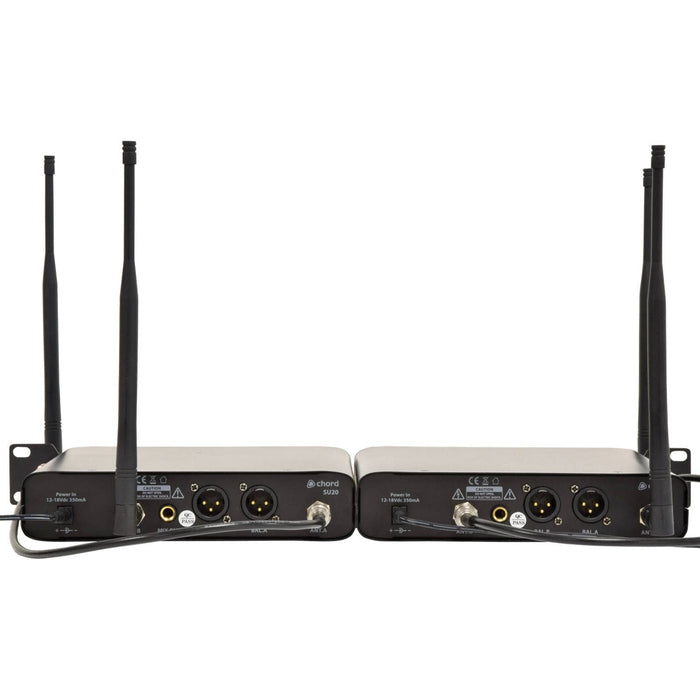

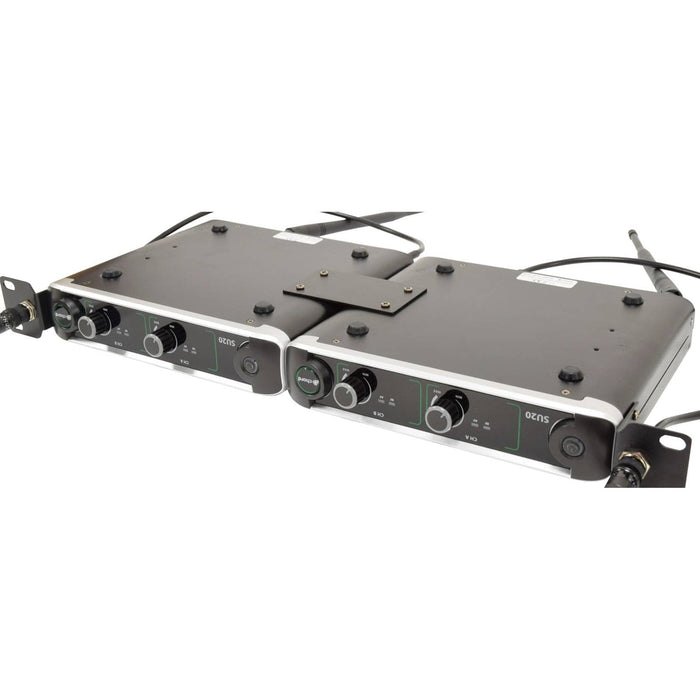

Housed in a tidy half-rack receiver, the SU20-C features balanced XLR outputs for each channel and a mixed unbalanced 6.3mm jack output for easy connection to your mixer, amplifier, or active speaker. Front or rear antenna mounting options — along with the supplied rack ears and coupling plate — make installation flexible whether you’re using it on the road or in a permanent install.
Up to 60 Metres Range and Clear Audio Performance
With a wireless range of up to 60 metres (line-of-sight) and cardioid pickup patterns on all included microphones, the SU20-C ensures clear, focused audio whether you’re presenting, performing or teaching. Up to two SU20 systems can be used together — providing four wireless channels working at once.
All-In-One Wireless Kit

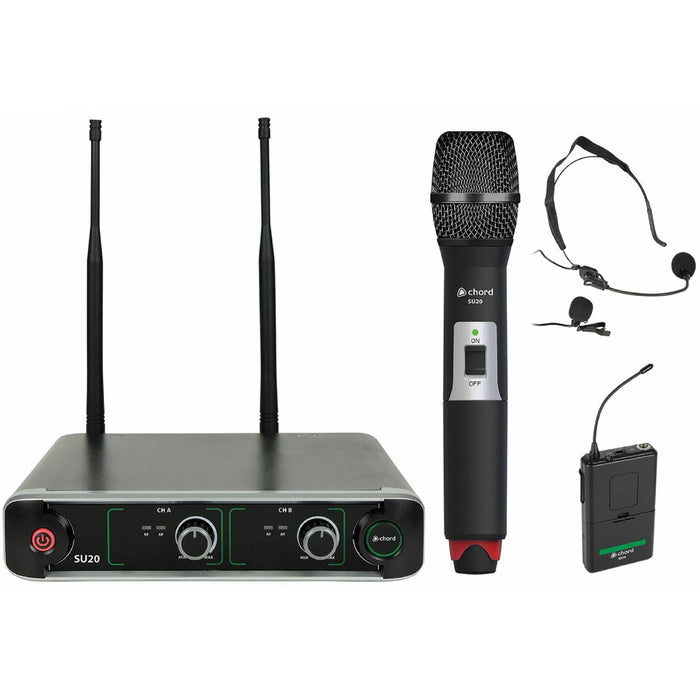

Supplied complete with the dual receiver, handheld transmitter, beltpack transmitter, lavalier mic, headset mic, rack mounting hardware, BNC antennas and extension leads, power supply, and AA batteries — you’ll have everything you need straight out of the box.
Chord SU20-C Key Features:
- Mixed Handheld & Beltpack Kit: Includes handheld mic plus beltpack with lavalier & headset mics
- Fixed Licence-Free Frequencies: Operates on 863.42MHz and 864.3MHz
- Flexible Applications: Great for spoken word, fitness, schools, worship, and live performance
- Compact Half-Rack Receiver: With rack ears and coupling plate included
- Individual & Mixed Outputs: Balanced XLR and unbalanced 6.3mm jack connections
- Front or Rear Antenna Mounting: Includes BNC extension leads
- Use Up to 4 Mics Together: Add a second SU20 system for more channels
-
All Accessories Included: Lavalier, headset, AA batteries, leads, power adaptor, and mounting hardware
SPECS & DOWNLOADS
Chord SU20-C Specifications
Download the User Manual HERE >
- Power Supply: 14Vdc 350mA (adaptor supplied)
- Antenna Connection: BNC
- Batteries: 4 x AA (2 per transmitter) included
- Wireless Range: 60 metres (line-of-sight)
- Microphone Polar Pattern: Cardioid (handheld, lavalier & headset)
- Output Connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
- Output Impedance: 2.2k Ohms
- Output Level: 400mV (balanced), 200mV (unbalanced)
- Frequency Response: 50Hz – 18kHz (±3dB)
- S/N Ratio: >80dB
- Total Harmonic Distortion (THD): <0.5% @ 1kHz
- Receiver Dimensions: 203 x 187 x 42mm
- Receiver Weight: 845g
- Handheld Transmitter Dimensions: 250 x 47mmØ
- Handheld Transmitter Weight: 231g (without battery)
-
Carrier Frequencies: 863.42MHz (Handheld) + 864.3MHz (Beltpack)
