Chord SU20-B-RG Dual UHF Beltpack Wireless Microphone System with Lavalier & Headset Mics (863.42 + 864.3MHz)

by Chord
Save 41% Save 41%
Original price £169.00 (inc. VAT)
Original price £169.00 (inc. VAT) - Original price £169.00 (inc. VAT)
Original price £169.00 (inc. VAT)
Current price £99.00 (inc. VAT)
£99.00 (inc. VAT) - £99.00 (inc. VAT)
Current price £99.00 (inc. VAT)
SKU 171.917
DETAILS

The Chord SU20-B-RG is a versatile dual UHF beltpack wireless microphone system with discreet lavalier and comfortable headset mics.

The Chord SU20-B-RG is a dual UHF wireless microphone solution featuring two beltpack transmitters, each supplied with a lavalier tie-clip microphone and a lightweight headset microphone. Ideal for schools, churches, fitness instructors, conferences, corporate training, and stage use, this system lets you move freely while delivering clear, professional audio.

Hassle-Free Setup with Fixed Frequencies

With fixed UHF frequencies at 863.42MHz and 864.3MHz (licence-free in the UK), the SU20-B-RG is ready to use with no need to tune or pair channels — making setup quick and straightforward for users of any experience level.

Compact Receiver with Flexible Mounting Options

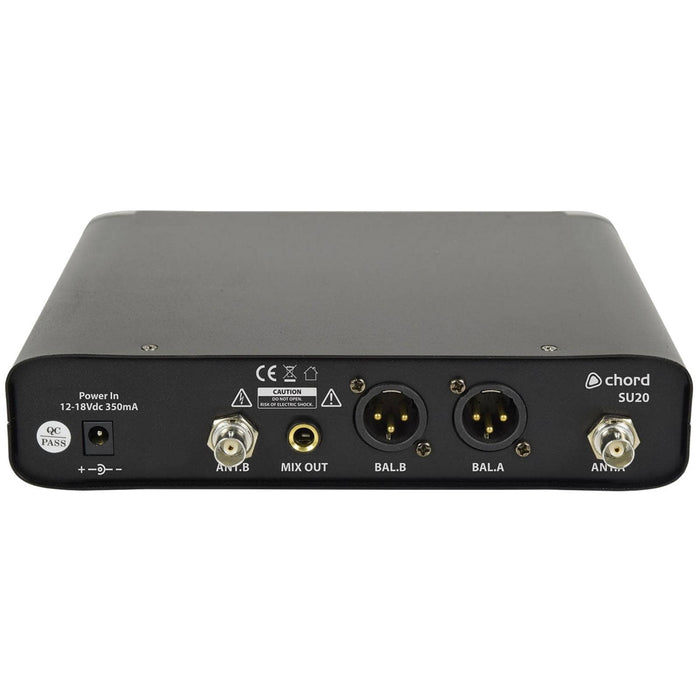

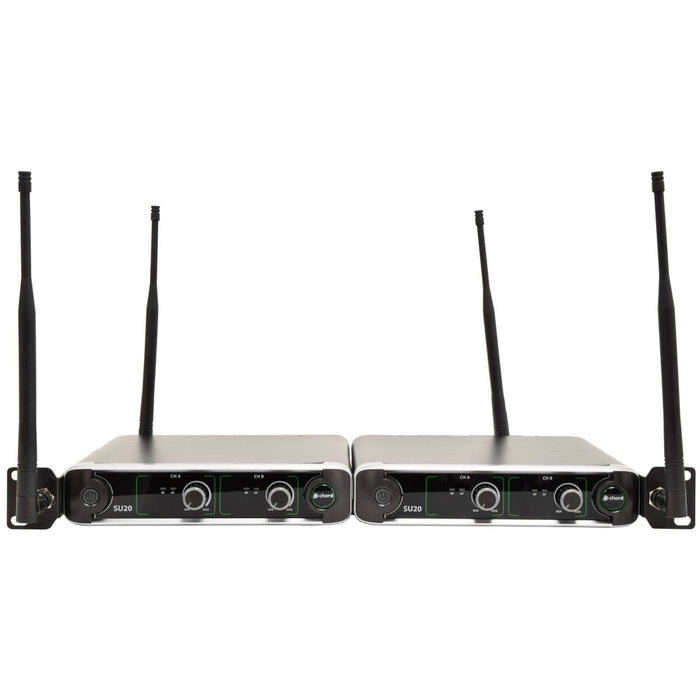

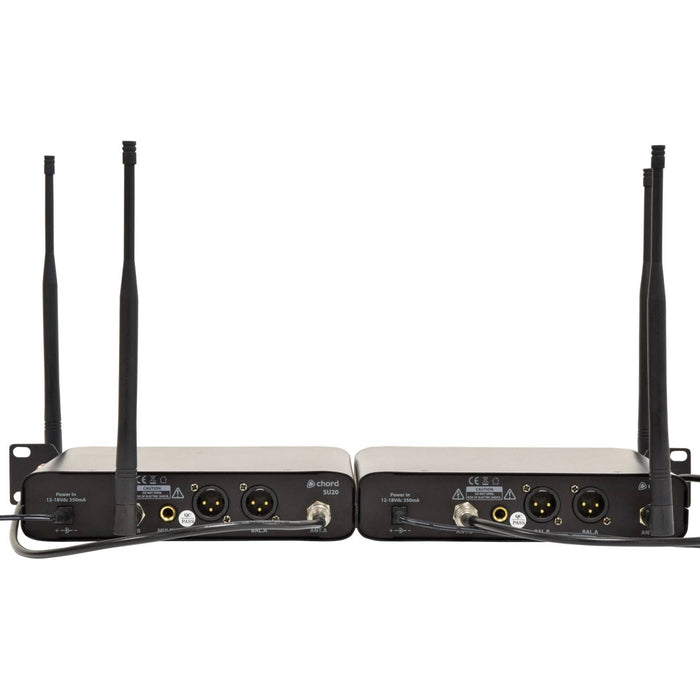

The half-rack receiver offers balanced XLR outputs for each channel plus a mixed unbalanced 6.3mm jack output for easy integration with amplifiers, mixers, or powered speakers. Supplied rack ears and a coupling plate make it simple to mount two receivers together in a 19” rack, saving valuable space in busy AV setups.

Reliable Performance with Generous Operating Range

Each beltpack operates up to 60 metres line-of-sight, with cardioid microphone capsules to help focus on your voice while rejecting unwanted background noise. Up to two SU20 systems can be used simultaneously for a total of four wireless channels.

Fully Boxed and Ready for Use

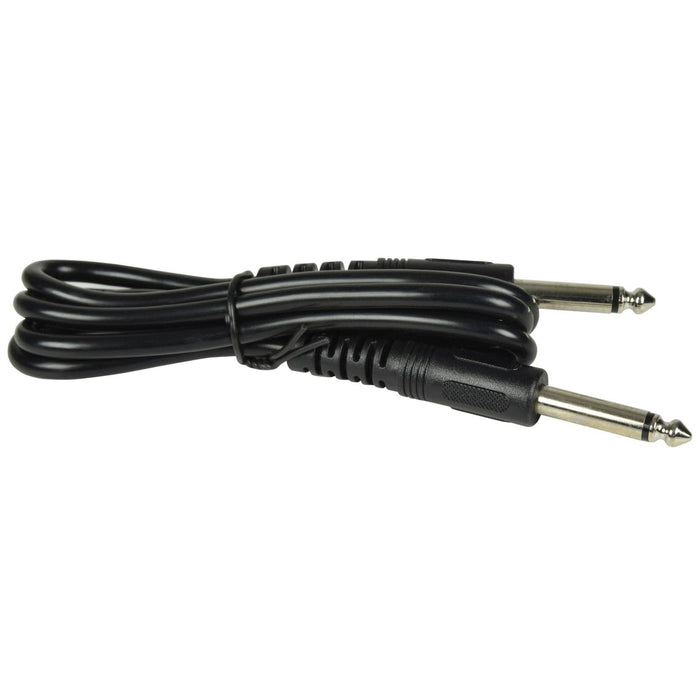

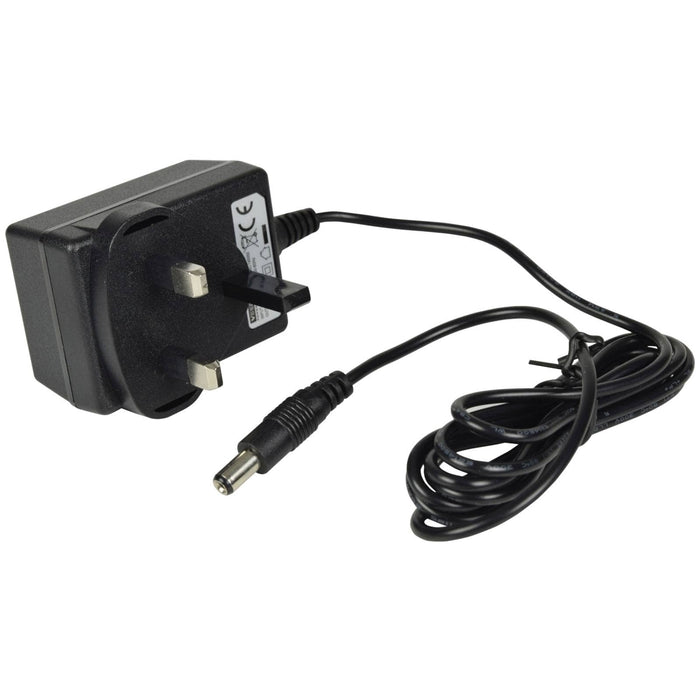

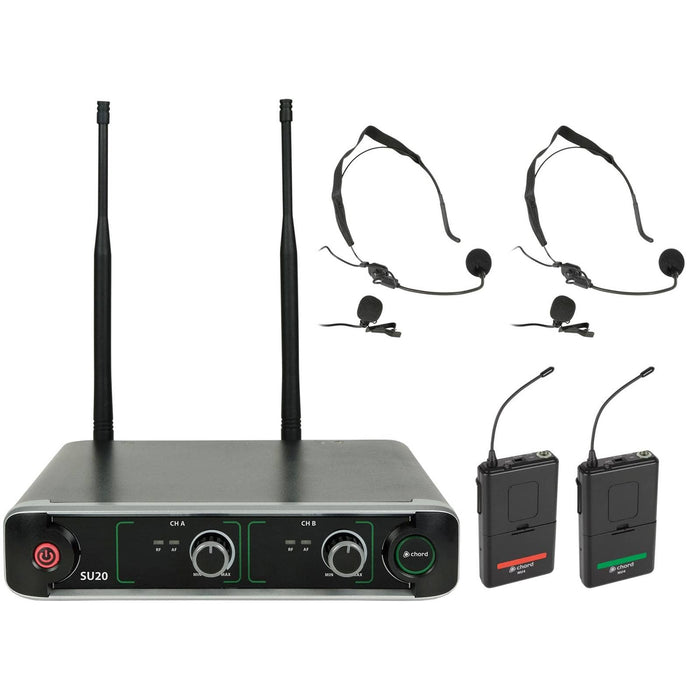

The system comes complete with two beltpack transmitters, two lavalier microphones, two headset microphones, rack mounting accessories, antennas, extension leads, batteries, jack cable, and power adaptor — so you have everything you need for a professional wireless setup.

Chord SU20-B-RG Key Features:

  • Dual Beltpack System: 2 x beltpacks with both lavalier & headset microphones
  • Fixed Licence-Free Frequencies: 863.42MHz & 864.3MHz for quick, easy operation
  • Perfect for Hands-Free Speech: Ideal for schools, places of worship, fitness, corporate & stage
  • Compact Half-Rack Receiver: Separate XLR outputs plus mixed 6.3mm jack output
  • Flexible Mounting Hardware: Includes rack ears & coupling plate for dual rack installs
  • Reliable Wireless Range: Up to 60m (line-of-sight)
  • Expandable System: Use up to 2 systems for 4 channels at once
  • Complete Package: Includes antennas, leads, batteries & power supply
SPECS & DOWNLOADS

Chord SU20-B-RG Specifications

Download the User Manual HERE >

  • Power Supply: 14Vdc 350mA (adaptor supplied)
  • Antenna Connection: BNC
  • Batteries: 4 x AA (2 per transmitter) included
  • Wireless Range: 60 metres (line-of-sight)
  • Microphone Polar Pattern: Cardioid (lavalier & headset)
  • Output Connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
  • Output Impedance: 2.2k Ohms
  • Output Level: 400mV (balanced), 200mV (unbalanced)
  • Frequency Response: 50Hz – 18kHz (±3dB)
  • S/N Ratio: >80dB
  • Total Harmonic Distortion (THD): <0.5% @ 1kHz
  • Receiver Dimensions: 203 x 187 x 42mm
  • Receiver Weight: 845g
  • Carrier Frequencies: 863.42MHz (Red) + 864.3MHz (Green)
}
