Chord SU20-B-BY Dual UHF Beltpack Wireless Microphone System with Lavalier & Headset Mics (864.8 + 863.1MHz)
DETAILS
The Chord SU20-B-BY is a practical dual beltpack UHF wireless system supplied with discreet lavalier and comfortable headset microphones.
The Chord SU20-B-BY provides a flexible, licence-free wireless microphone setup with two beltpack transmitters, each supplied with a lavalier tie-clip microphone and a lightweight headset microphone. This dual system is ideal for presenters, instructors, fitness teachers, schools, places of worship, conferences, and theatres where hands-free, discreet mics are essential.
Fixed Frequencies for Reliable, Simple Operation
Operating on two fixed UHF frequencies (863.1MHz and 864.8MHz), this system removes the need to manually pair channels, making it quick and hassle-free to set up. Both channels are fully licence-free for UK use, so you can use them straight out of the box without additional licensing costs.
Compact Half-Rack Receiver with Flexible Mounting

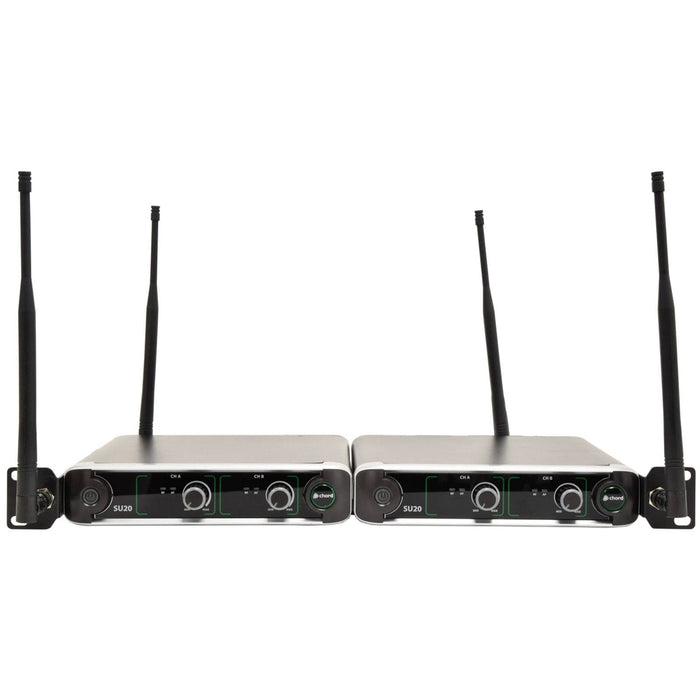

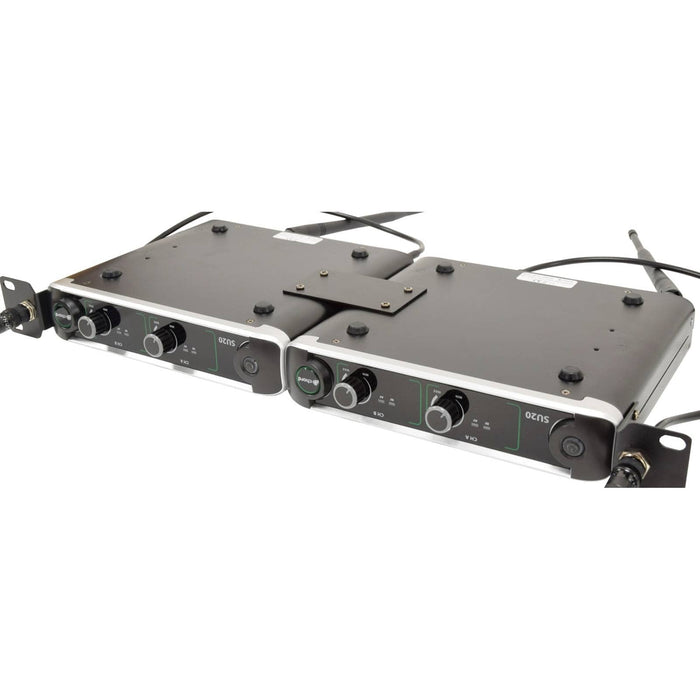

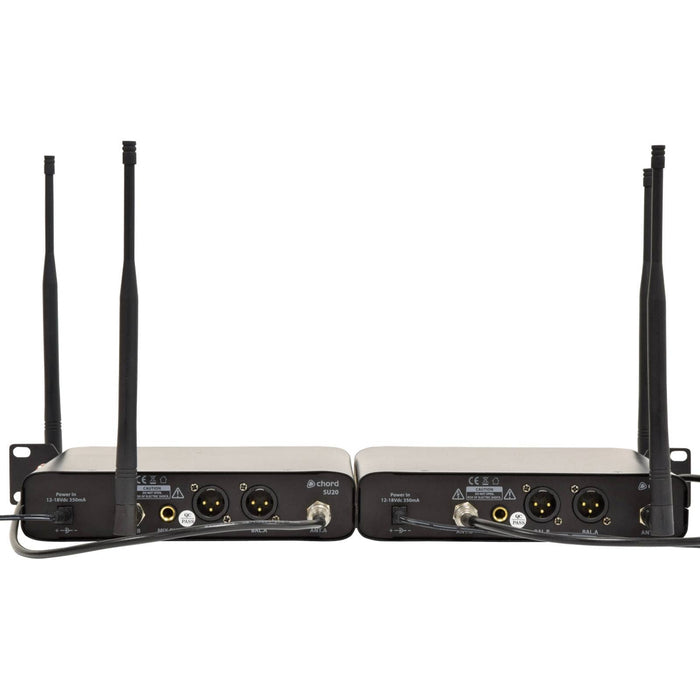

The SU20-B-BY comes with a half-rack receiver featuring balanced XLR outputs for each channel plus a mixed unbalanced 6.3mm jack output. It includes front or rear antenna mounting options, rack ears, and a coupling plate for mounting two units together — perfect for portable use or permanent installations where space is tight.
Dependable Performance with Generous Range
With a range of up to 60 metres (line-of-sight) and cardioid capsules on both the lavalier and headset microphones, you’ll enjoy clear, focused audio pickup with minimal background noise. You can even use up to two SU20 systems simultaneously for a total of four beltpack channels working at once.
Ready to Go Straight Out of the Box

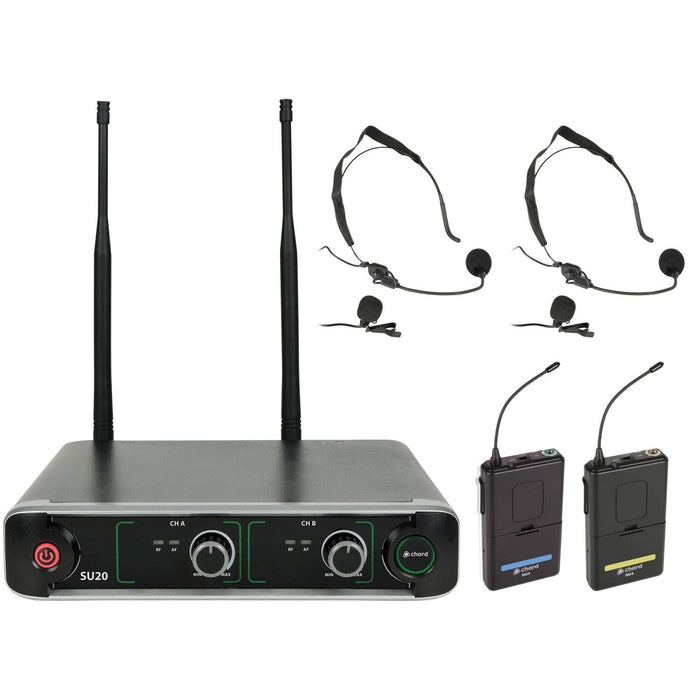

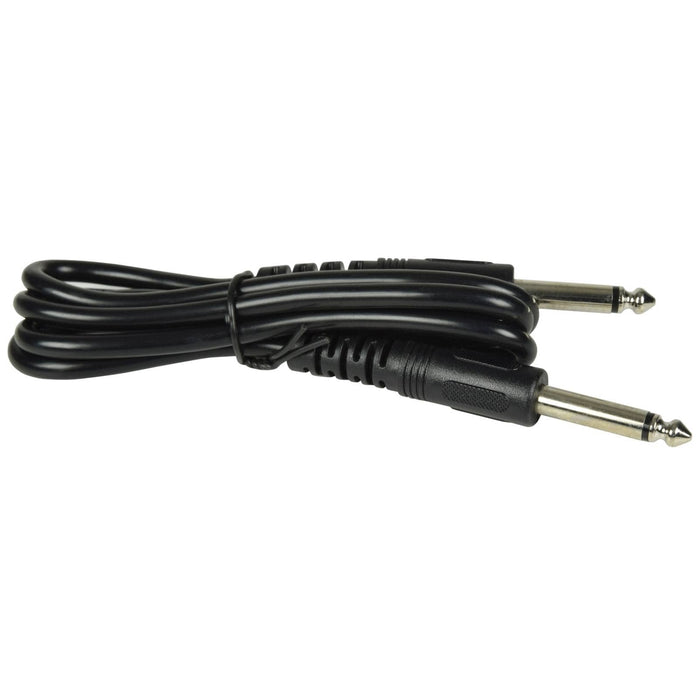

Supplied complete with two beltpack transmitters, two lavalier microphones, two headset microphones, antennas, extension leads, rack mounting hardware, batteries, jack lead, and power supply — everything you need for a professional wireless setup is included.
Chord SU20-B-BY Key Features:
- Dual Beltpack System: 2 x beltpack transmitters with lavalier & headset mics
- Fixed Licence-Free Frequencies: 864.8MHz and 863.1MHz for easy setup
- Ideal for Hands-Free Speech: Great for schools, worship, fitness, conferences & stage
- Compact Receiver with Multiple Outputs: Balanced XLRs plus mixed 6.3mm jack
- Flexible Mounting Options: Front/rear antennas, rack ears & coupling plate included
- Up to 60 Metres Wireless Range: Reliable performance for larger rooms or halls
- Expand to 4 Channels: Use up to 2 SU20 systems at once
-
Complete Package: Includes mics, leads, AA batteries & power supply
SPECS & DOWNLOADS
Chord SU20-B-BY Specifications
Download the User Manual HERE >

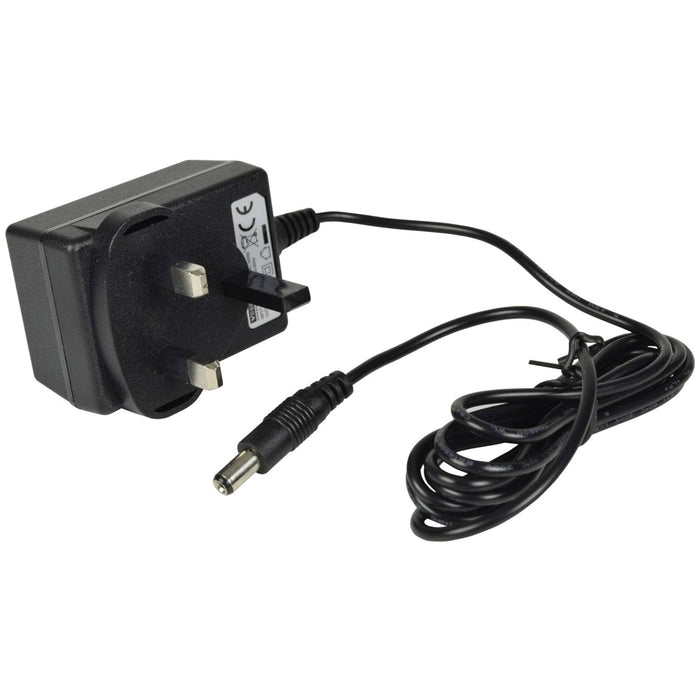

- Power Supply: 14Vdc 350mA (adaptor supplied)
- Antenna Connection: BNC
- Batteries: 4 x AA (2 per transmitter) included
- Wireless Range: 60 metres (line-of-sight)
- Microphone Polar Pattern: Cardioid (lavalier & headset)

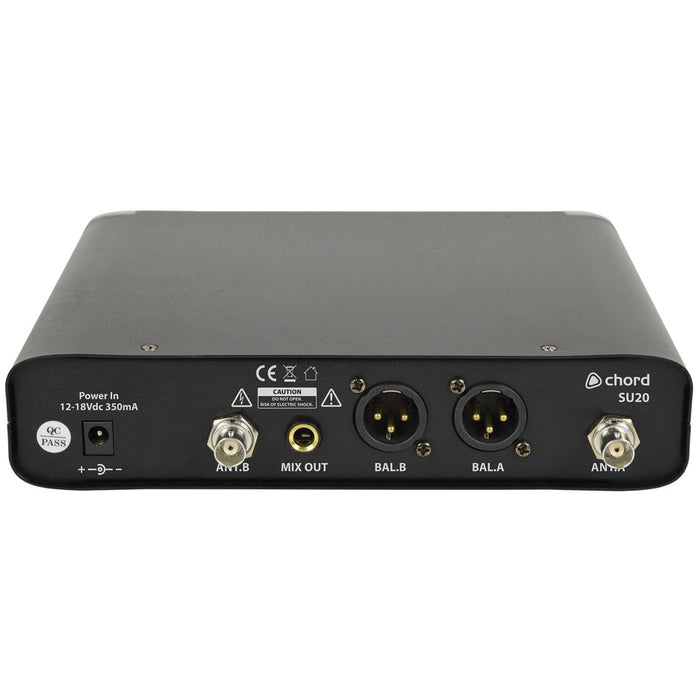

- Output Connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
- Output Impedance: 2.2k Ohms
- Output Level: 400mV (balanced), 200mV (unbalanced)
- Frequency Response: 50Hz – 18kHz (±3dB)
- S/N Ratio: >80dB
- Total Harmonic Distortion (THD): <0.5% @ 1kHz
- Receiver Dimensions: 203 x 187 x 42mm
- Receiver Weight: 845g
- Carrier Frequencies: 864.8MHz (Blue) + 863.1MHz (Yellow)
