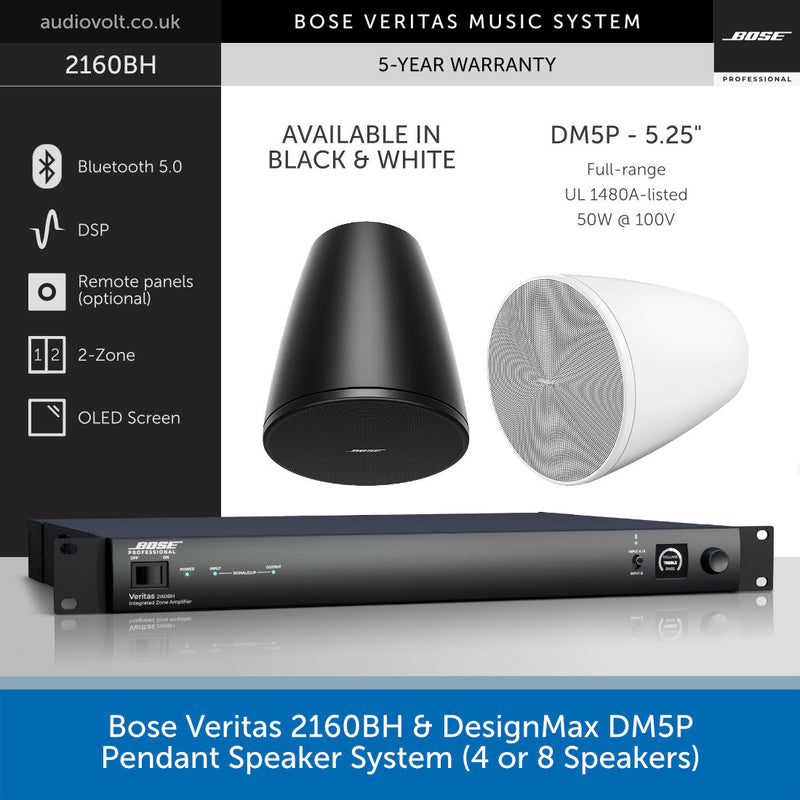

Bose Veritas 2160BH & DesignMax DM5P Pendant Speaker System (4 or 8 Speakers)
DETAILS
Complete Commercial Audio System With Bose 2160BH Amplifier, DM5P Pendant Speakers & TruSound Cable – Ideal For Bars, Restaurants, Gyms & Retail Spaces.
This all-in-one Bose Professional pendant speaker system combines the powerful Veritas 2160BH amplifier, your choice of 4 or 8 DesignMax DM5P pendant loudspeakers, and 100 metres of TruSound 16/2 high-performance speaker cable. Engineered for demanding commercial environments, this package delivers premium sound quality, consistent coverage, and flexible multi-zone control, perfect for venues with open-ceiling layouts.
Perfect for pubs, bars, restaurants, gyms, retail spaces, and hospitality environments, this Bose system ensures music, announcements, and paging are clear, balanced, and reliable throughout your space.
Bose Veritas 2160BH – High-Power DSP Amplifier With Bluetooth
The Bose Veritas 2160BH is a 2 × 160 W digital amplifier with advanced DSP, delivering clear, balanced audio for 70V/100V distributed systems. Designed for high-demand commercial spaces such as bars, restaurants, gyms, and retail venues, the 2160BH ensures reliable and consistent performance across multiple zones.
Flexible Connectivity & Control
Bluetooth 5.0 and RCA inputs provide fast, easy connections, while the OLED front panel with QR code guides quick setup. Remote level control via Bose Professional or compatible third-party wall controllers allows flexible audio management throughout your venue.
Precision DSP & EQ Control
Integrated 24-bit DSP enables precise tonal balance and system tuning. Dynamic EQ maintains rich sound even at low volumes, while up to 30 EQ presets optimise performance for DM5P speakers. Opti-Voice paging ensures announcements remain intelligible in busy environments.
Reliable Operation & Cooling
Active fan cooling with left-to-right airflow provides stable operation, and built-in protection circuitry safeguards the amplifier for continuous, long-term use in high-demand commercial spaces.
Key Features:
- Premium amplifier with advanced DSP
- Bluetooth 5.0 & RCA connectivity
- OLED front panel with quick-start QR code
- Supports 70V/100V distributed systems
- Remote level control compatibility
- Dynamic EQ for full sound at low volume
- 30 selectable EQ presets for Bose loudspeakers
- Opti-Voice paging for clear announcements
- Multi-zone flexibility with dual output control
- Active fan cooling for reliable long-term use

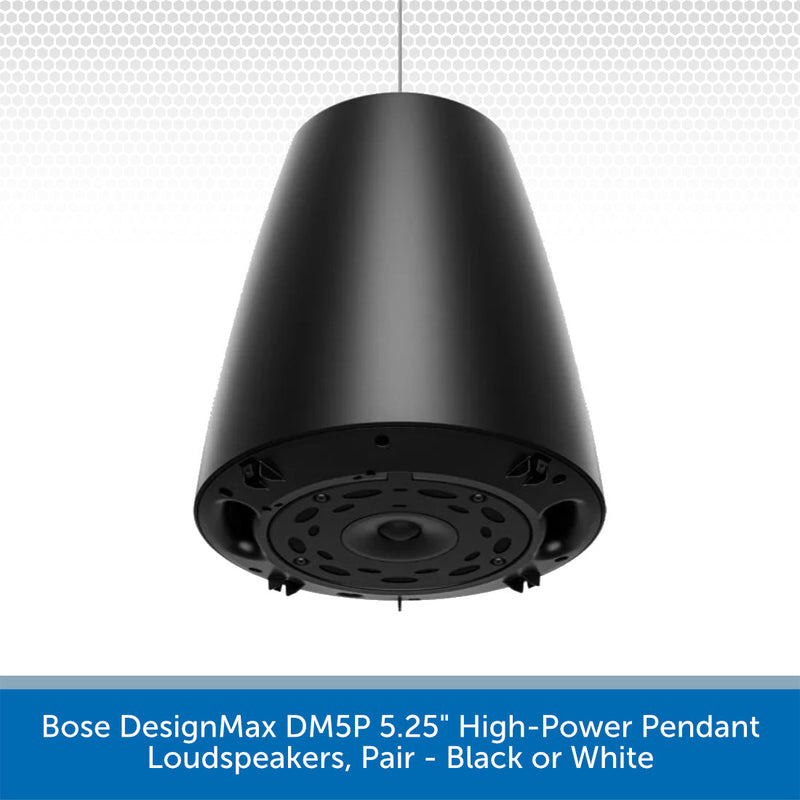

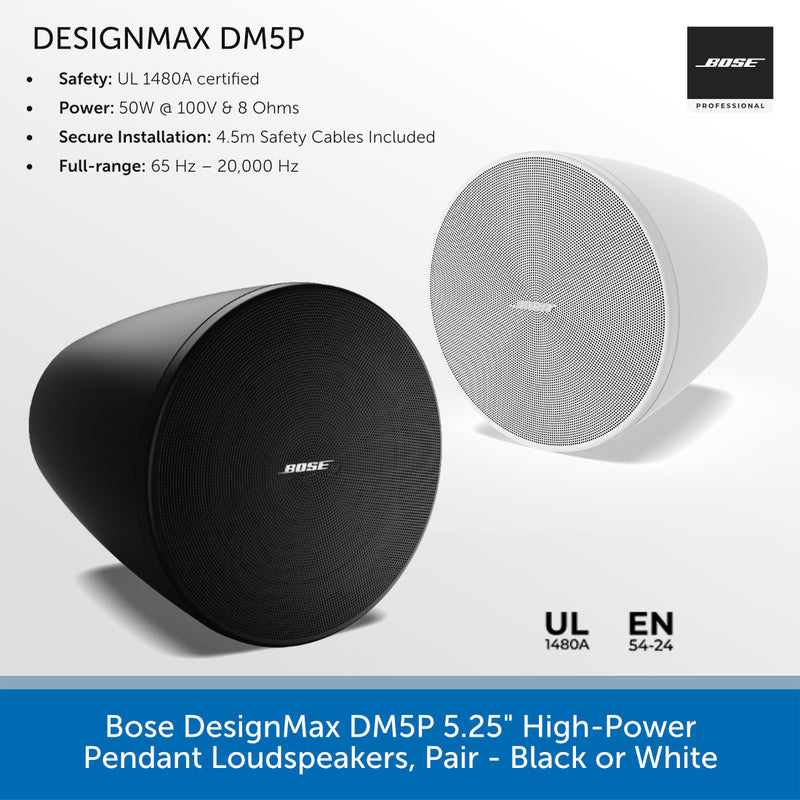

Bose DesignMax DM5P Pendant Loudspeakers – Premium Audio for Open-Ceiling Spaces
The Bose DesignMax DM5P pendant speakers deliver high-quality two-way audio in a sleek, modern design. Featuring a 5.25-inch woofer and 1-inch coaxial tweeter with the Dispersion Alignment system, these 50 W continuous / 200 W peak speakers provide clear highs, rich lows, and wide 120° horizontal and vertical coverage, ideal for open-ceiling commercial spaces.
Stylish Pendant Design
The DM5P speakers use a recessed single-point suspension system, offering a low-profile, visually appealing installation. Available in black or white with removable logos, they blend seamlessly with modern décor, making them perfect for pubs, bars, restaurants, gyms, and retail venues.
Consistent Audio Coverage
Bose’s Dispersion Alignment system ensures uniform audio throughout the space, creating a balanced, high-quality listening experience whether used alone or alongside other DesignMax models.
Easy Installation & Versatility

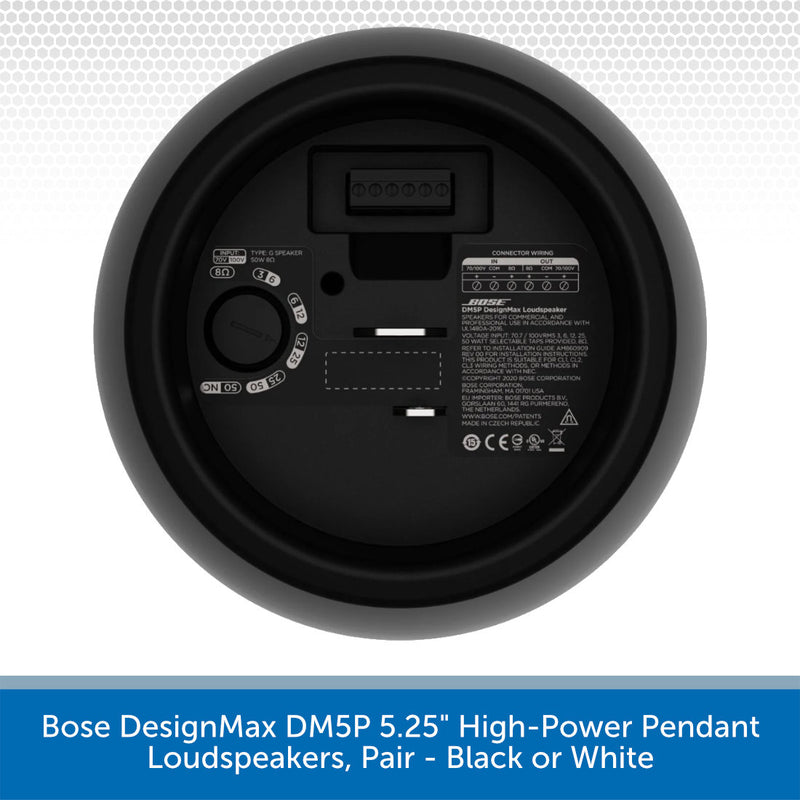

Euroblock connectors and concealed suspension hardware make setup straightforward, while compatibility with 70V/100V or 8 Ω systems ensures flexible integration for both new installations and upgrades.
Key Features:
- Coaxial two-way drivers: 5.25” woofer & 1” tweeter
- Dispersion Alignment system for consistent coverage
- Sleek black or white pendant design with removable logos
- 50 W continuous / 200 W peak, 8 Ω transformer bypass
- Coverage: 120° horizontal & vertical
- Frequency range: 65 Hz – 20 kHz
- Euroblock connectors & simple single-point suspension
- Ideal for open-ceiling commercial spaces including bars, restaurants, gyms, and retail
TruSound 16/2 Speaker Cable – Professional Quality
The included TruSound 16/2 1.5mm (16AWG) LSHF speaker cable ensures clean signal transfer from the Veritas 2160BH to each DM5P speaker. Oxygen-free copper conductors and a low smoke halogen-free jacket make the cable UV and weather-resistant, suitable for indoor installations or temporary outdoor zones. Supplied on a 100m drum for easy deployment.
Key Features:
- 1.5mm² (16AWG) oxygen-free copper conductors
- LSHF outer jacket for safe commercial use
- UV & weather-resistant, flexible, easy to install
- Durable black finish
- Supplied on a 100m drum
What’s Included:
- 4 or 8 x Bose DesignMax DM5P Pendant Loudspeakers (Black or White)
- 1 x Bose Veritas 2160BH 2 × 160 W 70/100V Amplifier with Bluetooth
- 1 x 100m TruSound 16/2 1.5mm Speaker Cable, Black
Why Choose This Bose Professional Package
This high-power, open-ceiling audio system is ideal for pubs, bars, restaurants, gyms, retail stores, and other commercial venues. The Veritas 2160BH amplifier delivers precise DSP control and multi-zone operation, the DM5P pendant speakers provide consistent, high-quality audio, and the TruSound cable ensures reliable connectivity. With stylish design, easy installation, and durable construction, this package offers everything needed for professional, high-impact sound.
SPECS & DOWNLOADS
Bose Veritas 2160BH Specifications:
-
Channel Separation (Crosstalk): ≤ -58 dBu below rated power, 1 kHz
-
Dynamic Range: 88 dB
-
Frequency Response: 20 Hz – 20 kHz (+0/-3 dB @ 1 W, 1 kHz reference)
-
Rated Power: 2 × 160 W at 70/100V
-
THD+N: ≤ 0.5% at rated power
-
Adjustment Range: 0 dB to -30 dB (line), 0 dB to +50 dB (page)
-
Input Channels: (2) balanced line, (2) unbalanced line, (1) balanced mic/line
-
Connectors: (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock
-
Input Impedance: 20 kΩ (line), 2 kΩ (page)
-
Input Range: -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)
-
Maximum Input Level: 22 dBu (line), 12 dBu (page)
-
Nominal Input Level: 4 dBu (line), -38 dBu (page)
-
Sensitivity: -8 dBu (line), -58 dBV (page)
-
Audio Outputs: (2) loudspeaker, (1) unbalanced line
-
Output Connectors: (2) 2-pin Euroblock, (1) RCA stereo pair
-
Nominal Output Level: 2 × 160 W at 70/100V (loudspeaker), 2 dBu (auxiliary)
-
Mains Connector: IEC C14 inlet
-
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
-
Protections: High temperature, output short circuit, low/high AC voltage
-
AC Power Consumption: 13.6 W standby, 500 W maximum
-
Front Controls: Power switch, input select, rotary encoder
- Rear Controls: Mode DIP switches, input gain knobs, page threshold, mute connector, ControlCenter ports
-
Converters: 48 kHz / 24-bit A/D and D/A
-
Audio Latency: 10.4 ms
-
Presets: 70 Hz HPF, 80 Hz HPF, AMU105, AMU108, DesignMax, EdgeMax, FreeSpace FS, subwoofer
-
Processing: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
-
Cooling System: Fan, left-to-right airflow
-
Dimensions (H × W × D): 44 × 483 × 324 mm
-
Net Weight: 4.4 kg
- Shipping Weight: 5.8 kg
Bose DesignMax DM5P Specifications:
Physical:
- Colours: Black (similar to RAL 9005), white (similar to RAL 9003)
- Enclosure Material: Engineered plastics
- Environmental Testing: Indoor only
- Grille Material: Perforated steel, powder-coated finish
- Logo: Rotatable, removable
- Mounting/Rigging Provisions: 1 suspension attachment point, 1 safety cable attachment point
- Net Weight: 9.1 lb (4.1 kg), single
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D): 10.2 in × 11.8 in (259 mm × 300 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter
- Shipping Weight: 24.3 lb (11.0 kg), pair
Performance:
- Frequency Range (-10 dB): 65 – 20,000 Hz
- Coverage, Horizontal: 120°
- Maximum SPL at 1 m: 105 dB
- Nominal Impedance: 8 Ω (transformer bypass)
- Power Handling, Continuous: 50 W
- Power Handling, Peak: 200 W
- Sensitivity (SPL/1 W at 1 m): 87 dB
- Transformer Taps, 100V: 6, 12, 25, 50 W, bypass
- Transformer Taps, 70V: 3 W, 6 W, 12 W, 25 W, 50 W, bypass
- Coverage, Vertical: 120°
Transducers:
- Crossover Frequency: 1.8 kHz, passive 2-way crossover
- Driver Protection: Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
- High-Frequency Transducer Quantity and Size: 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted
- Low-Frequency Transducer Quantity and Size: 1 × 5.25 in (133 mm) woofer
