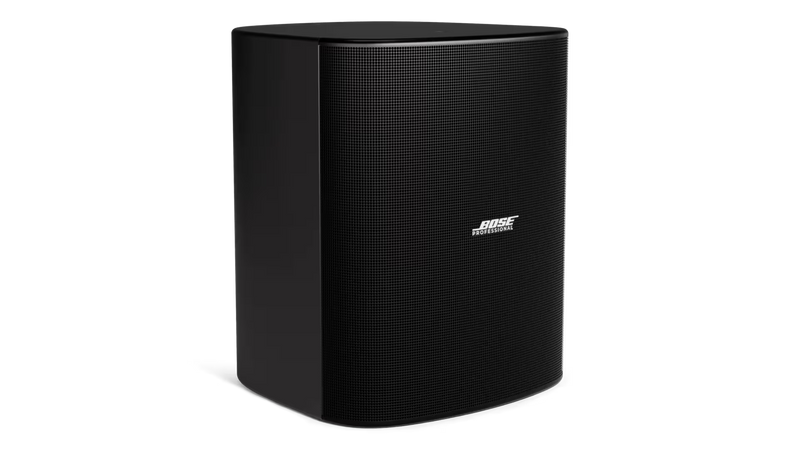

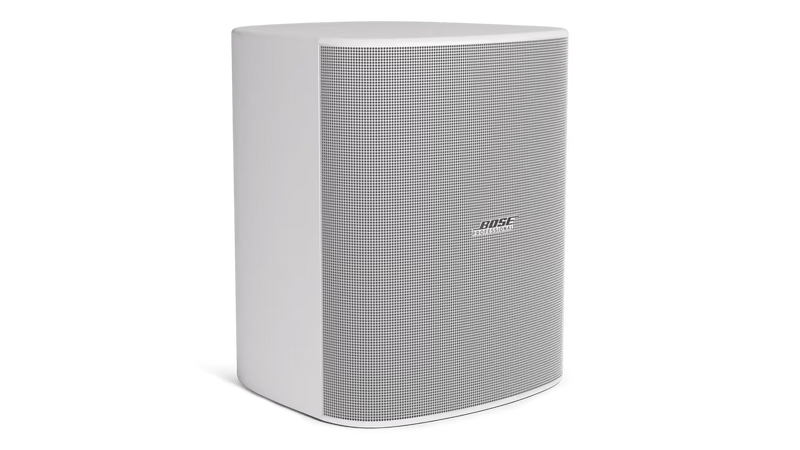

Bose DesignMax DM12SE 12" Coaxial Wall-Mount Loudspeaker, Single - Black or White
The Bose DesignMax DM12SE is a 12" Weatherized Coaxial Surface-Mount Loudspeaker with 300W continuous power handling, IP55 rating and a bass response reaching down to 38Hz — delivering high-output, full-range sound with consistent clarity and uniformity for indoor and outdoor commercial installation applications.
The Bose Professional DesignMax DM12SE is the largest and most powerful loudspeaker in the DesignMax family — a weatherized, full-range 12" coaxial surface-mount loudspeaker that combines deep bass, high output and consistent 102° conical coverage in a sleek, robust enclosure suitable for both indoor and outdoor installation.
Designed for integrators who need a single speaker solution capable of delivering the output, intelligibility and reliability required across a wide range of demanding commercial environments — including performance venues, places of worship, hospitality spaces, fitness studios, retail stores, nightlife and bar areas, outdoor patios and courtyards, and theatres — the DM12SE provides the flexibility, aesthetic appeal and professional performance that the DesignMax range is known for. Available in black or white to suit any interior or exterior design scheme — please select your preferred finish before adding to basket.
12" Coaxial Point-Source Design for Consistent Coverage

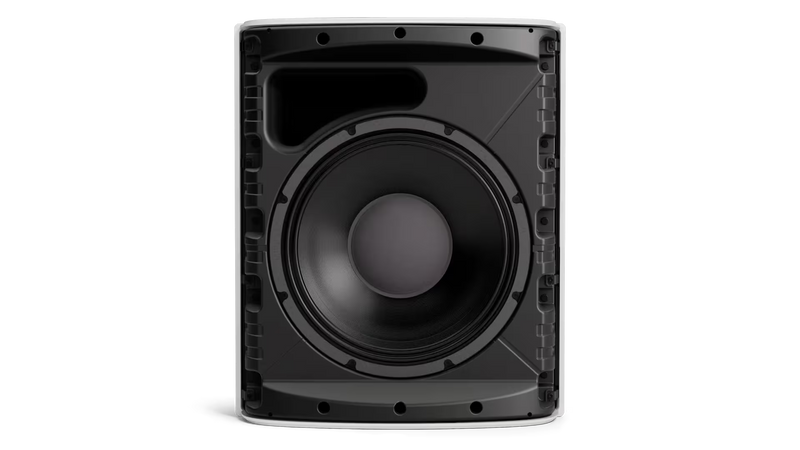

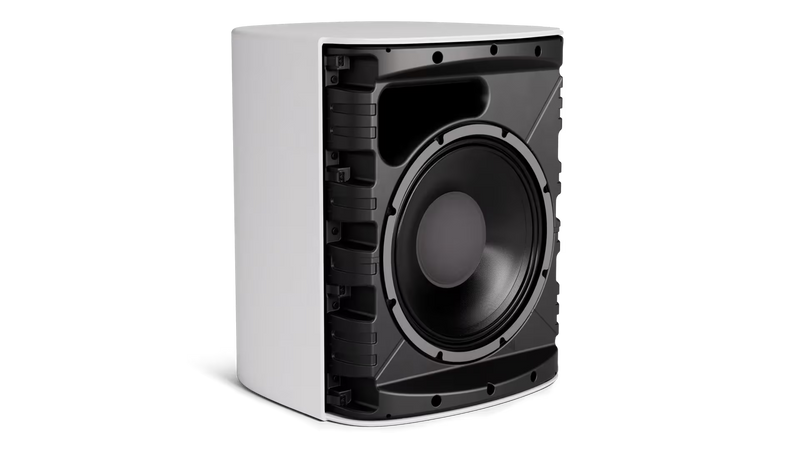

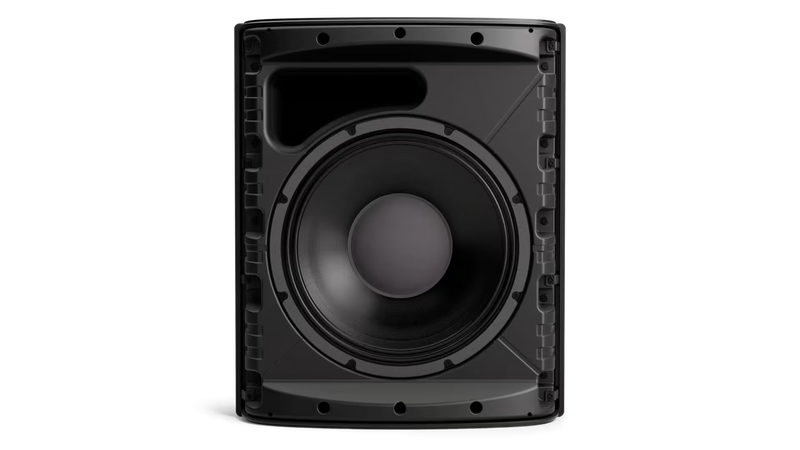

The DM12SE’s coaxial transducer places a 1.4" (36mm) weather-treated compression driver at the acoustic centre of the 12" woofer — creating a true point-source design that delivers consistent, uniform sound across the full 102° conical coverage pattern with no lobing, phase issues or frequency-dependent coverage changes that occur with separated two-way driver configurations. This ensures that every listener within the coverage area hears the same balanced, full-range sound regardless of their position relative to the speaker — particularly valuable in performance venues, worship spaces and hospitality environments where consistent intelligibility and music quality throughout the listening area are essential.
Deep Bass Down to 38Hz
A 12" weather-treated woofer delivers powerful, deep bass response reaching down to 38Hz — providing genuine full-range performance from a surface-mount loudspeaker without the need for a separate subwoofer in most commercial background music and foreground sound applications. With 300W long-term continuous power handling and 1,200W peak handling, the DM12SE has the headroom to handle demanding live performance and high-SPL applications with a calculated maximum SPL of 119dB at 1 metre.
Weatherized for Indoor & Outdoor Reliability
The DM12SE’s injection-moulded engineering plastic enclosure is UV fade-resistant, IP55 rated and designed for reliable operation across an operating temperature range of -25°C to 70°C — making it equally suitable for challenging outdoor environments including exposed patios, courtyards and covered external areas as it is for indoor commercial spaces. The perforated aluminium powder-coated grille features a tamper-resistant design and is paintable to match any interior or exterior colour scheme, and the rotatable Bose logo maintains the correct orientation in any mounting position.

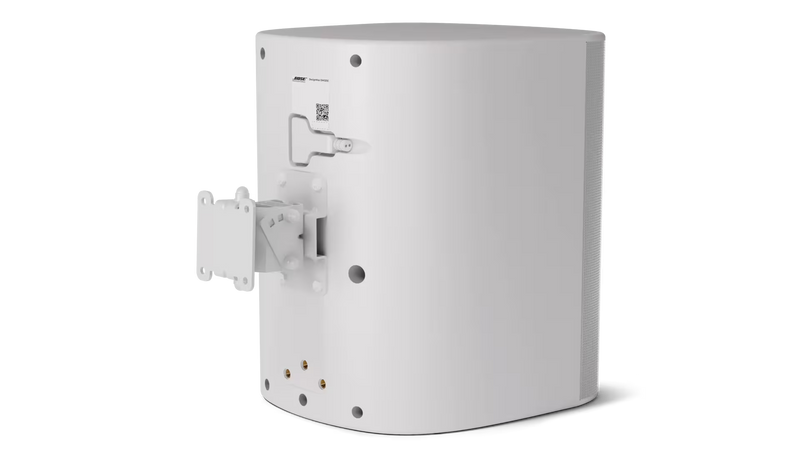

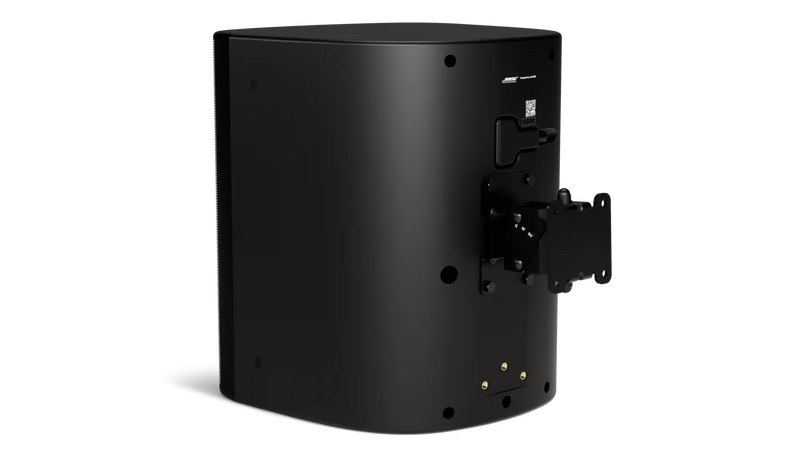

Flexible Mounting & Professional Integration
Twelve M8 threaded inserts — two on top, two on the side and eight on the rear — provide flexible and secure mounting options for a wide range of installation scenarios, and the included rugged outdoor-ready pan/tilt bracket enables fast installation, precise aiming and long-term reliability in permanent installations. Factory-optimised tunings for Bose Professional amplifiers and processors are available, with SmartBass processing and Bose Professional EQ voicing providing enhanced system optimisation when used within the Bose Professional ecosystem.
Bose DesignMax DM12SE Key Features:
- 12" Coaxial Surface-Mount Loudspeaker: True point-source design for consistent, uniform 102° conical coverage throughout the listening area.
- 102° Conical Coverage (H & V): Wide, even sound distribution for maximum listening area coverage from a single speaker.
- 38Hz–20kHz Frequency Range (-10dB): Genuine full-range performance with deep, powerful bass from a surface-mount enclosure.
- 300W Continuous / 1,200W Peak Power Handling: High-output performance for demanding commercial and live applications.
- 119dB Calculated Maximum SPL: Powerful output for performance venues, worship spaces and high-SPL environments.
- 94dB Sensitivity (1W/1m): High efficiency for effective coverage with professional commercial amplifiers.
- 1.4" Weather-Treated Compression Driver: Coaxial centre-firing for consistent high-frequency coverage throughout the dispersion pattern.
- 12" Weather-Treated Woofer: Deep, powerful low-frequency reproduction for full-range commercial audio.
- IP55 Rated: Protected against dust and water jets for reliable indoor and outdoor installation.
- UV Fade-Resistant Injection-Moulded Enclosure: Long-term durability in exposed outdoor environments.
- Operating Temperature -25°C to 70°C: Suitable for the most demanding outdoor installation environments.
- Paintable Aluminium Grille: Tamper-resistant, powder-coated and paintable to match any décor.
- Rotatable Bose Logo: Maintains correct orientation in any mounting position.
- 12 x M8 Threaded Inserts: Flexible, secure mounting options for any installation configuration.
- Pan/Tilt Bracket Included: Fast installation, precise aiming and long-term reliability.
- Factory-Optimised Bose Professional Tunings: SmartBass processing and EQ voicing available for system optimisation.

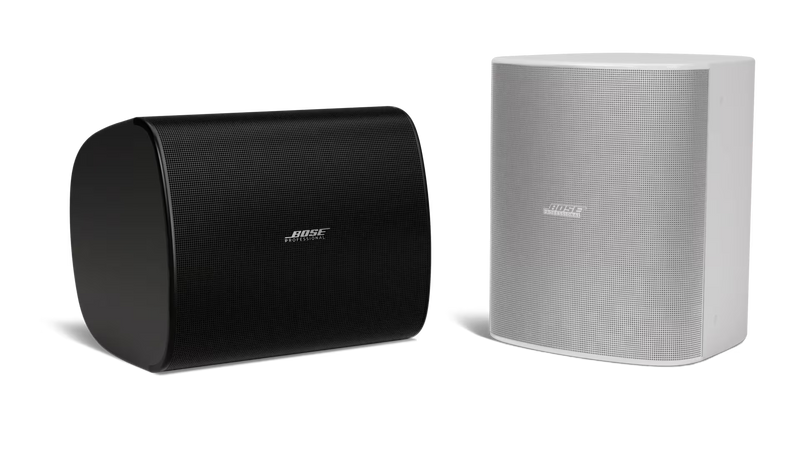

- Available in Black or White: Please select your preferred finish before adding to basket.
- Ideal for Performance Venues, Worship, Hospitality, Retail & Outdoor Applications.
Specifications:
