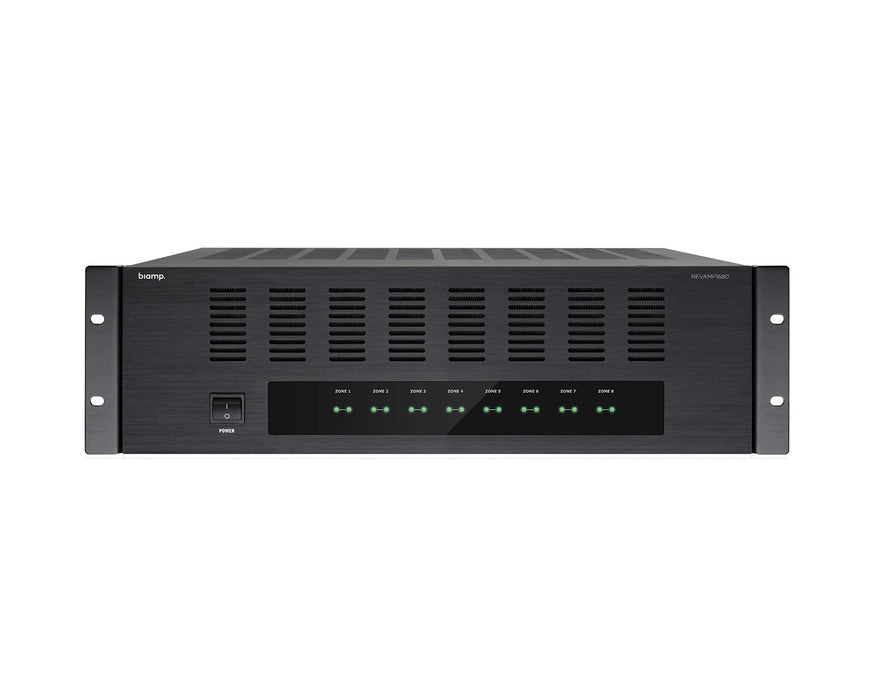

Biamp Revamp1680 16-Channel Power Amplifier 16 x 80W / 8 x 160W, 4-8 Ohms
The Biamp Revamp1680 is a professional 16-Channel Class D Power Amplifier delivering 16 x 80W at 4 Ohm or 8 x 160W bridged at 8 Ohm, with dual toroidal power supplies, 2 stereo bus inputs with pass-through, trigger and audio sense auto power on/off and under 0.5W standby consumption — ideal for large-scale multi-zone installation projects.
The Biamp Revamp1680 is a professional 16-channel Class D digital power amplifier designed for large-scale multi-zone installation projects where a high channel count, flexible configuration, low standby power consumption and easy system integration are the priority.
Delivering 16 x 80W RMS at 4 Ohm — or configurable as 8 x 160W RMS in bridged mode at 8 Ohm for higher-output zone applications — the Revamp1680 provides the amplification backbone for complex distributed audio systems across hospitality, retail, corporate, education and entertainment venue environments. Its dual analogue power supply with toroidal power transformers ensures a clean, stable and high-channel-separation power platform for professional multi-zone audio performance, and the 3U rack-mount form factor keeps the installation footprint compact for the number of channels provided.

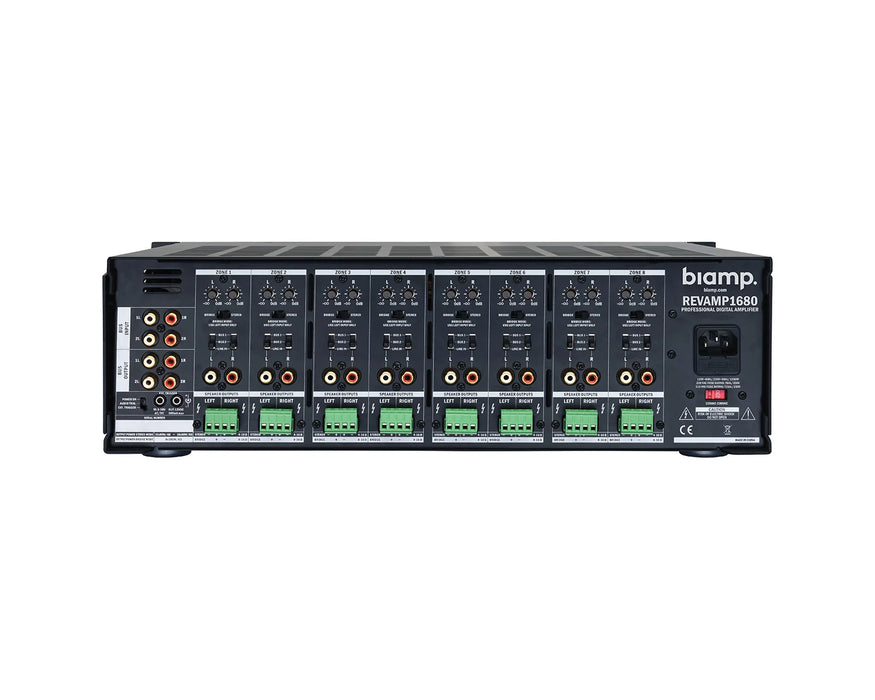

2 Stereo Bus Inputs with Pass-Through
The Revamp1680 is equipped with two stereo bus inputs with pass-through — a practical feature for multi-zone installations where the same audio signal needs to be distributed across multiple output zones without additional distribution equipment or complex wiring. The bus inputs allow the same source to feed multiple zones directly, reducing the cable count and dramatically simplifying installation in large multi-zone projects. With 20 unbalanced line inputs in total across the 16 channels, the Revamp1680 provides comprehensive connectivity for a wide range of installation scenarios.
Intelligent Auto Power On/Off
The Revamp1680 features multiple auto power on/off options for energy-efficient and convenient system operation. A trigger input allows the amplifier to be switched on and off automatically using an external AC or DC trigger signal from the wider audio system — keeping the amplifier powered only whilst the system is in active use. An audio sense mode provides an alternative auto power approach — the amplifier switches on automatically when a sufficiently strong audio signal is detected at the input, and switches off automatically after a few minutes of silence. Standby power consumption is exceptionally low at less than 0.5W — making the Revamp1680 one of the most energy-efficient 16-channel amplifiers available for permanent commercial installation.
Convection Cooled for Silent Operation
Despite its 16-channel, 1350W maximum power consumption specification, the Revamp1680 is convection cooled — operating completely silently without a fan for noise-sensitive installation environments such as restaurants, hotels and corporate spaces where fan noise would be unacceptable. High channel separation of greater than 68dB at 1kHz ensures clean, independent audio performance across all 16 output channels simultaneously.
Biamp Revamp1680 Key Features:
- 16-Channel Class D Power Amplifier: 16 x 80W RMS at 4 Ohm for large-scale multi-zone distributed audio installations.
- Bridgeable to 8 x 160W at 8 Ohm: Flexible configuration for higher-output zone applications.
- Dual Toroidal Power Supply: Clean, stable power platform with high channel separation for professional multi-zone audio performance.
- > 68dB Channel Separation at 1kHz: Clean, independent audio performance across all 16 output channels simultaneously.
- 2 Stereo Bus Inputs with Pass-Through: Distribute the same audio source across multiple zones without additional distribution equipment.
- 20 Unbalanced Line Inputs: Comprehensive connectivity for a wide range of multi-zone installation scenarios.
- Trigger Input Auto Power On/Off: Automatic power switching via external AC or DC trigger signal.
- Audio Sense Auto Power On/Off: Automatic power switching based on detected audio signal presence.
- < 0.5W Standby Power Consumption: Exceptionally energy-efficient for permanent commercial installation.
- Convection Cooled: Completely silent operation — no fan noise for noise-sensitive installation environments.
- 20Hz–30kHz Frequency Response: Wide-range audio performance for music and speech applications.
- Universal Power Supply (115–230V AC): Straightforward installation in any mains environment.
- 3U 19" Rack Mountable: Compact 3U rack footprint for 16 channels of professional amplification.
Biamp - Premium Speakers & Amplifiers
