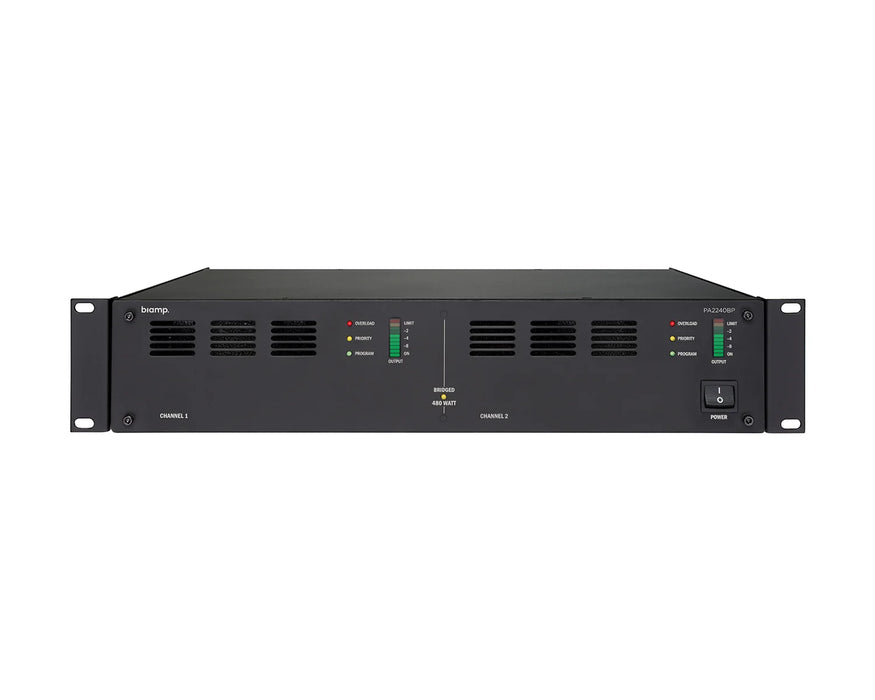

Biamp PA2240BP 2-Channel 480W Bridgeable Power Amplifier 100V / 4Ω / 8Ω
The Biamp PA2240BP is a bridgeable 2-Channel Power Amplifier delivering 2 x 240W or 1 x 480W in bridged mode, with 100V line, 4Ω and 8Ω operation, 24V DC emergency power supply, priority contact closure override and EN60849 evacuation system compliance.
The Biamp PA2240BP is a bridgeable, ultra-reliable 2-channel 100V line power amplifier designed for the most demanding commercial installation and contractor audio applications. Configurable as a 2-channel amplifier delivering 2 x 240W — or bridged into a single-channel 480W amplifier for powering large groups of 100V line loudspeakers — the PA2240BP provides the output power and flexibility needed for large-scale distributed audio systems in retail, hospitality, education, corporate and public venue environments. Output voltage tappings at 100V, 70V, 50V and 35V alongside 4 Ohm low-impedance operation provide comprehensive compatibility with a wide range of 100V line and conventional speaker systems.
EN60849 Evacuation System Compliance
A key feature that sets the PA2240BP apart is its dual power supply capability — operating on both 230V AC mains and 24V DC emergency power. This makes the unit directly suitable for use in public address and voice evacuation systems compliant with the EN60849 regulation, where continued amplifier operation during a mains power failure is a critical life safety requirement. The emergency priority input — activated by contact closure — overrides the programme or music input to ensure emergency announcements are always broadcast clearly and reliably, regardless of the current programme source.
Dual Channel Priority Inputs & Tone Control

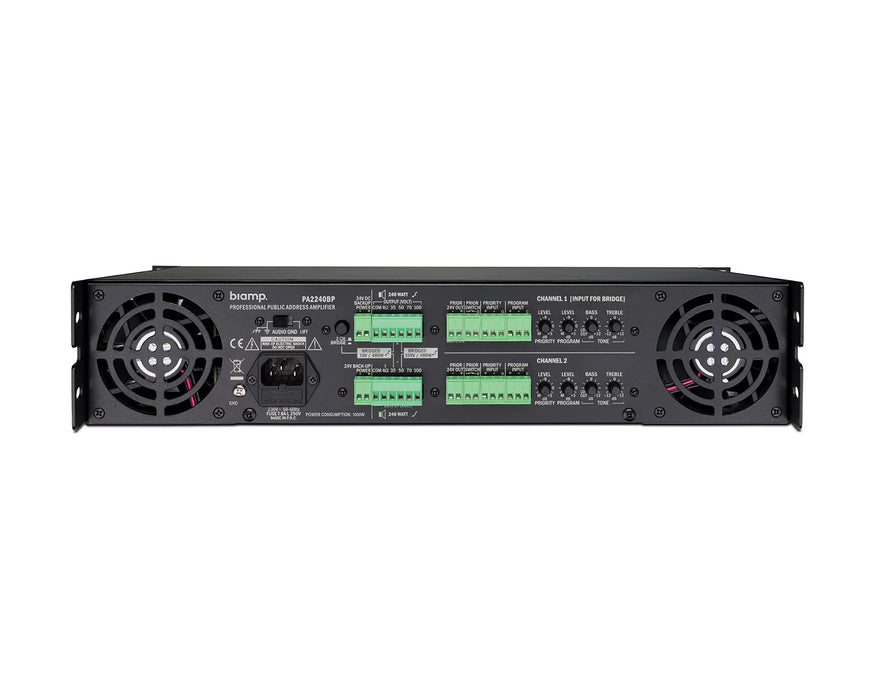

Both channels are equipped with a programme input and a priority input with independent bass and treble tone control — ensuring excellent sound performance even in tough acoustical conditions. The priority contact closure input per channel allows emergency or paging messages to automatically override the background music or programme source without manual intervention, and the 24V DC priority output provides integration with compatible paging and emergency system equipment. All amplifier controls are located on the rear panel — significantly reducing the risk of unauthorised or unintentional adjustment of system settings in public-facing commercial installations.
Fan-Cooled for Continuous High-Power Operation
The PA2240BP features active fan cooling for reliable thermal management during continuous high-power operation in demanding commercial installation environments, and is housed in a robust 2U 19" rack-mount enclosure for secure installation in any professional equipment rack.
Biamp PA2240BP Key Features:
- 2 x 240W or 1 x 480W Bridged: Flexible configuration for 2-channel distributed systems or single-channel high-output applications.
- 100V Line Operation: Output voltage tappings at 100V, 70V, 50V and 35V for comprehensive distributed speaker system compatibility.
- 4Ω & 8Ω Low-Impedance Operation: Flexible direct speaker connection alongside 100V line.
- 24V DC Emergency Power Supply: Continued operation during mains power failure for EN60849 evacuation system compliance.
- EN60849 Compliant: Suitable for use in public address and voice evacuation systems.
- Priority Contact Closure Input Per Channel: Emergency message override of programme or music source without manual intervention.
- 24V DC Priority Output: Integration with compatible paging and emergency system equipment.
- Independent Bass & Treble Tone Control Per Channel: Excellent sound performance in demanding acoustical environments.
- Rear Panel Controls: Prevents unauthorised or unintentional adjustment of system settings in public-facing installations.
- 2 x Balanced Line Inputs: Professional balanced connectivity for clean, long-distance signal runs.
- Bridgeable Design: Configurable as 2-channel or single-channel 480W for maximum installation flexibility.
- Active Fan Cooling: Reliable thermal management for continuous high-power commercial operation.
- 2U 19" Rack Mountable: Secure installation in any professional equipment rack.
