Biamp Desono CM60DTD 6.5" 2-Way Ceiling Speaker 100V & 16 Ohm - White
The Biamp Desono CM60DTD is a 6.5" 2-Way Ceiling Speaker with a 5-position switchable transformer for 70V/100V line and 16 Ohm low-impedance operation, tuned bass reflex port, magnetic toolless grille and front-accessible tap switch — delivering 91dB sensitivity and 110dB maximum SPL for background music and public address in larger commercial spaces.
The Biamp Desono CM60DTD is a professional 2-way 6.5" ceiling loudspeaker designed to deliver crystal clear audio for public address and background music across a wide range of commercial environments — stepping up from the CM20DTS with a larger 6.5" woofer for greater output, deeper bass extension and higher maximum SPL. Combining a 6.5" coated paper cone woofer with a 1" tweeter, the CM60DTD achieves high SPL with extremely low distortion — ensuring exceptional clarity across the full frequency spectrum for both speech intelligibility and full-range music reproduction. A tuned bass reflex port extends low-frequency performance down to 65Hz for a fuller, more natural sound, and loudspeaker overload protection ensures reliable, failsafe 24/7 operation in permanent commercial installations. The CM60DTD's 180° horizontal and vertical dispersion at 1kHz ensures even, consistent sound distribution across the listening area directly below the speaker.
Flexible 100V Line & Low Impedance Operation

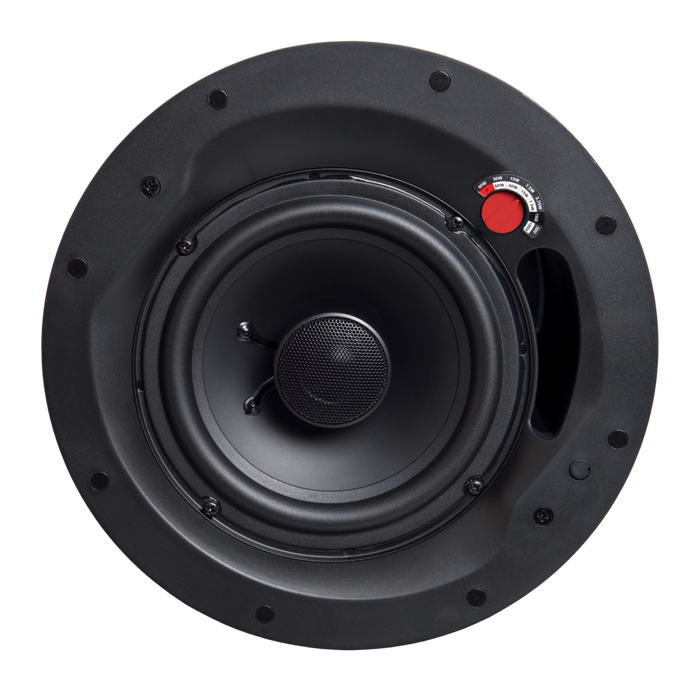

The CM60DTD features a 5-position switchable transformer providing 70V tappings at 60W, 30W, 15W, 7.5W and 3.75W and 100V tappings at 60W, 30W, 15W and 7.5W, alongside a 16 Ohm low-impedance bypass for direct amplifier connection at 60W RMS and 120W dynamic power handling. The front-accessible tap switch allows power tapping adjustments to be made without requiring ceiling access — a significant practical advantage during commissioning and in situations where level adjustments are needed after installation.
Installer-Friendly Design
The CM60DTD has been designed with the installer firmly in mind. Blind mounting from below the ceiling is supported for straightforward single-person installation, and the thin-edge magnetically attached steel grille snaps on and off for toolless installation and removal — and can be painted to match any room décor for a fully integrated, low-visibility finish. The 2-screw mounting system and 3–65mm installation grip range accommodate a wide range of ceiling panel thicknesses for flexible installation across different ceiling constructions.
Biamp Desono CM60DTD Key Features:
- 6.5" 2-Way Ceiling Speaker: Coated paper cone woofer and 1" tweeter for high SPL, low distortion and exceptional clarity across the full frequency spectrum.
- 91dB Sensitivity / 110dB Maximum SPL: Higher output than the CM20DTS for effective coverage across larger commercial spaces.
- 65Hz–20kHz Frequency Response: Extended low-frequency performance for natural, full-range music reproduction.
- Tuned Bass Reflex Port: Optimised low-frequency extension for fuller, more natural sound.
- 180° Horizontal & Vertical Dispersion: Even, consistent sound distribution across the listening area.
- 5-Position Switchable Transformer: 70V tappings at 60W, 30W, 15W, 7.5W and 3.75W / 100V tappings at 60W, 30W, 15W and 7.5W.
- 16 Ohm Low-Impedance Bypass: 60W RMS / 120W dynamic for direct amplifier connection.

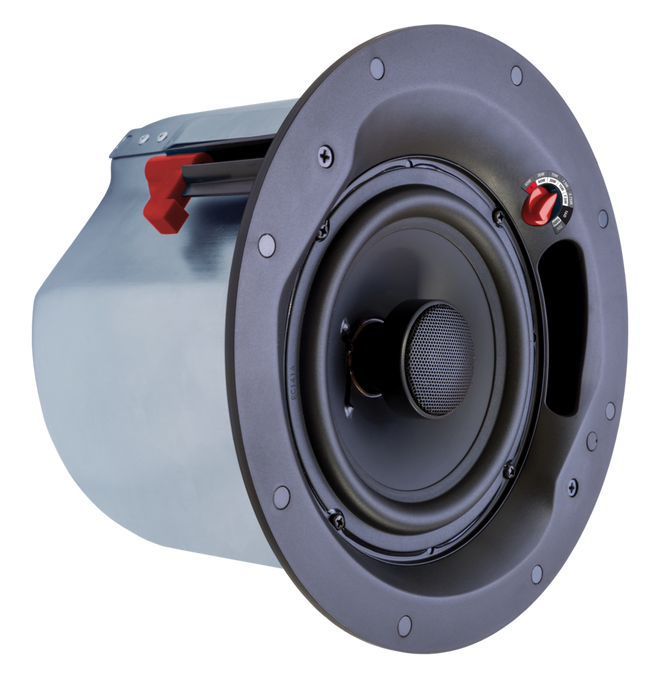

- Front-Accessible Tap Switch: Power tapping adjustments without requiring ceiling access.

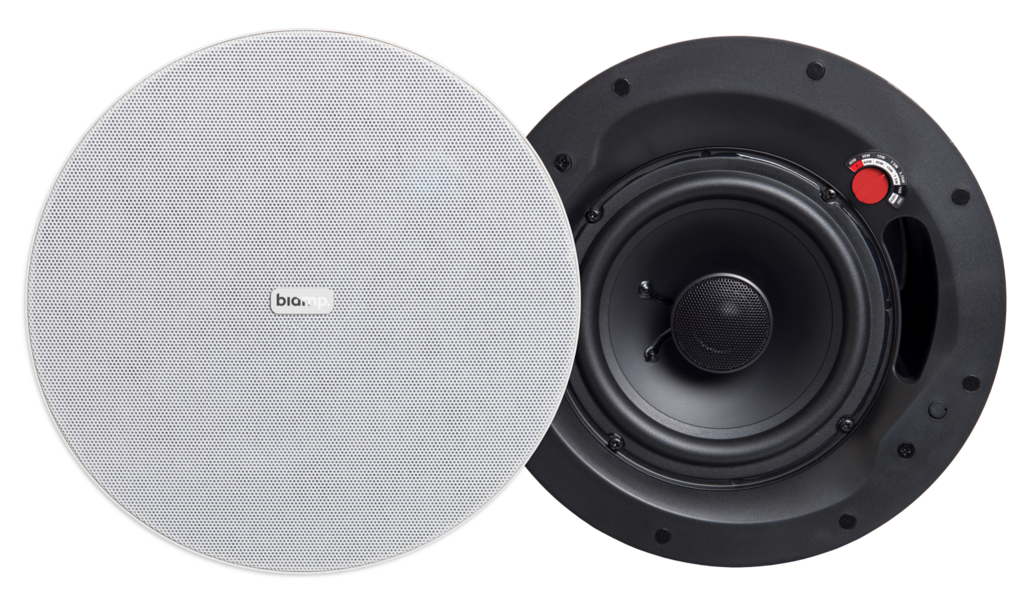

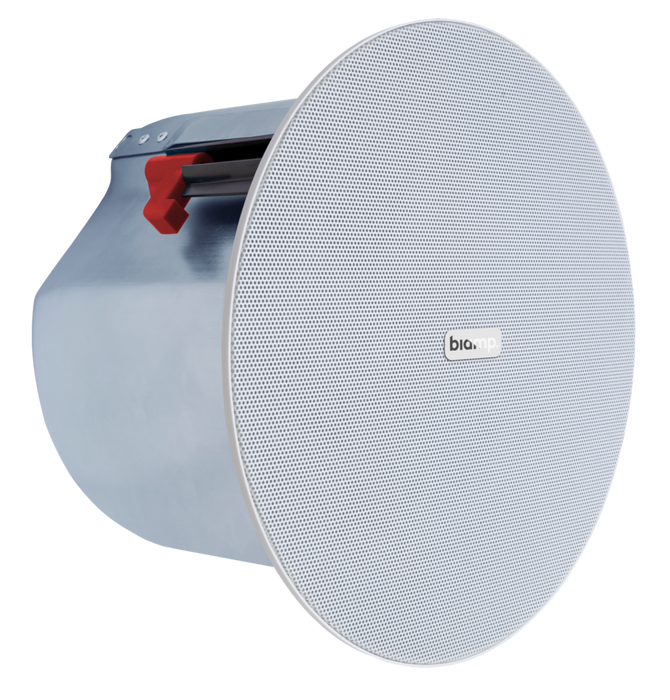

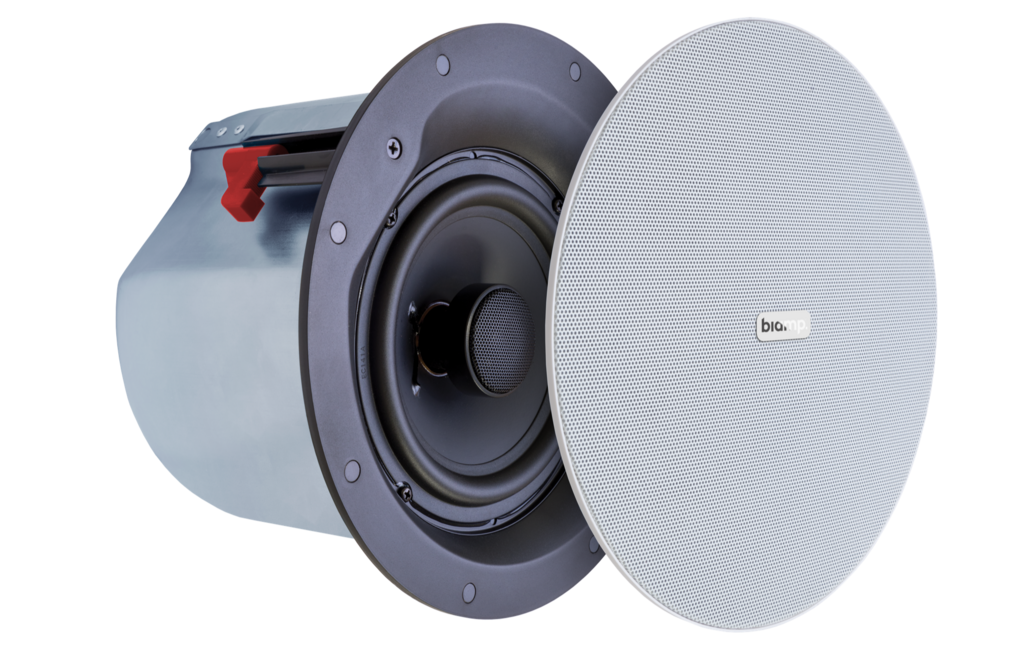

- Magnetic Toolless Steel Grille: Snap-on/off installation and removal — no tools required.
- Paintable Grille: Matches any room décor for a low-visibility, integrated finish.
- Blind Mountable from Below: Straightforward single-person installation.

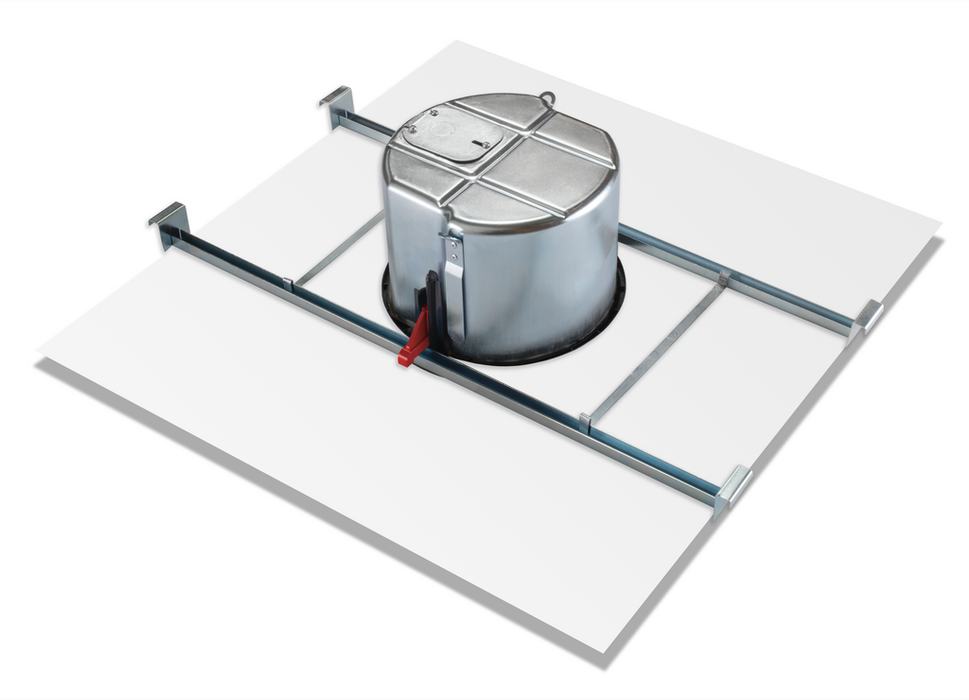

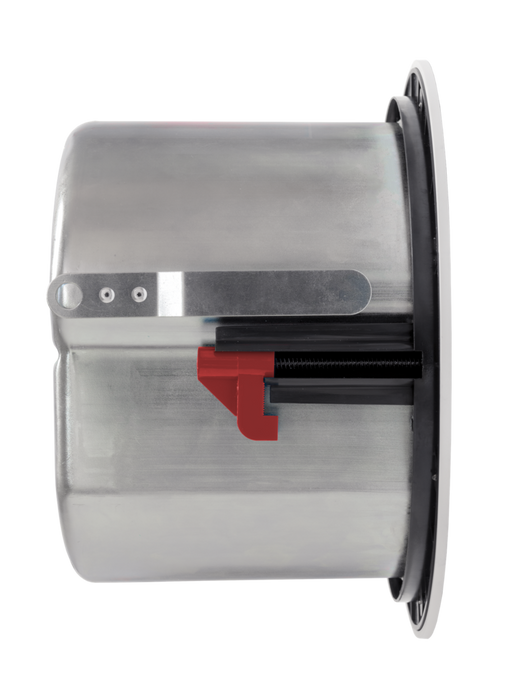

- 2-Screw Mounting System: 3–65mm grip range for a wide range of ceiling panel thicknesses.
- Loudspeaker Overload Protection: Reliable, failsafe 24/7 operation in permanent installations.
- ABS Plastic Construction: Durable, lightweight enclosure for long-term commercial installation.
- ETL Listed (UL 1480A & UL 2043): Certified for commercial installation compliance.
-
Zoom Certified: Compatible with Zoom audio systems.
