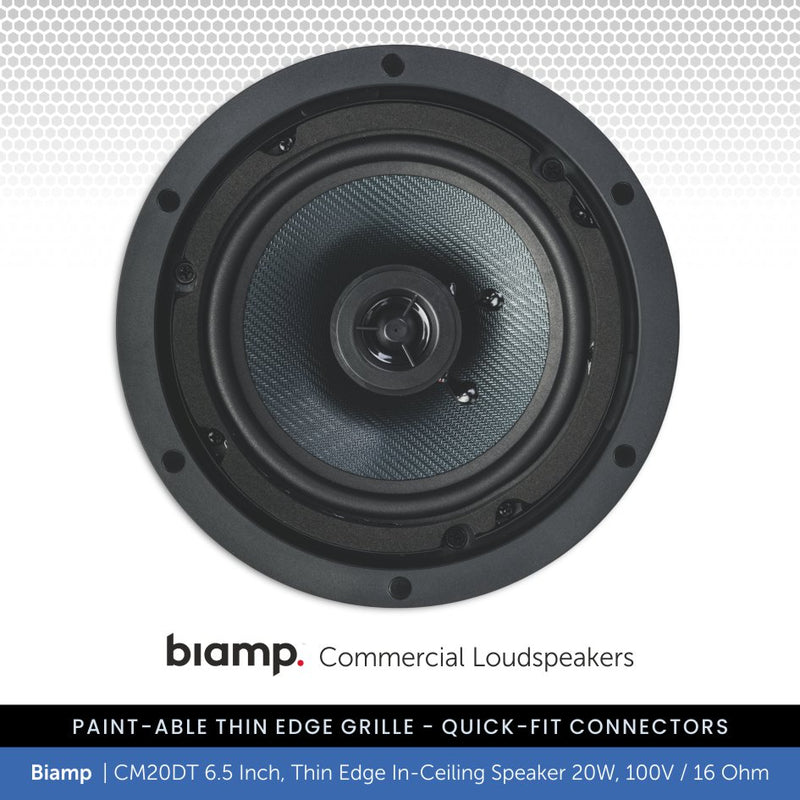

Biamp CM20DT 6.5" Thin Edge Ceiling Speaker 20W, 100V/16 Ohm

by Biamp
SKU CM20DT
Save 18% Save 18%
Original price £93.00 (inc. VAT)
Original price £93.00 (inc. VAT) - Original price £93.00 (inc. VAT)
Original price £93.00 (inc. VAT)
Current price £76.00 (inc. VAT)
£76.00 (inc. VAT) - £76.00 (inc. VAT)
Current price £76.00 (inc. VAT)
DETAILS

The Biamp CM20DT is a 6.5" two-way built-in loudspeaker. It can be used in 16 ohms or 100V line modes.

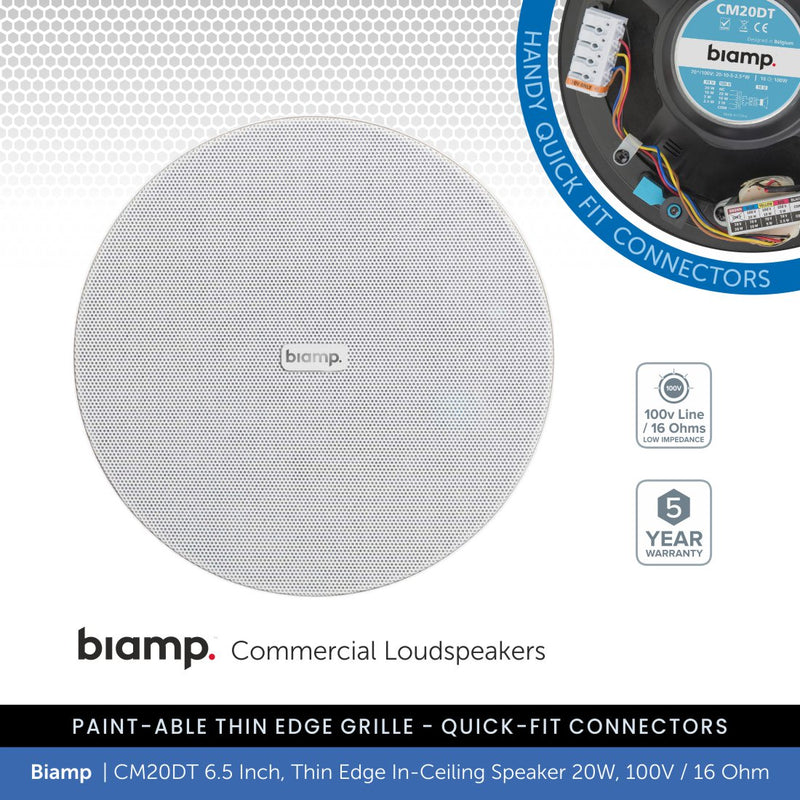

The CM20DT 6.5” two-way built-in loudspeaker can be used in 16 ohms or 70/100 volt modes. The high-quality 70/100 volt transformer is equipped with an easy tapping sticker with clear colour indication. The transformer colours are aligned with the cables connecting the Biamp Quick Fit connector, a handy installer connector via push terminal.

In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier.

The paint-able thin edge grille makes CM20DT the ultimate loudspeaker for design interior integration.

Biamp CM20DT Key Features:

  • Two-way built-in loudspeaker; 16 ohms or 100 volt loudspeaker
  • Connect up to 4 speakers parallel on a standard 4 ohms amplifier
  • Versatile 70/100v connectors
  • Paint-able thin edge grille
  • 100V Line Tappings of 20, 10, 5 and 2.5W
This loudspeaker is now updated with a new Quick Fix connector and transformer tapping sticker for an even faster and easier installation.

Versatile for almost every market around the globe due to the addition of the 70 / 100 volt connection, the CM series is bound to stay the standard installer’s choice in the fixed install market.

SPECS & DOWNLOADS

Biamp CM20DT Specifications:

  • Loudspeaker system: 2-way
  • Woofer size: 6.5inch
  • Woofer cone material: Polypropylene
  • Tweeter size: 1inch
  • Mounting system: 3 screws
  • 100V transformer power taps: 20 - 10 - 5watts
  • 70V transformer power taps: 20 - 10 - 5 - 2.5watts
  • Impedance: 16ohms
  • Low impedance dynamic power: 60watts
  • SPL 1W/1m: 86 dB
  • Max SPL 1m: 104 dB
  • Frequency response: 60 - 20K/Hz
  • Main construction material: ABS plastic
  • Grille main material: Steel
  • IP rating: IP50
  • Applicable low impedance: Yes
  • Applicable in 100V: Yes
  • Vertical dispersion angle 1000 Hz: 180°

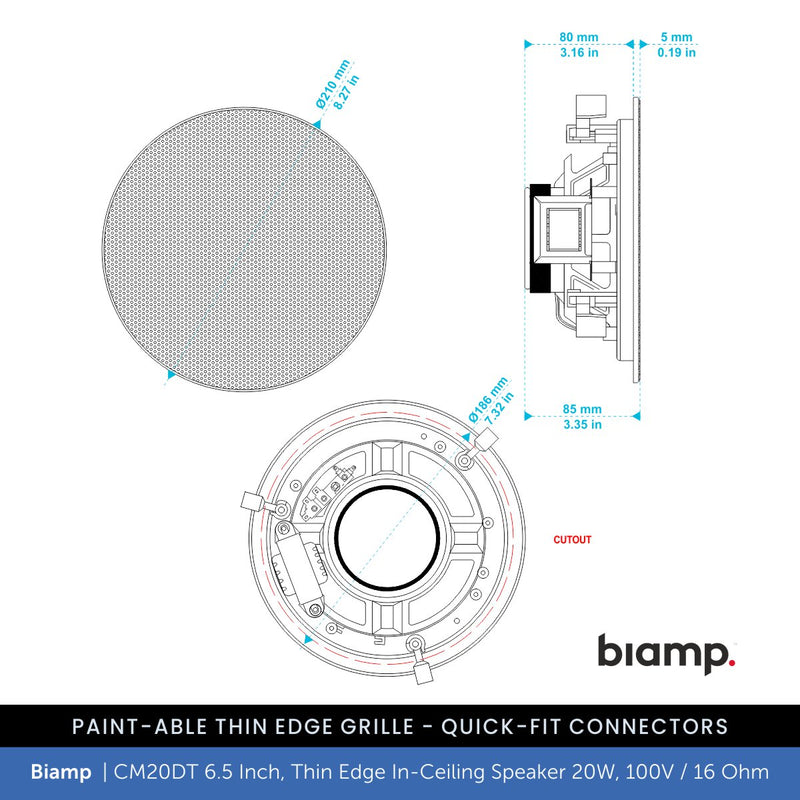

  • Outside diameter: 210mm
  • Depth: 80mm
  • Cutout: 186mm
  • Net weight product: 1.24kg
}
