Biamp ALINP Mic & Line Local Input Wall Panel with Volume Control
The Biamp ALINP is a Mic and Line Local Input Wall Panel with individual volume controls for a dynamic microphone and stereo line source — powered by 24–48V phantom power from a compatible mixing amplifier or matrix, and ideal for classrooms, meeting rooms, bars, restaurants and multi-function spaces requiring a simple, local audio input point.
The Biamp ALINP is a local input wall control panel designed to provide a clean, straightforward local audio connection point in commercial audio installations — without the complexity of multi-button control panels or the need for additional equipment. Simply plug in a laptop, media player or microphone and control the volume — nothing more, nothing less. Ideal for classrooms where a different teacher connects their own device each hour, meeting rooms where presentations are given on a regular basis, multi-function rooms, bars, restaurants and banquet halls where a local input point adds significant convenience, the ALINP saves time and eliminates the need for users to interact with the main audio system or visit the equipment rack to connect a source.
Mic & Line Inputs with Individual Volume Control

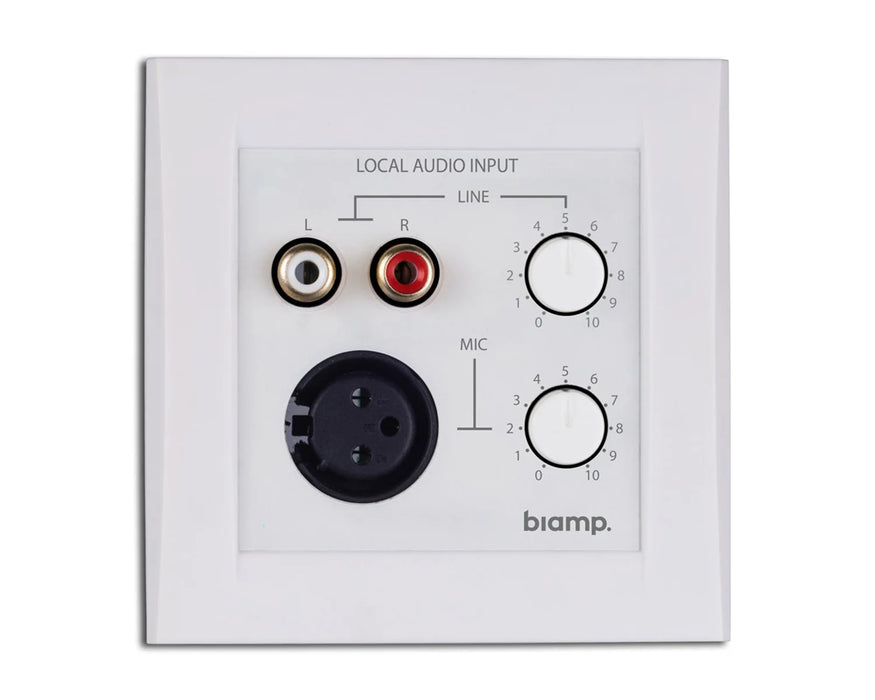

The ALINP provides two local input options — a balanced XLR dynamic microphone input with individual volume control and a stereo line input (summed to mono internally) with individual volume control for connection of laptops, tablets, media players and other consumer audio sources. The built-in microphone preamplifier and high-quality input transformer prevent ground loops and guarantee exceptional audio quality from both inputs, and the line and microphone inputs are automatically mixed together so that only a single input on the main mixing amplifier or matrix is used — keeping system wiring simple and installation straightforward.
Phantom Powered for Universal Compatibility
The ALINP is powered entirely by 24–48V phantom power from the connected mixing desk, matrix or preamplifier — requiring no separate power supply at the wall panel location. This makes it compatible with a wide range of professional mixing amplifiers and matrices with a mic/line input providing at least 24V phantom power, including the Biamp MA30, MA60, MA120 and MA240 mixer amplifiers. Note that the XLR microphone input on the ALINP does not provide phantom power to connected microphones — it is designed for use with dynamic microphones only. With a maximum cable length of 600m between the wall panel and the connected amplifier or matrix, the ALINP is suitable for installation across large buildings and distributed audio systems.
Standard Decora Fit for Clean Installation
The ALINP fits into any standard Decora in-wall back box, with compatibility confirmed for the Apart E-MODIN and N-MODIN build-in boxes — providing a clean, professional flush-mounted wall panel appearance in any commercial interior.
Biamp ALINP Key Features:
- Local Mic & Line Input Wall Panel: Simple, practical local audio connection point for classrooms, meeting rooms, bars, restaurants and multi-function spaces.
- Balanced XLR Microphone Input: For dynamic microphones with individual volume control.
- Stereo Line Input (Mono Summed): For laptops, tablets and media players with individual volume control.
- Inputs Automatically Mixed Together: Only one input required on the connected mixing amplifier or matrix — simplifies installation wiring.
- Built-In Mic Preamplifier: High-quality conditioned microphone input for exceptional audio performance.
- High-Quality Input Transformer: Prevents ground loops for clean, interference-free audio from connected sources.
- 24–48V Phantom Powered: No separate power supply required — powered directly from the connected mixing amplifier or matrix.
- Compatible with Biamp MA30, MA60, MA120 & MA240: Ideal local input companion for the Biamp MA Series mixing amplifiers.
- Up to 600m Maximum Cable Length: Suitable for large building and distributed audio system installations.
- Standard Decora Fit: Fits any standard Decora in-wall back box for a clean, professional flush-mounted appearance.
- Dynamic Microphone Only: XLR input does not provide phantom power — for use with dynamic microphones.
- < 0.05% THD: Exceptionally low distortion for clean, accurate local audio input.
- SNR > 86dB: Clean, quiet audio transmission to the main mixing amplifier or matrix.
- Ideal for Classrooms, Meeting Rooms & Multi-Function Spaces: Saves time and eliminates user interaction with the main audio system.
