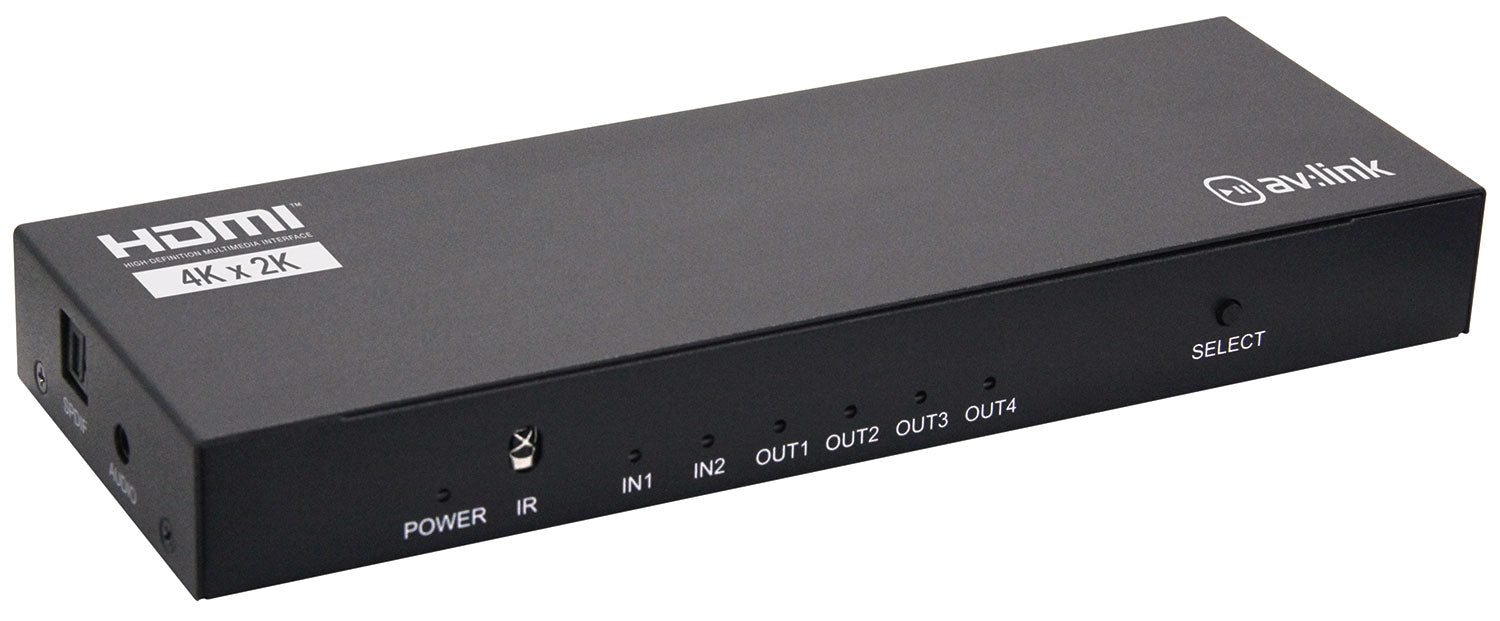

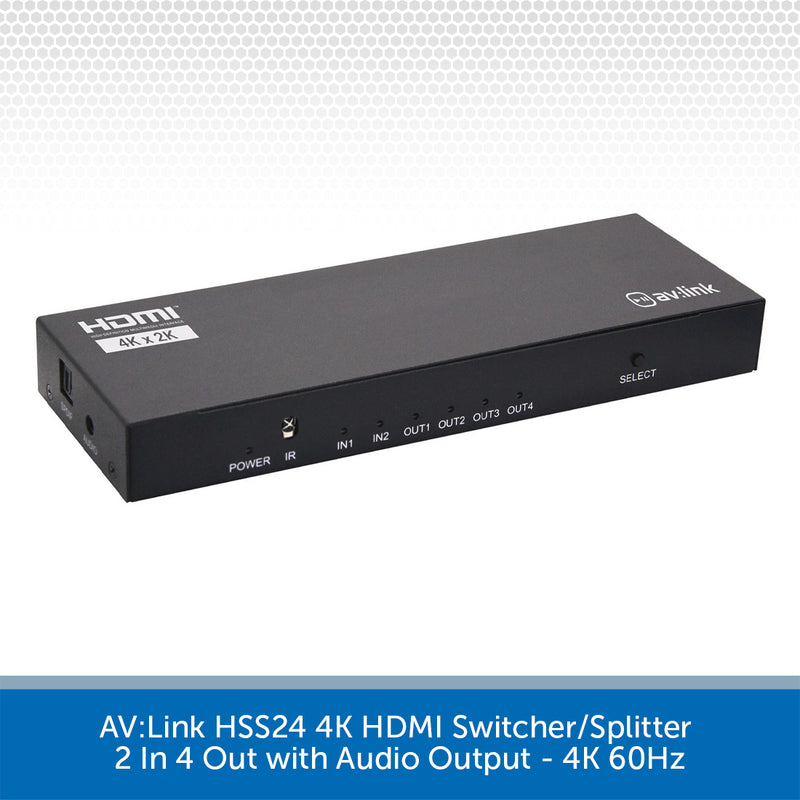

AV:Link HSS24 4K HDMI Switcher Splitter 2 In 4 Out with Audio Output - 4K 60Hz
The AV:Link HSS24 is a 4K HDMI Switcher Splitter with 2 inputs, 4 outputs and dedicated SPDIF and 3.5mm audio outputs — allowing venues to switch between two Sky boxes or HDMI sources and distribute the selected feed to up to four screens, whilst simultaneously routing the audio to a separate PA or sound system.
The AV:Link HSS24 is a versatile 4K HDMI switcher splitter that combines switching and splitting in a single unit — allowing you to select between two HDMI source devices and distribute the chosen feed to up to four displays simultaneously. For pubs, sports bars, betting shops, hotels and hospitality venues running multiple Sky boxes or other HDMI sources, the HSS24 provides a practical solution for controlling which feed is shown across the venue's screens at any given time, without the need for separate switching and splitting equipment. Switch between sources instantly using the supplied IR remote control — ideal for bar staff needing to change between channels or sports events from across the room.
Dedicated Audio Outputs for PA & Sound Systems
A key feature that sets the HSS24 apart from standard HDMI splitters is its dedicated audio extraction outputs. Both a digital SPDIF output and an analogue 3.5mm jack output allow the audio signal from the selected source to be simultaneously channelled to a separate sound system — such as a pub PA system, background music system or AV receiver — independently of the HDMI video outputs. This makes the HSS24 particularly valuable in commercial venues where the audio from a Sky box or media player needs to feed both the screens and the venue's PA system from a single unit.
4K 60Hz with Full Audio Format Support
The HSS24 supports HDMI video resolutions up to 3840 x 2160 @ 60Hz across all four outputs, ensuring full compatibility with the latest 4K Sky boxes and digital TV receivers. Deep colour support at 8, 10 and 12-bit ensures accurate colour reproduction on compatible displays, and full audio format support including DTS-HD, Dolby True, DTS, Dolby AC3 and DSD ensures the complete audio signal is passed through to all connected displays and extracted to the dedicated audio outputs. Gold-plated HDMI connectors on all inputs and outputs ensure optimum signal transfer and long-term connection reliability.
For home use, the HSS24 is equally useful — allowing two HDMI sources such as a games console and a streaming device to be switched and distributed to multiple TVs or displays throughout the home, with audio extracted to a hi-fi amplifier or AV receiver.
AV:Link HSS24 Key Features:

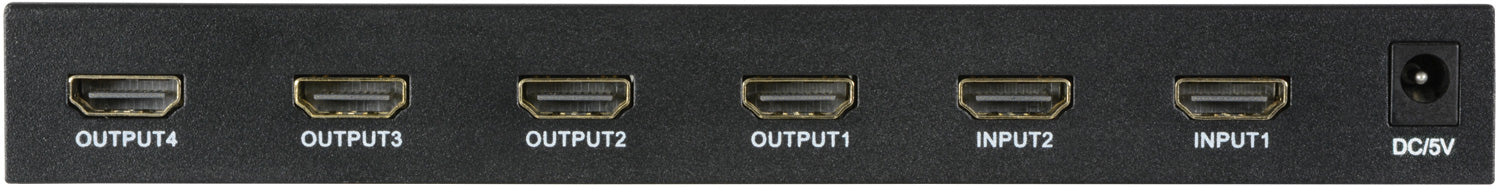

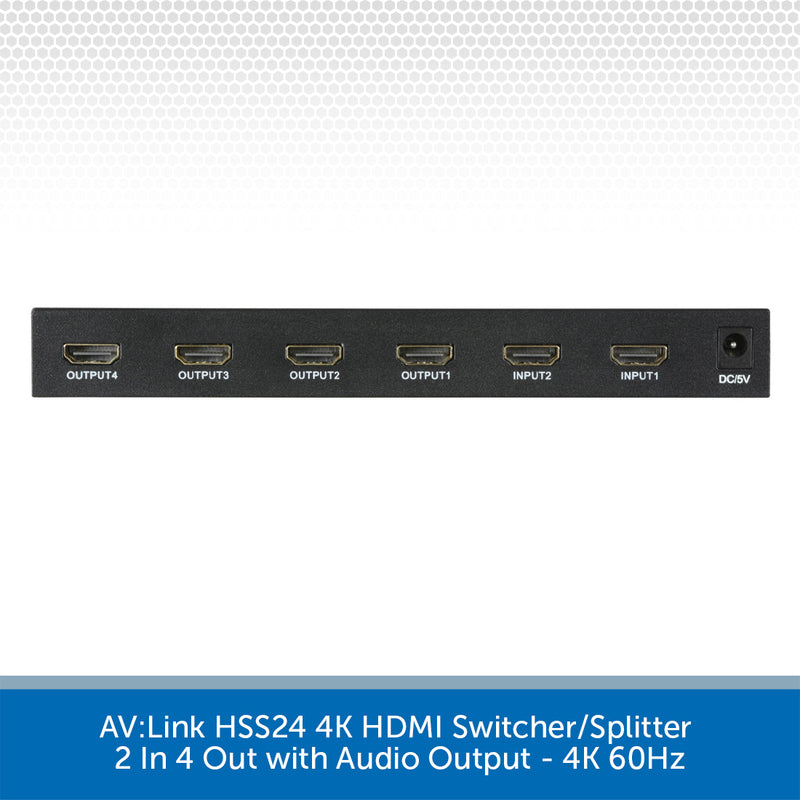

- 2 In, 4 Out HDMI Switcher Splitter: Switch between two HDMI sources and distribute the selected feed to four displays simultaneously.
- Dedicated SPDIF & 3.5mm Audio Outputs: Extract audio from the selected HDMI source to feed a separate PA system, AV receiver or sound system simultaneously.
- 4K Ultra HD 60Hz Support: Resolutions up to 3840 x 2160 @ 60Hz across all four outputs.

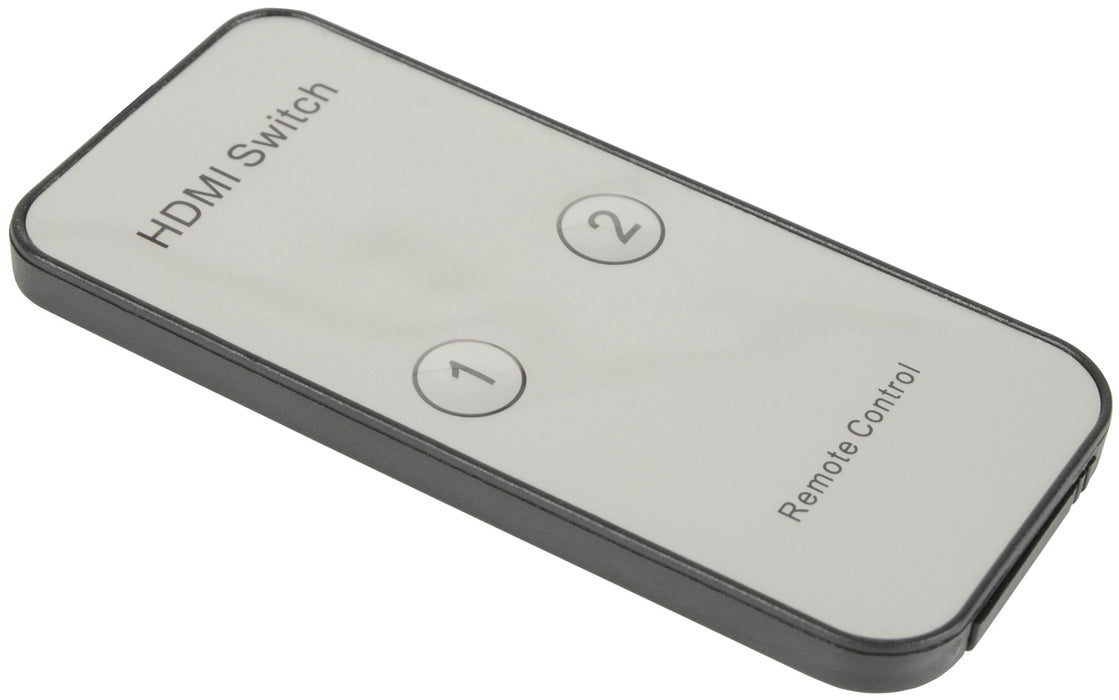

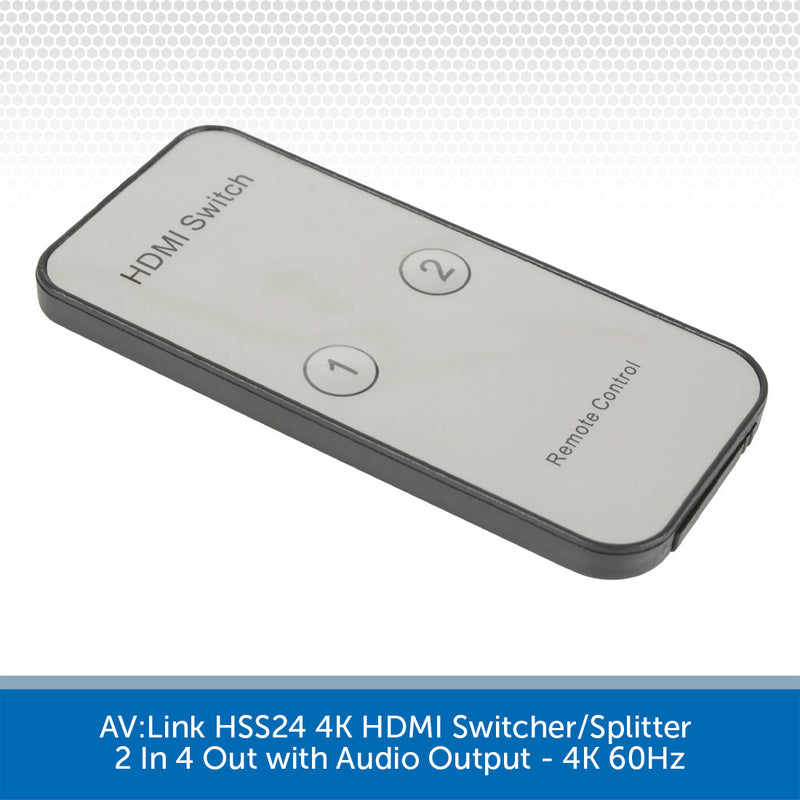

- IR Remote Control Included: Switch between sources instantly from across the room — ideal for bar staff in commercial venues.
- HDCP 1.4 Compatible: Compatible with copy-protected content from digital TV boxes and streaming services.
- 600MHz Maximum Bandwidth / 6Gbps Baud Rate: Reliable 4K signal distribution across all four outputs.
- Deep Colour Support: 8, 10 and 12-bit deep colour for accurate, vibrant display on compatible screens.
- Full Audio Format Support: DTS-HD, Dolby True, DTS, Dolby AC3 and DSD audio pass-through.
- Gold-Plated HDMI Connectors: Optimum signal transfer and long-term connection reliability.
- Simple Installation: Straightforward setup with no software or configuration required.
- UK Power Adaptor & CR2025 Battery Included: Ready to use straight out of the box.
- Operating Temperature -15°C to +55°C: Suitable for a wide range of commercial venue environments.
-
Ideal for Pubs, Sports Bars & Hospitality Venues: Switch between Sky boxes and distribute to four screens whilst feeding audio to the venue PA system.
