AV:Link HDX44 4K HDMI Matrix Switcher/Splitter 4 In 4 Out with Audio Output & Remote - 4K 60Hz
The AV:Link HDX44 is a 4K HDMI Matrix Switcher/Splitter with 4 inputs and 4 outputs, SPDIF and 3.5mm audio extraction, smart EDID management and RS232 control — allowing any of four HDMI sources to be independently routed to any of four displays, making it ideal for larger pubs, sports bars and commercial venues managing multiple Sky boxes and screens.
The AV:Link HDX44 is a step up from simple HDMI switcher splitters, offering full 4x4 matrix switching capability — meaning any of the four connected HDMI source devices can be independently routed to any of the four connected displays at any time.
For larger pubs, sports bars, betting shops, hotels and hospitality venues running multiple Sky boxes, Freesat receivers or media players alongside multiple screens, the HDX44 provides complete flexibility over which content is shown on which screen at any given time. Show the same Sky box feed on all four screens during a major sporting event, split different channels across different screens for a busy sports bar, or route sources to specific screens in different areas of the venue — all controlled instantly via the supplied IR remote. Unlike a standard HDMI splitter that distributes one fixed source to multiple screens, the HDX44 gives venues full independent control over every screen and every source simultaneously.
Dedicated Audio Outputs for PA & Sound Systems

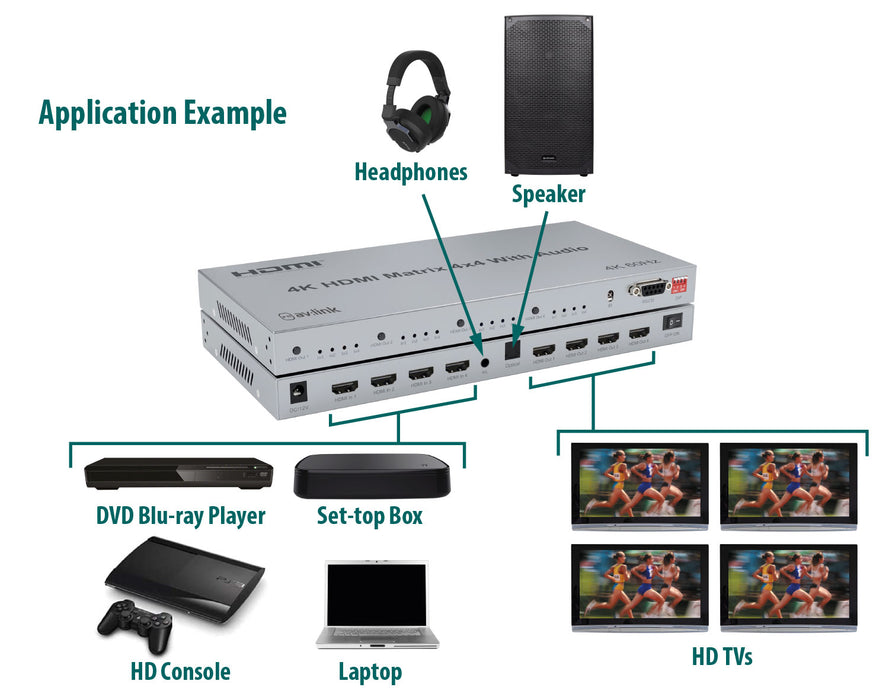

Like the HSS24, the HDX44 features dedicated audio extraction outputs — both a digital SPDIF (Toslink optical) output and an analogue 3.5mm stereo jack output extract the audio signal from HDMI output 1, allowing it to be simultaneously channelled to a separate PA system, background music system, AV receiver or headphones independently of the HDMI video outputs. This makes the HDX44 particularly valuable in commercial venues where the audio from a selected source needs to feed both the venue's screens and its PA or sound system from a single unit.
4K 60Hz, EDID Management & RS232 Control
The HDX44 supports HDMI video resolutions up to 3840 x 2160 @ 60Hz across all four outputs, with deep colour support at 8, 10 and 12-bit and full audio format support including DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD. HDCP 2.2 compliance ensures full compatibility with copy-protected content from the latest 4K digital TV boxes and streaming services. Smart EDID management via the front panel EDID switch allows precise video and audio output settings to be configured for specific display and sound system requirements — a valuable feature for professional AV installations. An RS232 port enables serial data communication with a connected PC or laptop for integration into larger control systems. Gold-plated HDMI connectors on all four inputs and outputs ensure optimum signal transfer throughout.
For home use, the HDX44 is equally capable — ideal for larger home cinemas or multi-room setups where multiple sources need to be flexibly routed to multiple displays throughout the property.
AV:Link HDX44 Key Features:
- 4 In, 4 Out Full HDMI Matrix: Any of four sources independently routed to any of four displays simultaneously for complete venue screen management flexibility.
- Dedicated SPDIF Optical & 3.5mm Audio Outputs: Extract audio from HDMI output 1 to feed a separate PA system, AV receiver or headphones simultaneously.
- 4K Ultra HD 60Hz Support: Resolutions up to 3840 x 2160 @ 60Hz across all four outputs.
- HDCP 2.2 Compliant: Full compatibility with copy-protected content from the latest 4K digital TV boxes and streaming services.

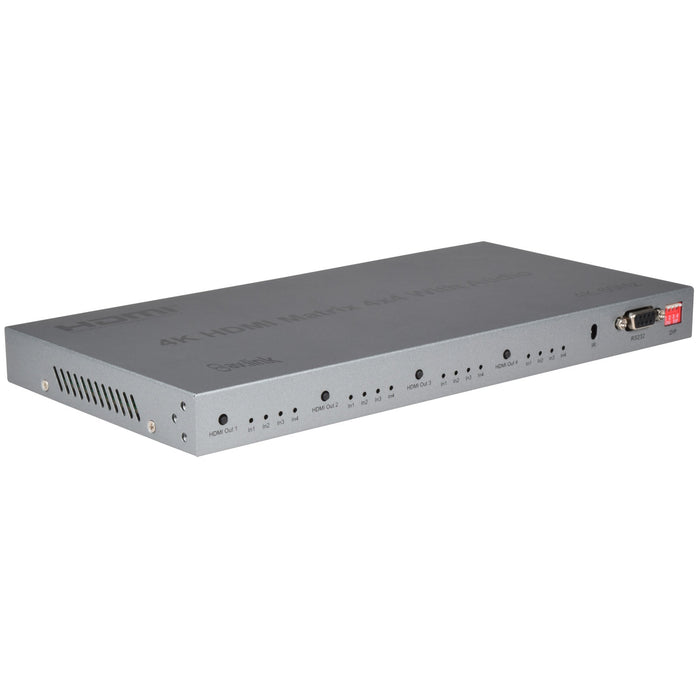

- Smart EDID Management: Front panel EDID switch for precise video and audio configuration for specific display and system requirements.
- RS232 Port: Serial data communication with a connected PC or laptop for integration into larger AV control systems.

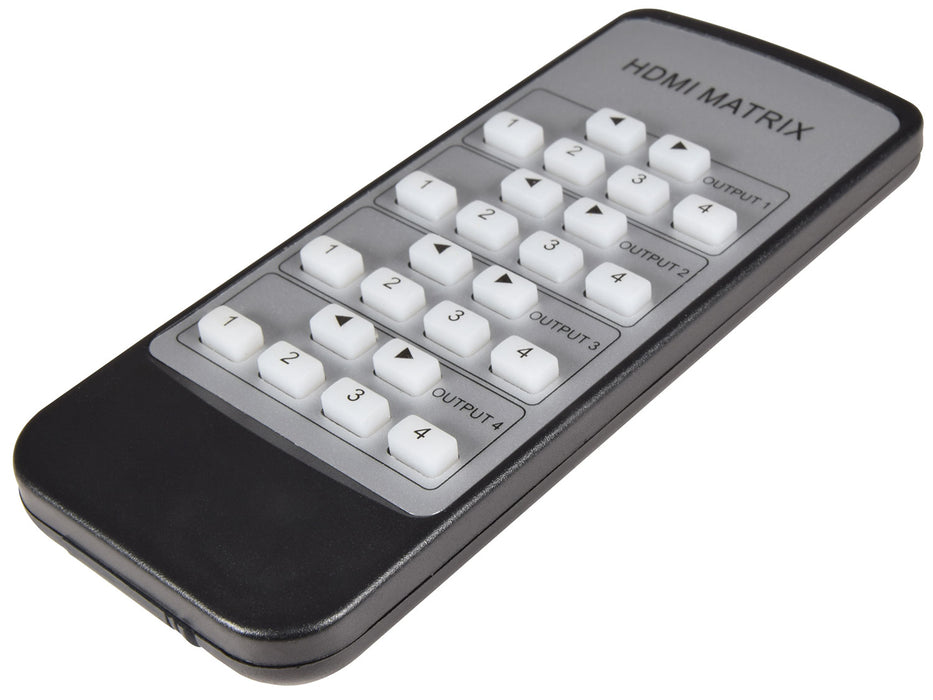

- IR Remote Control Included: Instantly switch sources across all outputs from across the room.
- 18Gbps Maximum Baud Rate: Full HDMI 2.0 specification for reliable 4K signal distribution.
- Deep Colour Support: 8, 10 and 12-bit deep colour for accurate, vibrant display on compatible screens.
- Full Audio Format Support: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD.

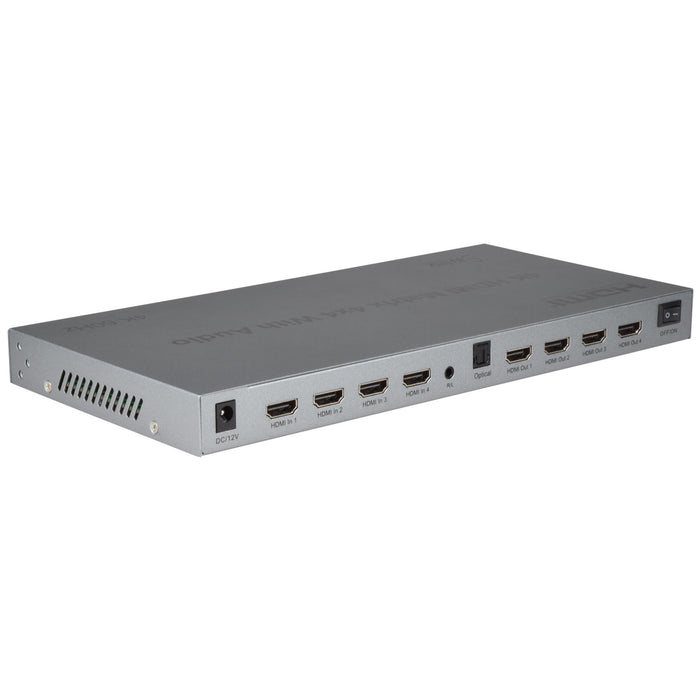

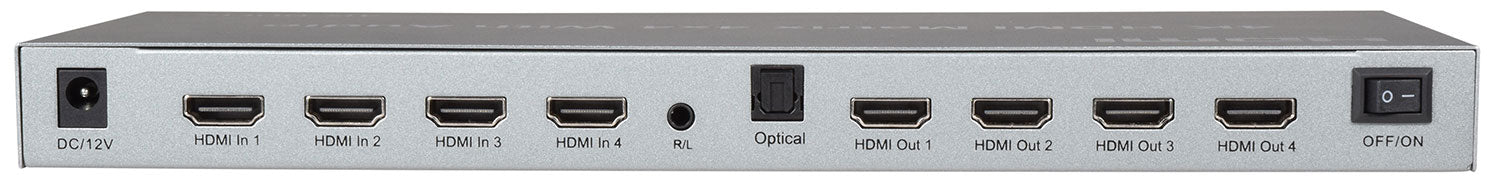

- Gold-Plated HDMI Connectors: Optimum signal transfer and long-term connection reliability across all inputs and outputs.
- Robust Metal Chassis: Durable professional build for permanent commercial venue installation.

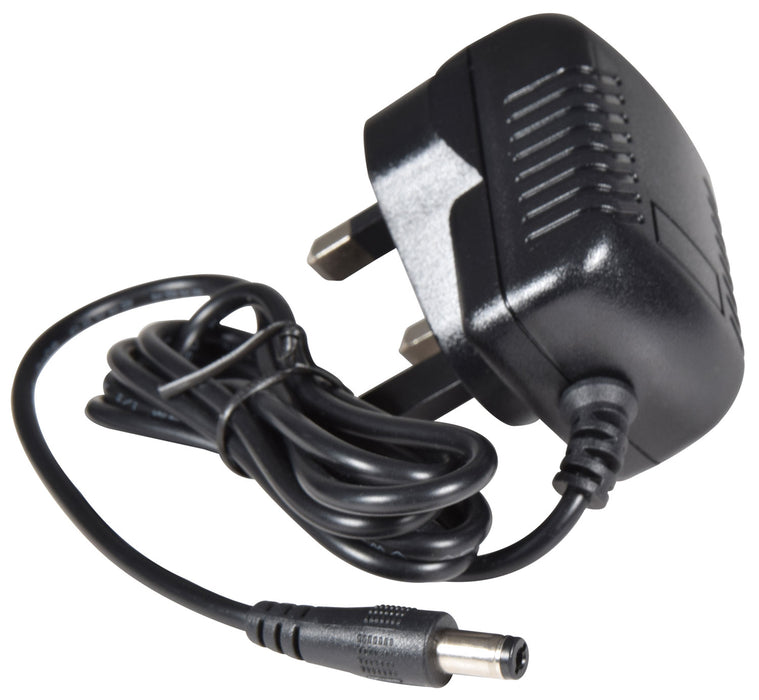

- UK Power Adaptor Included: Ready to use straight out of the box.
-
Ideal for Larger Pubs, Sports Bars & Hospitality Venues: Full matrix control of multiple Sky boxes and screens throughout the venue.
