Audio Technica ATW-1422 System 20 PRO Dual Handheld Wireless Microphone System 2.4GHz
The Audio Technica ATW-1422 is a System 20 PRO Dual Handheld 2.4GHz Digital Wireless Microphone System comprising the ATW-R1440 4-channel half-rack receiver chassis and two ATW-T1402 handheld transmitters — delivering 24-bit/48kHz audio, AES128 encryption and scalability to 20 simultaneous channels for live sound, presentation and commercial audio applications.
The Audio Technica ATW-1422 is a complete dual handheld wireless microphone system from the System 20 PRO range — offering a self-managing, plug-and-play 2.4GHz digital wireless solution that overcomes many of the challenges of conventional UHF wireless systems, including frequency coordination, complex intermodulation calculations and remote antenna cabling.
Operating in the 2.4GHz band, the system is completely free from TV interference and operates without the need for frequency licensing, making it an ideal choice for permanent installations, live events, houses of worship, theatres, conference rooms and any application where reliable, high-quality wireless audio is required without the complexity of traditional UHF system management. With 24-bit/48kHz audio quality, AES128 encryption and up to 20 simultaneous channels, the ATW-1422 delivers truly professional wireless performance at an accessible price point.

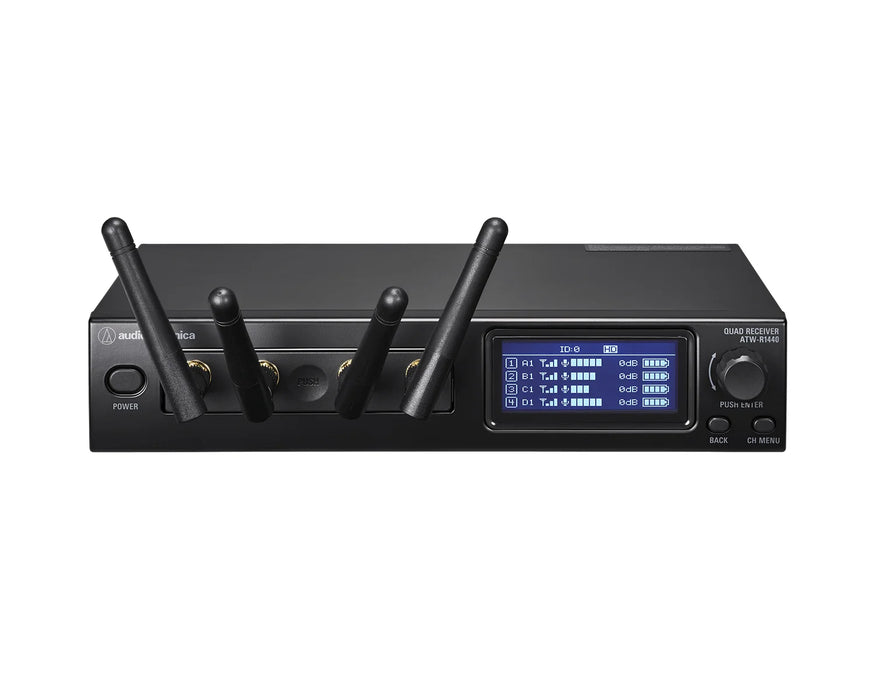

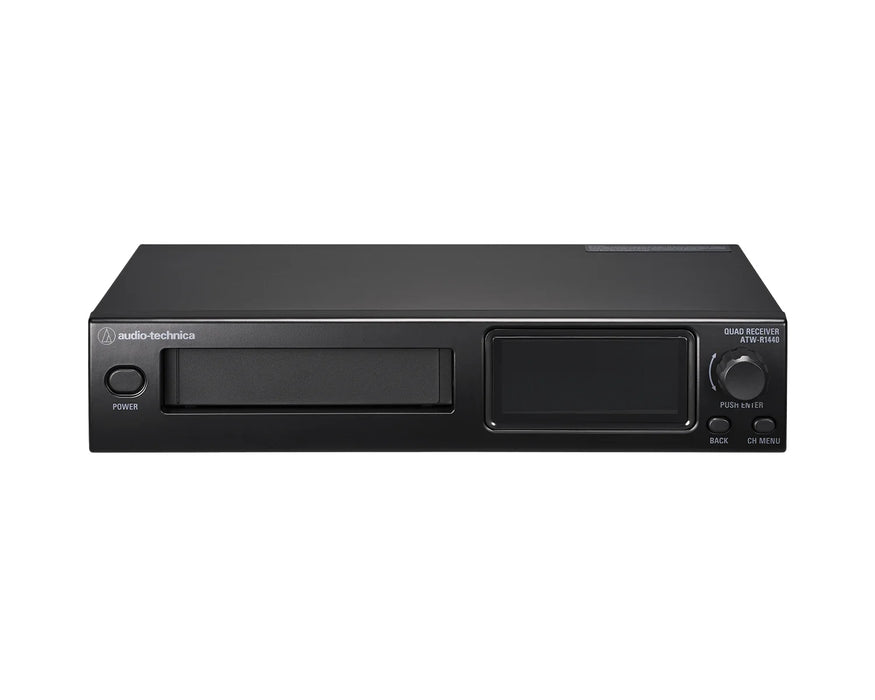

ATW-R1440 4-Channel Half-Rack Receiver Chassis

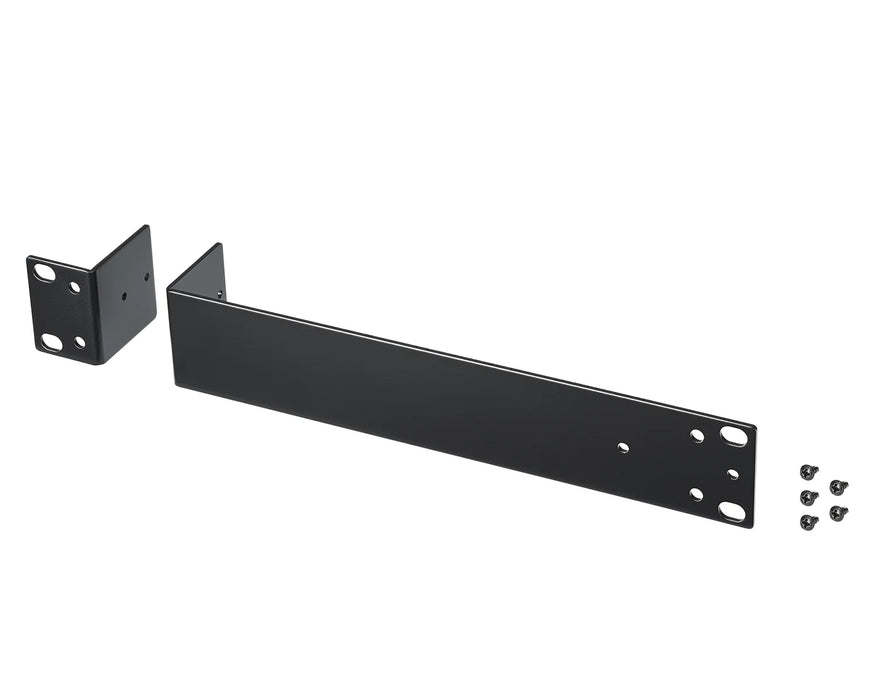

The ATW-R1440 is a half-rack receiver chassis capable of receiving up to four transmitters simultaneously, with each receiver channel pairable with up to four different transmitters for instant switching between different transmitter configurations without re-pairing. The half-rack chassis is supplied with both short and long rack ears — and two long ears can be combined as a joining plate to secure two chassis in a single full rack space, keeping installation neat and efficient. Receiver units can be docked in the chassis or mounted remotely at up to 100m away via Ethernet cable, providing added installation flexibility where the chassis cannot be positioned in the ideal RF reception location. Up to five chassis can be linked using the included RJ12 cable, creating a stable multichannel system supporting up to 20 simultaneous channels. The chassis System ID Display shows RF signal level, system ID, transmitter battery level and system link status at a glance.
Standard & HD Operating Modes
The system offers two selectable operating modes to suit different application requirements — Standard mode (10 channels) minimises latency to just 2.8ms for live performance applications where timing is critical, whilst HD mode (20 channels) maximises channel count to 20 simultaneous systems for large-scale installations and events where multiple wireless microphones are needed. Both modes operate at 24-bit/48kHz audio sampling for professional sound quality throughout.
ATW-T1402 Handheld Transmitter
The two included ATW-T1402 handheld transmitters feature a dynamic hypercardioid microphone capsule for focused, feedback-resistant vocal pickup, true diversity dual antennas for reliable RF signal reception, an OLED display for clear readout of key settings and alerts, and a slide-to-mute switch for convenient on/off control. Both transmitters are paired and ready to use out of the box. Each transmitter accepts two AA batteries delivering up to 18 hours of operation on alkaline batteries (up to 35 hours on lithium), and includes charging terminals compatible with Audio-Technica ATW-CHG3 and ATW-CHG3N charging docks when used with NiMH rechargeable batteries for all-day operation.
Wireless Manager Software & AES128 Encryption
Seamless setup and centralised management of the system — including multiple UHF, 2.4GHz and DECT wireless systems simultaneously — is provided by Audio-Technica's Wireless Manager software. Transmitter status, audio level, remaining battery time and other system information can be monitored from a single screen, with the ability to configure, monitor and save device settings as projects for rapid deployment and recall. AES128 encryption comes standard on all transmissions for security and reliable operation, and Syslog protocol compatibility provides integration with wider network management systems.
Audio Technica ATW-1422 Key Features:

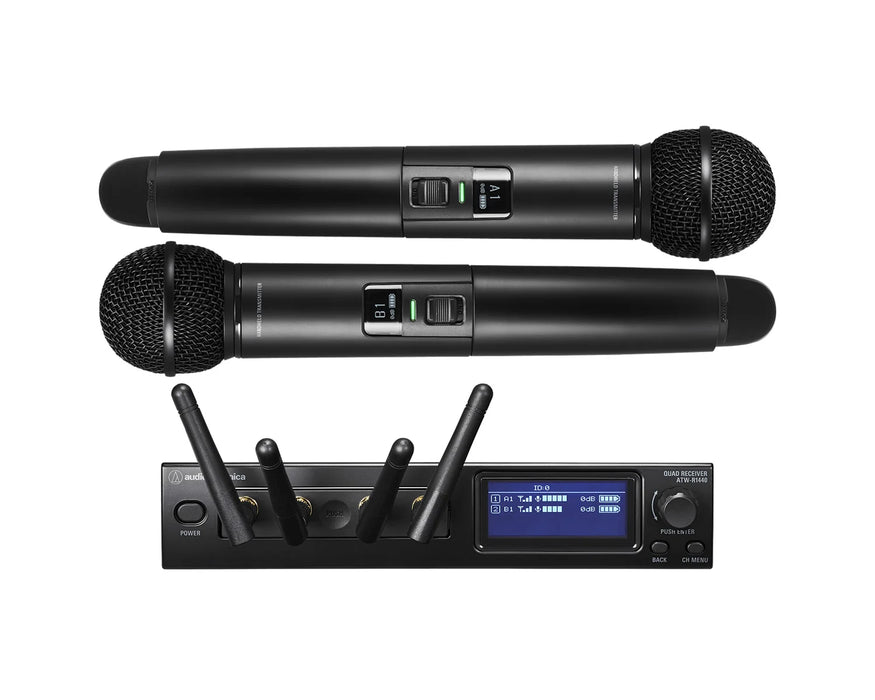

- Complete Dual Handheld Wireless System: ATW-R1440 4-channel half-rack receiver chassis and two ATW-T1402 handheld transmitters — paired and ready to use out of the box.
- 2.4GHz Plug-and-Play Operation: Completely free from TV interference and frequency licensing requirements.
- 24-bit/48kHz Digital Audio: Professional audio quality in both Standard and HD modes.
- Standard Mode (10 Channels, 2.8ms Latency): Minimised latency for live performance applications.
- HD Mode (20 Channels, 6.7ms Latency): Maximum channel count for large-scale installations and events.
- Up to 5 Chassis Linked Simultaneously: Scalable to 20 simultaneous channels via RJ12 cable linking.
- Remote Receiver Mounting: Receiver units mountable up to 100m away via Ethernet cable.
- Each Channel Pairs with Up to 4 Transmitters: Instant switching between transmitter configurations without re-pairing.
- Dynamic Hypercardioid Handheld Capsule: Focused, feedback-resistant vocal pickup for live and presentation applications.
- True Diversity Dual Antennas: In both receiver units and handheld transmitters for reliable RF performance.
- OLED Displays: On both receiver chassis and handheld transmitters for clear status readout.
- Up to 18 Hours Battery Life (Alkaline) / 35 Hours (Lithium): Extended operation for all-day use.
- NiMH Rechargeable Battery Compatible: Works with ATW-CHG3 and ATW-CHG3N charging docks (sold separately).
- AES128 Encryption: Standard security for all wireless transmissions.
- Audio-Technica Wireless Manager Software: Centralised management of multiple wireless systems from a single screen.
- Auto-Lock Function: Prevents unintended transmitter operations during use.
- Syslog Protocol Compatible: Integration with wider network management systems.

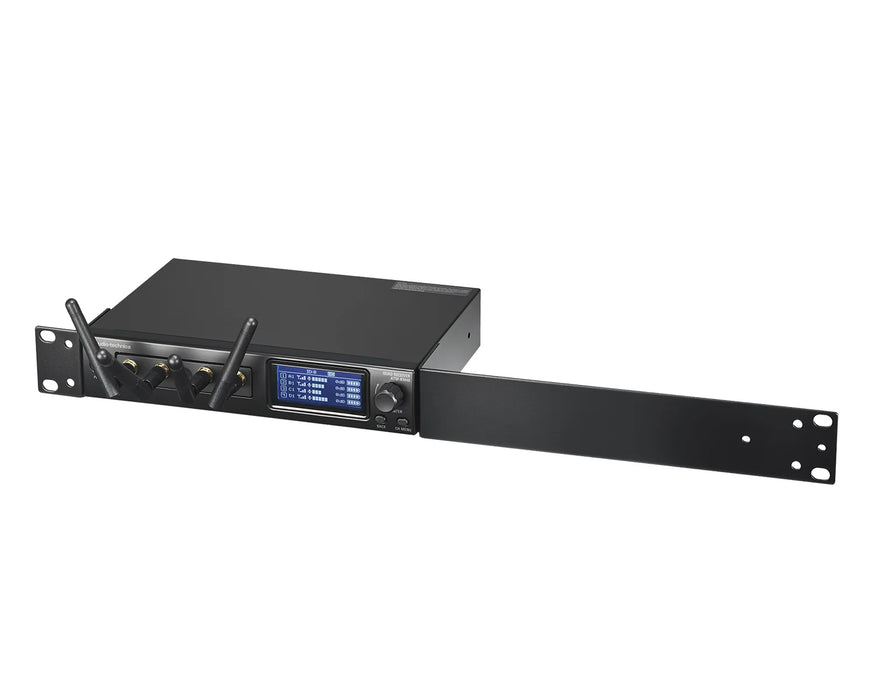

- Half-Rack Chassis with Joining Plate Option: Two chassis combinable into a single full rack space.
-
120dB Dynamic Range: Exceptional headroom and clarity for professional wireless audio.
