AUDAC WX302 MK2, 2-Way 3 inch Wall Speakers 100V/8 Ohm, Pair (Black or White)

DETAILS
The AUDAC WX302 is a compact yet powerful 3” two-way wall-mounted speaker, designed for clear and natural sound reproduction in indoor environments.
Ideal for restaurants, retail spaces, offices, conference rooms, and residential applications, the WX302 delivers high-fidelity performance for both music and speech.
Equipped with a 3” low-frequency driver and a 1” dome tweeter, this speaker ensures detailed highs, warm mids, and balanced bass, making it suitable for background music and public address systems. With 30W power handling in 8Ω operation, it also supports 70V/100V line systems with multiple power taps (20W, 10W, 5W) for easy integration into distributed audio setups.
The elegant and durable synthetic enclosure is available in black or white, allowing it to seamlessly blend into modern, traditional, or commercial interiors. A newly updated terminal block connection enhances installation convenience, while an advanced protection network safeguards the tweeter against overload, ensuring long-term reliability.
Flexible Installation & Reliable Performance
The WX302 features a versatile steel mounting bracket that allows for both vertical and horizontal installation, with precise angling for optimal sound coverage. The new terminal block connection (MK2 version) simplifies installation, and daisy-chaining is made easier with additional connection terminals (4-pin design).
Additionally, the WX302 is equipped with an elegant rotatable AUDAC logo, ensuring a professional look no matter how it's mounted.
AUDAC WX302 Key Features:
- 3” Two-Way Speaker – 3” low-frequency driver + 1” dome tweeter for high-fidelity sound
- Flexible 8Ω & 70V/100V Operation – Supports multiple power taps (20W, 10W, 5W)
- Clear & Balanced Audio – Ideal for music playback and voice applications

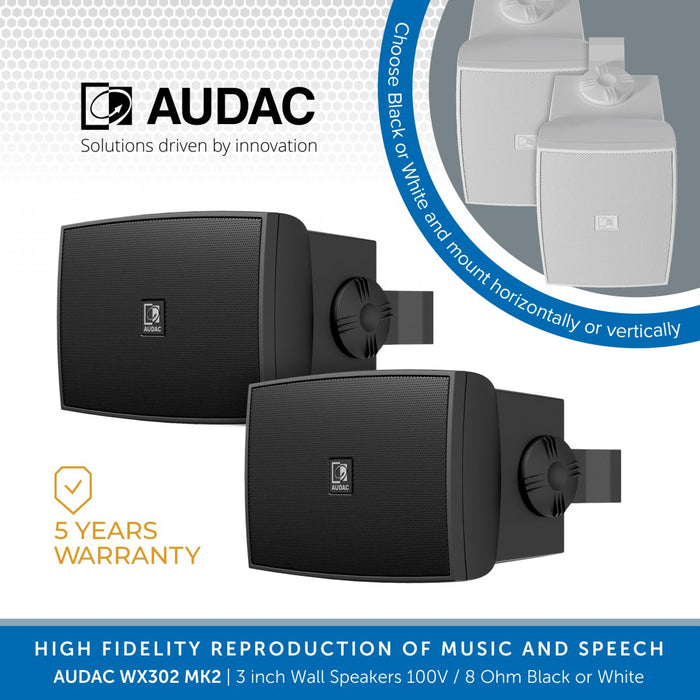

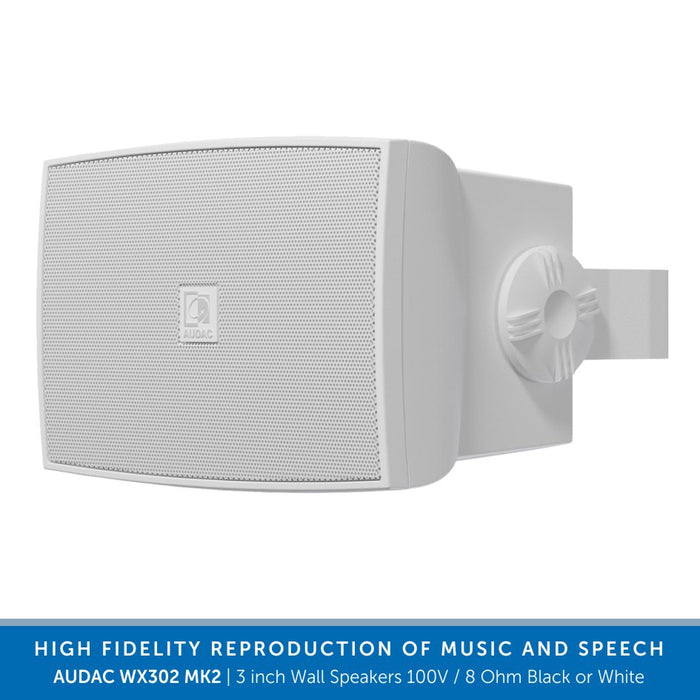

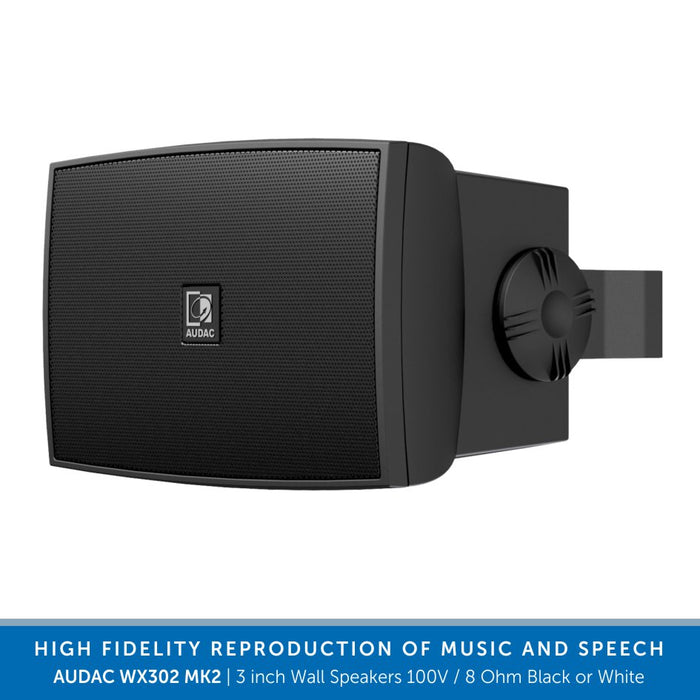

- Durable Synthetic Enclosure – Available in black or white for seamless integration
- Vertical & Horizontal Mounting – Adjustable steel bracket for optimal positioning

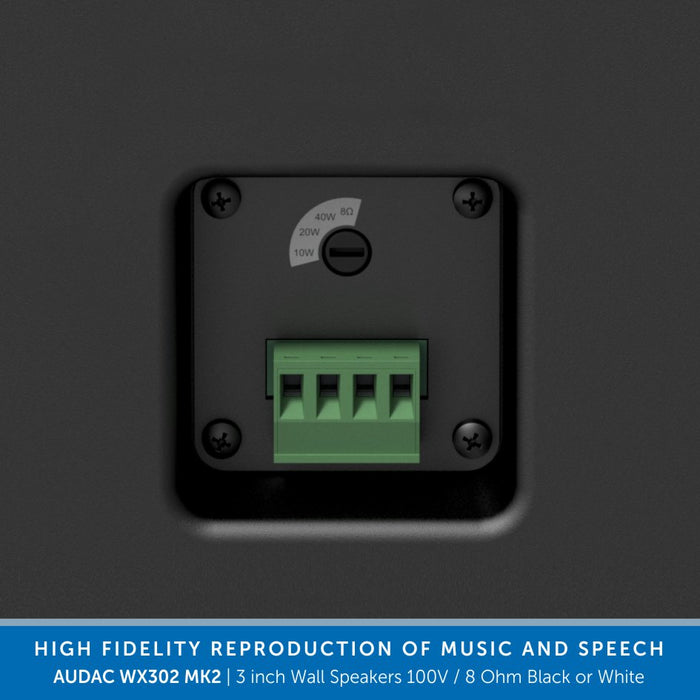

- New Terminal Block Connection (MK2) – Faster and more reliable installation
- Daisy-Chaining Made Easy – Additional 4-pin connection terminals for streamlined wiring
- Advanced Protection Network – Protects the tweeter from overload and damage
- Rotatable AUDAC Logo – Ensures a professional appearance in any orientation
-
5-Year Warranty – Built for long-term reliability and backed by AUDAC’s 5-year manufacturer warranty
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
AUDAC WX302 Specifications
- Crossover: Frequency 2.5 kHz / Type Passive built-in
- Drivers: HF 1” / LF 3”
- Frequency Range (-10 dB): 60 Hz - 20 kHz / Response (± 3 dB) 90 Hz - 18 kHz
- Impedance: 8 Ω, 100V
- 100V Transformer Tappings: 20W, 10W, 5W
- Ingress Protection rating: IP40
- Sensitivity (1W/1m): 85 dB
- Sound Pressure (Max. W/1m): @ 100 V 95 dB / @ 8 Ω 100 dB
- Speaker type: 2-way
- Continuous power (AES): 30 W
- Peak power handling: 120 W
- Program power handling: 60 W
- Dispersion: Horizontal 100° / Vertical 100°

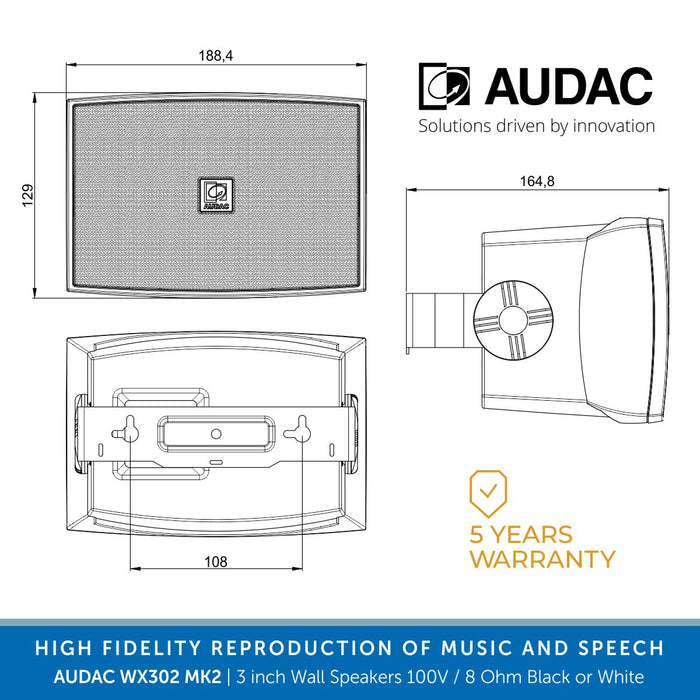

- Dimensions: 188.4 x 129 x 164.8 mm (W x H x D) (Incl. bracket)
- Weight: 1.66 kg
- Operating temperature: -25 °C ~ 70 °C
- Construction: ABS
- Mounting & handling: Mounting bracket
- Front finish: Steel grill
