AUDAC CHA660 6.5 inch Full-Range Long-Throw Horn Speaker – 60W/100V Line
DETAILS

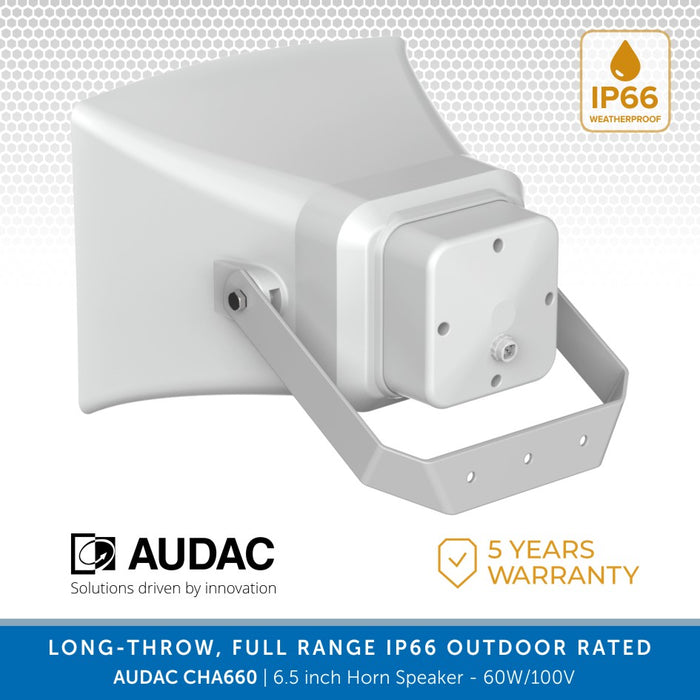

The AUDAC CHA660 is a 2-way horn-loaded loudspeaker designed for long-throw, full-range sound reproduction in both indoor and outdoor environments.
Featuring a 6.5" low-frequency driver and a 1" high-frequency compression driver, this speaker delivers exceptional clarity for speech and extended frequency response for music, making it ideal for public address systems, sports facilities, industrial sites, and outdoor venues.
Built to withstand harsh conditions, the CHA660 features an IP66-rated enclosure, constructed from UV and impact-resistant ABS materials, ensuring long-term durability in all-weather installations. A stainless steel mounting bracket allows secure installation with adjustable tilt positioning for precise sound direction.
A multi-tapping 70V/100V transformer allows for flexible integration into public address systems, with power taps selectable via the waterproof rotatable AWX-5 connector. Available tappings include 60W, 30W, 15W, and 7.5W, providing adaptability for different installation requirements.
With an RMS power rating of 60W (120W peak), a sensitivity of 99 dB, and a maximum SPL of 116 dB, the CHA660 delivers powerful and intelligible sound for a wide range of commercial and industrial applications.
AUDAC CHA660 Key Features:
- 2-Way Long-Throw Horn Speaker – Designed for high-intelligibility speech and full-range music reproduction
- High-Performance Components – 6.5" low-frequency driver and 1" HF compression driver for clear and powerful sound
- IP66-Rated Weatherproof Enclosure – UV and impact-resistant ABS construction for outdoor durability
- Multi-Tapping 70V/100V Transformer – Selectable power taps (60W, 30W, 15W, 7.5W) via waterproof rotatable AWX-5 connector
- High Sensitivity & SPL Output – 99 dB sensitivity and a max SPL of 116 dB for excellent coverage
- Wide Frequency Response – Smooth audio reproduction from 100 Hz to 16 kHz
- Stainless Steel Mounting Bracket – Secure installation with adjustable tilt for directional placement
-
Ideal for Indoor & Outdoor Use – Perfect for public address systems, industrial sites, sports venues, and large open areas
- 5-Year Warranty – Backed by AUDAC’s commitment to quality and long-term reliability
SPECS & DOWNLOADS
Download the PDF Spec Sheet HERE >
AUDAC CHA660 Specifications
- Speaker type: 2-way horn speaker
- Peak power handling: 240 W
- Program power handling: 120 W
- RMS/AES power handling: 60 W
- Sensitivity (1W/1m): 99 dB
- Line Transformer Tappings: 60W, 30W, 15W
- Sound Pressure (Max. W/1m) @ 100 V: 1156 dB
- Frequency Response (± 3 dB): 100 Hz - 16 kHz
- Crossover Type: Passive built-in
- Dispersion: Horizontal 100° / Vertical 60°
- Drivers: HF 1" HF Horn tweeter 6.5” MF / LF Woofer
- Ingress Protection rating: IP66
- Connection: AWX5™ waterproof

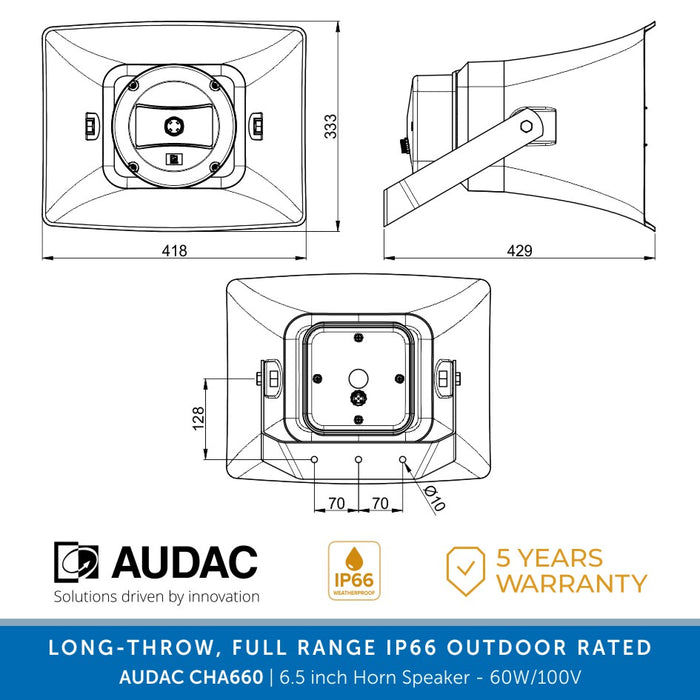

- Dimensions: 420 x 335 x 400 mm (W x H x D)
- Weight: 6.7 kg
- Construction: Impact & UV resistant ABS
- Colours: Light grey (RAL7035)
- Mounting & handling: Powder coated steel
-
Accessories Included: Mounting bracket
