AUDAC ATEO4M 4 inch Indoor/Outdoor Wall Speakers, Pair (Black or White) - IP66 Rated
DETAILS

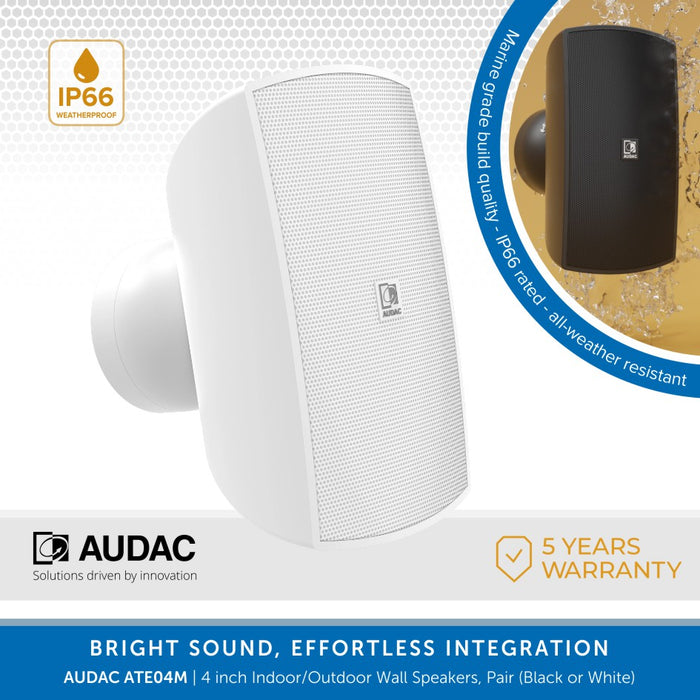

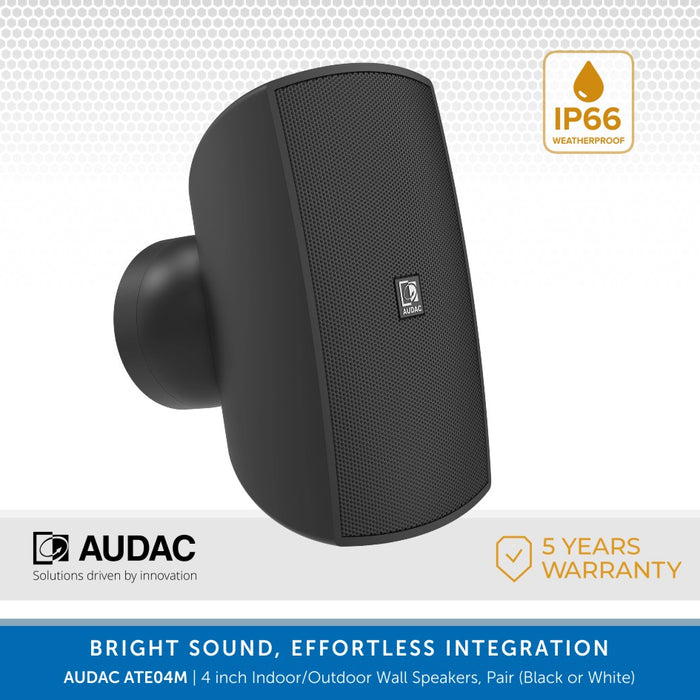

The ATEOxM series ATEO4M is a high-performance 4 inch two-way wall-mounted speaker, designed for both indoor and outdoor use.
Its IP66-rated weatherproof construction makes it ideal for hospitality, retail, and commercial environments, as well as residential installations where premium audio and durability are essential. With a sleek, modern design, it blends seamlessly into any setting while delivering exceptional clarity and depth in music and speech reproduction.
At the core of the ATEO4M is a 4” mid/low-frequency driver paired with a 1” silk dome tweeter, carefully tuned to provide a true-to-nature sound with ultra-flat frequency response. This results in crystal-clear vocals, detailed highs, and warm, natural bass, making it suitable for both background and foreground music applications.
Built for long-term reliability, the ATEO4M features a marine-grade construction, UV-resistant ABS housing, and an aluminium grille with a hydrophobic cloth, ensuring protection against water, dust, and environmental damage. Certified for 720-hour salt spray resistance, this speaker is well-suited for coastal areas, outdoor patios, and humid conditions.
Innovative CleverMount+™ System – Seamless Installation
Designed with ease of installation in mind, the CleverMount+™ technology integrates the speaker and mounting bracket into a single streamlined unit, eliminating visible brackets or wiring. The separate bracket base allows for swift and secure wall mounting, while the speaker itself can be quickly attached and adjusted without additional tools. Once installed, the bracket remains hidden, creating a sleek, modern appearance.

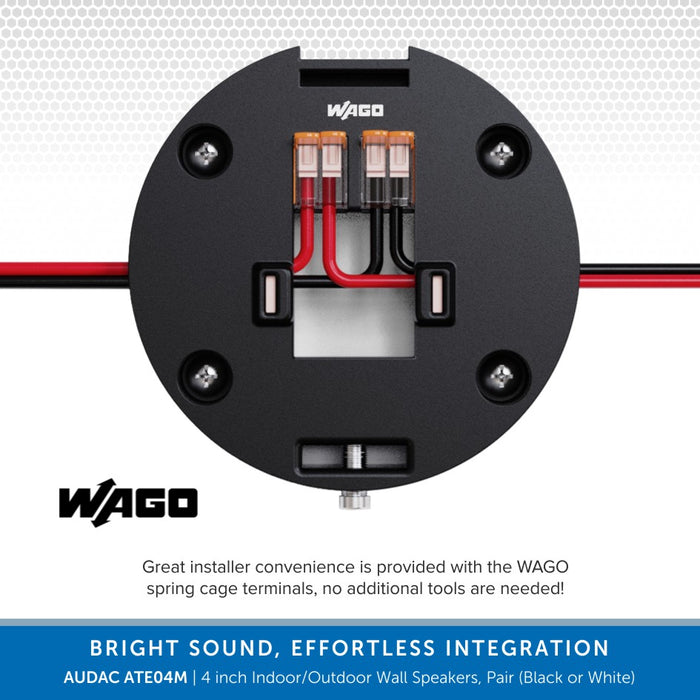

For installer convenience, the ATEO4M features official WAGO screwless connectors, enabling quick and tool-free wiring with cables up to 4mm² in thickness. This simplifies large-scale installations, reducing setup time by up to 50% compared to traditional systems.
The external power tap selector, discreetly positioned on the rear, allows for on-the-fly power adjustments without needing to dismount the speaker. This makes it easy to fine-tune the system even after installation.
AUDAC ATEO4M Key Features:
- Premium 4” Two-Way Speaker – 4” mid/low driver + 1” silk dome tweeter for high-fidelity sound
- Weatherproof IP66-Rated Design – Resistant to dust, water, and environmental factors
- Marine-Grade Build Quality – UV-resistant ABS housing with a hydrophobic aluminium grille
- Ultra-Flat Frequency Response – Detailed sound reproduction for music and speech clarity
- CleverMount+™ Technology – Seamless integration with no visible brackets or wiring
- Fast & Secure Installation – WAGO connectors allow tool-free wiring up to 4mm²
- External Power Tap Selector – Easy power adjustment without removing the speaker
- 720-Hour Salt Spray Certified – Ideal for coastal areas and humid conditions
- Black or White Finish – Designed to complement any modern or architectural space
- 5-Year Warranty – Built for long-term reliability and backed by AUDAC’s 5-year manufacturer warranty
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
AUDAC ATEO4M Specifications
- Speaker type: Full range
- Peak power handling: 140 W
- Program power handling: 70 W
- Continuous power (AES): 35 W
- Impedance: 8 Ω, 100V
- 100V Transformer Tappings: 24W, 12W, 6W
- Sensitivity (1W/1m): 86 dB
- Sound Pressure (Max. W/1m): @ 8 Ω 101 dB @ 100 V 100 dB
- Frequency Response (± 3 dB): 100 Hz - 20 kHz Range (-10 dB) 65 Hz - 20 kHz
- Dispersion: Horizontal 130° Vertical 130°
- Connectors: 2 x WAGO terminal block connections
- Drivers: 1” Dome tweeter 4” MF / LF Woofer
- Ingress Protection rating: IP66

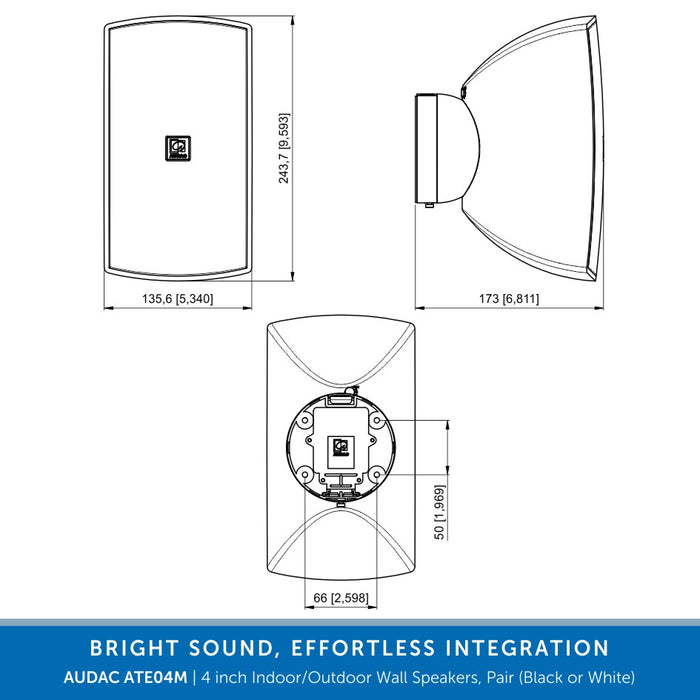

- Dimensions: 136 x 244 x 153 mm (W x H x D)
- Weight: 2.050 kg
- Operating temperature: -20 °C ~ 60 °C
- Mounting: Weatherproof CleverMount+™
- Construction: ABS
- Front finish: Aluminium grill with hydrophobic cloth
